Persistent emissions of ozone-depleting carbon tetrachloride from China during 2011–2021

Nature Geoscience volume 18, pages 593–598 (2025)Cite this article

Subjects

Abstract

Lingering global emissions of carbon tetrachloride (CCl4) are slowing ozone layer recovery. Estimates of global CCl4 emissions based on observed atmospheric mole fractions and inverse modelling (top down) exceed the emissions derived from known sources (bottom up) by ~30–40%. Here we derived CCl4 emissions from China for 2011–2021 using long-term atmospheric observations from a network of sites from across China and a top-down approach. Mean annual CCl4 emissions in China during 2011–2021 were between approximately 16 Gg yr−1 and 25 Gg yr−1, substantially larger than previous bottom-up inventories for China of less than 6 Gg yr−1 since 2011. Expressed in terms of ozone depletion potential (ODP)-weighted emissions, CCl4 annual emissions from China are comparable to global annual ‘unexpected’ trichlorofluoromethane (CFC-11) emissions during 2013–2018, or global total annual hydrochlorofluorocarbon emissions in 2020. The CCl4 emissions from China accounted for approximately half of the reported global total during 2011–2020, with neither showing a significant decreasing trend during this period. Substantial CCl4 emissions in China from allowed feedstock use, during the renewed production of CFC-11 between 2013 and 2018, and from by-production could close some of the emissions gap. However, ~4–15 Gg yr−1 of CCl4 emissions in China remain unexplained during 2011–2021, potentially accounting for more than half of the remaining global gap.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

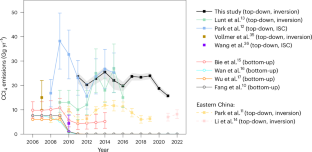

Fig. 1: Emissions of CCl4 in China.

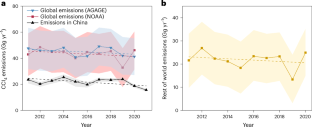

Fig. 2: Emissions of CCl4 in China and globally.

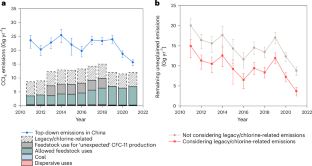

Fig. 3: Estimated emissions of CCl4 in China from potential sources.

Similar content being viewed by others

Data availability

The data used in the regional inversion, along with the source data for Figs. 1–3, Extended Data Figs. 2–5 and Extended Data Table 1, are available via Zenodo at https://doi.org/10.5281/zenodo.15033508 (ref. 57).

Code availability

Code for the hierarchical Bayesian inverse modelling framework NAME-HBMCMC used in this study is available via Zenodo at https://doi.org/10.5281/zenodo.10929382 (ref. 58).

References

  1. Laube, J. C. & Tegtmeier, S. in Scientific Assessment of Ozone Depletion: 2022 Vol. 278, Ch. 1 (World Meteorological Organization, 2022).

  2. Handbook for the Montreal Protocol on Substances that Deplete the Ozone Layer (United Nations Environment Programme, 2020).

  3. Carpenter, L. J. & Daniel, J. S. in Scientific Assessment of Ozone Depletion: 2018 Vol. 58, Ch. 6 (World Meteorological Organization, 2018).

  4. Daniel, J. S. & Reimann, S. in Scientific Assessment of Ozone Depletion: 2022 Vol. 278, Ch. 7 (World Meteorological Organization, 2022).

  5. Engel, A. & Rigby, M. in Scientific Assessment of Ozone Depletion: 2018 Vol. 58, Ch. 1 (World Meteorological Organization, 2018).

  6. SPARC Report on the Mystery of Carbon Tetrachloride (SPARC, 2016).

  7. Liang, Q. et al. Constraining the carbon tetrachloride (CCl4) budget using its global trend and inter-hemispheric gradient. Geophys. Res. Lett. 41, 5307–5315 (2014).

    Article  CAS  Google Scholar

  8. Butler, J. H. et al. A comprehensive estimate for loss of atmospheric carbon tetrachloride (CCl4) to the ocean. Atmos. Chem. Phys. 16, 10899–10910 (2016).

    Article  CAS  Google Scholar

  9. Sherry, D., McCulloch, A., Liang, Q., Reimann, S. & Newman, P. A. Current sources of carbon tetrachloride (CCl4) in our atmosphere. Environ. Res. Lett. 13, 024004 (2018).

    Article  Google Scholar

  10. Fang, X. et al. Changes in emissions of ozone-depleting substances from China due to implementation of the Montreal Protocol. Environ. Sci. Technol. 52, 11359–11366 (2018).

    Article  CAS  Google Scholar

  11. Park, S. et al. A decline in emissions of CFC-11 and related chemicals from eastern China. Nature 590, 433–437 (2021).

    Article  CAS  Google Scholar

  12. Park, S. et al. Toward resolving the budget discrepancy of ozone-depleting carbon tetrachloride (CCl4): an analysis of top-down emissions from China. Atmos. Chem. Phys. 18, 11729–11738 (2018).

    Article  CAS  Google Scholar

  13. Lunt, M. F. et al. Continued emissions of the ozone‐depleting substance carbon tetrachloride from Eastern Asia. Geophys. Res. Lett. 45, 11423–11430 (2018).

    Article  CAS  Google Scholar

  14. Li, B. et al. CCl4 emissions in eastern China during 2021–2022 and exploration of potential new sources. Nat. Commun. 15, 1725 (2024).

    Article  CAS  Google Scholar

  15. Bie, P., Fang, X., Li, Z., Wang, Z. & Hu, J. Emissions estimates of carbon tetrachloride for 1992–2014 in China. Environ. Pollut. 224, 670–678 (2017).

    Article  CAS  Google Scholar

  16. Wan, D., Xu, J., Zhang, J., Tong, X. & Hu, J. Historical and projected emissions of major halocarbons in China. Atmos. Environ. 43, 5822–5829 (2009).

    Article  CAS  Google Scholar

  17. Wu, J. et al. Banks, emissions, and environmental impacts of China’s ozone depletion substances and hydrofluorocarbon substitutes during 1980–2020. Sci. Total Environ. 882, 163586 (2023).

    Article  CAS  Google Scholar

  18. Chipperfield, M. P. et al. Renewed and emerging concerns over the production and emission of ozone-depleting substances. Nat. Rev. Earth Environ. 1, 251–263 (2020).

    Article  Google Scholar

  19. Graziosi, F. et al. Emissions of carbon tetrachloride from Europe. Atmos. Chem. Phys. 16, 12849–12859 (2016).

    Article  CAS  Google Scholar

  20. Hu, L. et al. Continued emissions of carbon tetrachloride from the United States nearly two decades after its phaseout for dispersive uses. Proc. Natl Acad. Sci. USA 113, 2880–2885 (2016).

    Article  CAS  Google Scholar

  21. Fraser, P. J. et al. Australian carbon tetrachloride emissions in a global context. Environ. Chem. 11, 77–88 (2014).

    Article  CAS  Google Scholar

  22. Report of the Technology and Economic Assessment Panel: Progress Report Volume 1 (United Nations Environment Programme, 2024).

  23. Updated Report on the Production of CTC and Its Feedstock Uses in China (Decision 84/41(b) and (c)). UNEP/OzL.Pro/ExCom/90/9/Add.1 (United Nations Environment Programme, 2022).

  24. Li, B. et al. Emission factors of ozone-depleting chloromethanes during production processes based on field measurements surrounding a typical chloromethane plant in China. J. Clean. Prod. 414, 137573 (2023).

    Article  CAS  Google Scholar

  25. Report of the Medical and Chemical Technical Options Committee: 2022 Assessment Report (United Nations Environment Programme, 2022).

  26. Rigby, M. et al. Increase in CFC-11 emissions from eastern China based on atmospheric observations. Nature 569, 546–550 (2019).

    Article  CAS  Google Scholar

  27. Report of the Technology and Economic Assessment Panel. Volume 3: Decision XXXI/3 TEAP Task Force Report on Unexpected Emissions of Trichlorofluoromethane (CFC-11) (United Nations Environment Programme, 2021).

  28. Montzka, S. A. et al. A decline in global CFC-11 emissions during 2018−2019. Nature 590, 428–432 (2021).

    Article  CAS  Google Scholar

  29. Montzka, S. A. et al. An unexpected and persistent increase in global emissions of ozone-depleting CFC-11. Nature 557, 413–417 (2018).

    Article  CAS  Google Scholar

  30. CCl4 market price. ChinaIOL http://data.chinaiol.com (2025).

  31. Burkholder, J. B. & Hodnebrog, Ø. in Scientific Assessment of Ozone Depletion: 2022 Vol. 278, Annex (World Meteorological Organization, 2022).

  32. Lickley, M., Fletcher, S., Rigby, M. & Solomon, S. Joint inference of CFC lifetimes and banks suggests previously unidentified emissions. Nat. Commun. 12, 2920 (2021).

    Article  CAS  Google Scholar

  33. Pyle, J. A., Keeble, J., Abraham, N. L., Chipperfield, M. P. & Griffiths, P. T. Integrated ozone depletion as a metric for ozone recovery. Nature 608, 719–723 (2022).

    Article  CAS  Google Scholar

  34. Western, L. M. et al. Global increase of ozone-depleting chlorofluorocarbons from 2010 to 2020. Nat. Geosci. 16, 309–313 (2023).

    Article  CAS  Google Scholar

  35. Vollmer, M. K. et al. Emissions of ozone-depleting halocarbons from China. Geophys. Res. Lett. 36, L15823 (2009).

    Article  Google Scholar

  36. Wang, C. et al. Estimating halocarbon emissions using measured ratio relative to tracers in China. Atmos. Environ. 89, 816–826 (2014).

    Article  CAS  Google Scholar

  37. Prinn, R. G. et al. History of chemically and radiatively important atmospheric gases from the Advanced Global Atmospheric Gases Experiment (AGAGE). Earth Syst. Sci. Data 10, 985–1018 (2018).

    Article  Google Scholar

  38. An, M. et al. Sustained growth of sulfur hexafluoride emissions in China inferred from atmospheric observations. Nat. Commun. 15, 1997 (2024).

    Article  CAS  Google Scholar

  39. An, M. et al. Anthropogenic chloroform emissions from China drive changes in global emissions. Environ. Sci. Technol. 57, 13925–13936 (2023).

    Article  CAS  Google Scholar

  40. An, M. et al. Rapid increase in dichloromethane emissions from China inferred through atmospheric observations. Nat. Commun. 12, 7279 (2021).

    Article  CAS  Google Scholar

  41. An, M. et al. Substantial increase in perfluorocarbons CF4 (PFC-14) and C2F6 (PFC-116) emissions in China. Proc. Natl Acad. Sci. USA 121, e2400168121 (2024).

    Article  CAS  Google Scholar

  42. Say, D. et al. Emissions and marine boundary layer concentrations of unregulated chlorocarbons measured at Cape Point, South Africa. Environ. Sci. Technol. 54, 10514–10523 (2020).

    Article  CAS  Google Scholar

  43. Western, L. M. et al. A renewed rise in global HCFC-141b emissions between 2017–2021. Atmos. Chem. Phys. 22, 9601–9616 (2022).

    Article  CAS  Google Scholar

  44. Arnold, T. et al. Automated measurement of nitrogen trifluoride in ambient air. Anal. Chem. 84, 4798–4804 (2012).

    Article  CAS  Google Scholar

  45. Miller, B. R. et al. Medusa: a sample preconcentration and GC/MS detector system for in situ measurements of atmospheric trace halocarbons, hydrocarbons, and sulfur compounds. Anal. Chem. 80, 1536–1545 (2008).

    Article  CAS  Google Scholar

  46. Jones, A., Thomson, D., Hort, M. & Devenish, B. in Air Pollution Modeling and its Application XVII (eds Borrego, C. & Norman, A.-L.) 580–589 (Springer, 2007).

  47. Finkel, R. A. & Bentley, J. L. Quad trees a data structure for retrieval on composite keys. Acta Inform. 4, 1–9 (1974).

    Article  Google Scholar

  48. Rigby, M. et al. Re-evaluation of the lifetimes of the major CFCs and CH3CCl3 using atmospheric trends. Atmos. Chem. Phys. 13, 2691–2702 (2013).

    Article  Google Scholar

  49. Ganesan, A. L. et al. Characterization of uncertainties in atmospheric trace gas inversions using hierarchical Bayesian methods. Atmos. Chem. Phys. 14, 3855–3864 (2014).

    Article  Google Scholar

  50. Version 4 DMSP-OLS Nighttime Lights Time Series (NOAA’s National Geophysical Data Center, accessed 1 March 2021); https://ngdc.noaa.gov/eog/data/web_data/v4composites/

  51. Consumption of controlled substances. United Nations Environment Programme https://ozone.unep.org/countries/data (2024).

  52. Department of Energy Statistics, National Bureau of Statistics of China. China Energy Statistical Yearbook (in Chinese) (China Statistics Press, 2022).

  53. Production and Consumption of Ozone Depleting Substances under the Montreal Protocol: 1986–2000 (United Nations Environment Programme, 2002).

  54. National Bureau of Statistics of China. China Statistical Yearbook (China Statistics Press, 2022).

  55. Bie, P. Emissions Estimates and Fate of Typical Halogenated Methanes (in Chinese) (Peking Univ., 2018).

  56. Hossaini, R. et al. On the atmospheric budget of 1,2-dichloroethane and its impact on stratospheric chlorine and ozone (2002–2020). Atmos. Chem. Phys. 24, 13457–13475 (2024).

    Article  CAS  Google Scholar

  57. An, M. & Yao, B. Data for regional inversion of carbon tetrachloride from China. Zenodo https://doi.org/10.5281/zenodo.15033508 (2025).

  58. An, M. Code for NAME-HBMCMC inversion to estimate regional emissions of halogenated substances. Zenodo https://doi.org/10.5281/zenodo.10929382 (2024).

Download references

Acknowledgements

This work was supported by the National Key Research and Development Program of China (grant no. 2019YFC0214500), Shanghai B&R Joint Laboratory Project (no. 22230750300), and China Meteorological Administration ‘The Major Technology R&D and Application of Greenhouse Gas Observation’ Youth Innovation Team (team no. CMA2023QN13). Support also came from Zhejiang Provincial Natural Science Foundation of China (grant no. LTGS23D050001). M.A., R.G.P., A.L.G. and M.R. were funded by NASA grant 80NSSC21K1369 to MIT. L.M.W. received funding from the European Union’s Horizon 2020 research and innovation programme under Marie Skłodowska-Curie grant agreement no. 101030750. A.L.G. and M.R. received funding from the Investigating HALocarbon impacts on the Global Environment (InHALE) NERC Highlight Topic (NE/X00452X/1). J.M., C.M.H. and R.F.W. were supported by NASA grants 80NSSC21K1210 and 80NSSC21K1201 to Scripps Institution of Oceanography. We acknowledge NOAA for the global emissions derived from their global network. We acknowledge the support from members of the Atmospheric Chemistry Research Group at University of Bristol and thank the UK Met Office for the support and licensing for NAME.

Author information

Authors and Affiliations

  1. College of Environmental Sciences and Engineering, Peking University, Beijing, China

    Minde An, Xingchen Zhao & Jianxin Hu

  2. Center for Sustainability Science and Strategy, Massachusetts Institute of Technology, Cambridge, MA, USA

    Minde An, Ronald G. Prinn, Anita L. Ganesan & Matthew Rigby

  3. School of Chemistry, University of Bristol, Bristol, UK

    Minde An, Luke M. Western, Simon O’Doherty & Matthew Rigby

  4. Department of Atmospheric and Oceanic Sciences and Institute of Atmospheric Sciences, Fudan University, Shanghai, China

    Bo Yao

  5. Meteorological Observation Centre of China Meteorological Administration, Beijing, China

    Bo Yao & Wenxue Chi

  6. Shanghai Key Laboratory of Ocean–Land–Atmosphere Boundary Dynamics and Climate Change, Shanghai, China

    Bo Yao

  7. Scripps Institution of Oceanography, University of California San Diego, La Jolla, CA, USA

    Jens Mühle, Christina M. Harth & Ray F. Weiss

  8. Empa, Laboratory for Air Pollution/Environmental Technology, Swiss Federal Laboratories for Materials Science and Technology, Dübendorf, Switzerland

    Stefan Reimann & Martin K. Vollmer

  9. Zhejiang Institute of Meteorological Sciences, Hangzhou, China

    Honghui Xu & Yan Yu

  10. School of Geographical Sciences, University of Bristol, Bristol, UK

    Anita L. Ganesan

Authors
  1. Minde An
    View author publications

    Search author on:PubMed Google Scholar

  2. Bo Yao
    View author publications

    Search author on:PubMed Google Scholar

  3. Luke M. Western
    View author publications

    Search author on:PubMed Google Scholar

  4. Ronald G. Prinn
    View author publications

    Search author on:PubMed Google Scholar

  5. Xingchen Zhao
    View author publications

    Search author on:PubMed Google Scholar

  6. Jianxin Hu
    View author publications

    Search author on:PubMed Google Scholar

  7. Jens Mühle
    View author publications

    Search author on:PubMed Google Scholar

  8. Stefan Reimann
    View author publications

    Search author on:PubMed Google Scholar

  9. Martin K. Vollmer
    View author publications

    Search author on:PubMed Google Scholar

  10. Christina M. Harth
    View author publications

    Search author on:PubMed Google Scholar

  11. Simon O’Doherty
    View author publications

    Search author on:PubMed Google Scholar

  12. Ray F. Weiss
    View author publications

    Search author on:PubMed Google Scholar

  13. Wenxue Chi
    View author publications

    Search author on:PubMed Google Scholar

  14. Honghui Xu
    View author publications

    Search author on:PubMed Google Scholar

  15. Yan Yu
    View author publications

    Search author on:PubMed Google Scholar

  16. Anita L. Ganesan
    View author publications

    Search author on:PubMed Google Scholar

  17. Matthew Rigby
    View author publications

    Search author on:PubMed Google Scholar

Contributions

J.H., B.Y. and M.A. designed the research. M.A., supported by L.M.W., A.L.G. and M.R., conducted the regional inversion. B.Y., H.X. and Y.Y. provided measurement data. J.M., C.M.H. and R.F.W. contributed to the measurement data calibration. X.Z. and J.H. gathered some of the industry data. M.R. and L.M.W. provided the AGAGE 12-box model output of background mole fractions. M.A. led the writing of the paper, with contributions from R.G.P., L.M.W., M.R., S.R., J.M., M.K.V., W.C, S.O’D., B.Y. and all other authors.

Corresponding authors

Correspondence to Minde An, Bo Yao or Jianxin Hu.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Geoscience thanks the anonymous reviewers for their contribution to the peer review of this work. Primary Handling Editors: Xujia Jiang and Thomas Richardson, in collaboration with the Nature Geoscience team.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Spatial distribution of CCl4 emissions.

Each plot of (a-k) shows the spatial distribution of the top-down CCl4 emissions in Eastern Asia with focus on China in each year. The black dots represent the active measurement sites in the years. The purple triangles represent the chloromethane factories in China.

Extended Data Fig. 2 Subregional CCl4 emissions in China.

The emissions for each subregion were the mean values of the 2 × 105 samples from the MCMC method during inversion, with the error bars representing the corresponding 68% uncertainty intervals. The subregions in China were defined following a previous study39, North: Inner Mongolia, Hebei, Tianjin, Beijing, Shanxi; Northeast: Liaoning, Jilin, Heilongjiang; East: Shandong, Jiangsu, Anhui, Shanghai, Zhejiang, Jiangxi, Fujian; Central: Hunan, Hubei, Henan; South: Guangdong, Guangxi, Hainan; Southwest: Yunnan, Xizang, Sichuan, Guizhou, Chongqing; Northwest: Xinjiang, Qinghai, Gansu, Ningxia, Shaanxi. Hong Kong, Macao, Taiwan and ocean regions are not included in this study. Note that the definition of the subregion “east of China” here differs from the definition of “eastern China” used in the main text as defined by Park et al.11.

Extended Data Fig. 3 Emissions of CCl4 in eastern China.

The derived CCl4 emissions in eastern China in this study (red line) were compared to those derived in Park et al.11 (blue line). The emission values for this study and their error bars are the mean values and 68% uncertainty intervals of the 2 × 105 MCMC samples, respectively. The CCl4 emissions in eastern China in this study using measurements from the Chinese network exhibit a different trend without a distinct maxima from 2013-2017 (but similar magnitude) compared to Park et al.11 (using observations outside of China). The decline in CCl4 emissions from eastern China derived in this study started around 2018-2019, later than the decrease of CCl4 from eastern China in Park et al.11, but at a similar time to the decline in global emissions of CCl4 and CFC-111,28. This decline in CCl4 emissions from eastern China since 2019, including from regions identified with elevated CFC-11 emissions11,26 (see Extended Data Fig. 1), could be related to the end of CFC-11 production after 2019 in China. There was an additional drop in CCl4 emissions in this study for 2015-2016, which was also observed in reported global CCl4 emissions1 (Fig. 2a), but the reasons for this decline are not known. The difference between this study and Park et al.11 could be caused by the different sensitivities of observations to emissions in China between the site outside of China (South Korean site) and the Chinese network (Supplementary Figs. S3-4).

Extended Data Fig. 4 Unaccounted-for CCl4 emissions (a) and their proportion to top-down emissions (b) in China.

The red and grey lines represent the unexplained emissions considering or not considering ~5.1 Gg yr−1 of emissions due to legacy emissions and by-product emissions related to chlorine production and usage. All values shown are the mean values derived from the MCMC method, with error bars for the 68% uncertainty intervals. The linear regression trend for the unexplained CCl4 emissions in China (lines in plot (a)) is −0.73 ± 0.23 Gg yr−2 over the 11 years during 2011-2021. The linear regression trend for the proportion of unexplained emissions during the 11-year period from 2011 to 2021 is −0.023 ± 0.007 yr−1 when considering the legacy and chlorine-related emissions (red line in plot (b)), and −0.022 ± 0.006 yr−1 without these emissions (grey line in plot (b)). The negative linear regression trends for both the unaccounted-for CCl4 emissions and their proportion to top-down emissions in China are significantly different from zero at the 5% level (p < 0.05). Note that only the uncertainties from the top-down emissions are considered here. Including the uncertainties in the bottom-up emissions, which are currently unknown, would likely reduce the confidence in the calculated trends. However, we anticipate that systematic errors in the bottom-up emissions may dominate over random errors, meaning that the negative trends would persist, but with larger uncertainty in the magnitude of the emissions gap.

Extended Data Fig. 5 Market price of CCl4 in China.

The price data was the annual mean price for each year in Chinese Yuan per tonne, obtained from ChinaIOL30. Only data since 2019 were available.

Extended Data Table 1 Correlations between the mole fraction enhancements above baselines of CCl4 and CFC-12 at all sites
Full size table

Supplementary information

Supplementary Information (download PDF )

Supplementary Figs. 1–10, Texts 1–3 and Tables 1 and 2.
