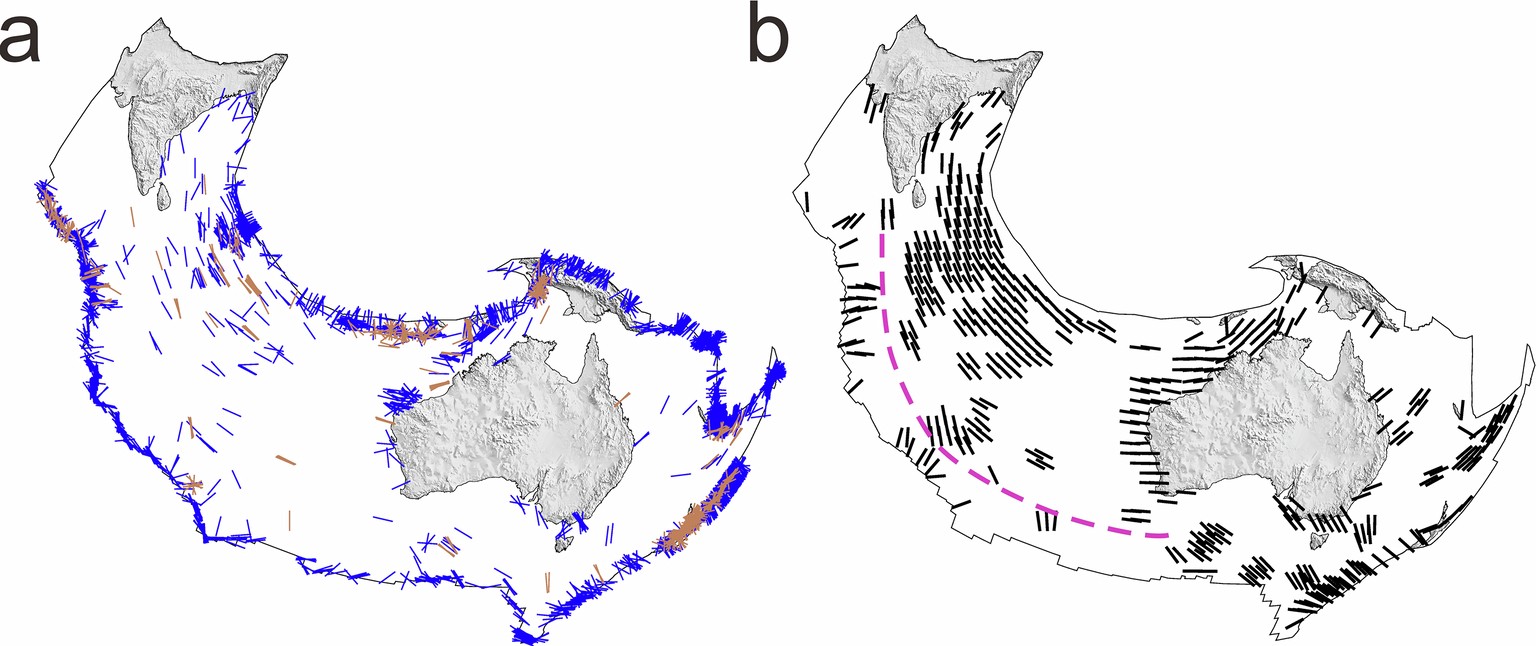

Extended Data Fig. 1: SHmax records and mean orientations for the Indo-Australian plate.
From: Ongoing India–Eurasia collision predominantly driven by Sumatra–Java slab pull
(a) Data records of SHmax. The blue bars indicate SHmax orientations from the World Stress Map 201638, while the brown bars represent focal mechanism solution data from the ISC for the period from January 2016 to October 2023. (b) Mean SHmax orientations on a regular grid of 1.5° computed from the data shown in (a). The inferred position of the SOT is indicated by the magenta dashed line.
