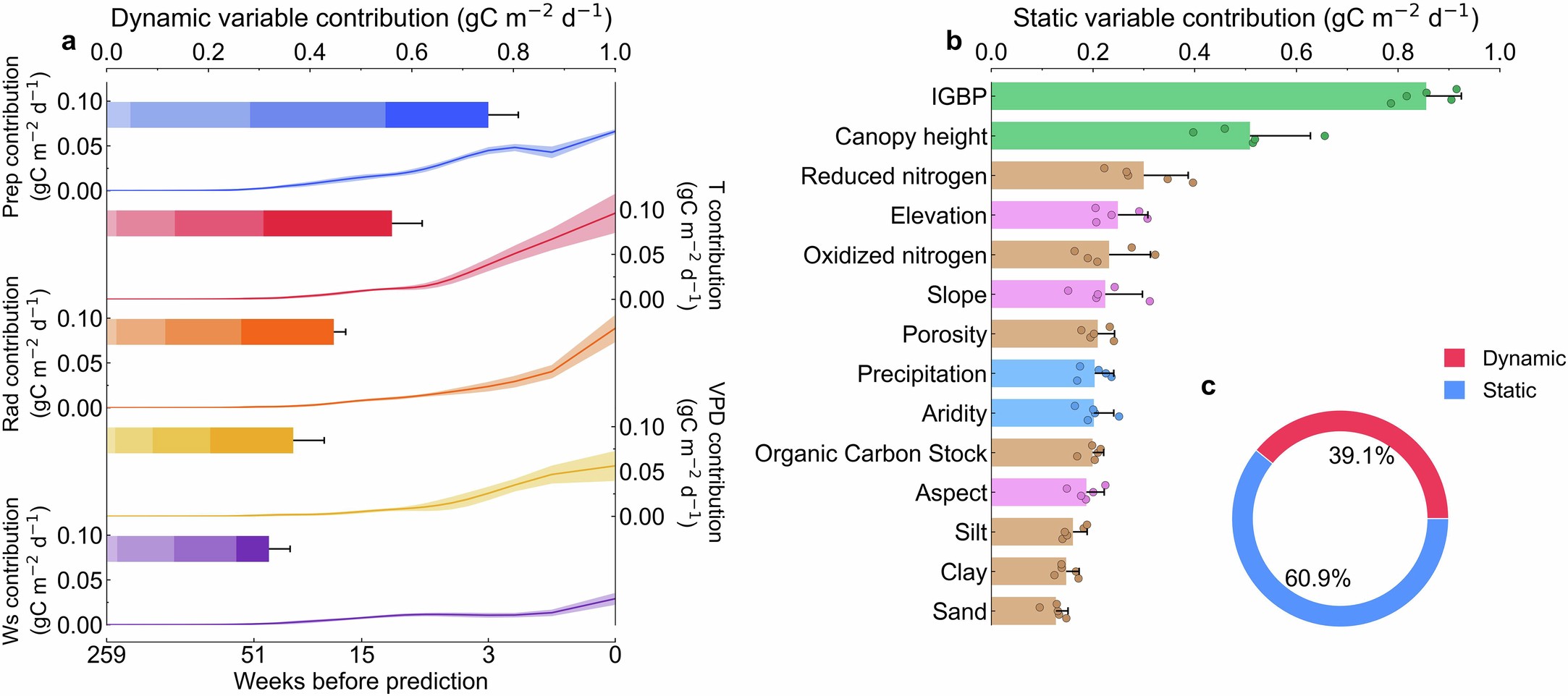

Extended Data Fig. 4: Contributions of dynamic and static variables for the eddy covariance sites.
From: Large contribution of antecedent climate to ecosystem productivity anomalies during extreme events
a, Site-scale average contributions of meteorological variables for all plant functional types except croplands (due to insufficient consideration of human management activities in our model). The bars represent aggregated contributions over four distinct periods (current month, preceding 2–4 months, 5–12 months, and 13–60 months). The bottom x-axis is log-transformed. b, Site-scale average contributions of static variables for all plant functional types except croplands. c, Comparison of the contributions for dynamic and static variables. Shaded areas in a and error bars in a and b indicate the corresponding 95% confidence intervals, averaged over five models (two-sided t-test). Each meteorological variable is represented by colours ranging from dark to light, corresponding to the current month, preceding 2–4 months, 5–12 months, and 13–60 months, respectively.
