Extended Data Fig. 7: Nucleation location sensitivity tests with the preferred model set-up.

From: Seismic gap breached by the 2025 Mw 7.7 Mandalay (Myanmar) earthquake

Extended Data Fig. 7

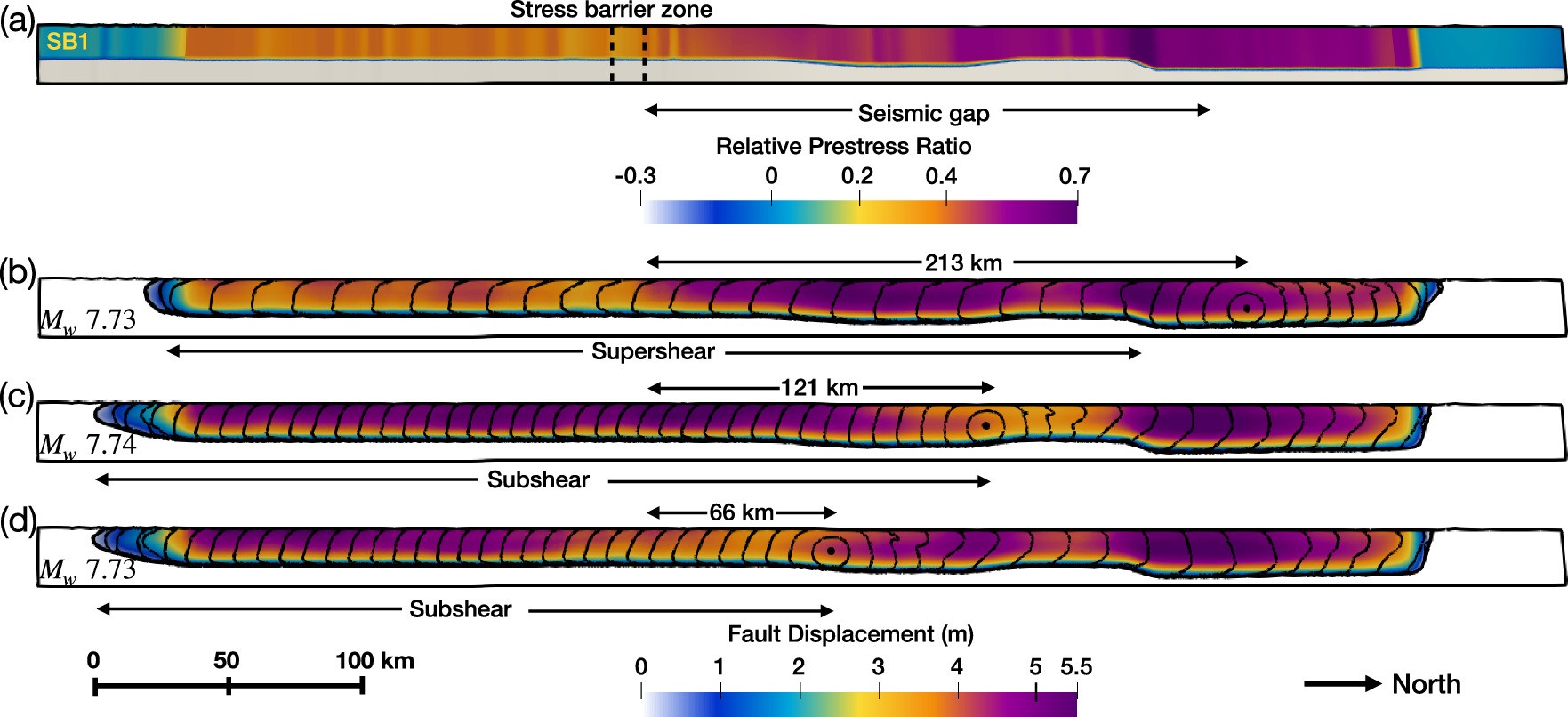

(a) Relative prestress ratio of the fault model (SB1) used as the preferred model for the Mw 7.7 Myanmar earthquake simulation. (b-d) Final fault slip for rupture scenarios initiated at 213 km, 121 km, and 66 km north of the stress barrier zone, respectively. Black contours denote 3-second rupture time intervals. The resulting moment magnitude is indicated in the bottom-left of each panel.
