Main

On 28 March 2025, a magnitude Mw 7.7 (Mw, moment magnitude) earthquake occurred near Mandalay, Myanmar’s second-largest city, which is inhabited by ~1.2 million people. This extreme temblor ruptured ~460 km along the central Sagaing fault and created widespread destruction throughout Myanmar. Strong ground shaking was also reported in neighbouring countries, notably even in Bangkok at over 1,000-km epicentral distance. The earthquake caused more than 5,000 fatalities and 11,000 injured, and hundreds of people were reported missing.

The Sagaing Fault Zone (SFZ), a right-lateral strike–slip plate boundary between the Sunda and Burma plates, extends over 1,200 km in the north–south direction1,2. Accommodating about half of the relative plate motion with a variable slip rate of 11–24 mm per year3,4,5, it is among the most seismically active faults in mainland Southeast Asia6,7 (Fig. 1a).

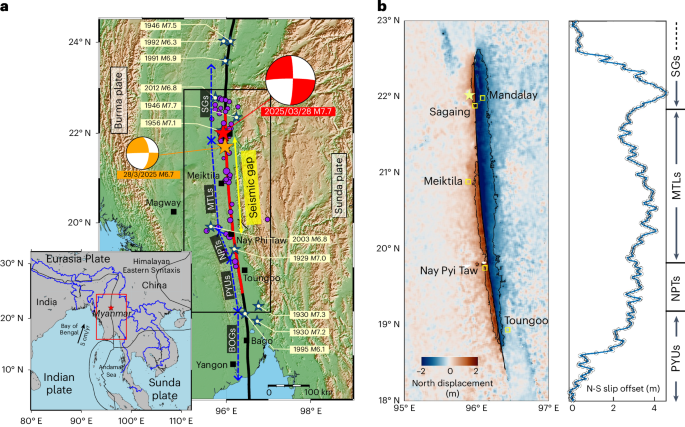

Fig. 1: Tectonic setting and coseismic displacements of the 2025 Mw 7.7 Mandalay earthquake.
figure 1

a, Tectonic map showing the Sagaing Fault (black line) and its different fault sections7, the coseismic surface rupture trace (red line), aftershocks recorded during the month after the event (from the IRIS database; purple circles, scaled by magnitude; range Mw 3.5–6.7) and major historical earthquakes (blue stars)7. Focal mechanisms of the Mw 7.7 mainshock and Mw 6.7 aftershock are shown as red and orange beachballs, respectively. The spatial extent of the seismic gap is revised according to ref. 6, taking into account the 1929 M 7 and 2003 Mw 6.8 earthquakes in the Nay Pyi Taw section. The black box outlines the area shown in b, and the inset map shows the plate-tectonics setting of Myanmar (the red box marks the study area). SGs, Sagaing fault section; MTLs, Meiktila section; NPTs, Nay Pyi Taw section; PYUs, Pyu section; BGOs, Bago section. b, Left: north component of the surface displacement derived from Sentinel-1 SAR data. The smooth black line indicates the SAR-mapped fault rupture trace, black contours mark displacement of 1 m, and the yellow star denotes the mainshock epicentre (from IRIS). Right: along-fault surface slip offset.

Full size image

In southern Myanmar, the 1930 surface magnitude (M) 7.2 and M 7.3 earthquakes ruptured the Bago and Pyu fault sections, respectively6,8. The Nay Pyi Taw section hosted an M 7 earthquake in 1929 and an Mw 6.8 event in 20036,7. To the north, the 1946 M 7.7 and 1956 M 7.1 earthquakes broke the Sagaing fault section7,8, which also hosted the 2012 Mw 6.8 Thabeikkyin earthquake. In contrast, until the 2025 temblor the Meiktila section had been seismically quiet since 1839, defining an ~220-km-long seismic gap6,7,9.

Earthquake cycle theory suggests that faults or fault sections devoid of large earthquakes for many decades or even centuries are probable locations of future events10. Termed ‘seismic gaps’, these fault areas are generally identified from historical records, earthquake catalogues, geodetic measurements and field geological investigations6,11. The seismic gap hypothesis further posits that seismic hazard is lowest immediately after a major rupture, assuming that stress was fully released coseismically and then increases again interseismically due to long-term tectonic loading12,13. Based on a seismic gap’s areal extent and information on earthquake recurrence time, the seismic gap hypothesis has been used to estimate the dimensions, timing and magnitude of future earthquakes14,15, although such estimates carry considerable epistemic uncertainty12,16,17.

The 2025 Mw 7.7 Mandalay earthquake challenges the seismic gap hypothesis. The rupture nucleated near the northern edge of the Meiktila seismic gap, propagated through the gap, and then continued even farther for over 160 km beyond its southern boundary, producing an unusually long rupture of ~460 km. Other examples of ‘rupture overshoot’ include the 2010 Mw 8.8 Maule earthquake that initiated within the seismic gap and propagated bilaterally beyond it18. Similarly, the 2004 Mw 9.2 Sumatra–Andaman earthquake ruptured fault areas associated with the 1881 (M 7.5), 1881 (M 7.9) and 1941 (M 7.7) events, forming a continuous rupture zone of ~1,300-km length along the Sunda megathrust19. These cases have led to debates on the reliability of identified seismic gaps and their viability in estimating rupture extent and the magnitude of future earthquakes20. Understanding the enabling factors for ruptures to break through seismic gap boundaries helps to improve seismic hazard assessment and to better prepare for future large earthquakes in such regions.

Coseismic rupture imaging

A 460-km-long surface rupture

Using interferometric synthetic aperture radar (InSAR)21 and pixel offset tracking (POT)22, we derived the three-dimensional (3D) coseismic surface-displacement field of this earthquake using the strain model with variance component estimation (SM-VCE) method23. The measurements reveal a total coseismic surface-rupture length of ~460 km (Fig. 1b), with horizontal displacements dominating the displacement field (Extended Data Fig. 1). The horizontal displacement field shows a maximum coseismic surface slip of ~4.5 m near the epicentre (at ~22° N). The slip-offset amplitude decreases sharply to the north, yielding a rupture extent of ~60 km towards north. To the south, the surface displacement initially tapers to ~2.3 m at an epicentral distance of 60 km, before increasing again to a secondary peak of 4.1 m near 20.5° N, ~160 km south of the epicentre. Surface slip terminates near 18.4° N, resulting in a southward rupture extent of ~400 km, so the overall rupture length is ~460 km.

The north displacements are asymmetric across the fault, particularly along the northern surface rupture (Fig. 1b). To the south, this asymmetry becomes less pronounced and the zone of coseismic surface deformation becomes narrower. These displacement patterns are confirmed by optical satellite image correlation (Extended Data Fig. 2). Together, our results indicate along-strike variations in the fault geometry, suggesting a shallower fault dip but deeper fault slip towards the north.

Rupture complexity from back-projection

To map the coseismic rupture evolution, we applied back-projection using three global seismic arrays (Supplementary Fig. 1) in different frequency ranges (Fig. 2a). Our results reveal simultaneous bilateral north-to-south rupture propagation in the initial ~20 s. To the north, the rupture propagated with an average rupture velocity of VR ≈ 3 km s−1 and ceased ~60 km from the epicentre. By contrast, southward rupture continued for longer, transitioned from a subshear to supershear VR, and sustained the supershear rupture for an additional ~70 s with an average velocity of ~4.8 km s−1 (Fig. 2b). The total rupture duration was ~90 s over a distance of ~460 km, consistent with the SAR image observations.

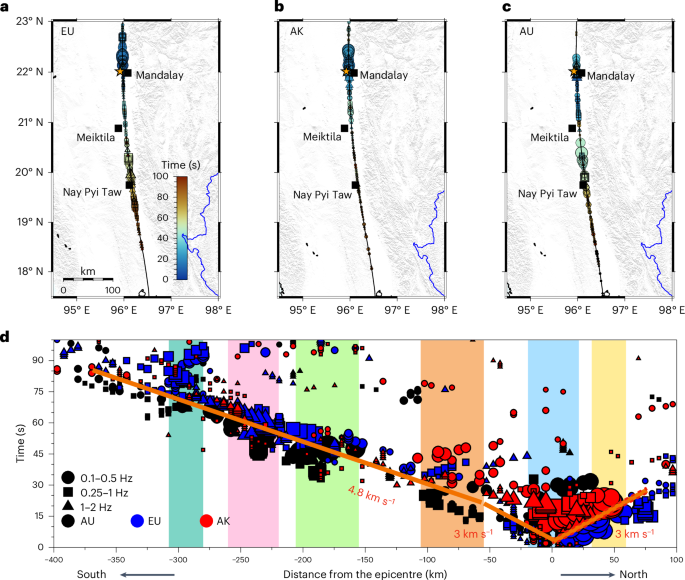

Fig. 2: Array- and frequency-dependent back-projection for the 2025 Mw 7.7 Mandalay earthquake.
figure 2

a–c, Back-projection using the European Array (EU) (a), Alaskan Array (AK) (b) and Australian Array (AU) (c), respectively. Different symbols represent different frequency bands (shown bottom left, d). Symbol size corresponds to the relative peak beam power within each frequency band, and colours indicate rupture timing. d, Rupture distance as a function of time, with solid orange lines denoting the average rupture propagation. Colour-shaded regions highlight distinct clusters of high-frequency radiation inferred from the back-projection.

Full size image

The back-projection results reveal frequency- and array-dependent high-frequency seismic-radiation sources (Fig. 2a), indicating effects of the rupture directivity and space–time complexity of the rupture process24 (Methods). Several distinct high-frequency radiation clusters are observed (Fig. 2b). The first cluster (blue-shaded region) around the epicentre (near Mandalay city) marks the initial phase of the rupture. The second cluster (yellow-shaded region) occurs at the northern rupture termination due to a strong rupture-stopping phase. Yet another cluster is observed south of the epicentre (orange-shaded region), coinciding with the subshear-to-supershear rupture-speed transition. This location also shows a change in the surface-slip offset trend, where the fault offset transitions from decreasing to increasing (Fig. 1b). Finally, the three arrays consistently identify a cluster of strong seismic radiation near Nay Pyi Taw, suggesting a pronounced change in rupture behaviour. This area marks the southern boundary of the seismic gap, suggesting a localized variation in stress conditions and/or change in fault geometry.

Rupture process modelling

Bayesian finite-fault estimation

For kinematic and dynamic rupture modelling, we define the fault geometry using the coseismic surface displacements derived from SAR image observations and optical image correlation (Fig. 1b and Extended Data Fig. 2). The data define an almost linear surface-rupture trace, with a minor eastward bend 190 km south of the northernmost rupture. Therefore, we represent the surface-rupture trace by two fault segments, labelled FP1 and FP2, which we elongate slightly to fully capture the coseismic fault slip. Segment FP1 has a strike of 358° and a length of 200 km, and segment FP2 strikes 352° and extends for 320 km. As aftershock data are sparse, we combine geodetic (Fig. 1b and Extended Data Fig. 1) and seismic observations (Supplementary Fig. 2a) for Bayesian estimation of the fault dip and width, as well as average slip. Our results indicate that segments FP1 and FP2 dip eastward at ~70° and ~80°, respectively (Extended Data Fig. 3). This result aligns with the northward-increasing asymmetry observed in the SAR data (Fig. 1b).

Based on inferred fault geometry, we performed Bayesian estimation to determine the coseismic on-fault slip from 3D surface displacements and teleseismic data. Like the back-projection, the joint inversion (Fig. 3a) reveals two distinct rupture stages: rupture begins bilaterally with an initial rupture speed of ~3.3 km s−1; northward rupture stops after 20 s while southward rupture accelerates during the second stage to ~4.6 km s−1 and then terminates at the northern portion of the Pyu fault segment (PYUs) after ~90 s. Large slip patches are found near the epicentre in the north and along the Meiktila section (MTLs)—the unbroken seismic gap for nearly two centuries7—with peak slip reaching ~5 m. To the south, slip decreases and becomes gradually shallower. The Bayesian joint inversion achieves a good fit to local surface displacement and teleseismic waveform data (variance reduction of 78% and 50%, respectively; Extended Data Figs. 4 and 5).

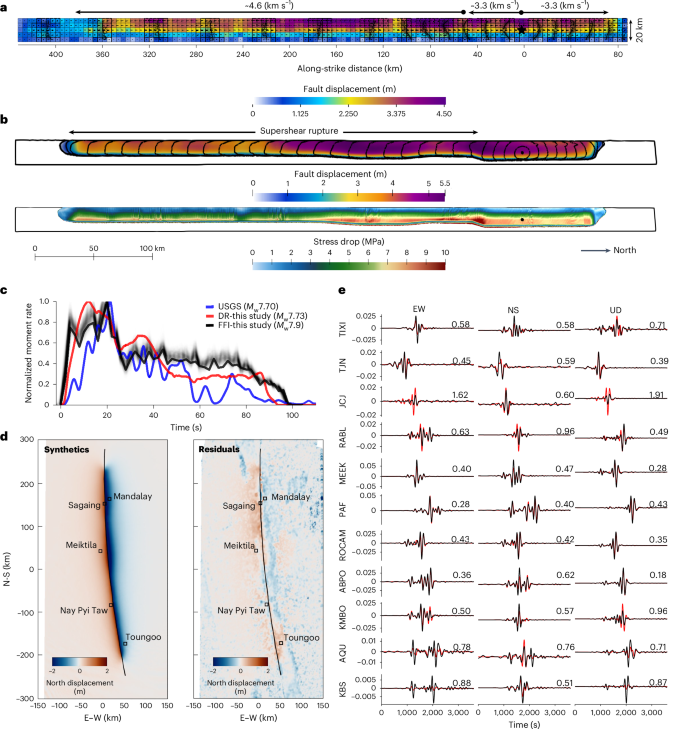

Fig. 3: Kinematic and dynamic models for the 2025 Mw 7.7 Mandalay earthquake.
figure 3

a, Final fault slip from the kinematic Bayesian finite-fault inversion. b, Final slip of the dynamic rupture simulation (with 3-s rupture-time contours) and associated stress drop. c, Normalized MRFs from the Bayesian inversion (including grey-shaded uncertainty bands), dynamic rupture simulations (DR) and the USGS kinematic finite-fault inversion (FFI). d, Predicted surface displacements (north) from the dynamic rupture simulation and corresponding residuals relative to the observed data (Fig. 1b). e, Teleseismic waveform comparison (filter range, 100–500 s), with black and red lines showing recorded and synthetic waveforms from the dynamic rupture simulation, respectively, for the east–west (EW), north–south (NS), and up–down (UD) components. For each station, the root mean square (RMS) misfit for each component is shown to the right of the waveforms. The higher misfit at stations KBS and JCJ is probably due to the combined effects of rupture directivity, unfavourable station azimuth (opposite to rupture propagation) or near-nodal planes, and unmodelled 3D velocity heterogeneity43,49,50.

Full size image

Rupture dynamics and ground-motion characteristics

To investigate the physical rupture process, we constructed a fault geometry model based on the SAR image data, Bayesian fault estimation and previous GNSS studies (Methods), and set the prestress loading conditions (Extended Data Fig. 2c). The fault is embedded in a 3D seismic velocity structure25 (Supplementary Fig. 3) that comprises pronounced velocity anomalies along the fault and relatively higher velocities to its east.

Our dynamic simulations generate rupture behaviour consistent with the back-projection analysis and Bayesian finite-fault estimation (Fig. 3). Rupture initiates near Mandalay and propagates bilaterally to the north and south. The moment rate function (MRF) reaches its first peak at ~12 s. After ~15 s, southward rupture experiences a subshear-to-supershear transition (visualized by the widening spatial interval between successive rupture time contours; Fig. 3b) that coincides with decreasing surface-slip in the SAR data (Fig. 1b). The northward rupture ceases after ~23 s (note the visible trough in the MRF). Subsequently, southward rupture features a high-slip asperity that produces a second MRF peak near ~35 s, before it traverses the southern edge of the Meiktila seismic gap at ~55 s (marked by a slight decrease in MRF amplitude). Subsequently, the MRF stabilizes and the sustained supershear rupture propagates steadily until it stops at ~90 s. Our dynamic rupture models has an average slip of 3.73 m and mean stress drop of 4.74 MPa.

The on-fault slip distribution of the dynamic rupture model and MRF evolution are consistent with the Bayesian inversion (Fig. 3a–c), albeit the two modelling approaches use entirely different data and methods. Two dominant slip patches are evident, near the hypocentre and ~160 km to the south, accompanied by several smaller patches even farther south. The peak slip in the dynamic model reaches ~5.8 m, comparable to the 5 m estimated in the Bayesian inversion. The resulting synthetic teleseismic waveforms show good agreement with observations across all azimuths, both in timing and amplitude (Fig. 3e and Supplementary Fig. 2). The dynamic rupture model reproduces the observed SAR surface displacements (Fig. 3d), capturing the larger slip to the north and a secondary slip patch located ~160 km to the south.

Synthetic shake-maps of peak ground velocity for the 2025 Mw 7.7 Mandalay earthquake depict a highly heterogeneous ground-motion distribution along and across the fault (Extended Data Fig. 6). This variability reflects lateral seismic velocity contrasts, with lower velocities on the western side result in stronger ground motions. Supershear rupture amplifies off-fault shaking, whereas subshear creates strong amplification due to rupture directivity (Extended Data Fig. 6a,c). Despite differing rupture styles, both scenarios exhibit attenuation trends consistent with empirical ground-motion models26,27,28,29 (Extended Data Fig. 6b,d). Remarkably, even though the supershear scenario yields slightly lower shaking intensities within the near-fault zone compared to the subshear scenario (Extended Data Fig. 6b,d), it shows reduced attenuation and hence elevated amplitudes at greater distances. This increased far-field shaking within the supershear Mach cone30,31 and locally low seismic-wave velocities contributes to the widespread damage even hundreds of kilometres away from the fault.

Dynamic rupture breaches seismic gap

Our comprehensive data analyses and dynamic rupture simulations collectively confirm that the 2025 Mw 7.7 Mandalay earthquake ruptured beyond the Meiktila seismic gap on the central Sagaing fault. It overshot the seismic gap for ~160 km before terminating in the south and thus generated an unusually long strike–slip rupture32. Thus, questions arise regarding the conditions for such extreme rupture dynamic processes. Are they unique? Can they occur on other continental strike–slip faults? Can we infer initial and boundary conditions that may lead to such behaviour? Understanding the factors that arrest rupture or enable it to extend beyond seismic gaps helps to improve seismic hazard assessment for large continental strike–slip faults.

The fault geometry, nucleation location, geological setting, rupture history and interseismic loading that determine the corresponding on-fault heterogeneous prestress strongly affect the rupture dynamics, thereby controlling rupture extent and earthquake magnitude33,34,35,36. The Mandalay earthquake ruptured northward for ~60 km from the epicentre, ending near the source region of the 2012 Mw 6.8 Thabeikkyin earthquake. This termination coincides with (1) a geometric transition37 from a straight fault segment to a zone with two parallel branches and (2) a shift in geologic setting, from post-Pliocene alluvial fans to the volcanic Singu basalts7. To the south, the earthquake rupture ceased between the Pyu and Bago fault sections, near a clear 10° change in fault strike7,38,39. In addition, Coulomb stress-transfer modelling of major historical earthquakes in the region suggests that the rupture endpoints align with areas of Coulomb stress reduction9.

Supershear rupture on strike–slip faults has been inferred previously40,41 and is commonly associated with relatively simple fault geometries42. With a rupture speed faster than the shear-wave velocity, supershear ruptures produce a distinct radiation pattern, ground-motion features and dynamic effects compared to subshear ruptures30,31,43. Among known events, the 2025 Mandalay earthquake stands out as the longest supershear rupture observed, with sustained supershear propagation for ~350 km.

Stress barrier sensitivity tests

To assess the potential for triggering and sustaining supershear rupture beyond the Meiktila seismic gap (Fig. 4a), we conducted a series of dynamic rupture simulations under systematically reduced prestress loading and increased the lateral width of the stress barrier at the southern edge of the seismic gap (all other model parameters remain unchanged; Fig. 4b). Four types of stress barrier (SB1–SB4) were examined. In scenario SB1, the barrier is narrow (~9-km width) and maintains a relatively moderate prestress ratio R (ratio of the fault’s dynamic stress drop to its breakdown strength drop, R ≈ 0.28–0.34). In this case, rupture propagates through the barrier and sustains supershear speed beyond it. In scenario SB2, a slightly increased barrier width of 11 km still allows rupture propagation through the stress barrier; however, its rupture mode changes from supershear to subshear (Fig. 4c). Despite identical moment magnitudes, the modified rupture dynamics lead to a redistributed slip pattern with reduced slip amplitudes immediately beyond the stress barrier, followed by higher slip in the forward direction and farther to the south (Fig. 4c). For a wider stress barrier (23 km; scenario SB3), a similar supershear-to-subshear transition is observed, but it occurs earlier along the fault. With further widening of the barrier zone (33 km) and prestress reduction (R ≈ 0.05–0.3) in the stress barrier (scenario SB4), the rupture is finally arrested.

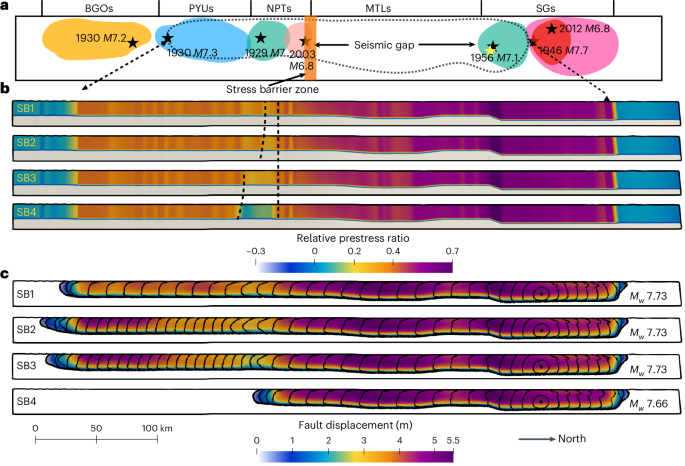

Fig. 4: Testing supershear continuity and triggering potential.
figure 4

a, Sketch of historical earthquake ruptures7, with black stars denoting their hypocentre locations6,7, and the Meiktila seismic gap on the Sagaing Fault. The yellow star marks the hypocentre of the 2025 Mw 7.7 Mandalay earthquake, and black dashed lines delineate the corresponding rupture zones. The fault is exaggerated in width for visual clarity. Dashed arrows indicate the fault extent shown in b and c, and the orange-shaded box highlights the stress barrier. b, Relative prestress ratio R of the fault model, modified from the preferred scenario by progressively reducing prestress and expanding the low-stress zone to simulate varying stress barrier strengths (bounded by black dashed lines) at the southern edge of the seismic gap. c, Final fault slip for each stress barrier (SB) scenario. Black contours mark rupture fronts at 3-s intervals. The corresponding moment magnitude is shown to the right in each panel.

Full size image

Our tests illustrate the sensitivity of rupture dynamics to stress heterogeneity. We acknowledge tradeoffs between barrier extent, prestress distribution and other factors not explored in detail here. The observed sustained supershear rupture over a distance of ~350 km during the Mw 7.7 Mandalay earthquake suggests that the edge of the identified seismic gap does not act as a strong mechanical barrier. In our models, the gap boundary is represented as a stress barrier, potentially linked to geometric complexities or stress adjustment from historical earthquakes, but alternative set-ups may result in a similar, mechanically weaker, barrier.

Nucleation location effects

Although the fault is geometrically simple, small variations in fault orientation, seismogenic depth and heterogeneous prestress still produce variations in rupture dynamics depending on the nucleation location33,36. To demonstrate the effect of nucleation locations and their impact on the rupture-breaching barrier, we compared rupture scenarios with three nucleation locations, one corresponding to the observed hypocentre and two hypothetical cases, at distances of 213, 121 and 66 km northward of the stress barrier. Under identical model set-up and SB1 conditions (Fig. 4b), nucleation closer to the barrier (121 and 66 km) leads to subshear ruptures that reach the barrier and even succeed in breaching it, producing distinct slip patterns, slightly longer ruptures and marginally larger magnitudes compared to the supershear case that nucleated 213 km away (Extended Data Fig. 7).

To isolate the nucleation-location effect, we adjusted the critical slip-weakening distance (Dc)44 south of and near each nucleation point to ensure ruptures reach the barrier with consistent supershear rupture speed. For model SB1, with prestress loading condition P1 (R ≈ 0.03–0.3), nucleation at 213 km breaches the barrier and maintains supershear propagation; however, nucleation closer to the barrier breaches but transitions to subshear (Fig. 5a–d). Under even further lowered prestress P2 (R ≈ 0.02–0.16), nucleation at 213 km still breaches but becomes subshear beyond the barrier, whereas nucleation at 121 km or 66 km fails to break the barrier (Fig. 5e–h), producing smaller events (Mw = 7.65 and 7.64). The dynamic histories of the stress ratio (same as R but after rupture initiation) and slip-rate time histories at on-fault receivers (Fig. 5e) show that more distant nucleation produces stronger dynamic stress loading and higher slip rates, enhancing the probability of barrier breaching (Extended Data Fig. 8).

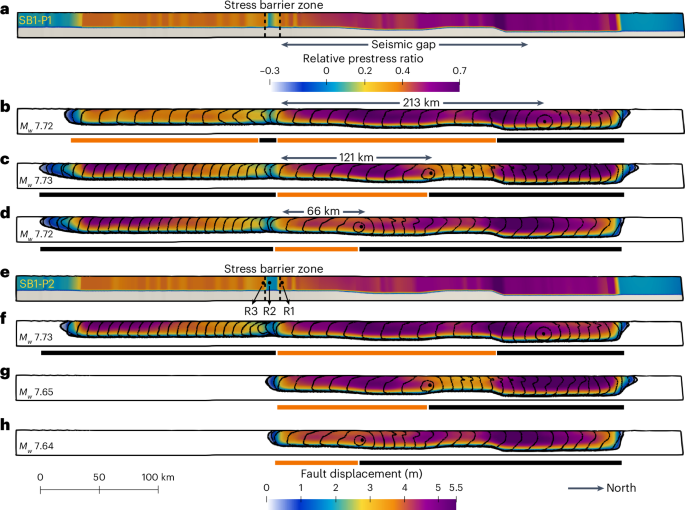

Fig. 5: Nucleation location sensitivity tests.
figure 5

a, Relative prestress ratio of model SB1, with lower prestress in the stress barrier than the preferred model (Fig. 4b). b–d, Final slip for ruptures nucleating 213 km (b), 121 km (c) and 66 km (d) north of the stress barrier, respectively, with supershear rupture reaching the seismic gap. Black and orange lines below each scenario mark the extent of subshear and supershear rupture propagation along the fault, respectively. Black contours show rupture fronts at 3-s intervals. The corresponding moment magnitude is stated in the bottom left of each panel. e–h, As in a–d, but with further reduced prestress in the stress barrier zone for examining alternative rupture behaviours. The black dots in e show the locations of three on-fault receivers (R1, R2 and R3) for rupture-dynamics analysis near the barrier.

Full size image

We further examined nucleation effects in model SB4 (Fig. 4b and Extended Data Fig. 9), where supershear rupture nucleated 213 km north is arrested by the barrier. With Dc adjusted for consistent subshear conditions, nucleation at 213 km produces a rupture that crosses the barrier (Mw 7.75), with rupture time contours showing clear deceleration within and re-acceleration beyond the barrier. Nucleation at 121 km also breaches the barrier but yields slightly lower slip amplitude and a magnitude of Mw 7.72. Nucleation just 66 km away from the barrier fails to cross the barrier and produces the Mw 7.66 scenario.

Our sensitivity-testing simulations underscore the critical role of the nucleation location, for both supershear and subshear rupture, in controlling rupture extent, slip distribution and final magnitude. For the given and identical prestress conditions, subshear rupture concentrates more strain energy near the advancing rupture front, whereas supershear rupture radiates a larger fraction of energy towards the Mach-cone zone, producing stronger off-fault ground shaking and deformation30. Consequently, subshear rupture may be more effective in dynamically driving rupture across a stress barrier under otherwise identical conditions.

At least two factors enabled the 2025 Mw 7.7 Mandalay earthquake to rupture beyond the inferred seismic gap. First, the stress barrier at the gap’s boundary was insufficiently strong to arrest the rupture. With an estimated recurrence interval of 90–115 years on the Pyu segment and the last major earthquake in this region being in 1930 (M 7.3)6, the 95-year-long interseismic period led to notable stress build-up, thereby weakening the intervening barrier and increasing the seismic hazard. Moreover, the 1930 earthquake may not have fully released the accumulated elastic strain, as also observed in other continental strike–slip faults such as the 1812 and 1857 Fort Tejon earthquake pair on the San Andreas Fault45. This incomplete release would further reduce the effectiveness of the barrier34. Additionally, Coulomb stress transfer from historical earthquakes in the region may have further promoted rupture beyond the seismic gap9. Second, the nucleation occurred far north of this boundary in a more optimally prestressed fault section, allowing the rupture to propagate a long distance before hitting the southern boundary of the gap. Right-lateral slip along the extended rupture increased shear stress both within the barrier and further south, progressively weakening the stress barrier and facilitating the rupture breaching the seismc gap.

In summary, we have integrated seismological, geodetic and numerical methods to investigate the devastating 2025 Mw 7.7 Mandalay earthquake, revealing a two-stage rupture process. Although the event itself was not entirely unexpected—being located in a seismic gap that has not experienced large earthquakes for nearly 200 years—the rupture exceeded expectations by propagating not only through the entire gap but extending ~160 km beyond it. This led to more widespread ground shaking and infrastructural damage than previously anticipated for this segment. Fault segmentation and seismic gaps on geometrically simple strike–slip faults are observed elsewhere, such as for the San Andreas and North Anatolian Fault systems. Our simulations for the Mw 7.7 Mandalay temblor suggest that seismic gaps may not reliably reflect the size of future earthquakes. Instead, ruptures may cascade into adjacent fault segments46,47, producing unexpectedly large and potentially more destructive events. For instance, the Marmara Sea seismic gap near Istanbul (last ruptured in 1509 and 1776), bounded by sections of the 1912 Mw 7.3 Ganos rupture to the west and a sequence of large earthquakes in 1999 to the east48, may potentially produce a gap-breaching rupture that inflicts even higher seismic hazard to this densely populated region than the gap alone. Poorly constrained potential nucleation locations and highly variable rupture dynamics play a critical role in controlling slip distribution, rupture length, final magnitude and hence the resulting ground shaking for future earthquakes. Incorporating these dynamic factors into the analysis and interpretation of seismic gaps enhances and complements long-term seismic hazard assessment.

Methods

Three-dimensional coseismic displacements

We processed two ascending and two descending tracks of Sentinel-1 SAR images to measure surface displacement along the satellite azimuth direction and the line-of-sight (LOS) direction using POT and InSAR techniques. To ensure complete coverage of the entire area of interest, each track consisted of four or five frames. First, we acquired adjacent frames on the same date within each track to create seamless images. Subsequently, using 30-m Shuttle Radar Topography Mission (SRTM) digital elevation model (DEM) data, we co-registered the last pre-event and first post-seismic images to generate interferograms. Both the InSAR interferograms and POT results made use of a multi-looking factor of 10 × 3 (range × azimuth, ~40 m × 40 m) to enhance the signal-to-noise ratio and computational efficiency. Given the large deformation gradients near the fault zone, significant surface changes and substantial vegetation coverage in the affected area, we implemented the following quality control measures for the interferograms: (1) application of adaptive filtering (window size, 64; filter factor, 0.4); (2) masking of low-coherence areas using a coherence threshold of 0.5; (3) additional manual masking to preserve valid deformation signals while minimizing phase unwrapping errors. Following co-registration of the Sentinel-1 images but before POT processing, we performed de-ramping of the Sentinel co-registered images. The matching window size for POT was set to 128 × 64 (range × azimuth).

After obtaining four distinct deformation measurements (Supplementary Table 1; ascending/descending LOS and two azimuth directions) with substantially different imaging geometries, we resolved the 3D coseismic surface displacements using the SM-VCE method23,51. The SM-VCE approach offers two key advantages: (1) incorporation of a strain model to account for deformation correlations within specified spatial windows; (2) utilization of variance component estimation to weight observations according to their noise levels, thereby optimally balancing the contributions of different deformation measurements. For 3D deformation estimation at each pixel, we applied the SM-VCE method within a 41 × 41-pixel window (~1.6 km × 1.6 km). Special consideration was given to near-fault areas, where pixels on the opposite side of the fault from the target pixel were excluded to prevent interference from mechanically heterogeneous displacement observations across the fault52.

An aftershock (Mw 6.7) occurred only 12 min after the mainshock, and its deformation cannot be separated from the mainshock in the SAR data (Supplementary Table 1). The Mw 6.8 earthquake in 2012, slightly farther north, produced an ~45-km-long rupture53. By comparison, assuming a shear modulus of 30 GPa and a depth extent of ~16 km as used in our dynamic rupture model, the Mw 6.7 aftershock would be expected to generate ~0.3-m surface displacement over a similar rupture length, which is negligible relative to the observed deformation. Moreover, no secondary faults were identified in the aftershock area, suggesting that both events ruptured the same fault, and thus the aftershock has little impact on our symmetry analysis.

Back-projection

Back-projection utilizes the time-reversal property of curved wavefronts recorded at seismic arrays to determine the time and location of sources that radiate high-frequency seismic energy54,55. With its computational efficiency, back-projection has become a standard tool for rapid and robust rupture-process imaging for large and moderate earthquakes56,57,58.

We utilized three large-scale seismic arrays—the European Array (EU), the Australian Array (AU) and the Alaskan Array (AK)—to perform back-projection to track the rupture process of the Mw 7.7 Mandalay earthquake. Stations were selected with epicentral distances of 30–90°. For each array, we applied cross-correlation within a 20-s time window around the direct P-wave arrival to identify stations with coherent waveforms. Only stations with an average cross-correlation coefficient >0.6 were retained for back-projection analysis, resulting in 328, 132 and 167 stations for the EU, AU and AK arrays, respectively, at epicentral distances of 51.5–89.4° (EU), 30.9–80.3° (AU), 62.4–89.9° (AK) and azimuth ranges of 291.6–329° (EU), 105.6–162.6° (AU) and 7.3–41.6° (AK) (Supplementary Fig. 1).

The time shifts required to obtain the peak cross-correlation coefficients were used to empirically calibrate travel times relative to a 1D laterally homogeneous seismic velocity model, for which we adopt the Preliminary Reference Earth Model (PREM)59. For each array, we conducted back-projection using a 6-s sliding time window with a 0.1-s step size through the continuous waveform data to image the coseismic rupture evolution.

Given the steep dip of the Sagaing Fault and the limited vertical resolution inherent to teleseismic back-projection56,60, we projected the imaged rupture onto the mapped surface trace of the fault61, assuming the hypocentral depth reported by the Incorporated Research Institutions for Seismology (IRIS).

In complex rupture processes, factors such as rupture dynamics, attenuation, directivity and relative array locations can shape the dominant frequency energy recorded at different arrays, leading to array- and frequency-dependent rupture images62. For the Mw 7.7 Mandalay earthquake, back-projection images of the EU and AK arrays show dominant northward rupture during the initial bilateral phase, whereas the AU array, located to the south, captures the southward rupture more clearly (Fig. 2). Therefore, integrating results across arrays and frequency provides a more comprehensive view of the rupture process.

Bayesian geometry inversion

Seismic waveforms and geodetic surface-displacement observations can be used to constrain fault geometry in a data-constrained inversion63,64,65. For large earthquakes, the fault is usually represented as a series of rectangular subfaults, each defined by its strike, dip, rake, width, length and depth from the top fault edge (top depth)66. Inverting the data for these parameters sequentially may introduce bias. We therefore adopted a full Bayesian inversion framework to simultaneously estimate the fault geometry parameters for all fault segments using a sequential Monte Carlo (SMC) sampling approach. This method efficiently explores the posterior distribution by drawing samples through a series of intermediate distributions and leveraging parallel computation on multiple central processing units (CPUs).

Bayesian finite-fault inversion

Given a known fault geometry, a finite-fault kinematic inversion resolves the rupture process by estimating the spatiotemporal slip distribution on the fault. Such slip models are often overparameterized relative to the data resolution, so regularization is required to stabilize the ill-posed inverse problem. In Bayesian inference, the regularization is imposed via a Gaussian prior with a covariance matrix derived from a Laplacian operator. The smoothing strength is controlled by a hyperparameter α, inferred from the data. This regularization yields the posterior probability distribution function (PDF).

We used the Bayesian Earthquake Analysis Tool (BEAT)67,68 to estimate the posterior PDF of both the fault geometry and finite-fault model parameters m (\({P\left({\bf{m}}| {{\bf{d}}}_{\rm{obs}}\right)}\)), based on the Bayesian theorem69 under the assumption of Gaussian distributed residuals \({{\bf{r}}}_{k}\left({\bf{m}}\right)\), expressed as

$${P\left({\bf{m}}| {{\bf{d}}}_{\rm{obs}}\right)\propto P\left({\bf{m}}\right)\times {{\mathbf{\Pi }}}_{k = 1}^{k}L\left({\bf{m}},\,{\sigma }_{k}\right)}$$
(1)
$$\begin{array}{l}{L}\left({\bf{m}},\,{\sigma }_{k}\right)=\frac{1}{{\left(2\uppi {\sigma }_{k}^{2}\right)}^{N/2}{\left\vert {C}_{k}\right\vert }^{1/2}}\times \exp \left(\frac{1}{2{\sigma }_{k}^{2}}{\left({{\bf{r}}}_{k}\left({\bf{m}}\right)\right)}^{\rm{T}}{C}_{k}^{-1}\left({{\bf{r}}}_{k}\left({\bf{m}}\right)\right)\right)\end{array}$$
(2)

Here, P(m) is the prior PDF, L(m, σk) is the likelihood function, and rk(m) = dk,obs − dk(m) denotes the residual between observed and synthetic data dk(m) for dataset k (for example, teleseismic and/or coseismic surface deformation). Ck is the noise covariance matrix, and σk is a hierarchical scaling parameter estimating the residual standard deviation. We sampled the posterior using the SMC algorithm68,70, which transitions through a sequence of intermediate distributions from the prior to the posterior (equation (1)).

For the inversion, we extended the fault plane from the surface to ~20-km depth along the dip direction and discretized it into subfaults with dimensions of 4 × 4 km2, resulting in a total of 650 subfaults. Each subfault is characterized by four rupture parameters: slip amount in both the along-strike and down-dip directions, slip duration (rise time) and time of rupture-front arrival. Including additional nucleation point parameters, the hyperparameters of each dataset and the Laplacian smoothing factor, as well as hierarchical parameters for station correction, the inversion involves a total of 2,649 parameters, which are constrained by both geodetic and teleseismic observations. For each rupture parameter, we specified an ‘uninformed’ uniform prior distribution to allow both subshear and supershear rupture and the possibility for purely thrust and normal subfault dislocation.

Dynamic model

With the extended surface fracturing, the InSAR data clearly delineate the Mw 7.7 Mandalay earthquake’s rupture trace. The observed asymmetry in surface-slip amplitude across the fault may result from a combination of non-vertical fault geometry and deviations from pure strike–slip motion43,71. The InSAR observations reveal asymmetry in the horizontal surface deformation that increases from south to north, consistent with results from Bayesian geometry inversion, indicating a shallower fault dip of the northern segment. Accordingly, we assigned an eastward dip angle of 70° in the north, transitioning to 80° towards the south.

For the dynamic rupture simulations, we constrained the seismogenic depths by recent GNSS studies that have revealed significant along-strike variations in geodetic slip rate and locking depth along the Sagaing Fault5. In the northern Sagaing segment (SGs), the slip rate is estimated to be ~18–24 mm yr−1, with relatively deeper locking depths ranging from 15 to 25 km (refs. 3,4,72). However, Tin and colleagues5 suggest a shallower locking depth of ~10 km in this region. The Meiktila segment (MTLs) exhibits a comparable slip rate to the SGs and a locking depth of ~16 km. In contrast, reduced slip rates of 11 mm yr−1 have been suggested in the Nay Pyi Taw (NPTs) and Phyu (PYUs) segments. Further to the south, the Bago segment is characterized by a shallower locking depth of ~10 km (refs. 5,73).

These variations in locking depth are consistent with the coseismic surface-displacement patterns revealed by InSAR and optical correlation data (Fig. 1b and Extended Data Fig. 2) and the slip distribution inferred from the Bayesian finite-fault inversion (Fig. 3a), which reveal two prominent slip patches in the SGs and MTLs. To incorporate along-strike variations of locking depth and long-term slip rate into the dynamic rupture simulations, we adjusted both the seismogenic depth and the stress parameter.

We followed the prestress loading approach of ref. 74 to initialize on-fault stress conditions. The orientation of the regional maximum horizontal compressive stress (\({\sigma }_{{\rm{H}}_{{\rm{max}}}}\)) was set to N21° E, estimated from the World Stress Map75. We constrained the smallest and largest principal stress components by prescribing the maximum prestress ratio R0, which varies between 0.3 and 0.82 along the ruptured fault, and is substantially lower outside (Supplementary Fig. 4a). Here, R0 = 1 corresponds to a critically stressed state for optimally oriented faults. Variations in both fault orientation and R0 yield different relative prestress ratios R along different fault sections. The relative prestress ratio R is defined as the ratio of the fault’s dynamic stress drop to its breakdown strength drop, and is given by \({R}={(\tau -{\mu }_{\rm{d}}{\sigma }_{\rm{n}}^{{\prime} })/(({\mu }_{\rm{s}}-{\mu }_{\rm{d}}){\sigma }_{\rm{n}}^{{\prime} })}\), in which τ is the shear stress, μs and μd are the static and dynamic friction coefficients, respectively, and \({\sigma }_{\rm{n}}^{{\prime} }\) is the effective normal stress, defined as the difference between the lithostatic stress and pore fluid pressure.

The fault’s frictional behaviour was assumed to follow the linear slip-weakening law44. We then varied the friction parameters within physically reasonable ranges to identify the parameter set that generated the observed rupture breaching of the seismic gap, total rupture length, subshear to supershear transition, and best reproduced the geodetic and seismic observations. Through extensive but inevitably limited parameter-space exploration, we set the ratio of pore fluid pressure to lithostatic stress as γ = 0.75, the static friction coefficient as μs = 0.6, the dynamic friction coefficient as μd = 0.25, and a spatially variable slip-weakening distance (Dc) ranging from 0.1 to 0.8 m (Supplementary Fig. 4b) to allow for a transition from subshear to supershear rupture and generating the slip distribution indicated by back-projection76, geodetic observations and kinematic inversion. We note that tradeoffs among model parameters imply that an alternative set-up may lead to a similarly weak mechanical stress barrier and may be able to reproduce the observed rupture breaching and characteristics. The final relative prestress ratio and fault model is shown in Extended Data Fig. 2c.

To account for inelastic off-fault energy dissipation, we applied Drucker–Prager elasto-viscoplastic rheology77. The off-fault volumetric yielding behaviour is defined by two material parameters: the internal friction coefficient \({\mu }_{{\rm{s}}}^{{\rm{i}}}={0.65}\), slightly higher than the static friction coefficient μs = 0.6, to reflect a lower resistance to react to a pre-existing fault78, and the plastic cohesion Cplast, which scales with the shear modulus μ as Cplast = 0.0001μ for weak shallow bedrock79. The viscoplastic relaxation time Tv = 0.05 s governs the rate at which stress relaxes to the yield surface and reaches the inviscid limit. This value ensures numerical stability and convergence of the simulation results under mesh refinement. In addition to geometric spreading, the seismic-wave energy decays with distance due to intrinsic attenuation. In our simulations, attenuation is characterized by the shear-wave quality factor Qs = 50 × Vs (where Vs is the shear-wave velocity in km s−1), and the compressional-wave quality factor Qp = 2Qs (ref. 80).

Following the time-dependent nucleation approach of the Statewide California Earthquake Center (SCEC) community benchmark81 TPV24 (https://strike.scec.org/cvws/tpv24_25docs.html), rupture is initiated kinematically by locally and gradually reducing the static friction coefficient μs within a 1.5-km-radius nucleation patch82. The rupture initiation time T is given by

$${T=\left\{\begin{array}{ll}\frac{r}{0.7{V}_{\rm{r}}}+\frac{0.081{{r}}_{{\rm{crit}}}}{0.7{V}_{\rm{r}}}\left(\frac{1}{1-{(r/{r}_{{\rm{crit}}})}^{2}}-1\right),\quad &r < ={r}_{{\rm{crit}}}\\ 1{0}^{9},\quad &r > {r}_{{\rm{crit}}}\end{array}\right.}$$
(3)

in which r is the radial distance (in metres in equation (3)) to the hypocentre, Vr is the prescribed rupture front velocity (set to 3,800 m s−1), and rcrit denotes the radius of the nucleation zone.

Regional topography and bathymetry are sourced from GeoMapApp83 at a lateral resolution of ~244 m. The on-fault mesh is refined to 150 m on average, progressively coarsening away from the fault using a gradation rate of 0.6. For synthetic ground-motion computations, we employed a more refined mesh within a designated region around the fault (Extended Data Fig. 6a), ensuring a global frequency resolution up to 1 Hz within 100 km of the fault surface. This meshing strategy yields a computational domain consisting of ~208 million tetrahedral elements. The full 3D dynamic rupture and seismic-wave propagation simulations were then conducted using the open-source software SeisSol. A simulation of 200 s after nucleation requires 468.6K CPU hours on 256 nodes in Shaheen III.
