Extended Data Fig. 3: Spatial patterns of black carbon (BC) deposition, sun-induced fluorescence (SIF), and NIRv across the Amazon rainforest.

From: Amazon forest nutrient limitation is mitigated by distant fire emissions

Extended Data Fig. 3

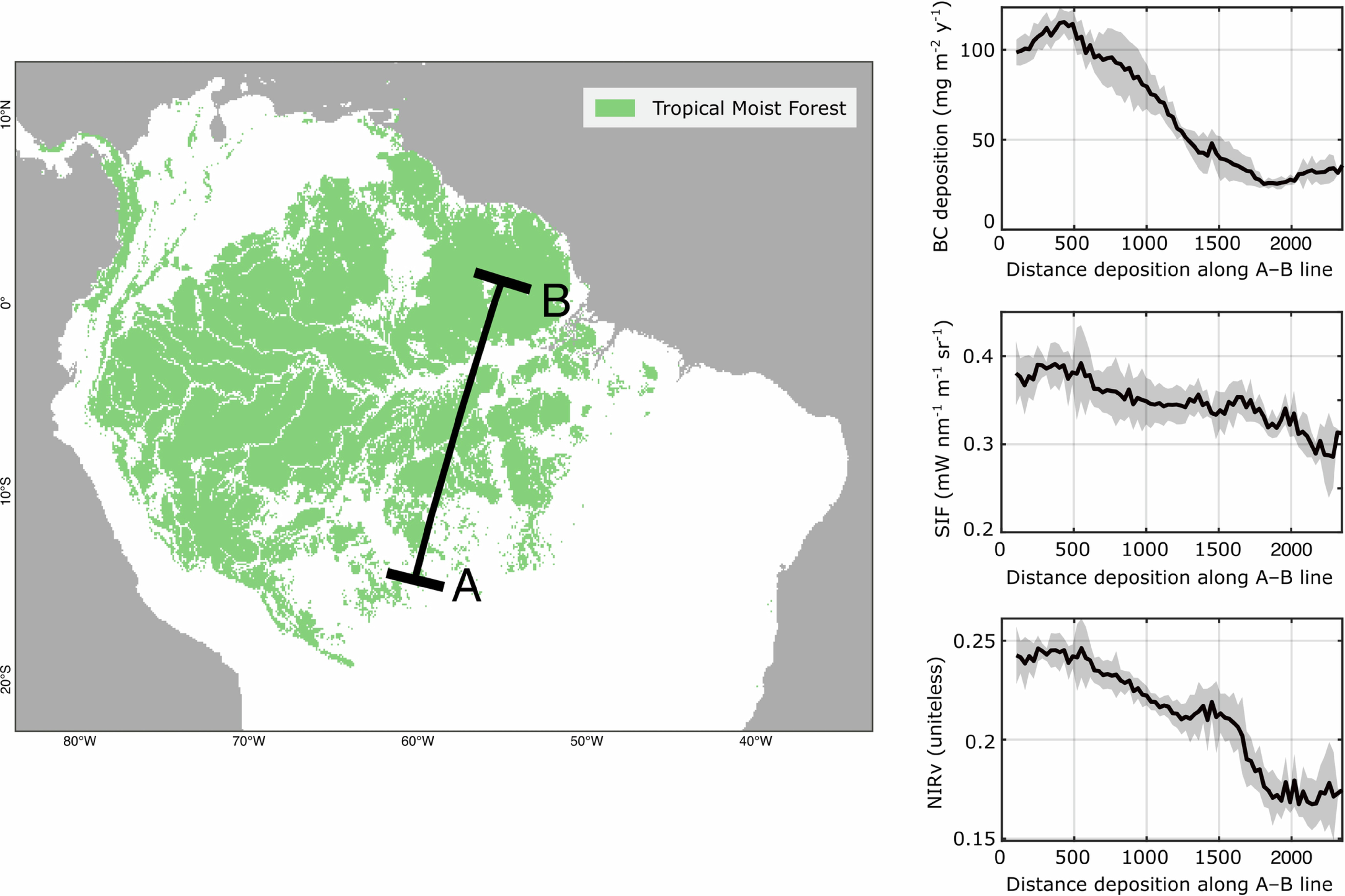

Left map shows the Amazon rainforest extent (green) and a transect from point A to point B. Right panels show BC deposition derived from MERRA-2, an ensemble of SIF datasets, and NIRv from MOD09GA along the A–B transect and averaged for 2001-2020. The shaded areas around the lines represent two standard deviations of values within a 100-km buffer along the A–B transect. The land/sea mask was generated from the 100-m resolution CGLS-LC100 land cover dataset.
