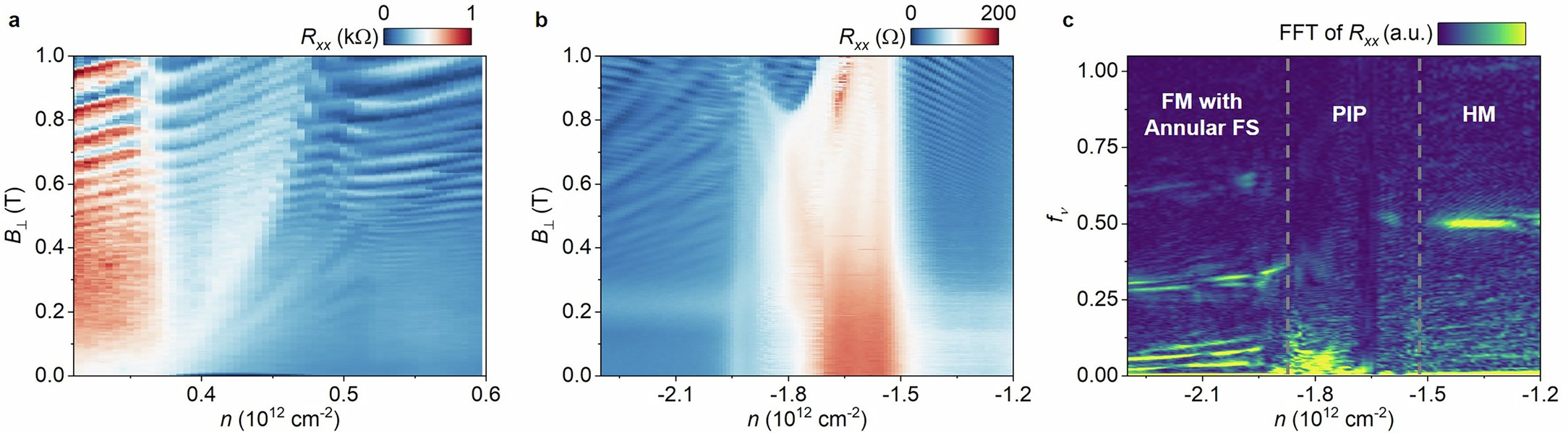

Extended Data Fig. 7: More Fermiology analysis data.
From: Impact of spin–orbit coupling on superconductivity in rhombohedral graphene
a, The raw quantum oscillation data for Fig. 3e. b, c, Full quantum oscillation data and its FFT spectrum, measured in D1 near SC1. Figure 4f corresponds to the left half of Extended Data Fig. 7c. From low density to high density, three phases can be resolved by its FFT spectrum: HM, PIP, and FM with annular Fermi surfaces (FS), respectively.
