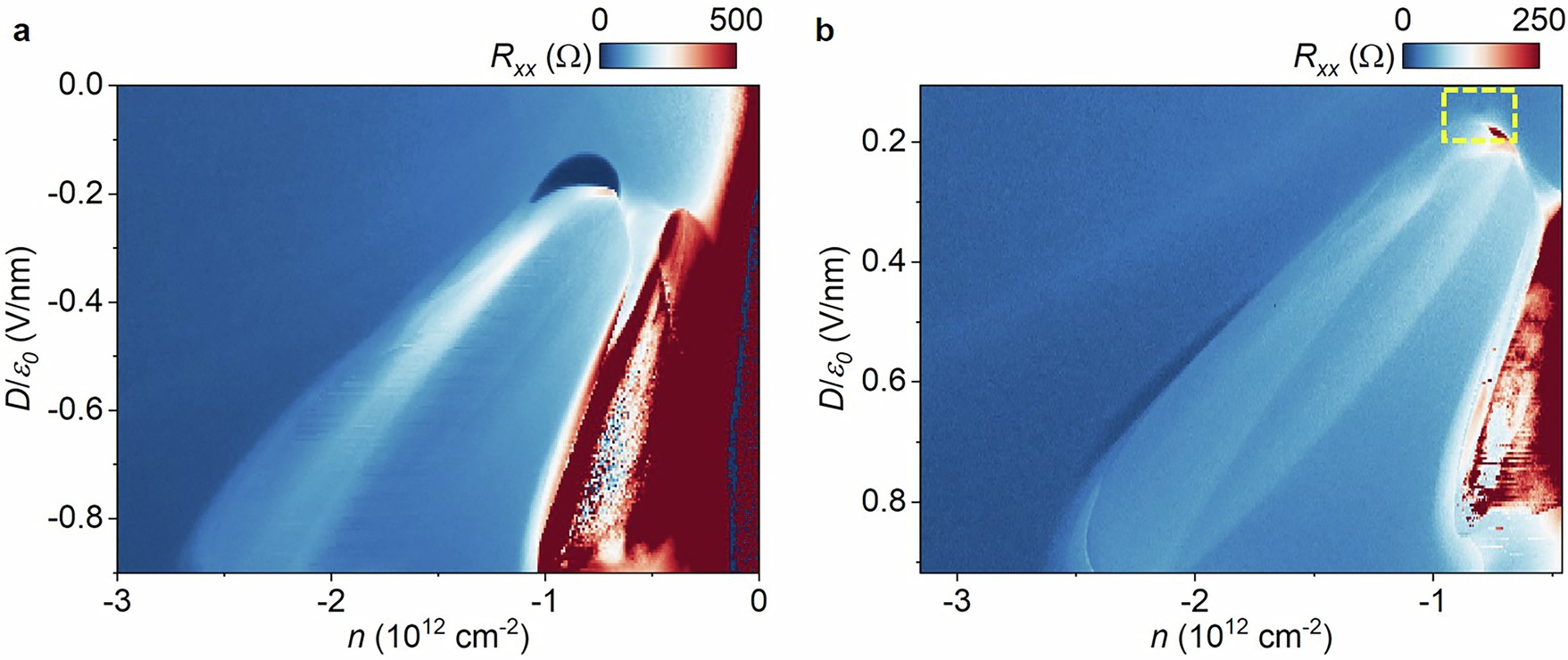

Extended Data Fig. 9: Full phase diagram near SC1 in D1 and D3 when carriers are close to TMD.
From: Impact of spin–orbit coupling on superconductivity in rhombohedral graphene
Longitudinal resistance Rxx as a function of n & D, measured at B = 0 T in (a) D1, D < 0 and (b) D3, D > 0. In D1, even towards the boundary of the HM phase, no signatures of superconductivity can be found. SC4 in D3 is highlighted by the yellow dashed box.
