Signatures of magnetism in zigzag graphene nanoribbons embedded in a hexagonal boron nitride lattice

Nature Materials volume 24, pages 1592–1599 (2025)Cite this article

Subjects

Abstract

Zigzag edges of graphene are predicted to host magnetic electronic states, critical for spintronics, but an experimental confirmation of these magnetic conduction channels remains elusive. Here we report the signatures of magnetism in zigzag graphene nanoribbons (zGNRs) embedded in hexagonal boron nitride. Hexagonal boron nitride provides crucial edge stabilization, enabling the direct probing of this intrinsic magnetism. Scanning nitrogen-vacancy-centre microscopy initially confirmed magnetism in zGNR. Subsequently, an ~9-nm-wide zGNR transistor was fabricated with a sub-50-nm channel length. Magnetotransport measurements at 4 K revealed distinct Fabry–Pérot-like interference patterns, indicating coherent transport. A large, anisotropic magnetoresistance (~175 Ω, ~1.3%) was observed, persisting well above room temperature. These findings strongly corroborate the existence of robust magnetic ordering in the zGNR edge state. This hexagonal-boron-nitride-embedded zGNR system offers an effective platform for future graphene-based spintronic devices.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

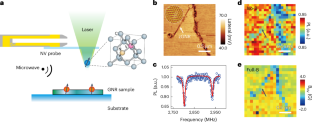

Fig. 1: Probing the magnetism of zGNRs embedded in hBN with SNVM under ambient conditions.

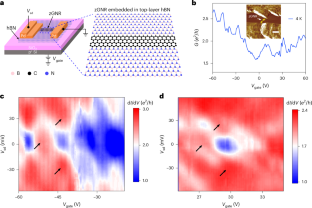

Fig. 2: An ~9-nm-wide zGNR embedded in hBN and its electrical properties.

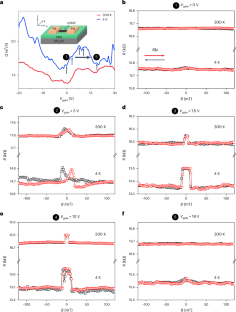

Fig. 3: Magnetotransport properties of the ~9-nm-wide zGNR under different Vgate values.

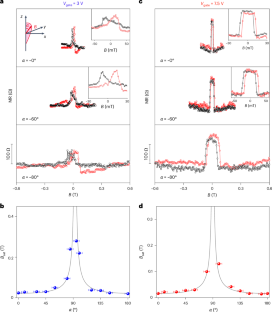

Fig. 4: Angle dependence of MR under different Vgate values at 4 K.

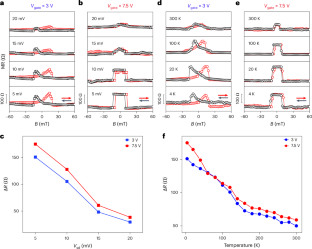

Fig. 5: Bias- and temperature-dependent MR of the ~9-nm-wide zGNR FET.
