Extended Data Fig. 2: SMD simulation results for polyR-Vtn assembly.

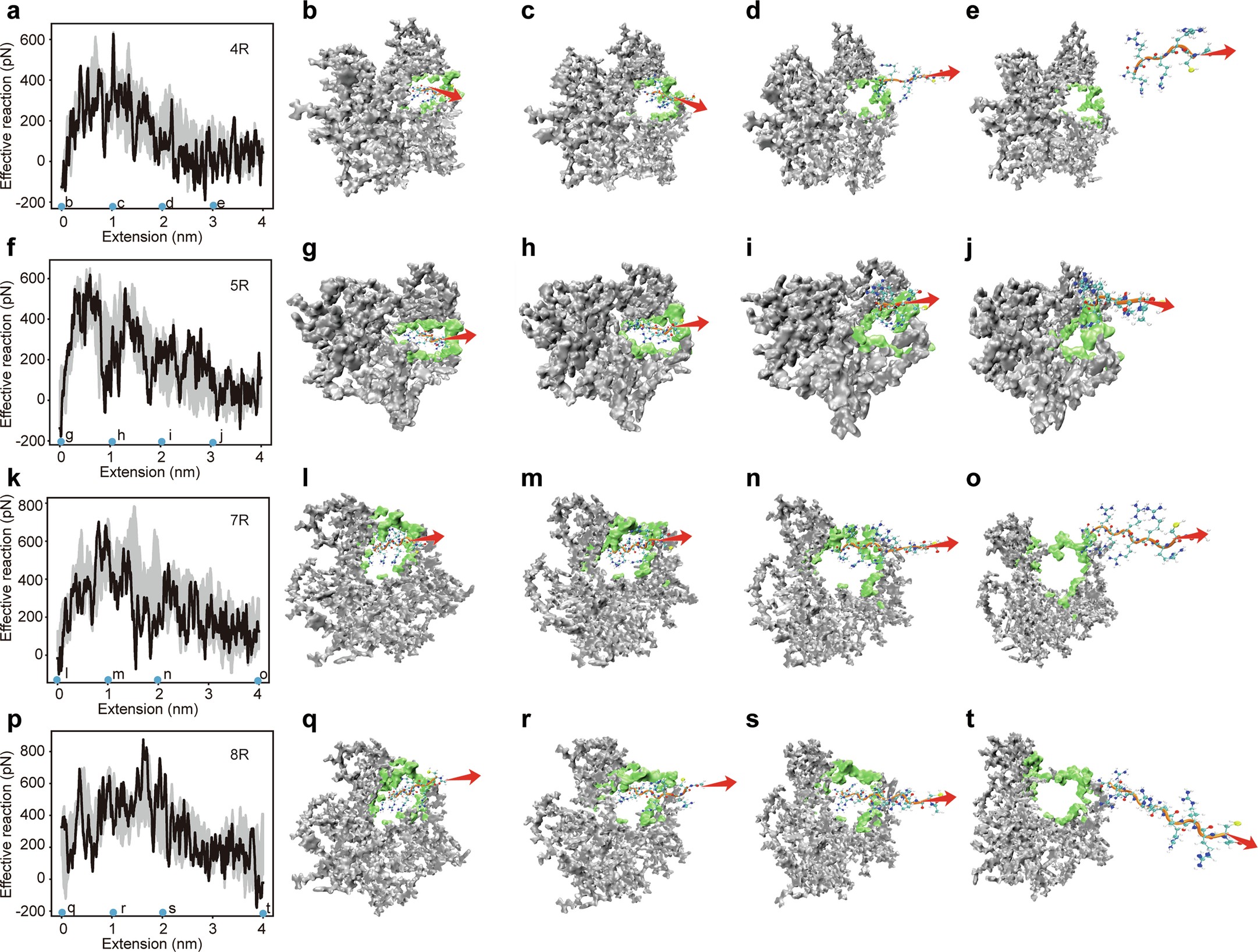

(a, f, k, p) The diagrams of force-extension curves of SMD simulations for polyR-Vtn assembly with 4 R (a), 5 R (f), 7 R (k), and 8 R (p), respectively. The black curve in each of the plots gives the curve of an exemplary simulation, while the gray shade gives the range of the average force ± standard deviation given by n = 5 SMD simulations under the same conditions. (b-e, g-j, l-o, q-t) The snapshots of trajectories in exemplary SMD simulations for polyR-Vtn assembly with 4 R (b-e), 5 R (g-j), 7 R (l-o), and 8 R (q-t), respectively. The points at which the snapshots are taken are marked in corresponding force-extension diagrams of SMD simulations.
