Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

  • Article
  • Published:

Interstitial oxygen order and its competition with superconductivity in La2PrNi2O7+δ

Nature Materials volume 24, pages 1927–1934 (2025)Cite this article

Subjects

Abstract

High-temperature superconductivity in pressurized La3Ni2O7 has attracted considerable interest, yet the superconducting phase is rather fragile. Although bulk superconductivity can be achieved by Pr substitution for La, the underlying mechanism is still unclear. A further puzzle is the role of oxygen content: moderate oxygenation enhances superconductivity, whereas high-pressure oxygen annealing suppresses it. Here combining multislice electron ptychography and electron energy-loss spectroscopy, we show that Pr doping mitigates oxygen vacancies and stabilizes a near-stoichiometric La2PrNi2O7 structure. Strikingly, high-pressure oxygen annealing introduces interstitial oxygen atoms that arrange into a stripe-ordered superstructure, which generates excess hole carriers and alters the electronic structure, ultimately suppressing superconductivity under pressure. This contrasts sharply with cuprates, where similar oxygen ordering is known to induce superconductivity. Our findings reveal a competition between interstitial oxygen ordering and superconductivity in bilayer nickelates, providing key insights into the pairing mechanism and guiding principles for engineering more robust superconducting phases.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

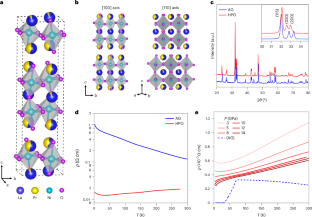

Fig. 1: Characterization of as-grown and HPO-annealed polycrystalline samples.

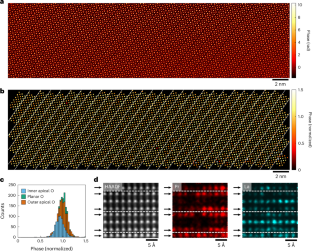

Fig. 2: Atomic structure of the as-grown sample.

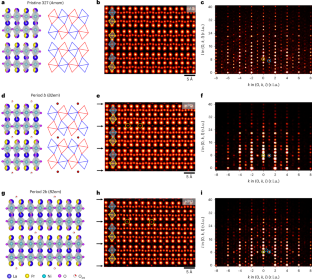

Fig. 3: Interstitial oxygen orders in the HPO-annealed sample.

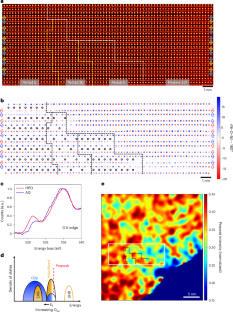

Fig. 4: Phase separation and hole doping from interstitial oxygen order.

Similar content being viewed by others

Data availability

The raw data presented in this study are available via Zenodo at https://doi.org/10.5281/zenodo.15666415 (ref. 69) and from the corresponding authors upon reasonable request.

Code availability

The MEP analyses in this study were performed using a publicly available open-source software, fold_slice30, available via GitHub at https://github.com/yijiang1/fold_slice.

References

  1. Sun, H. et al. Signatures of superconductivity near 80 K in a nickelate under high pressure. Nature 621, 493–498 (2023).

    Article  CAS  PubMed  Google Scholar

  2. Hou, J. et al. Emergence of high-temperature superconducting phase in pressurized La3Ni2O7 crystals. Chin. Phys. Lett. 40, 117302 (2023).

    Article  CAS  Google Scholar

  3. Zhang, Y. et al. High-temperature superconductivity with zero resistance and strange-metal behaviour in La3Ni2O7–δ. Nat. Phys. 20, 1269–1273 (2024).

    Article  CAS  Google Scholar

  4. Wang, G. et al. Pressure-induced superconductivity in polycrystalline La3Ni2O7–δ. Phys. Rev. X 14, 011040 (2024).

    CAS  Google Scholar

  5. Li, J. et al. Identification of superconductivity in bilayer nickelate La3Ni2O7 under high pressure up to 100 GPa. Natl Sci. Rev. 12, nwaf220 (2025).

  6. Zhou, Y. et al. Investigations of key issues on the reproducibility of high-Tc superconductivity emerging from compressed La3Ni2O7. Matter Radiat. Extrem. 10, 027801 (2025).

    Article  CAS  Google Scholar

  7. Lee, P. A., Nagaosa, N. & Wen, X.-G. Doping a Mott insulator: physics of high-temperature superconductivity. Rev. Mod. Phys. 78, 17–85 (2006).

    Article  CAS  Google Scholar

  8. Keimer, B., Kivelson, S. A., Norman, M. R., Uchida, S. & Zaanen, J. From quantum matter to high-temperature superconductivity in copper oxides. Nature 518, 179–186 (2015).

    Article  CAS  PubMed  Google Scholar

  9. Luo, Z., Hu, X., Wang, M., Wú, W. & Yao, D.-X. Bilayer two-orbital model of La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 126001 (2023).

    Article  CAS  PubMed  Google Scholar

  10. Christiansson, V., Petocchi, F. & Werner, P. Correlated electronic structure of La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 206501 (2023).

    Article  CAS  PubMed  Google Scholar

  11. Yang, Q.-G., Wang, D. & Wang, Q.-H. Possible s±-wave superconductivity in La3Ni2O7. Phys. Rev. B 108, L140505 (2023).

    Article  CAS  Google Scholar

  12. Oh, H. & Zhang, Y.-H. Type-II t-J model and shared superexchange coupling from Hund’s rule in superconducting La3Ni2O7. Phys. Rev. B 108, 174511 (2023).

    Article  CAS  Google Scholar

  13. Yang, J. et al. Orbital-dependent electron correlation in double-layer nickelate La3Ni2O7. Nat. Commun. 15, 4373 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  14. Liu, Z. et al. Electronic correlations and partial gap in the bilayer nickelate La3Ni2O7. Nat. Commun. 15, 7570 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  15. Lu, C., Pan, Z., Yang, F. & Wu, C. Interlayer coupling driven high-temperature superconductivity in La3Ni2O7 under pressure. Phys. Rev. Lett. 132, 146002 (2024).

    Article  CAS  PubMed  Google Scholar

  16. Qu, X.-Z. et al. Bilayer t-J-J⊥ model and magnetically mediated pairing in the pressurized nickelate La3Ni2O7. Phys. Rev. Lett. 132, 036502 (2024).

    Article  CAS  PubMed  Google Scholar

  17. Sakakibara, H., Kitamine, N., Ochi, M. & Kuroki, K. Possible high Tc superconductivity in La3Ni2O7 under high pressure through manifestation of a nearly half-filled bilayer Hubbard model. Phys. Rev. Lett. 132, 106002 (2024).

    Article  CAS  PubMed  Google Scholar

  18. Chen, Y., Tian, Y.-H., Wang, J.-M., He, R.-Q. & Lu, Z.-Y. Non-Fermi liquid and antiferromagnetic correlations with hole doping in the bilayer two-orbital Hubbard model of La3Ni2O7 at zero temperature. Phys. Rev. B 110, 235119 (2024).

    Article  CAS  Google Scholar

  19. Wang, N. et al. Bulk high-temperature superconductivity in pressurized tetragonal La2PrNi2O7. Nature 634, 579–584 (2024).

    Article  CAS  PubMed  Google Scholar

  20. Wang, L. et al. Structure responsible for the superconducting state in La3Ni2O7 at high-pressure and low-temperature conditions. J. Am. Chem. Soc. 146, 7506–7514 (2024).

    Article  CAS  PubMed  Google Scholar

  21. Wang, G. et al. Chemical versus physical pressure effects on the structure transition of bilayer nickelates. NPJ Quantum Mater 10, 1 (2025).

    Article  Google Scholar

  22. Ko, E. K. et al. Signatures of ambient pressure superconductivity in thin film La3Ni2O7. Nature 638, 935–940 (2025).

    Article  CAS  PubMed  Google Scholar

  23. Zhou, G. et al. Ambient-pressure superconductivity onset above 40 K in (La,Pr)3Ni2O7 films. Nature 640, 641–646 (2025).

    Article  CAS  PubMed  Google Scholar

  24. Liu, Y. et al. Superconductivity and normal-state transport in compressively strained La2PrNi2O7 thin films. Nat. Mater. 24, 1221–1227 (2025).

    Article  CAS  PubMed  Google Scholar

  25. Shi, M. et al. Prerequisite of superconductivity: SDW rather than tetragonal structure in double-layer La3Ni2O7–x. Preprint at https://arxiv.org/abs/2501.14202 (2025).

  26. Tranquada, J. M., Sternlieb, B. J., Axe, J. D., Nakamura, Y. & Uchida, S. Evidence for stripe correlations of spins and holes in copper oxide superconductors. Nature 375, 561–563 (1995).

    Article  Google Scholar

  27. Emery, V. J., Kivelson, S. A. & Tranquada, J. M. Stripe phases in high-temperature superconductors. Proc. Natl Acad. Sci. USA 96, 8814–8817 (1999).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  28. Kivelson, S. A. et al. How to detect fluctuating stripes in the high-temperature superconductors. Rev. Mod. Phys. 75, 1201–1241 (2003).

    Article  CAS  Google Scholar

  29. Jiang, Y. et al. Electron ptychography of 2D materials to deep sub-ångström resolution. Nature 559, 343–349 (2018).

    Article  CAS  PubMed  Google Scholar

  30. Chen, Z. et al. Electron ptychography achieves atomic-resolution limits set by lattice vibrations. Science 372, 826–831 (2021).

    Article  CAS  PubMed  Google Scholar

  31. Ikeda, A., Krockenberger, Y., Irie, H., Naito, M. & Yamamoto, H. Direct observation of infinite NiO2 planes in LaNiO2 films. Appl. Phys. Express 9, 061101 (2016).

    Article  Google Scholar

  32. Dong, Z. et al. Visualization of oxygen vacancies and self-doped ligand holes in La3Ni2O7−δ. Nature 630, 847–852 (2024).

    Article  CAS  PubMed  Google Scholar

  33. Zambon, P. et al. KITE: high frame rate, high count rate pixelated electron counting ASIC for 4D STEM applications featuring high-Z sensor. Nucl. Instrum. Methods Phys. Res.A 1048, 167888 (2023).

    Article  CAS  Google Scholar

  34. Lee, D. & Lee, H. N. Controlling oxygen mobility in Ruddlesden–Popper oxides. Materials 10, 368 (2017).

    Article  PubMed  PubMed Central  Google Scholar

  35. Nirala, G., Yadav, D. & Upadhyay, S. Ruddlesden-Popper phase A2BO4 oxides: recent studies on structure, electrical, dielectric, and optical properties. J. Adv. Ceram. 9, 129–148 (2020).

    Article  CAS  Google Scholar

  36. Tarutin, A. P., Lyagaeva, J. G., Medvedev, D. A., Bi, L. & Yaremchenko, A. A. Recent advances in layered Ln2NiO4+δ nickelates: fundamentals and prospects of their applications in protonic ceramic fuel and electrolysis cells. J. Mater. Chem. A 9, 154–195 (2021).

    Article  CAS  Google Scholar

  37. Tranquada, J. M., Buttrey, D. J., Sachan, V. & Lorenzo, J. E. Simultaneous ordering of holes and spins in La2NiO4.125. Phys. Rev. Lett. 73, 1003–1006 (1994).

    Article  CAS  PubMed  Google Scholar

  38. Tranquada, J. M. et al. Oxygen intercalation, stage ordering, and phase separation in La2NiO4+δ with 0.05 ≲ δ ≲ 0.11. Phys. Rev. B 50, 6340–6351 (1994).

    Article  CAS  Google Scholar

  39. Wells, B. O. et al. Incommensurate spin fluctuations in high-transition temperature superconductors. Science 277, 1067–1071 (1997).

    Article  CAS  Google Scholar

  40. Rhodes, L. C. & Wahl, P. Structural routes to stabilize superconducting La3Ni2O7 at ambient pressure. Phys. Rev. Mater. 8, 044801 (2024).

    Article  CAS  Google Scholar

  41. Bhatt, L. et al. Resolving structural origins for superconductivity in strain-engineered La3Ni2O7 thin films. Preprint at https://arxiv.org/abs/2501.08204 (2025).

  42. Liu, Y.-B., Mei, J.-W., Ye, F., Chen, W.-Q. & Yang, F. s±-wave pairing and the destructive role of apical-oxygen deficiencies in La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 236002 (2023).

    Article  CAS  PubMed  Google Scholar

  43. Yang, Y., Zhang, G.-M. & Zhang, F.-C. Interlayer valence bonds and two-component theory for high-Tc superconductivity of La3Ni2O7 under pressure. Phys. Rev. B 108, L201108 (2023).

    Article  CAS  Google Scholar

  44. Qin, Q. & Yang, Y. High-Tc superconductivity by mobilizing local spin singlets and possible route to higher Tc in pressurized La3Ni2O7. Phys. Rev. B 108, L140504 (2023).

    Article  CAS  Google Scholar

  45. Wang, J. & Yang, Y. Highly asymmetric superconducting dome and strange metallicity in La3Ni2O7. Phys. Rev. B 111, 014512 (2025).

    Article  CAS  Google Scholar

  46. Chen, X. et al. Electronic and magnetic excitations in La3Ni2O7. Nat. Commun. 15, 9597 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  47. Chen, K. et al. Evidence of spin density waves in La3Ni2O7–δ. Phys. Rev. Lett. 132, 256503 (2024).

    Article  CAS  PubMed  Google Scholar

  48. Khasanov, R. et al. Pressure-enhanced splitting of density wave transitions in La3Ni2O7–δ. Nat. Phys. 21, 430–436 (2025).

    Article  CAS  Google Scholar

  49. Zhao, D. et al. Pressure-enhanced spin-density-wave transition in double-layer nickelate La3Ni2O7−δ. Sci. Bull. 70, 1239–1245 (2025).

    Article  CAS  Google Scholar

  50. Li, M. et al. Orbital signatures of density wave transition in La3Ni2O7–δ and La2PrNi2O7–δ RP-nickelates probed via in-situ X-ray absorption near-edge spectroscopy. Preprint at https://arxiv.org/abs/2502.10962 (2025).

  51. Rodríguez-Carvajal, J. Recent advances in magnetic structure determination by neutron powder diffraction. Phys. B Condens. Matter 192, 55–69 (1993).

    Article  Google Scholar

  52. Tsai, E. H. R., Usov, I., Diaz, A., Menzel, A. & Guizar-Sicairos, M. X-ray ptychography with extended depth of field. Opt. Express 24, 29089–29108 (2016).

    Article  PubMed  Google Scholar

  53. Zhang, F. et al. Translation position determination in ptychographic coherent diffraction imaging. Opt. Express 21, 13592–13606 (2013).

    Article  PubMed  Google Scholar

  54. Thibault, P. & Menzel, A. Reconstructing state mixtures from diffraction measurements. Nature 494, 68–71 (2013).

    Article  CAS  PubMed  Google Scholar

  55. Chen, Z. et al. Mixed-state electron ptychography enables sub-angstrom resolution imaging with picometer precision at low dose. Nat. Commun. 11, 2994 (2020).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  56. Clark, J. N., Huang, X., Harder, R. & Robinson, I. K. High-resolution three-dimensional partially coherent diffraction imaging. Nat. Commun. 3, 993 (2012).

    Article  CAS  PubMed  Google Scholar

  57. Xu, W. et al. A high-performance reconstruction method for partially coherent ptychography. Ultramicroscopy 267, 114068 (2024).

    Article  CAS  PubMed  Google Scholar

  58. Thibault, P. & Guizar-Sicairos, M. Maximum-likelihood refinement for coherent diffractive imaging. New J. Phys. 14, 063004 (2012).

    Article  Google Scholar

  59. Odstrčil, M., Menzel, A. & Guizar-Sicairos, M. Iterative least-squares solver for generalized maximum-likelihood ptychography. Opt. Express 26, 3108–3123 (2018).

    Article  PubMed  Google Scholar

  60. Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169–11186 (1996).

    Article  CAS  Google Scholar

  61. Blöchl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953–17979 (1994).

    Article  Google Scholar

  62. Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865–3868 (1996).

    Article  CAS  PubMed  Google Scholar

  63. Perdew, J. P. et al. Restoring the density-gradient expansion for exchange in solids and surfaces. Phys. Rev. Lett. 100, 136406 (2008).

    Article  PubMed  Google Scholar

  64. Sakakibara, H. et al. Model construction and a possibility of cupratelike pairing in a new d9 nickelate superconductor (Nd,Sr)NiO2. Phys. Rev. Lett. 125, 077003 (2020).

    Article  CAS  PubMed  Google Scholar

  65. Huo, Z. et al. First-principles study of the Pr-doped bilayer nickelate La3Ni2O7. Phys. Rev. B 111, 195118 (2025).

    Article  CAS  Google Scholar

  66. Bellaiche, L. & Vanderbilt, D. Virtual crystal approximation revisited: application to dielectric and piezoelectric properties of perovskites. Phys. Rev. B 61, 7877–7882 (2000).

    Article  CAS  Google Scholar

  67. Hetényi, B., De Angelis, F., Giannozzi, P. & Car, R. Calculation of near-edge X-ray-absorption fine structure at finite temperatures: spectral signatures of hydrogen bond breaking in liquid water. J. Chem. Phys. 120, 8632–8637 (2004).

    Article  PubMed  Google Scholar

  68. Karsai, F., Humer, M., Flage-Larsen, E., Blaha, P. & Kresse, G. Effects of electron-phonon coupling on absorption spectrum: K edge of hexagonal boron nitride. Phys. Rev. B 98, 235205 (2018).

    Article  CAS  Google Scholar

  69. Dong, Z., Wang, Y. & Chen, Z. Dataset for: interstitial oxygen order and its competition with superconductivity in La2PrNi2O7+δ. Zenodo https://doi.org/10.5281/zenodo.15666415 (2025).

Download references

Acknowledgements

This work was supported by the Basic Science Center Project of National Natural Science Foundation of China (NSFC) (number 52388201), the Innovation Program for Quantum Science and Technology (grant number 2021ZD0302502), the NSFC Grant (numbers U22A6005, 52273227, 12025408 and 12404179), the National Key Research and Development Program of Ministry of Science and Technology (grant numbers 2023YFA1406400, 2022YFA1405100 and 2023YFA1406100), and Guangdong Major Project of Basic Research, China (grant number 2021B0301030003). Z.D. acknowledges support from the NSFC’s Young Students Program (grant number 124B2068). Y.W. is partially supported by the New Cornerstone Science Foundation through the New Cornerstone Investigator Program and the XPLORER PRIZE. This work used the facilities of the National Center for Electron Microscopy in Beijing at Tsinghua University, Beijing Laboratory of Electron Microscopy at the Institute of Physics, and the Cubic Anvil Cell Station of the Synergetic Extreme Condition User Facility (SECUF; https://cstr.cn/31123.02.SECUF).

Author information

Author notes

  1. These authors contributed equally: Zehao Dong, Gang Wang, Ningning Wang, Wen-Han Dong.

Authors and Affiliations

  1. State Key Laboratory of Low Dimensional Quantum Physics, Department of Physics, Tsinghua University, Beijing, China

    Zehao Dong, Wen-Han Dong, Yong Xu & Yayu Wang

  2. Beijing National Laboratory for Condensed Matter Physics, Institute of Physics, Chinese Academy of Sciences, Beijing, China

    Gang Wang, Ningning Wang, Jinguang Cheng & Zhen Chen

  3. School of Physical Sciences, University of Chinese Academy of Sciences, Beijing, China

    Gang Wang, Ningning Wang, Jinguang Cheng & Zhen Chen

  4. School of Materials Science and Engineering, Tsinghua University, Beijing, China

    Lin Gu

  5. New Cornerstone Science Laboratory, Frontier Science Center for Quantum Information, Beijing, China

    Yong Xu & Yayu Wang

  6. Hefei National Laboratory, Hefei, China

    Yayu Wang

Authors
  1. Zehao Dong
    View author publications

    Search author on:PubMed Google Scholar

  2. Gang Wang
    View author publications

    Search author on:PubMed Google Scholar

  3. Ningning Wang
    View author publications

    Search author on:PubMed Google Scholar

  4. Wen-Han Dong
    View author publications

    Search author on:PubMed Google Scholar

  5. Lin Gu
    View author publications

    Search author on:PubMed Google Scholar

  6. Yong Xu
    View author publications

    Search author on:PubMed Google Scholar

  7. Jinguang Cheng
    View author publications

    Search author on:PubMed Google Scholar

  8. Zhen Chen
    View author publications

    Search author on:PubMed Google Scholar

  9. Yayu Wang
    View author publications

    Search author on:PubMed Google Scholar

Contributions

Y.W., Z.C. and J.C. proposed and supervised the research. Z.D. performed the STEM and EELS experiments and processed the data. G.W. and N.W. synthesized the polycrystalline samples and performed the XRD and transport measurements. W.-H.D. and Y.X. performed the DFT calculations. L.G. contributed to the electron microscopy facilities. Z.D., Z.C. and Y.W. wrote the manuscript. All authors discussed the results and implications throughout the investigation and have given approval to the final version of the manuscript.

Corresponding authors

Correspondence to Jinguang Cheng, Zhen Chen or Yayu Wang.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Materials thanks Yoshiharu Krockenberger and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Rietveld refinement of the XRD pattern for the HPO sample.

a-b, Sample is modeled as a two-phase mixture of the pristine Amam phase and the interstitial-oxygen-ordered B2em phase, as established in the main text and Methods. Experimental data are shown as red circles, the calculated pattern as a black line, and the difference curve as a blue line at the bottom. Vertical tick marks indicate the Bragg reflection positions for the B2em phase (upper ticks) and the Amam phase (lower ticks). Panel a displays the full diffraction pattern within the angle range of 20° and 90°. Panel b highlights the diffraction peak (0,0,10) which clearly illustrates the coexisting phases and their respective volume fractions. Details of the refinement are displayed in Supplementary Table 1.

Extended Data Fig. 2 Elemental EELS mapping for Pr dopant distribution.

a-b, Simultaneously acquired HAADF image (left panel), Pr M5-edge intensity map (middle panel), and La M5-edge intensity map (right panel) for as-grown La2.7Pr0.3Ni2O7 (Pr0.3-AG, panel a) and another sample region from as-grown La2PrNi2O7 (Pr1-AG, panel b). Both regions exhibit the same preference for Pr dopants to substitute La atoms in the outer rock-salt LaO layer.

Extended Data Fig. 3 MEP imaging of the HPO-annealed sample along [010] axis.

a, Atomic model for HPO projected along the [010] axis. b, MEP reconstructed image of HPO along the [010] axis. Intercalated layers of interstitial oxygens are denoted by black arrows. Note that the octahedral distortions are manifested as the vertical elongation of oxygen columns upon projection.

Extended Data Fig. 4 Statistics of Ni-O-Ni bond angles.

a, MEP-reconstructed image corresponding to AG in the pristine 327 phase. b, Color-coded map of the planar Ni-O-Ni bond angles of pristine 327 phase. Each square represents a planar oxygen, with its color indicating the deviation of the bond angle from 180°. Reddish squares (negative angles) correspond to planar oxygens distorted downward, while bluish squares (positive angles) indicate upward distortions. c, Statistical histogram of planar Ni-O-Ni bond angles for the pristine 327 phase, where the colors of individual components correspond to the respective components in panel b. The average bond angles and standard deviation is annotated within the panels. d, MEP-reconstructed image corresponding to HPO in the stage-1 period-b ordered phase. e, Color-coded map of bond angles for the stage-1 period-b ordered phase. Interstitial oxygens are represented as black circles. f, Statistical histogram of bond angles for the stage-1 period-b ordered phase, where the colors of individual components correspond to the respective components in panel e. g, MEP-reconstructed image corresponding to HPO in the stage-1 period-2b ordered phase. h, Color-coded map of bond angles for the stage-1 period-2b ordered phase. Interstitial oxygens are represented as black circles. i, Statistical histogram of bond angles for the stage-1 period-2b ordered phase, where the colors of individual components correspond to the respective components in panel h.

Extended Data Fig. 5 Three-dimensional phase separation in the HPO-annealed sample.

a, Projected MEP-reconstructed phase image of HPO sample as shown in Fig. 4a. b-e, Slice images extracted within the yellow dashed rectangle in panel a, from the depth range of 11-13 nm (b), 14-16 nm (c), 17-21 nm (d), and 22-24 nm (e), respectively. Panels b and c display the stage-1 order in the period-b phase, while panel e exhibits the pristine 327 phase. Panel d shows a crossover region between these two phases where octahedral distortions are not well-defined. These results provide clear evidence of a three-dimensional phase separation.

Extended Data Fig. 6 DFT-calculated structural evolutions under pressure.

a-b, Schematics for the relaxed structures (a), lattice constants and Ni-O-Ni bond angles (b) as a function of the hydrostatic pressure for AG phase La2PrNi2O7. The structural phase transition from Amam to I4/mmm is found around 15 GPa. c-d, Schematics for the relaxed structures (c), lattice constants and Ni-O-Ni bond angles (d) as a function of the hydrostatic pressure for HPO phase La2PrNi2O7.23. No structural phase transition is observed up to 100 GPa. An effective Hubbard U = 3.5 eV was applied when optimizing the crystal structures.

Extended Data Fig. 7 Statistics of interstitial oxygen content of the HPO sample.

a, MEP-reconstructed image from Fig. 3e, with the positions of interstitial and planar oxygens highlighted as red points. b, Color-coded map showing the normalized phase values of interstitial oxygens relative to planar oxygens. c, Histogram of phase values for interstitial and planar oxygens, showing a normalized phase value of 0.23 ± 0.07 for interstitial oxygen columns relative to planar oxygens. Accordingly, the resulting oxygen hyper-stoichiometry is also estimated as δ = 0.23 ± 0.07.

Extended Data Fig. 8 DFT + U calculated electronic structures.

a-d, Projected band structures and projected density of states (PDOS) for AG phase La2PrNi2O7 at 0 GPa (a) and 30 GPa (b), HPO phase La2PrNi2O7.23 at 0 GPa (c) and 30 GPa (d), respectively. Experimental crystal structures from Supplementary Table 2 and Supplementary Table 1 were used for panels a and c, respectively. We compared the bands with those from DFT-relaxed structures at 0 GPa, and found no obvious difference. Red arrows indicate the energy of the PDOS peaks at the band edge of bonding dz2 orbitals. Black arrows denote states associated with interstitial oxygens. e-h, Two-dimensional Fermi surfaces for panels a-d, respectively. Different colors represent distinct band indices.

Extended Data Fig. 9 DFT + U simulated oxygen K-edge XAS spectra of AG and HPO phases.

a-c, XAS spectra for three different oxygen sites. Note that the XAS plays the same role as EELS in dipole approximation. The prepeak of the HPO phase (marked by red arrow) shows a reduced energy and slightly increased intensity compared to that of the AG phase (marked by black arrow), consistent with EELS measurements.

Extended Data Fig. 10 Additional information for the prepeak mapping in Fig. 4e.

a, Simultaneously acquired HAADF image for the mapping area. b, Thickness map derived from low energy-loss EELS.

Supplementary information

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Dong, Z., Wang, G., Wang, N. et al. Interstitial oxygen order and its competition with superconductivity in La2PrNi2O7+δ. Nat. Mater. 24, 1927–1934 (2025). https://doi.org/10.1038/s41563-025-02351-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • Version of record:

  • Issue date:

  • DOI: https://doi.org/10.1038/s41563-025-02351-2

This article is cited by

Search

Advanced search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
