Water (H2O), composed of only two elements, forms numerous polymorphic phases from ice Ih to ice XX (refs. 1,2,3,4,5,6) and four amorphous phases7,8. Understanding the formation and transition pathways of the diverse H2O phases has been of interest in high-pressure physics and the search for life in space and on icy moons9,10,11 for a century.

Generally, the abundant H2O phases result from the configurational changes of hydrogen-bond networks (HBNs), which are tuned by the interplay of increasing packing density and lowering bonding energy over a wide range of temperatures and pressures12. When ice is pressurized over its equilibrium phase boundary at low temperatures, slow kinetics prevent the immediate configurational changes of HBNs, allowing the ice to be trapped in higher-energy states with increased packing density and bonding energy. In this case, the ice cannot often transform directly into a stable phase by reducing the total free energy because of insufficient thermal energy available at low temperatures. Thus, to reduce the total Gibbs free energy at a little cost, the overpressurized ice phase explores various metastable states with slightly lower energies in the energy landscape by adjusting the HBN configurations. This process yields various metastable crystalline and amorphous ice phases1,3,4,5,6,7,8, leading to their complicated transition pathways. In addition to the slow kinetics, rapid pressurization can easily bring the ice to higher metastable states, altering transition pathways via unexpected metastable phases13,14,15,16.

By contrast, at elevated temperatures at which the H2O molecules in HBN are thermally activated, pressurized H2O exhibits fewer metastable phases and a relatively simple transition pathway. However, the instantaneous cooperative motion of H2O molecules in HBN can still be hampered at elevated temperatures, when highly compressed water crystallizes rapidly into dense and complicated hydrogen-bonded ice phases. For example, it has been reported that metastable ice VII (refs. 17,18) and high-density amorphous ice (HDA)19,20 are formed during the fast crystallization of highly overpressurized water at room temperature within the stable ice VI or ice VII pressure regime. Theoretical studies have shown that plastic ice VII with defective hydrogen bonds can form from supercompressed water (SW) at elevated temperatures21,22,23, due to the decoupling of rotational and translational ordering of H2O molecules on rapid crystallization21. In addition, the formation of metastable phases in SW reflects the similar local structure of SW and the metastable phases, which can lower the nucleation barrier for the metastable phases rather than for stable phases17,21,24,25,26,27,28,29,30. This implies that SW can structurally evolve further with pressure, influencing the phase selection and freezing–melting pathways. Thus, even at elevated temperatures, additional metastable ice phases and transition pathways can be found depending on the degree of metastability and transition rates.

In the present study, we discover at least five different freezing–melting pathways of ice VI at room temperature, which are hidden within the stable ice VI pressure regime. The combined technique with dynamic diamond anvil cell (dDAC) and X-ray free-electron laser (XFEL) reveals the multiple transition pathways emerging through two metastable phases of ice XXI and ice VII (ms-ice XXI and ms-ice VII, respectively). Moreover, molecular dynamics (MD) simulation shows that SW evolves from high-density water (HDW) to very-high-density water (VHDW). This structural evolution of SW plays a key role in the phase selection of the ms-ice XXI, ms-ice VII and ice VI phases and, thus, their complicated transition pathways.

Results

Five types of pressure–time curve in the freezing–melting process

By using a piezo-actuated dDAC operating at various (de)compression rates (0.001 to 120 GPa s−1 in this study), we repeatedly compress and decompress liquid water for 100 to 1,000 cycles at room temperature (see refs. 31,32 and Supplementary Figs. 1 and 2). During (de)compression, we simultaneously measure the pressure and optical image with time. The complicated pressure–time (P–t) curves (Fig. 1) reflect that the pressure-induced freezing–melting process of ice VI may not be as simple as generally expected. The P–t curves are categorized into five representative types, which happen randomly (Fig. 1 and Supplementary Figs. 1 and 2).

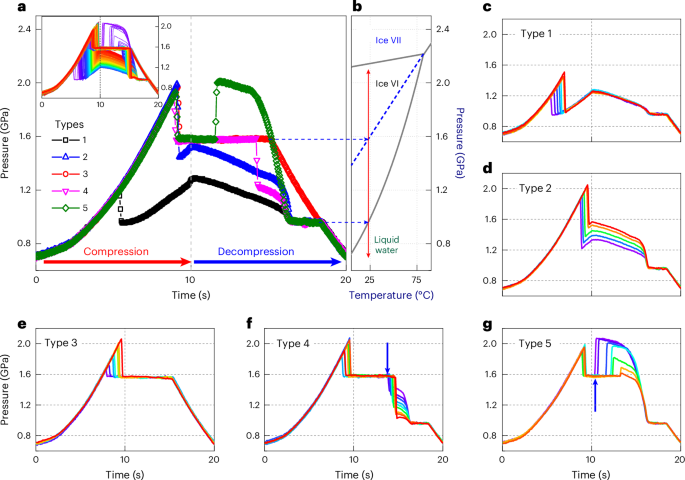

Fig. 1: P–t curves during compression and decompression cycles.
Fig. 1: P–t curves during compression and decompression cycles.
Full size image

a, Five representative P–t curves are classified from the raw data for 1,000 dDAC cycles in the inset. b, Phase diagram of H2O; phase boundaries are depicted by solid lines and the metastable extension of the ice VII melting line is shown by the blue dotted line in the ice VI regime. The arrows from both pressure plateaus in the P–t curves meet with the coexistence pressures of liquid water and ice crystals. c–g, Typical P–t curves for type 1 (c), type 2 (d), type 3 (e), type 4 (f) and type 5 (g). The blue arrows in f and g indicate the second crystallization event from the mixed phase at 1.6 GPa. Standard deviation of pressure measurement is 0.003 GPa (ref. 32).

Source data

Typical P–t curves for the freezing–melting process of ice VI, which is denoted as type 1, are shown in Fig. 1c; the pressure of SW suddenly drops to the equilibrium melting pressure of ice VI (0.96 GPa) at room temperature. Owing to the partial crystallization of SW, the remaining water crystallizes at 0.96 GPa, with a plateau during compression. On decompression, ice VI melts again, with a long plateau at 0.96 GPa. Optical images support this freezing–melting process (Fig. 2a). In type 1, all P–t curves overlap in the compression–decompression cycles after crystallization.

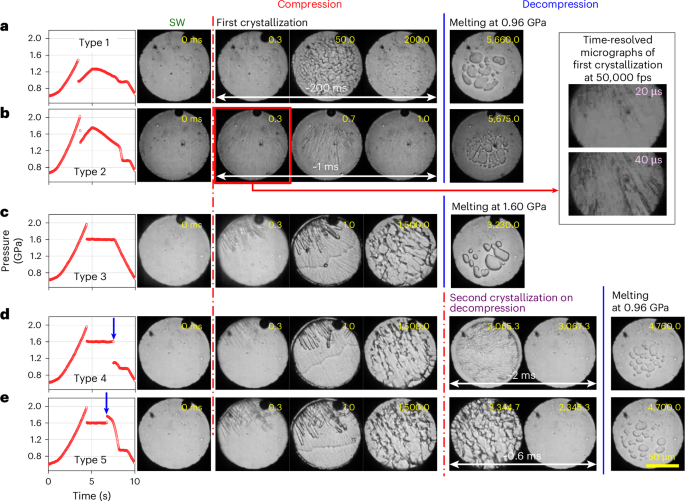

Fig. 2: Optical images measured simultaneously with five types of P–t curve.
Fig. 2: Optical images measured simultaneously with five types of P–t curve.
Full size image

The pressurization cycles are obtained within 10 s. a, Crystal growth is observed after the pressure drop and during the long melting plateau in type 1. b, First and second crystallizations are completed within 0.3 ms and 1 ms, respectively, in type 2. Inset: high-speed imaging at a rate of 50,000 fps, revealing that the first phase crystallizes within 40 μs (Supplementary Fig. 3). c, Mixture phase of ms-ice VII and water forms and melts away at the end of the pressure plateau at 1.6 GPa. d,e, Images of the second crystallization on decompression in type 4 (d) and type 5 (e), which occurs at 1.6 GPa (see the arrows in the P–t curves).

Source data

The type 2 pathway occurs when water is highly pressurized above 1.6 GPa; in this case, the pressure drops due to crystallization are always higher than 0.96 GPa and widely distributed within the pressure range of stable ice VI (Fig. 1d), unlike type 1. Interestingly, high-speed optical images reveal two rapid solidification events occurring during the sudden single pressure drop on compression (Fig. 2b and Supplementary Fig. 3), that is, fast crystal growth from SW within 20–40 μs and another subsequent growth with featureless crystal morphology from the outer border towards its center within approximately 1 ms.

The type 3 pathway exhibits a long plateau at 1.6 GPa after the first pressure drop (Fig. 1e), indicating the formation of a mixture of ms-ice VII and water in the stable ice VI regime14. At the end of the plateau at 1.6 GPa, the pressure decreases monotonically without the melting plateau at 0.96 GPa during decompression. This reflects the complete melting of ms-ice VII at 1.6 GPa, as confirmed by optical images (Fig. 2c).

The mixture of ms-ice VII and water at 1.6 GPa in type 3 occasionally transforms into another phase with a sudden pressure drop or jump during decompression (Fig. 1f,g, arrows), depending on the volume fraction of ms-ice VII in the mixture. When the volume fraction of water is larger than that of ms-ice VII at the end of the pressure plateau (1.6 GPa), volume shrinkage from water to ice VI is larger than volume expansion from ms-ice VII to ice VI, yielding the pressure drop. Pressure jump occurs when ms-ice VII has a larger volume fraction than water at the end of the pressure plateau (Supplementary Fig. 1). The resulting pressures after the sudden pressure drop and jump from 1.6 GPa are widely distributed within the pressure range of stable ice VI and then show slopes (or plateaus) with time during decompression. Subsequently, we observe another pressure drop to 0.96 GPa. These P–t curves with pressure drop and jump are denoted as types 4 and 5, respectively (Fig. 1f,g). The corresponding optical images (Fig. 2d,e) show that the first crystallization is identical to type 3 and the second crystallization, accompanied by a pressure drop or jump from 1.6 GPa, shows a featureless crystal morphology seen in type 2.

We identified the phases appearing in the five types of P–t curve as water, ice VI and ms-ice VII using synchrotron X-ray diffraction and micro-Raman spectroscopic studies (Supplementary Figs. 4 and 5). Thus, the freezing–melting process appears to occur through three different pathways: SW→ice VI→water (type 1), SW→ms-ice VII→water (type 3) and SW→ms-ice VII→ice VI→water (types 4 and 5). However, the rapid two-step transition in type 2 (Fig. 2b) was not directly identified because of the insufficient time resolution in synchrotron XRD and Raman experiments.

XFEL time-resolved study of crystallization on SW

To resolve the rapid two-step transition that occurs within tens of microseconds in type 2, we utilized a megahertz pulse X-ray source during dynamic pressurization (High Energy Density (HED) beamline at the EuXFEL)33,34. After careful synchronization of the crystallization events and X-ray pulse trains (Fig. 3a), we successfully captured the ice crystallization events with two fast detectors: a pulse-resolved adaptive gain integrating pixel detector (AGIPD) with a detection rate of 0.56 MHz (ref. 35) and a train-resolved Varex detector with a rate of 10 Hz (details are given in Fig. 3a, Methods and Supplementary Fig. 7a). We found that the five types of P–t curve were still maintained at a fast compression rate of 10 ms (Supplementary Fig. 6). Thus, the pathways of the freezing–melting process were elucidated in detail by the XFEL experiment (Fig. 3).

Fig. 3: Time-resolved X-ray diffraction patterns detecting the crystallization phases in XFEL experiments.
Fig. 3: Time-resolved X-ray diffraction patterns detecting the crystallization phases in XFEL experiments.
Full size image

a, X-ray pulse trains synchronized with the pressure profile. During compression for 10 ms, a long X-ray pulse train with a duration of ~510 µs is applied at 8.5 ± 1.0 ms to detect the crystallization events. The maximum compression reaches ~2 GPa. For 1-s decompression, 9 consecutive X-ray pulse trains with a duration of ~160 µs are applied. b–f, Detection of phases for the first crystallization from SW and their transitions to the stable ice VI phase during (de)compression. Shown are representative streak images of SW→VI (b; Run 380), SW→VII with transition to VI in Varex (c; Run 85), SW→VII (d; Run 68), SW→XXI→VI (e; Run 60) and SW→XXI with transition to VII and VI in Varex (f; Run 112). Left: diffraction patterns recorded for the crystallization events during 10-ms compression. The arrows mark the appearance of crystal peaks. Subsequent transitions observed with Varex, where ms-ice VII and ms-ice XXI of c and f are converted to stable ice VI, are shown in the parentheses. Middle: diffraction peaks of the AGIPD data averaged over 7 µs for clarity. Right: diffraction patterns obtained during decompression using the Varex detector. g, Representative diffraction peaks of the ice XXI phase obtained by the Varex detector during crystallization are indexed with the best-fitting body-centred tetragonal structure (\(I\bar{4}2d\)) and lattice parameters a = b = 20.085 Å and c = 7.828 Å (details in Supplementary Figs. 8a, 9c and 10). In e and f, the (710), (730) and (622) peaks of the ice XXI phase are missed due to the occurrence of preferred orientation in the initial fast crystallization (Supplementary Fig. 8b).

Source data

Crystallization of ice VI and ms-ice VII in SW is detected in Fig. 3b,c, respectively. On decompression, the broad diffuse scattering intensity with crystalline peaks in the Varex detector reflects the coexistence of liquid water with ms-ice VII (0.0–0.6 s; Fig. 3c). Then, ice VI appears from the mixture phase of ms-ice VII and water at 0.7 s on decompression (Fig. 3c), corresponding to type 4 in the P–t curves. In Fig. 3d, the ms-ice VII coexisting with water melts completely and no other crystal phases appear during decompression, corresponding to type 3 in the P–t curves.

In particular, we discover an ice phase that directly forms from SW (Fig. 3e–g and Supplementary Fig. 7b). The XRD pattern of the discovered ice phase does not match with the ice Ih to ice XX phases including the metastable phases36,37,38 in the ice VI regime in experiments and three calculated phases in theoretical studies (Supplementary Fig. 8a). This ice phase has a body-centred tetragonal structure (\(I\bar{4}2d\)) with a large unit cell (a = b = 20.197 Å and c = 7.891 Å) at approximately 1.6 GPa, which we call ice XXI. The large unit cell contains 152 water molecules, resulting in a density of 1.413 g cm−3 (see the refinement in Supplementary Figs. 9c and 10 and Supplementary Tables 1 and 2). Here ms-ice XXI directly transforms into ice VI on compression (Fig. 3e). This behavior is consistent with the type 2 crystallization sequence shown in Fig. 2b. Remarkably, the ice phase transforms into not only ice VI (Fig. 3e) but also ms-ice VII (Fig. 3f and Supplementary Fig. 7b). It should be noted that the reverse transition (from ms-ice VII to ice XXI) has not been observed in this study, even though both metastable phases can form directly from SW. This suggests that the ice phase certainly has a higher Gibbs free energy than ms-ice VII at room temperature, but their values may be fairly close to each other. Furthermore, we recognize that only ice XXI transforms into ms-ice VII, whereas the remaining water does not (see the AGIPD and Varex data at 0–0.1 s; Supplementary Fig. 7b). By contrast, both water and ms-ice VII in the mixture phase transform into ice VI (indicated by the lack of diffuse scattering intensity in the Varex data at 0.7 and 0.6 s in Fig. 3c,f, respectively, and Supplementary Fig. 7b).

Accordingly, within the stable ice VI pressure regime at room temperature, the XFEL experiment reveals the ice XXI phase and the hidden pathways of crystallization–melting transition that emerge through the two metastable intermediate phases (MIPs; that is, ms-ice VII and ms-ice XXI). Thus, the freezing–melting process can take at least five different pathways according to the time-resolved observation: (1) SW→ice VI→water, (2) SW→ms-ice VII→water, (3) SW→ms-ice VII→ice VI→water, (4) SW→ms-ice XXI→ice VI→water and (5) SW→ms-ice XXI→ms-ice VII→ice VI→water.

Discussion

Multiple crystallization pathways from two forms of HDW

Ostwald recognized that MIPs often form from a metastable liquid before the occurrence of a thermodynamically stable phase, called Ostwald’s step rule39. Owing to the appearance of MIPs, crystallization occurs through multiple steps and multiple pathways, as we observe in this study. Ostwald’s step rule has been explained by three hypotheses: structural similarity between liquids and MIPs40, kinetic competition of nucleation and growth rates between the MIPs and stable phase41 and minimizing entropy production42. Therefore, here we discuss the multiple crystallization pathways by considering the structure of SW and the stability and competing kinetics of the MIPs43.

The nucleation competition between the crystal phases can be understood by their phase stabilities, as inferred above. Although SW transforms into the ice VI phase that has the lowest Gibbs free energy below 1.6 GPa (marked by (1) in Fig. 4b), it can transform into two MIPs over 1.6 GPa as well as stable ice VI (marked by (2) in Fig. 4b). The formation of ice XXI in SW and the one-way transition from ms-ice XXI to ms-ice VII over 1.6 GPa reflect the smaller nucleation barrier and higher Gibbs free energy of ice XXI compared with ms-ice VII (Fig. 4b,c). In addition, the emergence of both MIPs from SW means that the Gibbs free energies of the two MIPs are fairly close (Fig. 4b).

Fig. 4: Phase stability of ice phases and MD simulation results.
Fig. 4: Phase stability of ice phases and MD simulation results.
Full size image

a, Phase diagram of H2O. b,c, Schematic of the Gibbs free energy (b) and nucleation barriers (c) for the four phases of water, ice VI, ms-ice VII and ms-ice XXI. The red lines in a–c denote the ice XXI phase, which are presumed, based on experimental observations (see details in the main text). d–f, Simulation results of SW are obtained using the SPCfw potential. d, Potential energy and density versus pressure. The black solid lines are guides for the eye. Data are presented as mean values, with the error bars indicating the s.d. calculated from 500 data points sampled every 10 ps over trajectories of 15–20 ns. e, PDFs of O–O atoms. f, ADFs of oxygen atoms in the first-nearest and second-nearest neighbours, O′1–4 and O″5–8, where O′1–4 and O″5–8 are defined as the 1st–4th and 5th–8th neighbouring O atoms around the O atom of the central water molecule, respectively.

Source data

According to classical nucleation theory17,43, the nucleation barrier is given by \({\Delta G}^{\text{*}}=\frac{16{\rm{\pi }}{\sigma }_{\text{sl}}^{3}}{3{({\Delta g}_{{\text{v}}}^{{\text{s}}\text{-}{\text{l}}})}^{2}}\), where σsl is the crystal–liquid interfacial free energy and \({\Delta}g_{\rm{v}}^{\,{\rm{s}}-{\rm{l}}}\) is the difference in volume Gibbs free energy between crystal and liquid (that is, \({g}_{\rm{v}}^{{\,}\rm{s}}-{g}_{\rm{v}}^{\rm{l}}\)) that provides a driving force for crystallization. Because \({\Delta}g_{\text{v}}^{{\text{VII}}-{\text{W}}}\) is smaller than \({\Delta} g_{\text{v}}^{{\text{VI}}-{\text{W}}}\) in the range of 1.6–2.2 GPa (Fig. 4b), the formation of ms-ice VII suggests that σsl for ms-ice VII should be much smaller than that for ice VI to compensate for the smaller \({\Delta g}_\text{v}^\text{VII-W}\) and, thus, to yield a smaller nucleation barrier for ms-ice VII than for ice VI (ref. 17). Similarly, ms-ice XXI should have a smaller σsl than ms-ice VII, whereas competitive nucleation of the two MIPs also reflects their similar σsl values. Thus, the order of the interfacial free energy might be \({\sigma }_{\text{sl}}^{\text{XXI}} < {\sigma }_{\text{sl}}^{\text{VII}}\ll {\sigma}_{\text{sl}}^{\text{VI}}\) above 1.6 GPa.

From a microscopic viewpoint, σsl depicts the degree of structural similarity between the crystal and liquid, which is given by the difference in configurational entropy in both phases44. In previous studies17,25, the local order of HDW at 1 GPa was characterized as a body-centred-cubic-like structure, which is similar to the local order of ice VII, explaining the formation of ms-ice VII in SW17. However, if ice-VII-like local orders in SW prevail or strengthen with increasing pressure, it cannot explain the emergence of ice XXI over 1.6 GPa. This implies that the local structure of HDW should evolve further with pressure and become more similar to that of ice XXI than that of ms-ice VII, yielding \({\sigma }_\text{sl}^\text{XXI} < {\sigma }_\text{sl}^\text{VII}\).

The structural evolution of SW was investigated by MD simulation with simple point-charge flexible water (SPCfw)45 and TIP4P/Ice46 models. The simulation results using the SPCfw model reveal two different states of SW in potential energy and density above and below 2.0 GPa (Fig. 4d). Similar results were obtained using the TIP4P/Ice model (Supplementary Fig. 11). The equilibrium melting pressure of ice VI is higher by 0.46 GPa in the TIP4P/Ice model than in the experiment31. Thus, the pressure (2.0 GPa) reflecting the change in the properties in MD simulations roughly corresponds to the experimental pressure of 1.6 GPa.

In addition to the change in potential energy and density, pair distribution functions (PDFs; g(r)) of oxygen–oxygen (O–O) pairs also vary with pressure, reflecting the structural evolution of SW (Fig. 4e). Low-density water at 1 atm changes to HDW under pressure. With further compression, HDW shows distinctly enhanced shoulders in the first and second peaks at approximately 3.3 and 4.8 Å, respectively (Fig. 4e). This behavior has been observed when HDA transforms into very-high-density amorphous ice (VHDA)47,48. In the PDFs of O–O pairs, changes in the peak height and position reflect the distortion of the tetrahedral order in HBN with pressure. However, a relatively small variation with pressure was observed in the PDF of H–O pairs (Supplementary Fig. 12a).

Angle distribution functions (ADFs) of oxygen atoms between the first- and second-nearest neighbours (O′1–4–O–O″5–8) also exhibit the structural evolution of SW with pressure (Fig. 4f); between 1 and 2 GPa, two peaks of ADF around 53° and 65°, which are similarly observed in ice VI, exchange their relative intensities with pressure and then merge over 2 GPa, resembling ice VII. This behavior was also observed in a previous report25. On the other hand, the ADF of O–H–O2H shows relatively small changes over 1 GPa and resembles somewhat between ice-VI-like and ice-VII-like ADFs with increasing pressure (Supplementary Figs. 11h and 12b). Here O2H is the O atom of the water molecule that is included in a sphere with a radius of 3.5 Å from the O atom of the central molecule.

Accordingly, the changes observed in Fig. 4d–f reflect the structural evolution of SW from HDW to VHDW by distorting and rearranging the tetrahedral structures of HBN during supercompression, further reducing \({\sigma }_{\text{sl}}^{\text{XXI}}\) rather than \({\sigma }_{\text{sl}}^{\text{VII}}\), and facilitating the formation of ice XXI above 1.6 GPa observed in experiments.

A recent theoretical study28 suggested that VHDA transforms into metastable plastic ice VII and ice Y phases before the formation of stable ice VII during crystallization at room temperature. In addition, it was reported that dense liquid water is structurally similar to VHDA rather than ice VII, but differs from simple liquid (or hard-sphere-like liquid), with a randomly packed structure as the pressure and temperature increase to 6.5 GPa and 670 K, respectively49. These examples suggest that unlike HDA and HDW, the local structure of VHDA differs from that of ice VII. Thus, on the basis of the changes in PDF and ADF, as well as the formation of ms-ice XXI rather than ms-ice VII, VHDW can be considered a counterpart of VHDA. This fills the gap between VHDA and simple liquid at high pressures and temperatures. Furthermore, it has been reported that even at the molecular level, the symmetry change in the local order due to distortion can notably influence the crystallization pathways50. Therefore, this study demonstrates that the structural evolution of local order in SW from HDW to VHDW can govern the phase selection of MIPs and lead to multiple pathways of the freezing–melting process at room temperature, which is consistent with Ostwald’s step rule39.

In summary, controlling the metastability of SW reveals hidden multiple freezing–melting pathways of ice VI at room temperature, which occur through the metastable ice XXI phase and ms-ice VII in the stable ice VI pressure range. The crystal structure of ice XXI was identified as a body-centred tetragonal structure (\(I\bar{4}2d\)). This study accelerates the search for more metastable phases and transition pathways in H2O and aqueous solutions at high pressures and temperatures, consistent with theoretical predictions21,22,23,24,26,27,28,29,30. The present results will be useful for the development of precise atomistic potential models of H2O and water-containing substances (for example, salty water and protein solutions) and will provide insights into the exploration and design of new functional materials manipulated by transition pathways in many other materials systems.
