Abstract

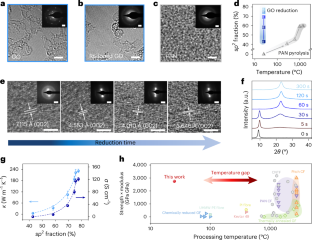

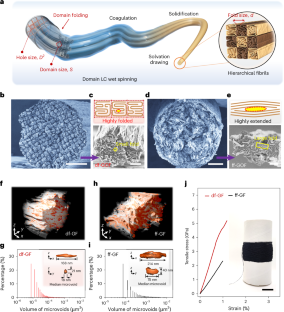

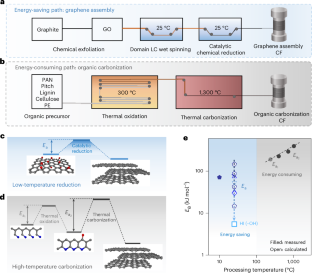

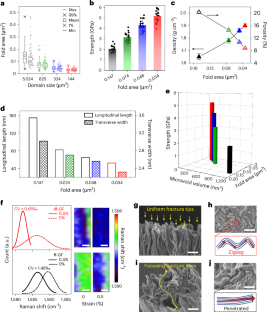

The assembly of strong graphene into high-performance macroscopic materials has attracted great interest and sustained attention. Thermal treatment has proven effective in improving the performance by restoring pristine graphene lattice from defective graphene oxide. However, the mechanical performance of graphene fibres remains inferior to that of single-layer pristine graphene, primarily due to assembly-induced defects such as microvoids that form during the folding process of two-dimensional sheets to fibre structures. Here we report the room-temperature fabrication of ultrastrong and stiff graphene fibres, which exhibit an average tensile strength of 5.19 GPa and Young’s modulus of 529 GPa. We propose a domain-folding strategy to construct highly folded yet densely packed nanotexture, resulting in a tenfold reduction in microvoid volume. The stress distribution within the fibres is homogenized, leading to enhanced mechanical properties. These findings advance the fabrication of carbon fibres and other macroscopic materials assembled from two-dimensional nanosheets, enabling high material quality with reduced energy consumption.
This is a preview of subscription content, access via your institution
Access options
Access Nature and 54 other Nature Portfolio journals
Get Nature+, our best-value online-access subscription
$32.99 / 30 days
cancel any time
Subscribe to this journal
Receive 12 print issues and online access
$259.00 per year
only $21.58 per issue
Buy this article
- Purchase on SpringerLink
- Instant access to the full article PDF.
USD 39.95
Prices may be subject to local taxes which are calculated during checkout




Similar content being viewed by others
Data availability
The data that support the findings of this study are available in the Article and the Supplementary Information. Source data are provided with this paper.
References
Frank, E., Steudle, L. M., Ingildeev, D., Spörl, J. M. & Buchmeiser, M. R. Carbon fibers: precursor systems, processing, structure, and properties. Angew. Chem. Int. Ed. 53, 5262–5298 (2014).
Moreton, R., Watt, W. & Johnson, W. Carbon fibres of high strength and high breaking strain. Nature 213, 690–691 (1967).
Anguita, J. V. et al. Dimensionally and environmentally ultra-stable polymer composites reinforced with carbon fibres. Nat. Mater. 19, 317–322 (2020).
Chae, H. G. et al. High strength and high modulus carbon fibers. Carbon 93, 81–87 (2015).
Chen, S., Qiu, L. & Cheng, H. M. Carbon-based fibers for advanced electrochemical energy storage devices. Chem. Rev. 120, 2811–2878 (2020).
Badami, D. V., Joiner, J. C. & Jones, G. A. Microstructure of high strength, high modulus carbon fibres. Nature 215, 386–387 (1967).
Diefendorf, R. J. & Tokarsky, E. High-performance carbon fibers. Polym. Eng. Sci. 15, 150–159 (1975).
Zhang, W., Liu, J. & Wu, G. Evolution of structure and properties of PAN precursors during their conversion to carbon fibers. Carbon 41, 2805–2812 (2003).
Ashby, M. F. Materials Selection in Mechanical Design (Elsevier, 2011).
Choi, D., Kil, H. S. & Lee, S. Fabrication of low-cost carbon fibers using economical precursors and advanced processing technologies. Carbon 142, 610–649 (2019).
Xu, Z. & Gao, C. Graphene chiral liquid crystals and macroscopic assembled fibres. Nat. Commun. 2, 571 (2011).
Xin, G. et al. Highly thermally conductive and mechanically strong graphene fibers. Science 349, 1083–1087 (2015).
Xu, Z. et al. Ultrastiff and strong graphene fibers via full-scale synergetic defect engineering. Adv. Mater. 28, 6449–6456 (2016).
Xin, G. et al. Microfluidics-enabled orientation and microstructure control of macroscopic graphene fibres. Nat. Nanotechnol. 14, 168–175 (2019).
Li, P. et al. Highly crystalline graphene fibers with superior strength and conductivities by plasticization spinning. Adv. Funct. Mater. 30, 2006584 (2020).
Wang, Y. et al. Determinative scrolling and folding of membranes through shrinking channels. Sci. Adv. 10, eadm7737 (2024).
Lee, D. et al. Ultrahigh strength, modulus, and conductivity of graphitic fibers by macromolecular coalescence. Sci. Adv. 8, eabn0939 (2022).
Zhang, X. et al. Carbon nanotube fibers with dynamic strength up to 14 GPa. Science 384, 1318–1323 (2024).
Ding, L. et al. Covalently bridging graphene edges for improving mechanical and electrical properties of fibers. Nat. Commun. 15, 4880 (2024).
Xu, Z., Sun, H., Zhao, X. & Gao, C. Ultrastrong fibers assembled from giant graphene oxide sheets. Adv. Mater. 25, 188–193 (2013).
Chang, D. et al. Reversible fusion and fission of graphene oxide-based fibers. Science 372, 614–617 (2021).
Jiang, Y., Guo, F., Xu, Z., Gao, W. & Gao, C. Artificial colloidal liquid metacrystals by shearing microlithography. Nat. Commun. 10, 4111 (2019).
Jensen, F. Activation energies and the Arrhenius equation. Qual. Reliab. Eng. Int. 1, 13–17 (1985).
Wegst, U. G. K., Bai, H., Saiz, E., Tomsia, A. P. & Ritchie, R. O. Bioinspired structural materials. Nat. Mater. 14, 23–36 (2015).
Whitney, W. & Kimmel, R. M. Griffith equation and carbon fibre strength. Nat. Phys. Sci. 237, 93–94 (1972).
Pan, H. H. & Weng, G. J. Elastic moduli of heterogeneous solids with ellipsoidal inclusions and elliptic cracks. Acta Mech. 110, 73–94 (1995).
Zhu, C. et al. A small-angle X-ray scattering study and molecular dynamics simulation of microvoid evolution during the tensile deformation of carbon fibers. Carbon 50, 235–243 (2012).
Thünemann, A. F. & Ruland, W. Microvoids in polyacrylonitrile fibers: a small-angle X-ray scattering study. Macromolecules 33, 1848–1852 (2000).
Yue, H. et al. Fractal carbon nanotube fibers with mesoporous crystalline structure. Carbon 122, 47–53 (2017).
Bai, Y. et al. Carbon nanotube bundles with tensile strength over 80 GPa. Nat. Nanotechnol. 13, 589–595 (2018).
Li, P. et al. Continuous crystalline graphene papers with gigapascal strength by intercalation modulated plasticization. Nat. Commun. 11, 2645 (2020).
Bennett, S. C., Johnson, D. J. & Johnson, W. Strength-structure relationships in PAN-based carbon fibres. J. Mater. Sci. 18, 3337–3347 (1983).
Huang, Y. & Young, R. J. Effect of fibre microstructure upon the modulus of PAN- and pitch-based carbon fibres. Carbon 33, 97–107 (1995).
Frank, O. et al. Development of a universal stress sensor for graphene and carbon fibres. Nat. Commun. 2, 255 (2011).
Bouville, F. et al. Strong, tough and stiff bioinspired ceramics from brittle constituents. Nat. Mater. 13, 508–514 (2014).
Huang, M. et al. Large-area single-crystal AB-bilayer and ABA-trilayer graphene grown on a Cu/Ni(111) foil. Nat. Nanotechnol. 15, 289–295 (2020).
Cançado, L. G. et al. Quantifying defects in graphene via Raman spectroscopy at different excitation energies. Nano Lett. 11, 3190–3196 (2011).
Fitzer, E. PAN-based carbon fibers. Present state and trend of the technology from the viewpoint of possibilities and limits to influence and to control the fiber properties by the process parameters. Carbon 27, 621–645 (1989).
Qin, X., Lu, Y., Xiao, H., Wen, Y. & Yu, T. A comparison of the effect of graphitization on microstructures and properties of polyacrylonitrile and mesophase pitch-based carbon fibers. Carbon 50, 4459–4469 (2012).
Li, P. et al. Bidirectionally promoting assembly order for ultrastiff and highly thermally conductive graphene fibres. Nat. Commun. 15, 409 (2024).
Newcomb, B. A. Processing, structure, and properties of carbon fibers. Compos. Part A 91, 262–282 (2016).
Pugno, N. M. The design of self-collapsed super-strong nanotube bundles. J. Mech. Phys. Solids 58, 1397–1410 (2010).
Koziol, K. et al. High-performance carbon nanotube fiber. Science 318, 1892–1895 (2007).
Eom, W. et al. Large-scale wet-spinning of highly electroconductive MXene fibers. Nat. Commun. 11, 2825 (2020).
Allen, S. R. Tensile recoil measurement of compressive strength for polymeric high performance fibres. J. Mater. Sci. 22, 853–859 (1987).
Ma, W. et al. Systematic characterization of transport and thermoelectric properties of a macroscopic graphene fiber. Nano Res. 9, 3536–3546 (2016).
Wan, S. et al. High-strength scalable graphene sheets by freezing stretch-induced alignment. Nat. Mater. 20, 624–631 (2021).
Acknowledgements
We thank the staff members at the Shanghai Synchrotron Radiation Facility for assistance in WAXS and SAXS characterizations, J. Guo in the Centre of Cryo-Electron Microscopy (CCEM), Zhejiang University, for his technical assistance on 3D construction of GF by SEM-FIB tomography, and Z. Lin and W. Ma in the Department of Engineering Mechanics, Tsinghua University, for their help on the measurement of thermal conductivity. This work is supported by the National Natural Science Foundation of China (52090031, 52090030, 52403051 and 52272046) (C.G., P.L. and Y.L.), Natural Science Foundation of Zhejiang Province (LQN25E030008 and LR23E020003) (P.L. and Y.L.), National Key Research and Development Program of China grants (2022YFA1205300 and 2022YFA1205301) (Zhen Xu), ‘Pioneer’ and ‘Leading Goose’ R&D Program of Zhejiang grant (2023C01190) (Zhen Xu), Fundamental Research Funds for the Central Universities grant (226-2024-00074) (Zhen Xu), Shanxi-Zheda Institute of New Materials and Chemical Engineering (2022SZ-TD011 and 2022SZ-TD012) (C.G. and Zhen Xu) and the International Research Centre for X polymers.
Author information
Authors and Affiliations
Contributions
P.L., Zhen Xu and C.G. contributed to the initiating idea. Z.W. and P.L. performed the experiments. Z.W. and G.C. contributed to the preparation of fibres and mechanical tests. Y.Z. and Zhiping Xu contributed to the theoretical analysis of the activation energy of chemical reduction and stress distribution of fibres. Z.L. contributed to the theoretical analysis of interaction of graphene. Z.D., X.M. and B.W. helped to prepare the fibres. Y.L. and W.G. participated in the discussion of strengthening strategy. P.L., Z.W., Zhen Xu and C.G. analysed all the data and wrote the manuscript. All authors commented on the manuscript.
Corresponding authors
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature Materials thanks Kelvin Fu and the other, anonymous reviewer(s) for their contribution to the peer review of this work.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary information
Supplementary Information (download PDF )
Supplementary Figs. 1–40, Tables 1–9, Captions to Supplementary Videos, Text and References.
Supplementary Video 1 (download MP4 )
MD simulation of domain folding.
Supplementary Video 2 (download MP4 )
MD simulation of free folding.
Source data
Source Data Fig. 1 (download XLSX )
Room-temperature graphene assembly path.
Source Data Fig. 2 (download XLSX )
Domain folding of graphene sheets.
Source Data Fig. 3 (download XLSX )
Relation of domain folding and mechanical properties.
Source Data Fig. 4 (download XLSX )
Strengthening mechanism.
Rights and permissions
Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.
About this article
Cite this article
Li, P., Wang, Z., Cai, G. et al. High-performance graphene-based carbon fibres prepared at room temperature via domain folding. Nat. Mater. 25, 191–198 (2026). https://doi.org/10.1038/s41563-025-02384-7
Received:
Accepted:
Published:
Version of record:
Issue date:
DOI: https://doi.org/10.1038/s41563-025-02384-7
