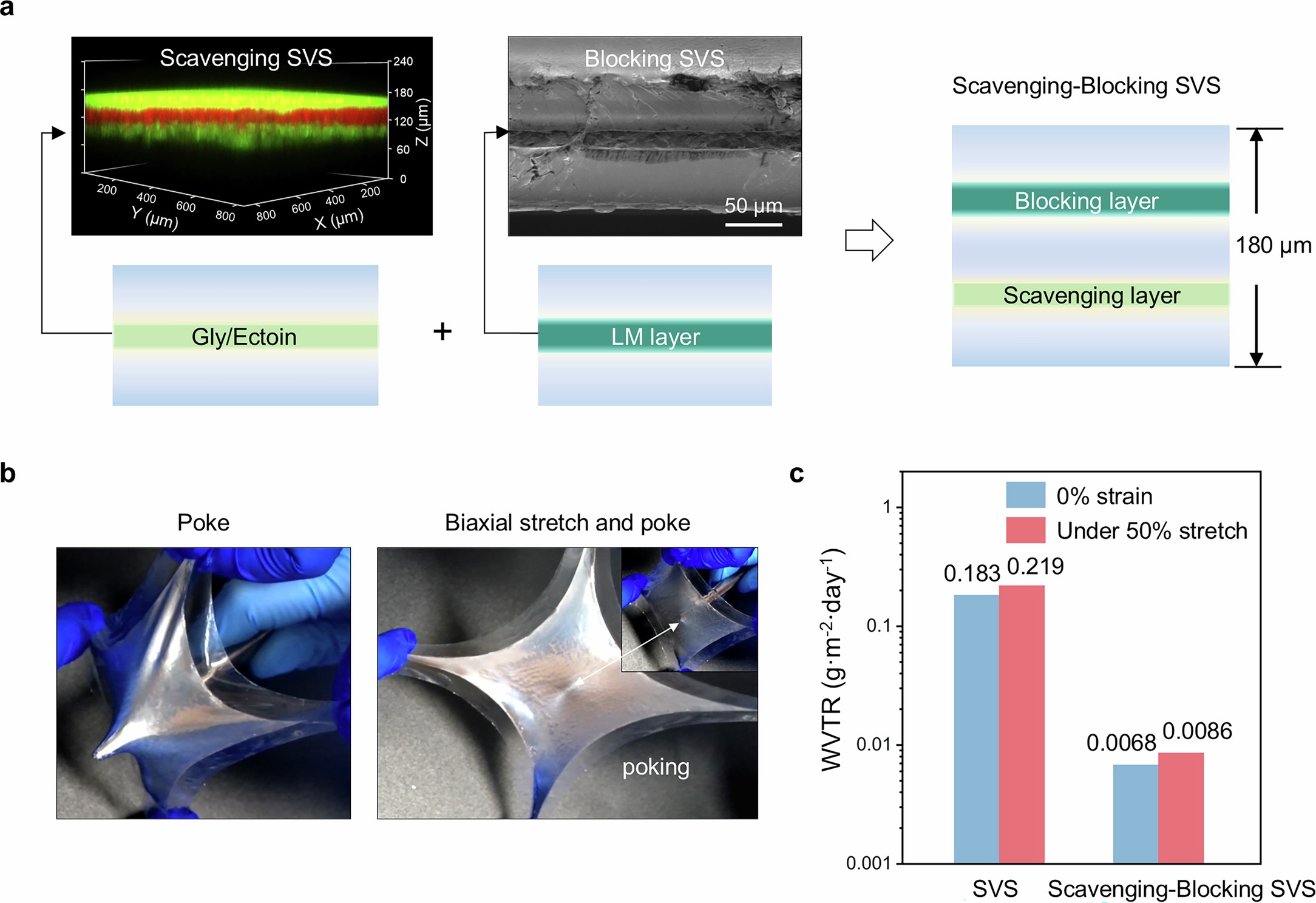

Extended Data Fig. 9: Structure and properties of Scavenging-Blocking SVS.
From: Hermetic stretchable seals enabled by a viscoplastic surface effect
a, Fluorescence optical microscope image for the Scavenging SVS and SEM image for the Blocking SVS that were used for fabricating the Scavenging-Blocking SVS. b, c, Photographs (b) and WVTR at 25 °C and 90% RH (c) for the 180 μm-thick Scavenging-Blocking SVS under 50% stretch. The Scavenging-Blocking SVS can endure large-degree biaxial stretch and poke, demonstrating its high mechanical stability.
