Extended Data Fig. 6: Location heatmaps of intravascular, pocketed and extravasated tumour cells.

From: Cell viscosity influences haematogenous dissemination and metastatic extravasation of tumour cells

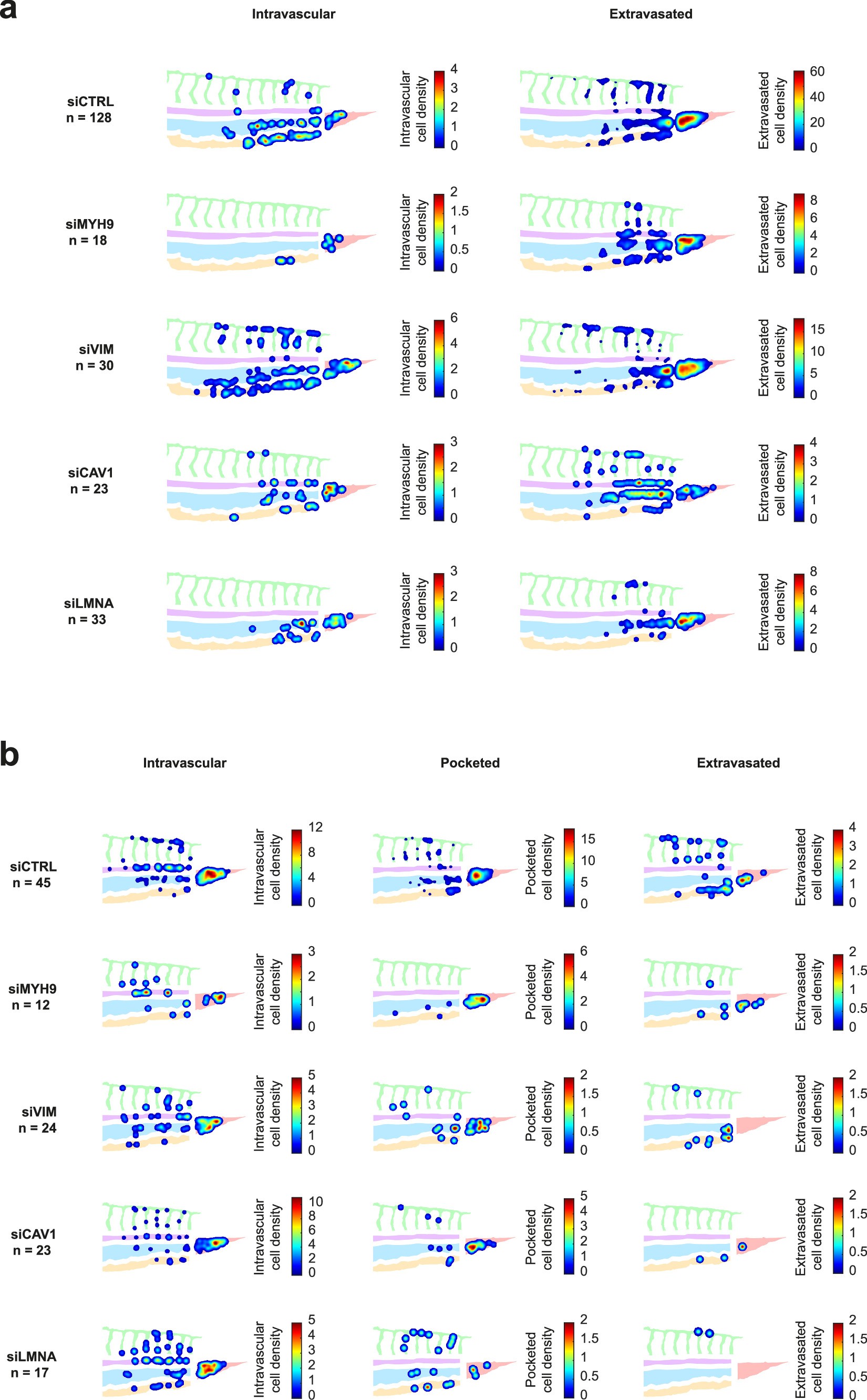

Extended Data Fig. 6

a, Heatmaps displaying hotspots of intravascular and extravasated siRNA-treated D2A1 tumour cells 24 hours post-injection. (N = 12 (siCTRL); 3 (siMYH9, siVIM, siCAV1, siLMNA), n (embryos) = 128 (siCTRL), 18 (siMYH9), 30 (siVIM), 23 (siCAV1), 33 (siLMNA)). b, Heatmaps displaying hotspots of intravascular, pocketed and extravasated siRNA-treated D2A1 tumour cells 3 hours post-injection. (N = 4 (siCTRL); 2 (siMYH9, siVIM, siCAV1, siLMNA), n (embryos) = 45 (siCTRL), 12 (siMYH9), 24 (siVIM), 23 (siCAV1), 17 (siLMNA)).
