Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

  • Article
  • Published:

Texture-dependent all-optical switching in ferromagnetic films via stochastic nucleation of nanoscale domains

Nature Materials (2026)Cite this article

Subjects

Abstract

Controlling magnetic textures at ever smaller length scales and timescales is of fundamental and technological interest. External stimuli capable of acting at the nanoscale pose a challenge, motivating alternative approaches that exploit the intrinsic inhomogeneity of magnetic textures. Here we use a Pt/Co/Pt ferromagnetic thin film to investigate magnetization reversal with circularly polarized picosecond laser pulses. Magnetic force microscopy reveals stochastic nucleation of complex nanotextured domains from an initial monodomain state. Subsequent illumination of these domains with laser pulses induces deterministic and homogeneous magnetization switching. We find that the domain growth depends on the complexity of the texture, revealing a helicity- and texture-dependent mechanism that contrasts with temperature-gradient-driven domain expansion. We complement our observations with a stochastic model in which domain nucleation is governed by light helicity and the local magnetic environment. These results provide an insight into the mechanism of multipulse helicity-dependent all-optical switching.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

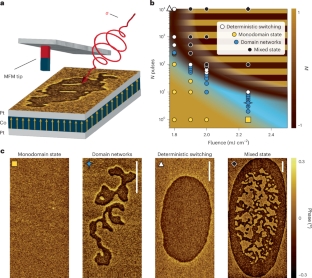

Fig. 1: Nanoscopy of the magnetic nanotextures in Pt/Co/Pt trilayers.

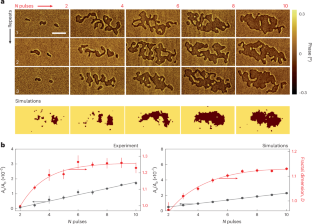

Fig. 2: Multipulse evolution of stochastic domain networks.

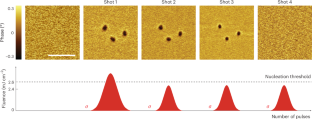

Fig. 3: Evolution of photoinduced submicrometre domains under the MCD-derived temperature gradient.

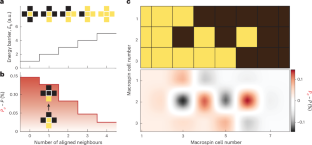

Fig. 4: Impact of texture and helicity of light on the switching probability.

Similar content being viewed by others

Data availability

The data that support the findings of this work are available at https://doi.org/10.34973/6j6t-pd76 (ref. 54). Source data are provided with this paper. All other data that support the findings of this paper are available from the corresponding author upon request.

References

  1. Collet, E. et al. Laser-induced ferroelectric structural order in an organic charge-transfer crystal. Science 300, 612–615 (2003).

    Article  CAS  PubMed  Google Scholar

  2. Beaud, P. et al. A time-dependent order parameter for ultrafast photoinduced phase transitions. Nat. Mater. 13, 923–927 (2014).

    Article  CAS  PubMed  Google Scholar

  3. Wall, S. et al. Ultrafast disordering of vanadium dimers in photoexcited VO2. Science 362, 572–576 (2018).

    Article  CAS  PubMed  Google Scholar

  4. Stoica, V. A. et al. Non-equilibrium pathways to emergent polar supertextures. Nat. Mater. 23, 1394–1401 (2024).

    Article  CAS  PubMed  Google Scholar

  5. Nova, T. F., Disa, A. S., Fechner, M. & Cavalleri, A. Metastable ferroelectricity in optically strained SrTiO3. Science 364, 1075–1079 (2019).

    Article  CAS  PubMed  Google Scholar

  6. Li, X. et al. Terahertz field–induced ferroelectricity in quantum paraelectric SrTiO3. Science 364, 1079–1082 (2019).

    Article  CAS  PubMed  Google Scholar

  7. Gedik, N., Yang, D.-S., Logvenov, G., Bozovic, I. & Zewail, A. H. Nonequilibrium phase transitions in electron crystallography. Science 316, 425–429 (2007).

    Article  CAS  PubMed  Google Scholar

  8. Demsar, J., Podobnik, B., Kabanov, V. V., Wolf, T. H. & Mihailovic, D. Superconducting gap Δc, the pseudogap Δ⁢p, and pair fluctuations above Tc in overdoped Y⁢1−x⁢Ca⁢x⁢Ba⁢2Cu⁢3⁢O⁢7−δ from femtosecond time-domain spectroscopy. Phys. Rev. Lett. 82, 4918–4921 (1999).

    Article  CAS  Google Scholar

  9. Boschini, F. et al. Collapse of superconductivity in cuprates via ultrafast quenching of phase coherence. Nat. Mater. 17, 416–420 (2018).

    Article  CAS  PubMed  Google Scholar

  10. Wandel, S. et al. Enhanced charge density wave coherence in a light-quenched, high-temperature superconductor. Science 376, 860–864 (2022).

    Article  CAS  PubMed  Google Scholar

  11. Fava, S. et al. Magnetic field expulsion in optically driven YBa2Cu3O6.48. Nature 632, 75–80 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  12. Beaurepaire, E., Merle, J.-C., Daunois, A. & Bigot, J.-Y. Ultrafast spin dynamics in ferromagnetic nickel. Phys. Rev. Lett. 76, 4250–4253 (1996).

    Article  CAS  PubMed  Google Scholar

  13. Radu, I. et al. Transient ferromagnetic-like state mediating ultrafast reversal of antiferromagnetically coupled spins. Nature 472, 205–208 (2011).

    Article  CAS  PubMed  Google Scholar

  14. Büttner, F. et al. Observation of fluctuation-mediated picosecond nucleation of a topological phase. Nat. Mater. 20, 30–37 (2021).

    Article  PubMed  Google Scholar

  15. Kirilyuk, A., Kimel, A. V. & Rasing, T. Ultrafast optical manipulation of magnetic order. Rev. Mod. Phys. 82, 2731–2784 (2010).

    Article  Google Scholar

  16. Li, G. et al. Ultrafast kinetics of the antiferromagnetic-ferromagnetic phase transition in FeRh. Nat. Commun. 13, 2998 (2022).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Blank, T. G. H. et al. Empowering control of antiferromagnets by THz-induced spin coherence. Phys. Rev. Lett. 131, 096701 (2023).

    Article  CAS  PubMed  Google Scholar

  18. Afanasiev, D. et al. Ultrafast control of magnetic interactions via light-driven phonons. Nat. Mater. 20, 607–611 (2021).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  19. Davies, C. S. et al. Anomalously damped heat-assisted route for precessional magnetization reversal in an iron garnet. Phys. Rev. Lett. 122, 027202 (2019).

    Article  CAS  PubMed  Google Scholar

  20. Liu, M. et al. Terahertz-field-induced insulator-to-metal transition in vanadium dioxide metamaterial. Nature 487, 345–348 (2012).

  21. de Jong, S. et al. Speed limit of the insulator–metal transition in magnetite. Nat. Mater. 12, 882–886 (2013).

    Article  PubMed  Google Scholar

  22. Mankowsky, R., Von Hoegen, A., Först, M. & Cavalleri, A. Ultrafast reversal of the ferroelectric polarization. Phys. Rev. Lett. 118, 197601 (2017).

    Article  CAS  PubMed  Google Scholar

  23. Stojchevska, L. et al. Ultrafast switching to a stable hidden quantum state in an electronic crystal. Science 344, 177–180 (2014).

    Article  CAS  PubMed  Google Scholar

  24. Ravnik, J. et al. A time-domain phase diagram of metastable states in a charge ordered quantum material. Nat. Commun. 12, 2323 (2021).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  25. Johnson, A. S. et al. All-optical seeding of a light-induced phase transition with correlated disorder. Nat. Phys. 20, 970–975 (2024).

    Article  CAS  Google Scholar

  26. Kimel, A. V. et al. Ultrafast non-thermal control of magnetization by instantaneous photomagnetic pulses. Nature 435, 655–657 (2005).

    Article  CAS  PubMed  Google Scholar

  27. Hansteen, F., Kimel, A., Kirilyuk, A. & Rasing, T. Femtosecond photomagnetic switching of spins in ferrimagnetic garnet films. Phys. Rev. Lett. 95, 047402 (2005).

    Article  PubMed  Google Scholar

  28. de Jong, J. A. et al. Coherent control of the route of an ultrafast magnetic phase transition via low-amplitude spin precession. Phys. Rev. Lett. 108, 157601 (2012).

    Article  PubMed  Google Scholar

  29. Lambert, C.-H. et al. All-optical control of ferromagnetic thin films and nanostructures. Science 345, 1337–1340 (2014).

    Article  CAS  PubMed  Google Scholar

  30. Kichin, G. et al. From multiple- to single-pulse all-optical helicity-dependent switching in ferromagnetic Co/Pt multilayers. Phys. Rev. Appl. 12, 024019 (2019).

    Article  CAS  Google Scholar

  31. Gorchon, J., Yang, Y. & Bokor, J. Model for multishot all-thermal all-optical switching in ferromagnets. Phys. Rev. B 94, 020409 (2016).

    Article  Google Scholar

  32. Ellis, M. O. A., Fullerton, E. E. & Chantrell, R. W. All-optical switching in granular ferromagnets caused by magnetic circular dichroism. Sci. Rep. 6, 30522 (2016).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  33. Medapalli, R. et al. Multiscale dynamics of helicity-dependent all-optical magnetization reversal in ferromagnetic Co/Pt multilayers. Phys. Rev. B 96, 224421 (2017).

    Article  Google Scholar

  34. Quessab, Y. et al. Helicity-dependent all-optical domain wall motion in ferromagnetic thin films. Phys. Rev. B 97, 054419 (2018).

    Article  CAS  Google Scholar

  35. Yamada, K. T. et al. Efficient all-optical helicity dependent switching of spins in a Pt/Co/Pt film by a dual-pulse excitation. Front. Nanotechnol. 4, 765848 (2022).

  36. Janda, T. et al. Inertial displacement of a domain wall excited by ultra-short circularly polarized laser pulses. Nat. Commun. 8, 15226 (2017).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  37. Parlak, U., Adam, R., Bürgler, D. E., Gang, S. & Schneider, C. M. Optically induced magnetization reversal in [Co/Pt] multilayers: role of domain wall dynamics. Phys. Rev. B 98, 214443 (2018).

    Article  CAS  Google Scholar

  38. Je, S.-G. et al. Creation of magnetic skyrmion bubble lattices by ultrafast laser in ultrathin films. Nano Lett. 18, 7362–7371 (2018).

    Article  CAS  PubMed  Google Scholar

  39. Kazakova, O. et al. Frontiers of magnetic force microscopy. J. Appl. Phys. 125, 060901 (2019).

  40. Schwarz, A. & Wiesendanger, R. Magnetic sensitive force microscopy. Nano Today 3, 28–39 (2008).

    Article  CAS  Google Scholar

  41. Huo, S. et al. Micromagnetic and MFM studies of a domain wall in thick 110 FeSi. J. Magn. Magn. Mater. 190, 17–27 (1998).

    Article  CAS  Google Scholar

  42. Okuno, T., Shigeto, K., Ono, T., Mibu, K. & Shinjo, T. MFM study of magnetic vortex cores in circular permalloy dots: behavior in external field. J. Magn. Magn. Mater. 240, 1–6 (2002).

    Article  CAS  Google Scholar

  43. Hrabec, A. et al. Measuring and tailoring the Dzyaloshinskii-Moriya interaction in perpendicularly magnetized thin films. Phys. Rev. B 90, 020402 (2014).

    Article  CAS  Google Scholar

  44. Casiraghi, A. et al. Individual skyrmion manipulation by local magnetic field gradients. Commun. Phys. 2, 145 (2019).

    Article  Google Scholar

  45. Bhukta, M. et al. Homochiral antiferromagnetic merons, antimerons and bimerons realized in synthetic antiferromagnets. Nat. Commun. 15, 1641 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  46. Peng, Y. et al. In-plane reorientation induced single laser pulse magnetization reversal. Nat. Commun. 14, 5000 (2023).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  47. Berritta, M., Mondal, R., Carva, K. & Oppeneer, P. M. Ab initio theory of coherent laser-induced magnetization in metals. Phys. Rev. Lett. 117, 137203 (2016).

    Article  PubMed  Google Scholar

  48. John, R. et al. Magnetisation switching of FePt nanoparticle recording medium by femtosecond laser pulses. Sci. Rep. 7, 4114 (2017).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  49. El Hadri, M. S. et al. Two types of all-optical magnetization switching mechanisms using femtosecond laser pulses. Phys. Rev. B 94, 064412 (2016).

    Article  Google Scholar

  50. Lisovskii, F. V., Lukashenko, L. I. & Mansvetova, E. G. Thermodynamically stable fractal-like domain structures in magnetic films. JETP Lett. 79, 352–354 (2004).

    Article  CAS  Google Scholar

  51. Pylypovskyi, O. V. et al. Interaction of domain walls with grain boundaries in uniaxial insulating antiferromagnets. Phys. Rev. Appl. 20, 014020 (2023).

    Article  CAS  Google Scholar

  52. Möhrke, P., Rhensius, J., Thiele, J.-U., Heyderman, L. J. & Kläui, M. Tailoring laser-induced domain wall pinning. Solid State Commun. 150, 489–491 (2010).

    Article  Google Scholar

  53. Yamada, K. T. et al. Magnetization reversal of a ferromagnetic Pt/Co/Pt film by helicity dependent absorption of visible to near-infrared laser pulses. Phys. Rev. B 111, L020406 (2025).

    Article  CAS  Google Scholar

  54. Khusyainov, D. et al. Texture-dependent all-optical switching in ferromagnetic films via stochastic nucleation of nanoscale domains. Radboud Data Repository https://doi.org/10.34973/6j6t-pd76 (2025).

    Article  Google Scholar

Download references

Acknowledgements

We thank N. Kiselev, D. Grundler, R. Medapalli and L. Körber for fruitful discussions and K. Saeedi and C. Berkhout for their technical support. Additionally, we would like to thank N. Khokhlov, V. Bilyk, L. Nowak and J. Hintermayr for their assistance with the building of the experimental setup. This work was funded by European Research Council (ERC) grant 101078206 ASTRAL, the European Union Horizon 2020 innovation programme under the ERC grant agreement number 856538 (3D-MAGiC), the European Union Horizon 2020 innovation programme under the Marie Skłodowska-Curie grant agreement number 861300 (COMRAD), and the Gravitation program of the Dutch Ministry of Education, Culture and Science (OCW) under the research program ‘Materials for the Quantum Age’ (QuMat) registration number 024.005.006. F.K. and M.K. acknowledge funding from the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) TRR 173/2 Spin+X no. 268565370 (Projects A01, A12 and B02). M.N. acknowledges support from the Natural Sciences and Engineering Research Council of Canada (NSERC) PDF fellowship. R.V.M. acknowledges support from the ERC grant agreement number 852050 (MAGSHAKE). J.H.M. acknowledges funding from the VIDI project number 223.157 (CHASEMAG). J.H.M. and M.K. acknowledge the Horizon Europe Framework Programme of the European Commission under project number 101070290 (NIMFEIA) and, with T.R., also the KIC project number 22016, which are partly financed by the Dutch Research Council (NWO).

Author information

Authors and Affiliations

  1. Radboud University, Institute for Molecules and Materials, Nijmegen, The Netherlands

    Dinar Khusyainov, Rein Liefferink, MengXing Na, Dmytro Afanasiev, Alexey V. Kimel, Johan H. Mentink & Theo Rasing

  2. Institute of Physics, Johannes Gutenberg University Mainz, Mainz, Germany

    Fabian Kammerbauer, Robert Frömter & Mathias Kläui

  3. NT-MDT BV, Apeldoorn, The Netherlands

    Dmitry Kozodaev

  4. Department of Physics, Lancaster University, Lancaster, UK

    Nikolay Vovk & Rostislav V. Mikhaylovskiy

Authors
  1. Dinar Khusyainov
    View author publications

    Search author on:PubMed Google Scholar

  2. Rein Liefferink
    View author publications

    Search author on:PubMed Google Scholar

  3. MengXing Na
    View author publications

    Search author on:PubMed Google Scholar

  4. Fabian Kammerbauer
    View author publications

    Search author on:PubMed Google Scholar

  5. Robert Frömter
    View author publications

    Search author on:PubMed Google Scholar

  6. Mathias Kläui
    View author publications

    Search author on:PubMed Google Scholar

  7. Dmitry Kozodaev
    View author publications

    Search author on:PubMed Google Scholar

  8. Nikolay Vovk
    View author publications

    Search author on:PubMed Google Scholar

  9. Rostislav V. Mikhaylovskiy
    View author publications

    Search author on:PubMed Google Scholar

  10. Dmytro Afanasiev
    View author publications

    Search author on:PubMed Google Scholar

  11. Alexey V. Kimel
    View author publications

    Search author on:PubMed Google Scholar

  12. Johan H. Mentink
    View author publications

    Search author on:PubMed Google Scholar

  13. Theo Rasing
    View author publications

    Search author on:PubMed Google Scholar

Contributions

D.A., J.H.M., A.V.K. and T.R. conceived the project. D.A., J.H.M., A.V.K. and T.R. supervised the study. D. Khusyainov and D. Kozodaev designed and built the experimental setup. D. Khusyainov and N.V. performed the experiments. F.K., R.F. and M.K. fabricated the samples. D. Khusyainov analysed and interpreted the results of the MFM and magneto-optical experiments. D. Khusyainov and M.N. prepared the figures. R.L. and J.H.M. provided the theoretical model. R.L. carried out the simulations. D. Khusyainov, R.L., M.N., R.V.M., J.H.M., D.A., A.V.K. and T.R. wrote the original draft with feedback from all co-authors.

Corresponding author

Correspondence to Dinar Khusyainov.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Materials thanks Sascha Feldmann and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Magnetic hysteresis loop for Pt(3 nm)/Co(0.6 nm)/Pt(3 nm).

The hysteresis loop is measured by observing the Faraday rotation in response to changes in an applied magnetic field.

Extended Data Fig. 2 Effect of the light helicity on the switching.

Magneto-optical image of two domains with M=1 and M=−1 after sweeping with a laser beam with σ−, σ+, and linearly polarized light (LP). Image shows that to switch magnetization from M=1 to M=−1 (M=−1 to M=1), σ− (σ+) pulses are necessary. The scale bar is 100 µm.

Extended Data Fig. 3 Comparison of magneto-optical Faraday and magnetic force microscopy for studying laser-induced magnetic nanotextures.

Top: In Faraday microscopy, linearly polarized light passes through a polarizer, the magnetic sample, a 10× objective, and an analyzer before being detected by a CCD camera. Circularly polarized laser pulses (σ) induce nanotextured magnetic domains in the sample. Laser-induced magnetic domains induce Faraday rotation of the light polarization, producing a magneto-optical image (right). Bottom: In MFM, a magnetized tip scans above the sample surface to detect magnetic stray fields coming from the nanotextured domains, yielding a high-resolution MFM image (right). Representative magneto-optical and MFM images illustrate the differences in spatial resolution between the two techniques. The scale bar is 5 µm.

Extended Data Fig. 4 Conditions for deterministic switching in Pt/Co/Pt.

(a) Magneto-optical images of the magnetization after illumination with σ laser pulses as a function of the number of pulses and fluence. Magneto-optical images were obtained using magneto-optical Faraday microscopy. Images were post-processed by removing the background. The images of the monodomain state, unaffected by laser pulses, are replaced by a uniform yellow background. The scale bar is 15 µm. (b) Diagram of the average magnetization after laser illumination inside the switched spot as a function of the number of pulses and fluence. Dots represent the MFM sampled images in deterministic (white) and mixed states (black) displayed in (c). The scale bars in (c) are 5 µm.

Extended Data Fig. 5 An example of the fractal dimension calculation using the Minkovski-Bouligand method.

(a) Binary MFM image of the sample after illumination with 4 pulses. (b) Graph of the logarithm of box size plotted against the logarithm of box number with a linear fit showing a value for D = 1.17±0.04.

Extended Data Fig. 6 Complete multi-pulse evolution of helicity-dependent switching up to 10 thousand pulses.

(a) MFM images of the laser-induced stochastic domain networks as a function of the number of pulses N at a fluence of F = 2.26 mJ/cm2. The white shadow indicates progress in the deterministic state formation. The lower panel shows the result of the simulations using a probabilistic energy barrier-based model, including and excluding heat accumulation. We see that heat accumulation doesn’t affect the formation of the homogeneously switched domain at a low number of pulses. Heat accumulation was implemented in the model as an exponential growth of the base temperature from \({T}_{0}\)= 0.2E0/kB to \({T}_{0}\)= 0.5E0/kB saturating at ~100 pulses. The scale bars are 5 µm. (b) The normalized switched area As/Ab (gray) and the fractal dimension D (red) as a function of the incident number of circularly polarized laser pulses N, calculated from the experiment and simulations, respectively. As/Ab and D in experiment (simulations) are presented as mean values ± s.d (s.e.m). The experiment has been repeated 3 times for the whole range of numbers of pulses. We ran the simulation 50 times from 0 to 10 pulses, 3 times in the range 100 to 1000 pulses, and 1 time for 10000 pulses. We use only the outer domain wall to estimate the fractal dimension of the deterministic part in the mixed state. The switched area increases linearly up to ten pulses and then saturates after 100 pulses, followed by a slow growth, as observed in the experiment and simulation. In D, we observe a rapid increase to D ~ 1.24 (1.17) from 0 to 6(7) pulses, followed by a plateau from 6(7) to 100(10), and a decrease to D ~ 1.15 (1.11) from 100(10) to 10K pulses for experiments (simulations).

Source data

Extended Data Fig. 7 Single-pulse nucleation of the domain networks.

(a) MFM images of the single-pulse nucleated domains as a function of pulse fluence for left (σ−) and right (σ+) circularly polarized laser pulses. We observe that the threshold for small domains is Fσ− =2.57 mJ/cm2 for σ− pulses, while for σ+ pulses, the critical threshold fluence is Fσ+ =2.7 mJ/cm2. The difference between Fσ+ and Fσ− confirms that the absorption of σ+ and σ− pulses is inequivalent, which can be attributed to the MCD effect. The scale bar is 5 µm. (b-c) Switched area (b) and fractal dimension (c) as a function of fluence for the domain networks. Extracted an MCD-induced shift in As/Ab as the function of fluence is approximately 3%. Fractal dimension D also exhibits an MCD effect but with a slightly smaller induced shift of approximately 1.5%. Solid lines in (b,c) serve as a guide for the eye.

Extended Data Fig. 8 Smallest laser-induced magnetic domain.

An MFM image of the laser-induced stochastic domain network was obtained after illumination with six pulses. The zoom-in panel shows the smallest magnetic domain. The line profile was fitted with a Gaussian distribution. The domain size is about 235 nm (Full width at half-maximum). The scale bar is 5 µm.

Extended Data Fig. 9 Effect of MCD on laser-induced evolution of stochastic domain networks.

(a) MFM images of the laser-induced nanosized domain networks as a function of the number of σ− and LP pulses. Fluence was fixed at a value of about 2.5 mJ/cm2. (b) Simulated images of the laser-induced domains with and without the contribution of the MCD effect. The scale bar is 5 µm.

Supplementary information

Supplementary Information (download PDF )

Supplementary Materials 1–6 and Figs. 1–8.

Source data

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Khusyainov, D., Liefferink, R., Na, M. et al. Texture-dependent all-optical switching in ferromagnetic films via stochastic nucleation of nanoscale domains. Nat. Mater. (2026). https://doi.org/10.1038/s41563-026-02515-8

Download citation

  • Received:

  • Accepted:

  • Published:

  • Version of record:

  • DOI: https://doi.org/10.1038/s41563-026-02515-8

Search

Advanced search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
