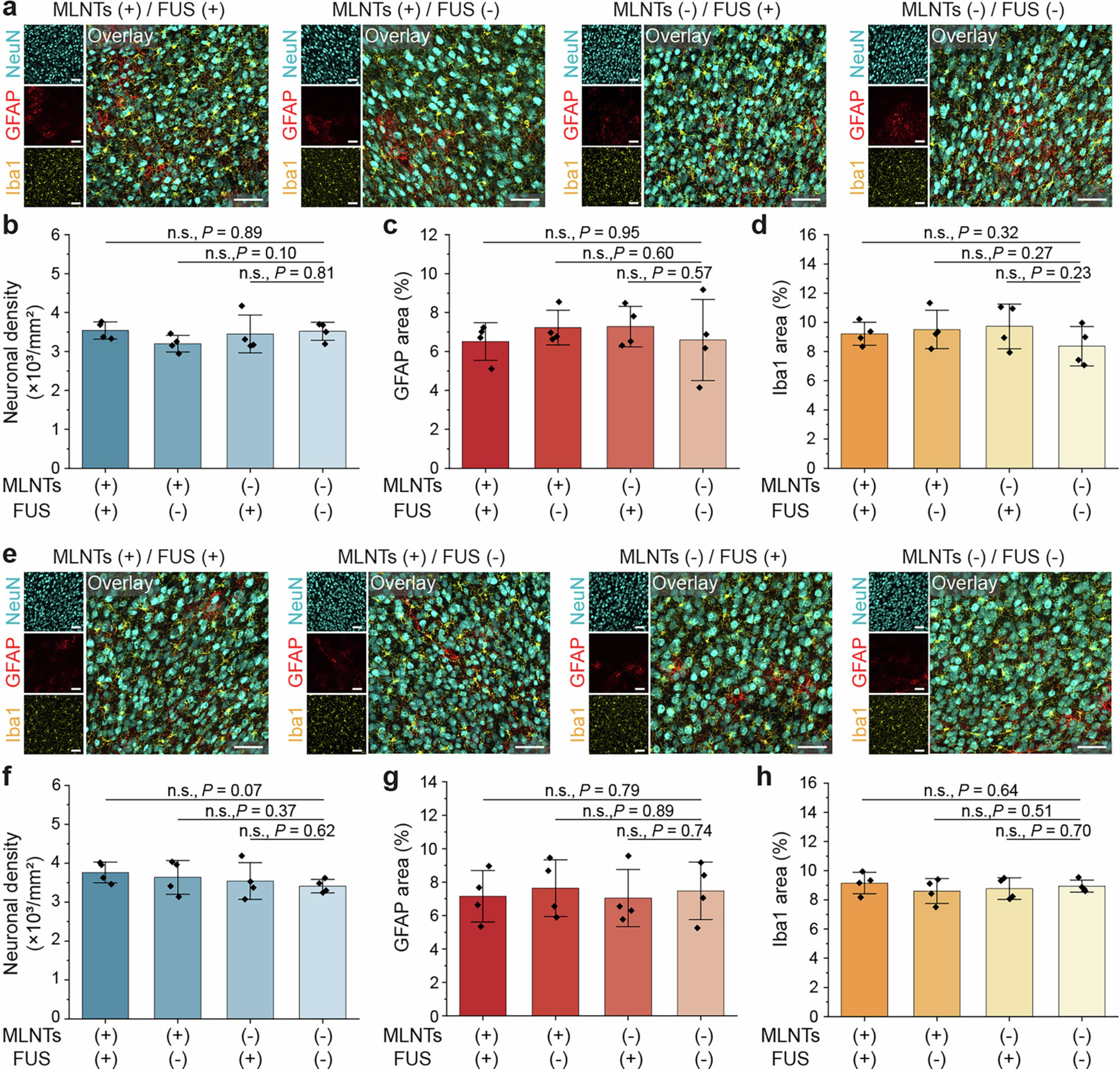

Extended Data Fig. 3: Biocompatibility assessment of the ultrasound-scanning light source.
a, e, Representative immunostaining images of the M1 region 1 week (a) and 4 weeks (e) post-procedure under different experimental conditions. b, f, Statistical analysis of neuronal density 1 week (b) and 4 weeks (f) post-procedure. c, g, Statistical analysis of GFAP area 1 week (c) and 4 weeks (g) post-procedure. d, h, Statistical analysis of Iba1 area 1 week (d) and 4 weeks (h) post-procedure. All scale bars represent 50 µm. All data are presented as mean ± s.d. with data points shown for each animal from n = 4 mice in each group. Statistical significance and P values are determined by ordinary one-way ANOVA: P ≥ 0.05 (n.s.).
