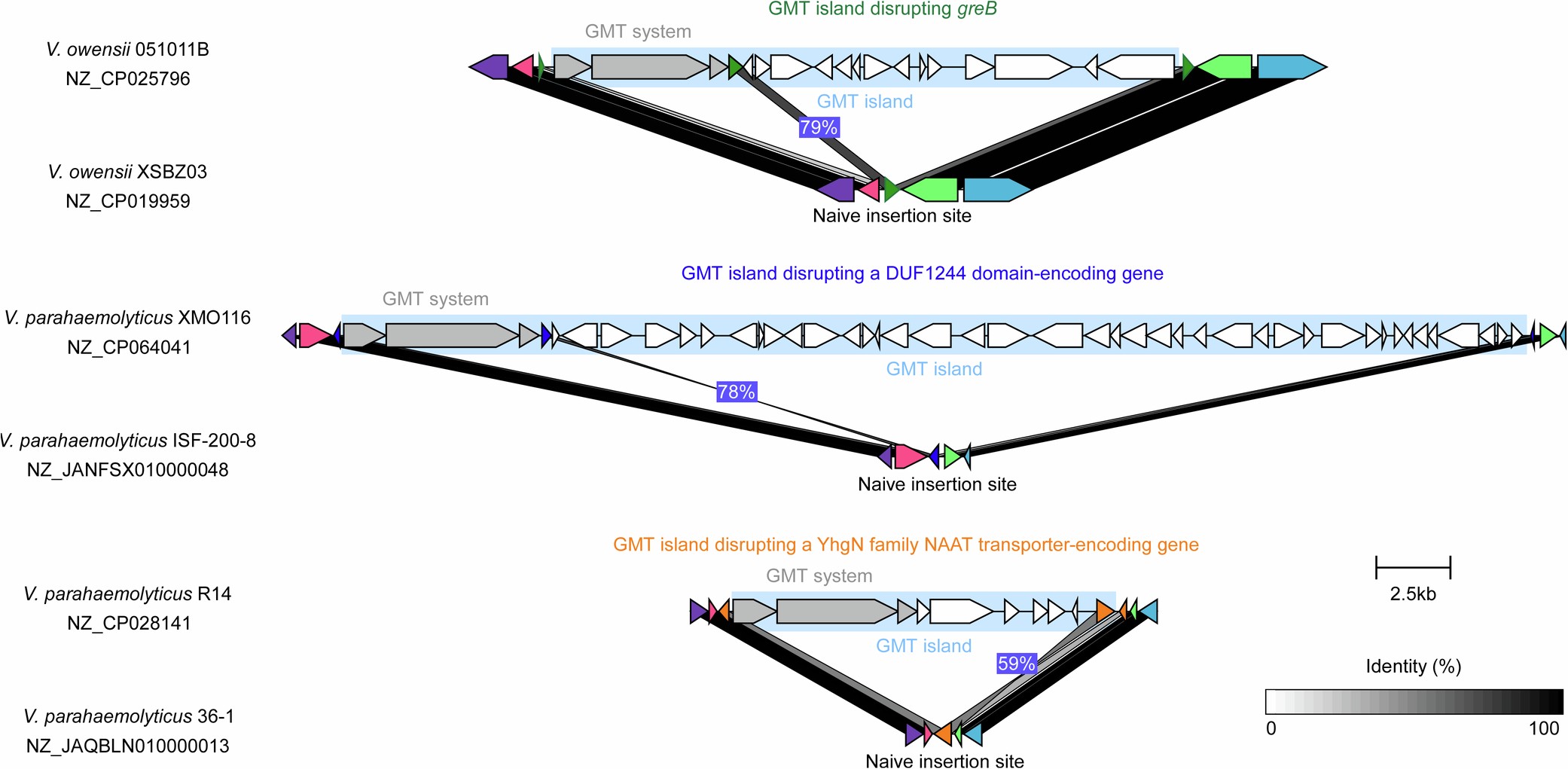

Extended Data Fig. 2: GMT islands with a predicted intragenic insertion site contain a homolog of the disrupted gene.
From: Gamma-Mobile-Trio systems are mobile elements rich in bacterial defensive and offensive tools
Representative GMT islands (cyan rectangles) predicted to disrupt a gene upon insertion into the bacterial genome are shown above a predicted naïve insertion site in a closely related Vibrio strain. The disrupted and the homologous genes are denoted with the same color. Gray rectangles denote homologous regions. The amino acid identity percentage between the protein encoded by the gene in which the predicted naïve insertion site is found and the homolog within the GMT island are denoted in blue rectangles. The strain names and the RefSeq accession numbers are provided.
