Strain displacement in microbiomes via ecological competition

Nature Microbiology volume 10, pages 3122–3135 (2025)Cite this article

18k Accesses
1 Citations
68 Altmetric
Metrics details

Subjects

Abstract

Microorganisms commonly live in diverse communities where changes in composition can be critical for health, industry and the environment. Yet, what enables one strain to competitively replace another in these complex conditions remains poorly understood. Here we develop a mathematical model to determine general principles of strain displacement. Our modelling reveals that weak resource competition enables successful invasion while strong interference competition, for example, via antimicrobial production, enables successful displacement. We verify these predictions using in vitro assays with genetically engineered Escherichia coli. We then apply our principles to displace multidrug-resistant clinical isolates using strains that are equipped with a potent bacteriocin. Finally, we perform experiments with diverse human gut symbionts, which reveal that displacement relies on low resource competition not only between competing strains but also with the broader community, that is, limited nutrient blocking. These general rules for ecological success in microbial communities could be applied for targeted displacement of bacteria.

Droplet printing reveals the importance of micron-scale structure for bacterial ecology

Article Open access 08 February 2021

Modulation of antibiotic effects on microbial communities by resource competition

Article Open access 26 April 2023

Single strain control of microbial consortia

Article Open access 30 March 2021

Main

Bacterial communities, or microbiomes, occur almost everywhere and are important for many aspects of our lives, including industrial processes, the environment and the balance between health and disease^1,2,3. A key determinant of the impacts of microbial communities is their composition; changes in the identity of strains and species can rapidly shift a beneficial community to a harmful one—for example, displacement of protective gut bacteria by pathogenic bacteria, or vice versa^4,5,6,7. A key goal for the field, therefore, is to understand what makes strains or species successful within an established microbiome. To investigate this, we ask what it takes for an incoming strain to invade and displace a competing strain that is established in a community.

A key challenge with understanding microbial communities is their complexity. Diverse strains and species commonly co-occur and interact ecologically, which can generate context dependencies that hinder generalization^3,8,9. What is clear is that ecological competition, particularly between strains that have overlapping resource requirements, is a key process shaping microbial communities¹⁰. Most fundamentally, nutrient competition is considered important for assembly and stability in systems such as the human microbiome^11,12,13,14 as well as resistance to invasion by pathogens^15,16,17. In addition, many bacterial species engage in interference competition via a diverse range of dedicated competition systems, or ‘weapons’, that typically function by delivering a toxin to competing strains¹⁸. Evidence that these weapons kill is widespread^18,19 along with evidence that they shape ecological dynamics within communities^4,6,20. Weapon-bearing bacteria are also attractive as biotherapeutics^21,22 and alternatives to conventional antibiotics. A key advantage is that many bacterial toxins are narrow spectrum and can target a harmful strain while leaving the broader community largely unaffected²³. However, while both nutrient competition and interference competition can be individually important, how they act in concert is not well understood.

Here we build a general ecological model to understand strain competition in a microbial community. Our modelling framework identifies specific ecological conditions that enable a new strain to establish in a community and out-compete a resident strain, which can lead to strain turnover and displacement. We test our modelling predictions with the gut bacterium Escherichia coli, which is both a model species and a dominant cause of mortality from antimicrobial-resistant (AMR) infections²⁴. We perform these tests with E. coli strains alone and in a diverse community of human gut bacteria. In this way, we are able to establish general principles underlying competitive strain displacement within microbial communities.

Results

Ecological theory predicts conditions for strain invasion and displacement

We are interested in what enables a microbial strain to invade an established community and out-compete an existing strain. Mathematical models, particularly from theoretical ecology, have proved to be a powerful way to cut through the complexity of microbial communities and identify general predictions^{10,14,23,25,26,27}. We begin, therefore, by building a general mathematical framework based upon previous theoretical work of resource competition in microorganisms and plants^23,28,29 (Supplementary Information). Following the biology of microbial communities such as the human gut microbiome, the models capture two key forms of ecological competition. Firstly, we assume that the newly arriving strain will experience competition for resources^30,31, where its growth rate upon arrival depends upon the level of the nutrients needed for growth^15,17,32,33. Secondly, we include the possibility that our focal strain may engage in interference competition, which can be either via the release of toxins into the environment or via a contact-dependent mechanism such as the type six secretion system^18,34.

Although the impacts of nutrient and interference competition on microbial ecology have been widely studied^{11,14,17,34,35,36,37,38}, how they act in combination has not. By combining all three key elements in our modelling—ecological invasion, nutrient competition and interference competition—we can investigate what is required for a strain to invade and out-compete a resident strain in a microbial community (Fig. 1a). We first consider a general consumer-resource model

$$\begin{array}{c}\frac{d{N}_{\sigma }}{dt}={N}_{\sigma }({\lambda }_{\sigma }({\bf{N}},{\bf{x}})-{\delta }_{\sigma })\\ \frac{d{x}_{i}}{dt}={g}_{i}({\bf{N}},{\bf{x}})-{\sum }_{\sigma }{N}_{\sigma }{d}_{i\sigma }({\bf{N}},{\bf{x}}),\end{array}$$

(1)

where N_σ is the abundance of strain σ; x_i is the abundance of nutrient or toxin i; λ_σ(N, x) is the per capita growth rate of strain σ; δ_σ is the dilution rate of strain σ; g_i(N, x) is the net nutrient influx rate or toxin production rate, meaning the rate at which chemical species are introduced into the system; and d_i_σ(N, x) is the uptake rate of nutrient or toxin i by strain σ. This general consumer-resource model captures nutrient competition by a positive dependence of growth rate λ_σ on limited, shared nutrients x_i, while interference competition is captured by a negative dependence of growth rate λ_σ on diffusible toxins x_j or competitors N_σ_′ that carry contact-dependent weapons. The model reveals important differences between the two forms of ecological competition when a strain invades. Specifically, we show (Theorem 1, Supplementary Information) that a rare invading strain τ can invade a community of strains with equilibrium abundances N₁, …, N_τ−1 and nutrient or toxin abundances x₁, …, x_I precisely when its initial growth rate overcomes its dilution, that is

$${\lambda }_{\tau }\left({N}_{1},\ldots ,{N}_{\tau -1},{N}_{\tau }=0,\,{x}_{1},\ldots ,{x}_{I}\right) > {\delta }_{\tau }.$$

(2)

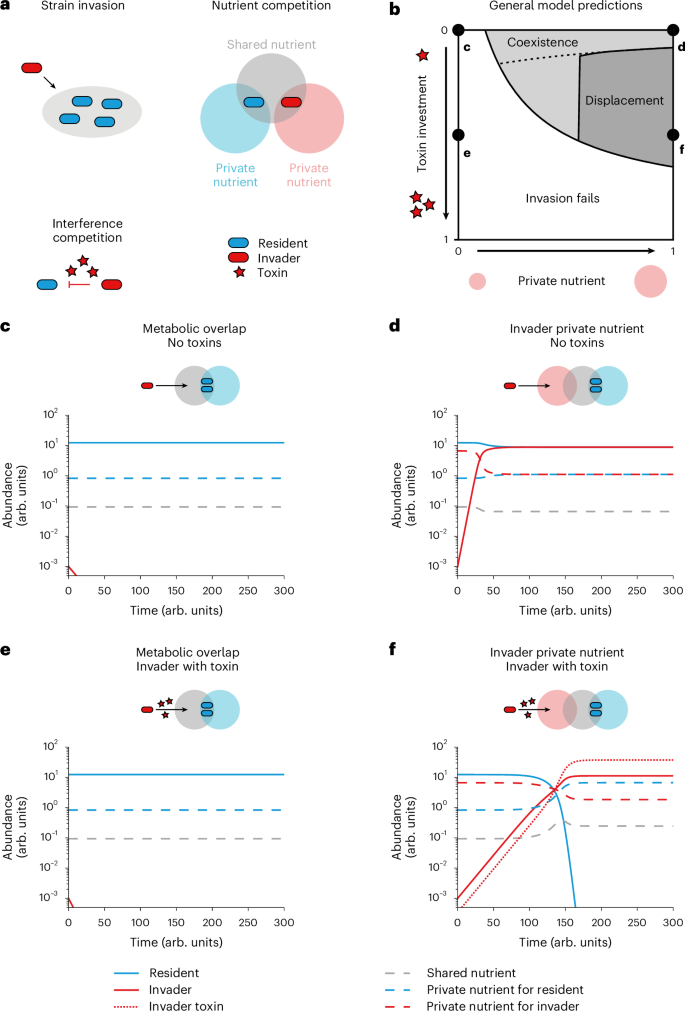

**Fig. 1: Ecological theory predicts conditions for strain invasion and displacement.**

Therefore, as weapons of the invading strain do not directly increase its own initial growth rate λ_τ but rather decrease the growth rates λ_σ of other susceptible strains σ, a rare invader strain that is equipped with a weapon cannot invade the community unless it can invade without it (Theorem 1, Supplementary Information). Put another way, the conditions for invasion are independent of whether the focal strain is using interference competition—whether it is a contact-dependent system or diffusing an antimicrobial toxin. This result is true for both well-mixed conditions (Theorem 1) and spatially structured environments (Theorem 2, Supplementary Information). The prediction arises because the benefits of interference competition scale with population size, such that when a strain is sufficiently rare, their impacts on other strains are vanishingly small, and instead, the user merely suffers from the cost associated with production of bacterial weapons. Instead, the model predicts that invasion is determined by the ability to compete for nutrients sufficiently well to achieve a sufficient initial growth rate λ_τ. In the model, this condition occurs when there is enough of a nutrient x_i that the invading strain can use but that the resident microorganisms cannot, which we refer to here as a ‘private’ nutrient. Finally, if a strain is invading a community where resident strains are producing antimicrobial toxins, its growth rate also will have to be high enough to overcome any mortality cost from the antimicrobial. This result means that we can approximate the effects of a resident’s toxin using the growth rate of the invader at invasion, and we therefore do not explicitly study the effects of residents’ toxins further.

Next, to illustrate the general modelling predictions, we numerically simulate the ecological dynamics that occur after a strain invades (Fig. 1c–f and Extended Data Figs. 1 and 2). The main figures (Fig. 1c–f) show the dynamics of the continuous flow version of our model, which is the form that allowed steady-state calculations and the most analytical tractability (equations (1) and (2)). In the supplement (Extended Data Fig. 3), we show that the same predictions hold for a batch culture version of our model, which is the basis of our experimental work (below). For simplicity, our model captures the resident community as a single strain that has an overlapping ecological niche with the invader (Methods).

Consistent with our analytics, we see that the invasion of the focal strain depends upon its having a private nutrient, but invasion does not depend upon the use of an antimicrobial toxin (Fig. 1b–d). However, the toxin is critical for the outcome of competition over longer time periods. Specifically, in the absence of a toxin, strain invasion leads to coexistence of the two strains (Fig. 1e). By contrast, when the invader invests sufficiently into toxin production, strain invasion leads to the removal of the resident and strain displacement (Fig. 1b; compare panels d and f of Fig. 1). We further confirm that displacement occurs because of increased density of the invading strain as it grows on its private nutrient by showing that a sufficient initial density of invaders can cause displacement of a resident strain without a private nutrient for the invader (Extended Data Fig. 4). To explore Theorem 2 (Supplementary Information), we also performed spatially explicit simulations in which the resident strain is stable and spatially homogeneous, and the invader is seeded at low density along a spatial axis (Extended Data Fig. 5). As for well-mixed conditions, a rare invading strain can grow only if it has a private nutrient, and it is these conditions that empower it to displace a resident strain if it uses interference competition.

Strain displacement occurs as predicted with engineered E. coli strains

To test our modelling predictions, we turned to E. coli as a model organism. This species is both amenable to genetic manipulation and a good test case because competition among strains can be critical for human health: some E. coli strains are harmless members of the gut microbiome, while others cause deadly diseases whose treatment is hindered by the rising incidence of AMR^24,39,40.

To manipulate the strength of nutrient competition between strains, we engineered a ∆srlAEB mutant of E. coli K12 that cannot grow on the sugar alcohol sorbitol. By then adding sorbitol in the media and using this E. coli ∆srlAEB as a resident strain, we can study the key scenario identified in the modelling in which an invading wild-type strain has a private nutrient (Fig. 2a). By contrast, if we make both the resident and the invading strain the wild type, we capture the condition of complete niche overlap. To manipulate interference competition between the two strains, we equipped the invader with colicin E2, a plasmid-borne DNAse colicin that is a potent antimicrobial protein and has been well characterized previously^19,35,41,42. The colicin E2 plasmid is naturally carried by some E. coli strains and leads to both colicin production and immunity against intoxication via production of the cognate immunity protein from the same promoter. This plasmid is not transferrable without a helper plasmid, which is not present in our experiments.

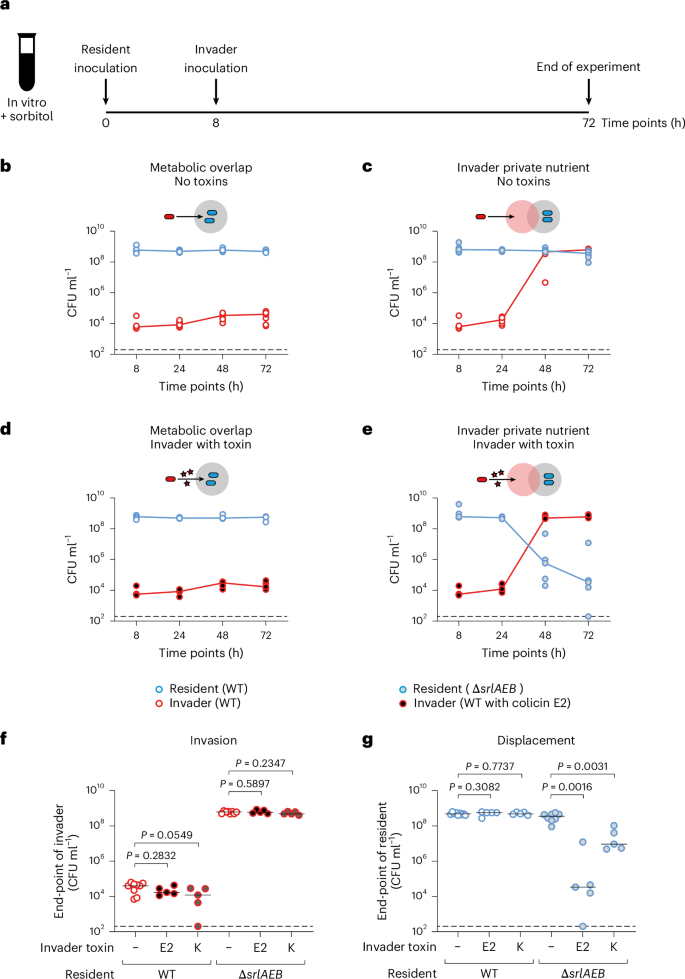

**Fig. 2: Strain displacement occurs as predicted with engineered *E. coli* strains.**

With these tools in place, we then tested the predictions of our mathematical model with invasion assays in lysogeny broth (LB) supplemented with sorbitol (Fig. 2a). As predicted by the modelling and Theorem 1 (Supplementary Information), in the absence of a private nutrient, invasion was blocked by the resident strain whether or not the invader carried the colicin antimicrobial (Fig. 2b,d,f). By contrast, in the presence of sorbitol as a private nutrient, the invading strain was able to establish itself (Fig. 2c,f). However, only when the invader had a private nutrient and it produced colicin E2 did we see strain displacement (Fig. 2e,g). A control experiment in which we did not supplement sorbitol confirms the dependency of displacement on the invader-specific private nutrient (Extended Data Fig. 6a–h). In addition, we confirmed that our results are robust for a colicin with a different killing mechanism, colicin K, which kills by forming pores in the outer membrane of the target strain¹⁹ (Fig. 2f,g and Extended Data Fig. 6i,j).

These first experiments therefore support our modelling predictions that strain displacement rests upon a combination of high interference competition but low resource competition.

Principles of strain displacement predict suppression of AMR isolates

Our first set of experiments were based upon a model strain of E. coli, which allowed us to modulate and isolate the type and strength of ecological competition using strains of the same genetic background. However, this approach is also artificial because competing bacterial strains in natural communities will often differ more extensively across their genomes. We therefore sought to test our modelling predictions in a second series of experiments that leverage natural variation in the degree of niche overlap between strains. Here we chose to focus on the potential to displace AMR E. coli strains, which are currently the dominant cause of AMR-associated deaths worldwide²⁴. Leveraging natural competition mechanisms such as bacteriocin production is an interesting emerging alternative to antibiotics, because these mechanisms can be much more specific and less harmful to other microorganisms in a community^21,22,23. In communities such as the mammalian microbiome, depletion of microbial diversity as a result of perturbations (that is, dysbiosis) such as antibiotic treatment is frequently associated with poor health outcomes¹.

For the resident strains in our experiments, we identified three clinical isolates that are sensitive to colicin E2 in vitro. Two of them are human faecal E. coli isolates that produce extended-spectrum beta lactamases (ESBL; 0960 and 0268), which are in a large class of highly problematic AMR strains on the World Health Organization priority list^24,40. The third isolate is a previously characterized beta lactamase-producing urine E. coli isolate (0018)¹⁷. For the invader strains, we chose five E. coli symbiont strains historically isolated from the faeces of healthy humans (Supplementary Table 1). The pangenome of E. coli is large and metabolic diversity between strains of E. coli is common^39,43,44. To test whether this variability influenced strain invasion, we first studied the ability of the five invader strains to establish in a standard gut microbiome medium (modified Gifu anaerobic medium (mGAM), buffered to human colonic pH), which had been pre-inoculated with one of the three AMR E. coli isolates (Fig. 3a).

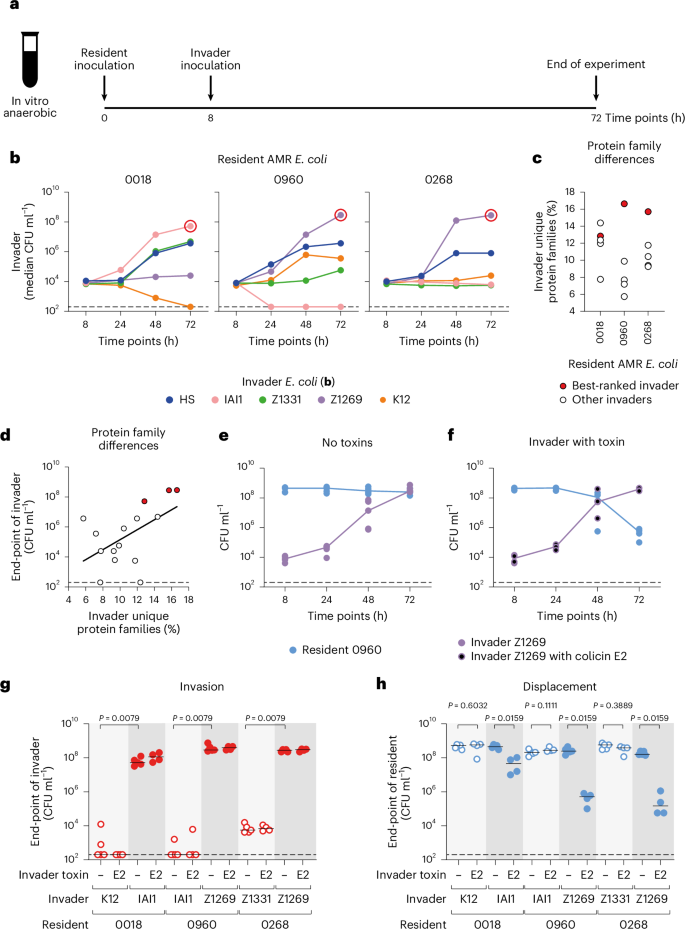

**Fig. 3: Principles of strain displacement predict suppression of AMR isolates.**

Consistent with metabolic diversity among the strains, the outcome of the invasion experiments depends upon the combination of strains under study (Fig. 3b). Importantly, the experiments do not identify a single strain that is the best at invading, nor one that is best at blocking invasion. For example, E. coli Z1269 invades well into E. coli 0960 and 0268 but poorly into E. coli 0018. These patterns are consistent with our modelling in which invasion is dependent upon the metabolic niche available to each of the two strains. Previous work from our laboratory found that nutrient niche overlap between bacterial species in co-culture can be predicted from the degree of overlap in their protein families¹⁷. To explore this here, we turned to the genome sequences of the eight E. coli strains. We can calculate the proportion of protein families encoded by an invading strain that are not encoded by a given resident strain for each pairwise combination. Our overlap calculations reveal a significant positive relationship between the genomic difference (that is, predicted nutrient niche difference) between strains and the ecological success of the invader (Fig. 3c,d). This result is again consistent with the modelling prediction that invasion is enabled by metabolic niche diversity between an invader and resident strains, which is further supported below where we turn phenotypic data on the carbon sources that different strains and species use.

We next investigated what happens when an invader strain is also capable of interference competition. As a test case, we equipped one of our invader strains (Z1269) with colicin E2 and performed the same invasion assay into E. coli 0960 as before. As expected from previous results, without the antimicrobial, Z1269 invaded well but did not displace the resident strain E. coli 0960 (Fig. 3e). By contrast, with the antimicrobial, Z1269 could both invade and markedly reduce the number of the AMR strain (Fig. 3f). We then extended the experiments to include the best-ranked invader and worst-ranked invader for each of the three AMR E. coli isolates. In all cases, when a best-ranked invading strain produced colicin E2, it was able to both invade (Fig. 3g) and suppress the AMR E. coli isolate (Fig. 3h and Extended Data Fig. 7). Importantly, and consistent with Theorem 1 (equation (2) and Supplementary Information), all the worst-ranked invading strains were unable to invade whether or not they carried the antimicrobial colicin (Fig. 3g). In summary, in competitions between natural isolates of E. coli, we find again that strain displacement rests upon the combination of expected low nutrient competition and high interference competition.

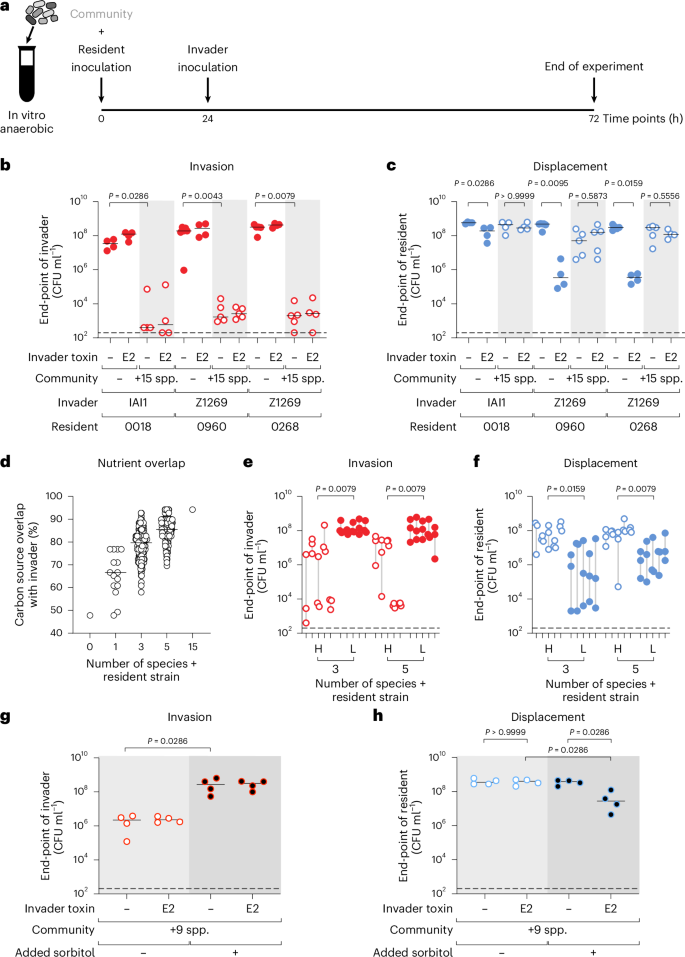

Overcoming nutrient blocking enables strain displacement in diverse bacterial communities

We have so far studied competition scenarios in which an invading strain faces a resident strain of the same species in isolation. However, many microbial communities contain a diversity of species. These species can interact with one another in ways that affect ecological outcomes^8,45. Therefore, we next performed E. coli invasion experiments in the presence, or absence, of a diverse community, focusing on the best-ranked invading strain for each AMR E. coli isolate. For the community, we chose a community of 15 species that we had previously characterized and contains phylogenetically distinct representatives of common human gut symbionts¹⁷. We grew each symbiont species separately, assembled them in 15-species communities along with the resident AMR E. coli isolate and then challenged the resulting community with the best-ranked invader (Fig. 4a). Note that colicin E2 is a narrow-spectrum bacteriocin, meaning that the community is not expected to be directly affected by its action²³. As expected from the last set of experiments, when the community was absent, all invaders established themselves in the presence of the resident (Fig. 4b) and suppressed its numbers (Fig. 4c). However, the outcome changed in the presence of the community. Adding the 15-species community always blocked the invader from establishing (Fig. 4b) and consequently also blocked any displacement (Fig. 4b,c and Extended Data Fig. 8).

This impact of the community is consistent with previous work showing that diverse communities can block invasion of pathogens collectively. This process, known as nutrient blocking, occurs whenever there is sufficient overlap in the nutrient utilization abilities of the community as a whole compared with the invading strain¹⁷. To explore the importance of nutrient blocking, we focused on the case of the invading strain E. coli Z1269 and the AMR E. coli isolate 0960. We use previously published data on the nutrient utilization abilities of the 15 symbionts from Biolog AN MicroPlates (Extended Data Fig. 9a)¹⁷ and also collected Biolog data for the E. coli strains for the purposes of this study, which revealed that E. coli 0960 could metabolize only around half of the carbon sources on the plate used by E. coli Z1269 in these experimental conditions (Fig. 4d). Not all carbon sources in our growth media are found on the Biolog plates, and vice versa. Nevertheless, previous work found that the Biolog plates are a good proxy for general carbon source overlap between strains¹⁷. We computationally assembled all possible combinations of 1, 3 and 5 species for the other 15 symbionts and calculated the carbon source overlap between these communities (when they also contain the E. coli resident) and the invading strain E. coli Z1269. As the diversity of the community increases, we observe that the probability of community-conferred carbon source overlap with the invading strain is higher, again consistent with previous work¹⁷ (Fig. 4d). Importantly, when all 15 species are present, the community can metabolize nearly all tested carbon sources compared with the invading strain. This suggests that high metabolic overlap explains why the 15-species community blocked invasion and consequent displacement in our experiments (Fig. 4b,c).

We further tested the importance of nutrient blocking by using our carbon-source overlap calculations to identify three- and five-species communities which, when added to the resident E. coli strain, have either the highest or lowest overlap with the invading strain. Specifically, for each level of diversity, we chose five communities that had the highest overlap (H) and five communities that had the lowest overlap (L) and then performed the same experiment as before (Fig. 4a). As predicted, the invader invaded effectively when the community was predicted to have low overlap relative to the invader, but failed to invade reliably when the community was predicted to have high overlap (Fig. 4e). Importantly, this led to efficient displacement of the resident in the low-overlap communities but not in the high-overlap ones (Fig. 4f). Moreover, displacement never occurred when the invader lacked the ability to make colicin antimicrobials (Extended Data Fig. 9b,c). These experiments, therefore, again support the importance of nutrient blocking for strain displacement. Specifically, for displacement to occur in our experiments, an incoming strain must be able to overcome both nutrient competition from conspecific strains in its niche as well as collective nutrient blocking that involves multiple members of the resident community.

As a final test of our ideas, we asked whether one can overcome nutrient blocking of an invading strain and drive strain displacement by supplementing with a private nutrient. We ran a version of our invasion experiment using a community of nine species that cannot metabolize sorbitol. We used genome editing to generate a ∆srlAEB mutant, which cannot use sorbitol, in the background of the AMR E. coli isolate 0018 and used this as the resident strain. As a result, no member of the resident community can use sorbitol in this experiment. E. coli IAI1 was the invading strain with colicin E2 for interference competition. This strain normally invades well and displaces E. coli 0018 in the absence of a community (Fig. 4b,c). By contrast, in the presence of the nine-species community, we observe nutrient blocking and poor invasion (Fig. 4g), without an observable impact on E. coli 0018 (Fig. 4h). However, as predicted, the addition of sorbitol as a private nutrient drives an increase in invasion by ~100-fold (Fig. 4g) and the suppression of the AMR E. coli target strain within the community of 9 species (Fig. 4h). We confirmed that this result is dependent on sorbitol not being consumed by the community: when E. coli 0018 can use sorbitol (E. coli 0018 wild type used as the resident), E. coli IAI1 could no longer invade, even under sorbitol supplementation (Extended Data Fig. 10). In summary, the results from diverse communities of bacteria again support our modelling predictions that competitive strain displacement rests upon weakening nutrient competition in order that an invading strain can establish and engage in interference competition that suppresses a resident strain.

Discussion

There is currently a great interest in microbial communities and what determines their composition. Here we have studied the process of strain displacement using a combination of ecological modelling and experimental tests. Our general mathematical model of microbial communities identifies a specific scenario that enables strain displacement events via ecological competition. Firstly, the invading strain needs to experience relatively low levels of competition to establish in a community. Secondly, the strain needs to engage in strong interference competition to remove a resident strain from its shared niche (Fig. 1). We verified these predictions using E. coli as a test case, by genetic engineering that allowed us to manipulate both resource and interference competition (Fig. 2), and with competitions between natural strains of E. coli (Fig. 3). Finally, we studied the impacts of diverse communities on the outcome of strain displacement. An invading strain must be able to overcome nutrient competition not only with its niche competitor but also with the wider community to displace the niche competitor (Fig. 4). In our experiments, this outcome was achieved by using a private nutrient that is untouched by the community, but another potential route for a strain to invade would be to use a partially consumed nutrient more efficiently than any member of the resident community.

Our findings fit well with previous work that has studied either resource or interference competition. Nutrient competition is known to be an important determinant of the ability of a strain to establish itself in a community^{10,14,15,16,17,32}. For interference competition, there is considerable evidence that the benefits of bacteriocin production are density dependent^23,36, which we see in both our models and experiments (Figs. 1–4). Here, we also have identified a strong interaction between these two forms of competition. The density-dependent benefits of antimicrobials can be a major issue for an invading strain experiencing strong nutrient competition because this can prevent a strain from establishing itself well enough to make use of antimicrobials.

The impacts of weapons at low frequency or density may also be influenced by spatial structure, such as occurs in biofilms⁴⁶, as spatial structure can improve the effectiveness of bacterial weapons. The importance of spatial structure in the mammalian gut, where peristalsis actively mixes gut contents, is a matter of active study⁴⁷, but other settings, such as oral biofilms, are highly structured⁴⁸. Nevertheless, our theory predicts that it is access to a private nutrient, rather than interference competition, which enables strains to invade an existing community, be it well mixed or spatially structured (Fig. 1 and Extended Data Fig. 5). Therefore, we anticipate that our key conclusion that nutrient competition is central to invasion will hold across many environments. Indeed, recent work has shown that the benefits of both contact and diffusing weapons are strongly frequency dependent under conditions of spatial structuring. Consistent with our findings, this work found that benefits of weapons are typically greatest once strains have has reached a certain density or frequency, an effect that is particularly strong for diffusing toxins³⁴. Our findings are also likely to apply to cases in which a pathogenic strain invades a community and displaces a non-pathogenic resident. For example, Salmonella enterica subsp. enterica serovar Typhimurium uses its metabolism to grow to sufficient densities⁴⁹, at which point it triggers inflammation and uses antibacterial toxins to target E. coli competitors²⁰.

If interference competition is so important for the ability of one strain to suppress another, why then do not all bacterial strains evolve to carry weapons¹⁸? Bacterial weapons such as colicins can be very costly to use⁴¹, and if a resident strain uses few overlapping nutrients, the best evolutionary strategy may be to coexist rather than attack. The question of how interference competition and metabolism evolve in the face of variable nutrient competition is an interesting question for future work. However, in some cases, strain turnover is likely to occur without a role for bacterial weapons. If nutrient conditions change, strain invasion and turnover can occur simply because the nutrients previously available to a resident are no longer present. We anticipate, therefore, that strain turnover in natural systems occurs both in this passive manner as well as via active competition and displacement as we have described here^30,50,51.

The study of strain displacement has implications for biotherapeutic strategies that seek to change the composition of microbial communities. Strains of AMR E. coli or Klebsiella sp. are common residents of the gut microbiome but rarely cause disease in the gut itself. However, they can spread AMR^24,40 and cause deadly diseases elsewhere in the body⁵². The prospect of removing these strains from the gut microbiome, therefore, is an attractive one. While we have focused on targeting AMR strains, their antibiotic resistance itself is not expected to influence strain replacement in the absence of clinical antibiotics. Instead, the key to displacement will lie in finding a biotherapeutic strain that does not overlap too greatly with the target in the nutrient utilization profile. This outcome can be achieved by supplementing a microbiome with a private nutrient for a biotherapeutic strain (Fig. 4), as illustrated for B. thetaiotamicron previously³³. Alternatively, one might try to introduce a high enough density of a biotherapeutic strain to enable it to use a bacterial weapon immediately, although this may be challenging in practice (Extended Data Fig. 4).

Such strategies all assume that one can identify a bacterial weapon that a biotherapeutic strain can use against a target strain. Interference competition is found in many species of bacteria, including many gut symbionts such as Bacteroides spp.^18,53, which suggests that the use of bacterial weaponry in this way is feasible. One caveat from our data is that the negative impacts on a resident strain from the antimicrobial are sometimes quite modest, seemingly too modest to be used as a biotherapeutic strategy. However, our experiments are relatively short and that these impacts are likely to be much greater over longer periods, which allows a toxin-producing strain more time to displace a resident. The models also make clear that another route to increasing the degree of displacement is via the development of more potent toxins against a particular target strain, which is another interesting avenue for future work.

Despite the ecological complexity of microbial communities, our study suggests that there are ultimately simple rules underlying what makes a highly competitive microorganism. These principles can be applied in strategies that seek to rationally manipulate microbial communities by introducing beneficial strains, removing problematic strains or both.

Methods

Mathematical model

Our general theory of ecological invasions is based upon a consumer-resource model (equation (1), Results), meaning that the abundance of all strains is determined by nutrients in the system, along with any toxins they may encounter. Although the abundance of strains can also be modulated by density-dependent regulation⁵⁴, this will take effect only once cells reach a density ultimately determined by the nutrients or toxins in our model. Therefore, we do not consider density-dependent regulation explicitly here.

The Supplementary Text provides further details of the general model including the proof of the key Theorem 1 introduced in Results. Here we provide an overview of the model with a single resident and invader strains that we use to illustrate the general theory and to generate Fig. 1 and Extended Data Figs. 1 and 2. For the model, we consider a resident strain with abundance N_R that competes with an invader strain of abundance N_I over shared nutrients with concentration x in a continuous culture. Moreover, we assume that each strain can also use private nutrients with concentrations x_R (or x_I for the invader private nutrient) and that the invader strain can target the resident strain with a toxin of concentration y. As bacteria have a finite proteome budget that is partitioned among different physiological functions⁵⁵, we introduce the toxin investment parameter z ∈ [0,1] for the invader strain as the relative investment into proteome associated with toxin production as opposed to nutrient metabolism. Correspondingly, we assume that the toxin is produced at a rate gz, diluted at rate d, taken up by the resident at maximal rate s with a Monod constant K and has maximal potency p to decrease the growth rate of the resident population. Furthermore, we assume that the invader (respectively, the resident) uses the private nutrients at a maximal consumption rate (1 − z)C_I, a maximal growth rate (1 − z)R_I and a Monod constant K_I (respectively, C_R, R_R and K_R) and the shared nutrients at a maximal consumption rate (1 − z)c_I, a maximal growth rate (1 − z)r_I and a Monod constant k_I (respectively, c_R, r_R and k_R). We assume that the strains grow at rates given by a generalized Monod equation^56,57 and are diluted at rate δ. Finally, we assume that the nutrients are diluted at rate D and supplied at rates m (shared nutrients), m_R (private nutrients of the resident strain) and m_I (private nutrients of the invader strain). With these assumptions, the resulting general consumer-resource dynamics in equation (1) (Results) reduces to

$$\,\begin{array}{l}{\dot{N}}_{{\rm{R}}}={N}_{{\rm{R}}}\left(\frac{{r}_{{\rm{R}}}x/{k}_{{\rm{R}}}+{R}_{{\rm{R}}}{x}_{{\rm{R}}}/{K}_{{\rm{R}}}}{1+x/{k}_{{\rm{R}}}+{x}_{{\rm{R}}}/{K}_{{\rm{R}}}}-\frac{py}{y+K}-\delta \right)\\ {\dot{N}}_{{\rm{I}}}\,=\,{N}_{{\rm{I}}}\left((1-z)\frac{{r}_{{\rm{I}}}x/{k}_{{\rm{I}}}+{R}_{{\rm{I}}}{x}_{{\rm{I}}}/{K}_{{\rm{I}}}}{1+x/{k}_{{\rm{I}}}+{x}_{{\rm{I}}}/{K}_{{\rm{I}}}}-\delta \right)\\ \dot{x}\,=\,m-Dx-{N}_{{\rm{R}}}\frac{{c}_{{\rm{R}}}x/{k}_{{\rm{R}}}}{1+x/{k}_{{\rm{R}}}+{x}_{{\rm{R}}}/{K}_{{\rm{R}}}}-{N}_{{\rm{I}}}(1-z)\frac{{c}_{{\rm{I}}}x/{k}_{{\rm{I}}}}{1+x/{k}_{{\rm{I}}}+{x}_{{\rm{I}}}/{K}_{{\rm{I}}}}\\ {\dot{x}}_{{\rm{R}}}={m}_{{\rm{R}}}-D{x}_{{\rm{R}}}-{N}_{{\rm{R}}}\frac{{C}_{{\rm{R}}}x_{{\rm{R}}}/{K}_{{\rm{R}}}}{1+x/{k}_{{\rm{R}}}+{x}_{{\rm{R}}}/{K}_{{\rm{R}}}}\\ {\dot{x}}_{{\rm{I}}}={m}_{{\rm{I}}}-D{x}_{{\rm{I}}}-{N}_{{\rm{I}}}(1-z)\frac{{C}_{{\rm{I}}}{x}_{{\rm{I}}}/{K}_{{\rm{I}}}}{1+x/{k}_{{\rm{I}}}+{x}_{{\rm{I}}}/{K}_{{\rm{I}}}}\\ \dot{y}=zg{N}_{{\rm{I}}}-dy-{N}_{{\rm{R}}}\frac{sy}{y+K}.\end{array}$$

(3)

We simulated this system of equations numerically with the explicit Runge–Kutta method (time step Δt = 1, maximal time t = 300) in Python to explore invasion dynamics (Fig. 1c–f) and examined its steady states by a combination of analytical techniques (Supplementary Text) and numerical root finding with the SciPy package⁵⁸ to identify regions where the invader strains can successfully invade and displace the resident strain (Fig. 1b and Extended Data Fig. 1). In particular, the displacement boundary in Fig. 1b and Extended Data Fig. 1f is obtained by performing a binary search over the toxin investment (or toxin potency for Extended Data Fig. 1a,k) domain to determine a critical value for the existence of a non-negative fixed point to equation (3) with N_I,N_R > 0. The hybrid method from the SciPy package⁵⁸ with the initial estimation of N_I = N_R = N′, x = x′, x_I = x_R = x_R′, 𝑦 = 0 (with values N′, x′ and x_R′ given by Supplementary Equation (11) in Supplementary Text) is used to determine the existence of this coexistence fixed point.

Bacterial strains

All strains used in this study are listed in Supplementary Table 1, all plasmids used in this study are listed in Supplementary Table 2 and all primers used to construct or verify strains are listed in Supplementary Table 3. For strains grown under aerobic conditions (E. coli strains), LB (Fisher Scientific) medium was used containing the appropriate antibiotic (100 µg ml⁻¹ ampicillin, 50 µg ml⁻¹ kanamycin, 15 µg ml⁻¹ chloramphenicol). For strains grown under anaerobic conditions (5% H₂, 5% CO₂, 90% N₂, <20 ppm O₂), mGAM (Nissui Pharmaceuticals) broth buffered to pH 6.2 with 100 mM 2-(N-morpholino)ethanesulfonic acid (MES; Sigma-Aldrich) was used. To ensure that anaerobic conditions were maintained, the redox indicator dye resazurin (100 µg l⁻¹ medium; Sigma-Aldrich) was added to the medium. All strains were grown at 37 °C shaking at 220 rpm. Strains were stored in glycerol stocks at −70 °C with a final concentration of 25% glycerol.

The strains chosen to make up the 15-member community are important members of the human gut microbiota that cover key phylogenetic groups and were previously characterized¹⁷. All strains used in this study are either previously sequenced or sequenced in the scope of this study.

Genetic engineering of bacterial strains

Plasmids and genetic constructs were transformed by either electroporation or by heat-shock. For electroporation, 5 ml of overnight culture grown in LB was concentrated and washed 3× with ice-cold Milli-Q water. Subsequently, 2 µl of plasmid (prepped using a QIAprep Spin Miniprep Kit, Qiagen) was mixed with 100 µl of concentrated cells and electroporated (1.8 kV; 1 mm gap cuvettes). For heat-shock, overnight cultures of cells were subcultured until OD 0.5, washed twice with ice-cold 100 mM CaCl₂ containing 15% glycerol and then concentrated. The cells were aliquoted and either frozen at −70 °C for later use or mixed with 2–10 µl plasmid on ice for 30 min. Cells incubated with the plasmid were then heat-shocked for 40 s at 42 °C and then put back on ice for 3 min. After either type of transformation, cells were recovered in 1 ml LB (1 h of shaking at 37 °C, or 30 °C for pKD46) before being plated on the appropriate selective LB media.

To create gene deletions or insertions in E. coli K12 strains, lambda red engineering was used⁵⁹. PCR (KOD high-fidelity DNA polymerase, Merck) was used to amplify chloramphenicol or kanamycin resistance cassettes from pKD3 or pKD4, respectively, with homology to the target gene locus. The target strain containing the pKD46 helper plasmid (BZB1011 pKD46) was cultured overnight at 30 °C with 100 µg ml⁻¹ ampicillin and subcultured (1/100) in LB for 2 h. The lambda red system was then induced by adding 10 mM L-arabinose for 1 h. Then, 5 µl of the PCR template was electroporated into the induced cells. Mutants were verified using PCR.

To transform natural colicin plasmids (pColE2-P9 or pColK-K235) into E. coli K12 strains, isolated colicin plasmids were electroporated into the target strain and mutants were selected for on colicin supernatant. To prepare supernatant-containing plates, strains containing the desired colicin were grown overnight in LB with 0.25 µg ml⁻¹ mitomycin C (Merck) and centrifuged, and the supernatant was filtered with a 0.22-µm filter. Before selective plating, 200 µl of the supernatant was spread onto an LB plate. Candidate transformants were confirmed as colicin producers by determining that the supernatant produced by these transformants could inhibit wild-type E. coli K12 but not the colicin-containing ancestral strain using the same method of supernatant preparation and streaking of the target strains on the plate.

To transform colicin E2 into natural E. coli isolates (E. coli HS, IAI1, Z1269 and Z1331), a chloramphenicol resistance marker was cloned into pColE2-P9 yielding pColE2-Cm_v2, and electroporated into target strains using selection on chloramphenicol. To create pColE2-Cm_v2, the chloramphenicol resistance cassette was amplified from pHis-MBP-T_H using primers cmv2_fw and cmv2_rv, and the pColE2-E9 vector was amplified using primers e2_cmv2_fw and e2_cmv2_rev. Fragment and vector were joined using Gibson Assembly (NEBuilder HiFi DNA Assembly, New England Biolabs) according to the manufacturer’s instructions. Using heat-shock, 5 µl of the assembled plasmids was transformed into E. coli DH5α and selected for with chloramphenicol (15 µg ml⁻¹). Plasmids from successful transformants were isolated using miniprep and confirmed via Sanger sequencing using primers e2_1-7 and cmv2_fw.

To engineer natural E. coli isolates (E. coli 0018 ∆srlAEB), a suicide vector method with dual negative selection was used⁶⁰. Briefly, 700 base pairs upstream and downstream of the region to be deleted was amplified using PCR (KOD high-fidelity DNA polymerase, Merck). pFOK was digested with BamHI-HF and EcoRV-HF (New England Biolabs) for 1 h at 37 °C and gel extracted. Subsequently, 50 ng of digested pFOK was mixed with 2–3-fold molar excess of each of the flanking regions and assembled using Gibson Assembly (NEBuilder HiFi DNA Assembly, New England Biolabs) at 50 °C for 60 min. The assembled mix was transformed into E. coli EC100D pir-116 using heat-shock. Resulting clones were verified for the correct insert at the multiple cloning site using PCR and Sanger sequencing (Source Biosciences) using primers oOPC614 and oOPC615. Suicide vector plasmids were then isolated and then transformed into the DAP auxotroph E. coli JKe201 using heat-shock (100 µM DAP supplemented to the media). For integration of the suicide vector into the target strain, both the JKe201 donor strain containing the suicide vector and the target strain were grown overnight without antibiotics and then mixed at a 1:1 ratio, concentrated, spotted on an LB plate and allowed to grow for at least 6 h at 37 °C. To select for merodiploids, the mixture was streaked on LB with 50 µg ml⁻¹ kanamycin to select for suicide vector integration. Merodiploids were then streaked on LB without salt containing 20% sucrose and 0.5 µg ml⁻¹ anhydrous tetracycline and incubated in the dark at 28 °C for at least 24 h. Deletion mutants were then screened with PCR.

Isogenic E. coli invasion experiments (aerobic)

Overnight cultures of the competing E. coli strains were inoculated from single colonies in LB with the appropriate antibiotics. The medium used for the invasion experiments is ½ LB (diluted with Milli-Q water) or ½ LB + 4% sorbitol (diluted from 20% sorbitol with Milli-Q water) buffered to pH 6.2 with 50 µM MES. The LB medium was buffered to pH 6.2 with 100 µM MES and then autoclaved, before mixing with sterile-filtered sorbitol and autoclaved Milli-Q water. Aliquots of 3 ml medium in test tubes were used for the assay. The resident strains were washed 2× with PBS, and 3 µl of washed cells was added to the medium (corresponding to 10⁶ CFU ml⁻¹ starting density). After 8 h, the invader strains were removed from the incubator, washed 2× with PBS and diluted such that 10⁴ CFU ml⁻¹ was added to each tube as a starting inoculum (that is, 30 µl of 10⁻³-diluted washed cells). The inocula were diluted and plated on LB with the appropriate antibiotics. At distinct time points as indicated on the figures (for example, Fig. 2), tubes were removed from the incubators; samples were collected (20 µl volume), diluted and plated on selective medium (LB plus kanamycin or chloramphenicol); and then tubes were returned to the incubator until 72 h after inoculation of the resident strain.

Invasion experiments with E. coli isolates (anaerobic)

The medium used for these experiments was mGAM buffered to pH 6.2 with MES. The medium was pre-reduced in an anaerobic chamber (Coy) containing a gas composition of 5% H₂, 5% CO₂, 90% N₂ and <20 ppm O₂, and the redox indicator resazurin was used to ensure oxygen remained limited during the course of the experiment. All strains and competition experiments were grown in sealed Hungate tubes that could be sampled using needles and syringes (5 ml medium volume). Overnight cultures of E. coli strains in Hungate tubes with buffered mGAM were inoculated from single colonies and grown at 37 °C.

As for the aerobic invasion experiments with isogenic E. coli, anaerobic cultures of the resident strains were washed with anaerobic PBS 2× under anaerobic conditions and diluted cells were inoculated into the assay tubes (10⁶ CFU ml⁻¹ starting density). After 8 h, the invader strains were washed anaerobically as for the resident and inoculated in the assay tube (10⁴ CFU ml⁻¹ starting density). The inocula were diluted and plated, and time points were taken and plated on the appropriate antibiotics (LB plus chloramphenicol or ampicillin) as for the aerobic assays, but samples were aspirated using needles and syringes to keep the assay tube anaerobic.

Community invasion experiments (anaerobic)

As for anaerobic invasion experiments with only E. coli strains, buffered mGAM in Hungate tubes were used for community invasion experiments. Before community assembly, all symbiont strains in the 15-species community (Supplementary Table 1) were inoculated from glycerol stocks in mGAM anaerobically and allowed to grow to stationary phase (24–72 h depending on the symbiont). All symbiont strains were passaged (1:50) into fresh mGAM tubes 24 h before the start of the experiment. The resident strain was inoculated from a single colony and grown overnight.

As before, the resident strain was washed anaerobically in PBS 2× and seeded into the Hungate assay tubes containing 5 ml buffered mGAM at 10⁶ CFU ml⁻¹ starting density. Subsequently, 100 µl of each desired symbiont was added to the assay tube using needles and syringes (fresh needle for each tube to avoid cross-contamination) and grown for 24 h at 37 °C and 220 rpm. Overnight cultures of the invader strains grown overnight from a single colony in mGAM were washed anaerobically with PBS and added to the assay tubes 24 h after the resident strain (10⁴ CFU ml⁻¹ starting density). Selective plating was used to enumerate population sizes of the focal competing E. coli strains (resident strains on LB plus ampicillin, invader strains on LB plus chloramphenicol) as indicated in Fig. 4.

For nutrient supplementation experiments under anaerobic conditions (for example, Fig. 4g,h), the experimental set-up was the same, except the media used was ½ mGAM buffered with 50 mM MES to pH 6.2 with or without 1% sorbitol. 2.5 ml Hungate tubes with sterile pre-reduced buffered mGAM were prepared, and separately, sterile Milli-Q water and 2% sorbitol were prepared and reduced in the anaerobic chamber. Then, 2.5 ml of either Milli-Q water or 2% sorbitol was added to the mGAM tubes using a needle and syringe to create the desired media.

Whole-genome sequencing

An overnight culture of E. coli 0960 and 0268 was prepared in LB containing 100 μg ml⁻¹ ampicillin and 50 µg ml⁻¹ kanamycin. A pellet was taken and DNA was extracted using ethanol precipitation and AMPure clean-up. Pellets were resuspended in nuclease-free water and transferred to a lysing matrix B tube (MP Biomedicals) and lysed using bead-beating (1 min at 25 Hz). Samples were centrifuged at high speed, and sodium acetate (1/10 volume) and ice-cold ethanol (96–100%; volume equal to the total amount of supernatant) were added to the supernatant; the mixture was incubated at −20 °C overnight. Samples were centrifuged at high speed, and the pellet was washed twice with 70% ethanol, before being dried and resuspended in nuclease-free water. Samples were then mixed with AMPure XP beads (Beckman Coulter) and incubated at room temperature for 5 min. Samples were washed twice with 70% ethanol using a magnet to avoid removing DNA bound to the AMPure beads. Following an air-drying step, nuclease-free water was added to the beads to resuspend DNA into the supernatant.

Source Biosciences performed whole-genome Illumina sequencing on a NovaSeq 600 to generate 10 million 150-bp paired-end reads. Genome assembly was performed with Unicycler v0.4.8 using default settings and subjected to protein family annotation¹⁷.

Genomic analysis using protein family overlap

Genomic information from the eight E. coli strains was retrieved from the Bacterial and Viral Bioinformatics Resource Center (BV-BRC) database⁶¹ or, in the case of E. coli 0268 and E. coli 0960, we sequenced them (see above). Using methods we previously established¹⁷, we applied a cluster-based analysis grouping proteins encoded in genomes into BV-BRC global protein families⁶². For each pairwise interaction between an invader E. coli isolate and a resident AMR E. coli isolate, we computed the overlap between the two strains. Invader unique protein families indicate the protein families that are present in the invader strain that the resident strain does not have.

Nutrient utilization using Biolog assays

All symbiont strains and the E. coli strains IAI1 and 0018 were previously analysed on Biolog AN MicroPlates (Biolog)¹⁷. Using the same method, we profiled the additional E. coli strains in this study (E. coli K12, Z1269, Z1331, HS, 0960, 0268). Briefly, overnight cultures in mGAM grown under anaerobic conditions were centrifuged and washed and diluted in AN inoculating fluid corresponding to 65% transmittance (OD 0.187) according to the manufacturer’s instructions. The inoculating fluid was seeded into the Biolog plates under aerobic conditions and then put in an airtight container with a GasPak EZ Container System Sachet to generate hydrogen-free anaerobic conditions. After 24 h at 35 °C without shaking, plates were measured at 590 nm. The absorbance reading at 590 nm (Abs 590 nm) was subtracted from the no carbon source control in well A1. Each strain was measured three times and the median blank-subtracted absorbance value was taken. As before¹⁷, we used a thresholding approach that defined a strain as being able to metabolize a given carbon source if the Abs 590 nm value was greater than 0.1 after blank subtraction (Extended Data Fig. 9a).

Predictions based on Biolog assays

We computationally assembled all possible combinations of the 15 species (Supplementary Table 1) at distinct diversity levels (0, 1, 3, 5 and 15 species in addition to the resident AMR E. coli 0960 and the invader E. coli Z1269). Carbon source overlap was determined as follows: for each community, if any of the species within the community (the resident strain or any of the symbiont strains) used a given nutrient based on the Biolog measurements (Extended Data Fig. 9a) that the invader could also use, we considered there to be carbon source overlap. We did this procedure for all 95 carbon sources on the Biolog plate and reported the overlap as a percentage for each community (Fig. 4d).

We experimentally validated the predicted highest and lowest carbon source overlapping communities in Fig. 4e,f, choosing five communities at each diversity level of three and five species in addition to the focal E. coli (picking communities at random if there were ties in predicted carbon source overlap). There was one exception, which is that H3–5 is actually the community with the sixth highest overlap. This was used instead of one of the communities with higher overlap owing to technical reasons involving contamination during a pilot experiment in which the six best communities were screened for their ability to resist invasion. Supplementary Table 4 shows the identify of the species within these communities and the predicted carbon source overlap based on the Biolog plate measurements.

Statistical analysis

All graphs and statistical analyses were performed using GraphPad Prism v10.2.2. Protein family overlap analyses and carbon source overlap predictions were computed in R v4.0.5 (ref. ⁶³). The figure legends indicate the statistical tests used and the sample sizes. Non-parametric tests were generally used to avoid assumptions of normality.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All experimental data used to generate plots are available via Figshare at https://doi.org/10.6084/m9.figshare.29402243 (ref. ⁶⁴). The whole-genome sequences of E. coli 0960 (NCBI accession SAMN49384365) and 0268 (NCBI accession SAMN49382617) have been deposited in Sequence Read Archive under BioProject PRJNA1279092. There are no restrictions on use of data, materials or code with the exception of E. coli strains 19Y000018, 18Y000960 and 19Y000268, which are protected by a material transfer agreement and requires permission from Nottingham University Hospitals Pathogen Bank. Source data are provided with this paper.

Code availability

All code is available via GitHub at https://github.com/vit-pi/strain-replacement.
