Abstract
Viruses and other extracellular genetic elements play essential roles in marine communities. However, methods to capture their full diversity remain limited by the constraints of bulk sequencing assemblers or pre-sorting throughput. Here we introduce environmental micro-compartment genomics (EMCG), which vastly improves the throughput and efficiency of single-particle genomic sequencing obtained from nanolitre volumes by compartmentalizing particles of a sample into picolitre-sized, semi-permeable capsules for in-capsule DNA amplification and barcoding. From 300 nanolitres of seawater, EMCG obtained genomic sequences of 2,037 particles. The microbiome composition agreed with other methods, and the virus-like assembly lengths indicated that most were near complete. Many viral assemblies belonged to the Naomiviridae, lacked metagenomic representation and aligned to outlier contigs of abundant, putative host lineages, suggesting their use of non-canonical DNA and overlooked ecological importance. This approach provides opportunities for high-throughput, quantitative and cost-effective genome analyses of individual cells and extracellular particles across complex microbiomes.
Similar content being viewed by others
Main
The ocean’s biological diversity, biomass and biogeochemical processes are dominated by microscopic life, with most evading cultivation under laboratory conditions1,2,3. In the past two decades, cultivation-independent research tools, such as amplicon sequencing, metagenomics and single-cell genomics, have made major progress in deciphering the taxonomic composition and coding potential of the unicellular bacteria, archaea and eukaryotes inhabiting marine environments4,5,6,7. Less is known about the abundance, genome content and roles of various types of extracellular DNA, the concentration of which in seawater is comparable to that of DNA inside all planktonic cells8,9,10.
Our current knowledge of environmental extracellular DNA suggests two general categories: (1) free DNA released from dead as well as metabolically active cells11 and (2) protected genomic fragments within extracellular membrane vesicles or distinct genetic elements such as viruses and tycheposons, which exist in a continuum of selfishness and autonomy12,13,14,15. The metagenomic research of marine extracellular DNA has primarily focused on viruses, which outnumber microbial cells by roughly tenfold16, revealing an extraordinary degree of genetic diversity and novelty17,18,19. However, due to the extensive microdiversity and lateral gene transfer among marine viruses, their metagenome-assembled genomes (MAGs) are often fragmented and incomplete, and potential analytical blind spots remain poorly understood20,21,22. Furthermore, the scarcity of viable alternatives hinders the validation and improvement of viral MAG quality. Genomic sequencing of individual viral particles and their de novo assembly into single amplified genomes (SAGs) may circumvent these limitations22,23,24,25, but so far, it has been hampered by relatively low throughput and the confines of optical sensitivity of fluorescence-activated virus sorting (FAVS) for particle separation. The global abundance and genome content of other extracellular genetic elements remain even less understood.
High-throughput droplet microfluidics-based studies provide a promising avenue to improve the limitations of FAVS-based single-particle genomics. Such methods have revolutionized biomedical sciences by providing an inexpensive means to measure gene expression of tens of thousands of individual animal cells26,27. Several recent reports have also demonstrated the feasibility of diverse microdroplet- and microgel-based approaches to analyse the genomic DNA of individual prokaryotic cells28,29,30,31,32 and individual viral particles33. Here we introduce an approach that builds on these improvements in which samples are parcelled into picolitre-sized compartments using semi-permeable capsules (SPCs)29, separating individual particles for DNA amplification, barcoding and sequencing, which we call Environmental Micro-Compartment Genomics (EMCG). We applied EMCG to a raw, coastal seawater sample of 300 nanolitres and obtained over 2,000 single amplified genomes. These corresponded to a broad range of cellular and extracellular entities, which largely overlapped with known members of marine communities. Surprisingly, however, a substantial fraction of SAGs lacked metagenomic representation and were similar to Naomiviridae, which use deoxyuridine (dU) instead of deoxythymidine (dT) in their genomes that prevents direct sequencing34, suggesting that viruses with non-canonical DNA are abundant in seawater, yet remain invisible to conventional metagenomics. Collectively, this work demonstrates that EMCG enables a high-throughput, quantitative recovery of single-particle genome sequences with improved assembly completeness, thus providing a more comprehensive understanding of the extracellular genomic realm.
Results
Quantification and identification of particles captured by EMCG
We report the development and pilot application of EMCG, which is based on compartmentalization of aquatic samples inside SPCs (Fig. 1). The shell of SPCs is composed of polymers that allow the free passage of enzymes and other reagents while blocking the escape and entry of high-molecular-weight DNA. This enables multistep biochemical processing across thousands of encapsulated particles for lysis, DNA amplification and combinatorial barcoding. DNA is then pooled for shotgun sequencing, and sequence reads are then separated on the basis of individual barcodes for separate assemblies, resulting in thousands of individual genomic assemblies from a singular sequencing run. All steps are accomplished using manual pipetting without the need for complex and expensive instrumentation. The method represents a substantial increase in analytical throughput and reduction in equipment costs compared with fluorescence-activated cell sorting (FACS)-based single-cell and single-virus genomics.

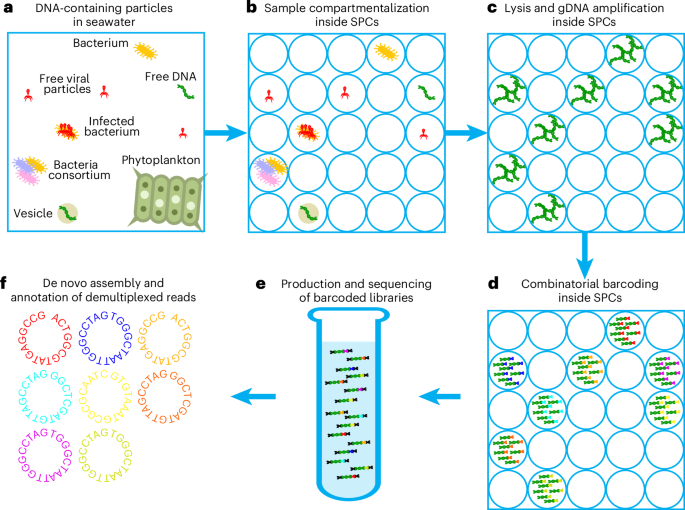

Each panel displays a key step in the EMCG workflow. Items are not drawn to scale. a, An aquatic sample containing diverse types of DNA-containing particles is used in the analysis. b, Particles with diameters smaller than SPCs (~70 μm) are randomly compartmentalized inside SPCs. c, Genomic DNA is released from cells and extracellular particles with an alkaline treatment and amplified using a modified multiple displacement amplification, WGA-X. d, A series of barcodes are ligated to the amplified DNA within each SPC in a combinatorial manner to provide each particle with a unique tag for its DNA fragments. e, SPCs are dissolved and the barcoded DNA fragments are pooled to prepare a single sequencing library, which is sequenced using Illumina technology. f, Sequence reads are demultiplexed on the basis of their SPC-specific barcodes, assembled de novo separately for each SPC and annotated using standard bioinformatics tools.
We applied EMCG to a 300-nanolitre aliquot of coastal seawater from the Gulf of Maine collected on 18 April 2022, which produced 2,037 EMCG single amplified genomes (emSAGs) (cumulative length 86 Mbp; Supplementary Table 1). Using SPC volume, rate of occupancy and emSAG taxonomic assignments as input variables, we estimated the abundance of prokaryoplankton cells and DNA virus-like particles in the analysed sample at 1.93 × 109 l−1 and 1.79 × 1010 l−1, respectively. This agreed with flow-cytometric counts in the same sample (1.84 × 109 l−1 and 1.75 × 1010 l−1) and with the global average of microscopic counts of prokaryoplankton and viral particles in the coastal ocean16, indicating that emSAG assemblies represented DNA-containing particles in the analysed sample in a randomly sampled, holistic and thus potentially quantitative manner.
For comparative purposes, we prepared a metagenome of virus-sized particles from the same seawater sample. The 127 million metagenomic paired-end reads assembled into 17,145 virus-like metagenome-assembled genomes (vMAGs) (cumulative length 44 Mbp; Supplementary Table 2). In addition, the same seawater sample was used to produce 260 cellular SAGs (cSAGs) and 190 virus-like SAGs (vSAGs) using a previously described FACS-based workflow24 (Supplementary Table 3).
We performed a tentative separation of emSAGs into cell-like and virus-like genomes based on the proportion of prokaryote-like genes versus the fraction of sequence detected as viral, along with co-processing of E. coli emSAGs serving as internal standards to quantify the frequency of barcode co-use by multiple emSAGs (Fig. 2a, and Supplementary Tables 1, 4 and 5). This resulted in 1,791 virus-like marine emSAGs, 193 cell-like marine emSAGs, 53 marine emSAGs without assignments, 339 E. coli emSAGs, and 3 emSAGs that contained both E. coli and marine contigs. The 1.4% frequency at which the same barcode was incorporated into more than one emSAG (marine and E. coli) demonstrated fidelity of emSAG barcoding and computational demultiplexing. Notably, the virus-like emSAGs may include other protected genetic elements that could not be distinguished with current methods, as viruses exist along a continuum of diverse mobile genetic elements13. Likewise, the cell-like emSAGs may be derived from intact cells, free DNA, or membrane vesicles containing cellular DNA, but the distinction between these particle types cannot be made using current bioinformatics tools with genetic data alone. Nonetheless, the 9:1 ratio between virus-like and cell-like assemblies agreed well with the previously reported ~10:1 average in the surface ocean16.

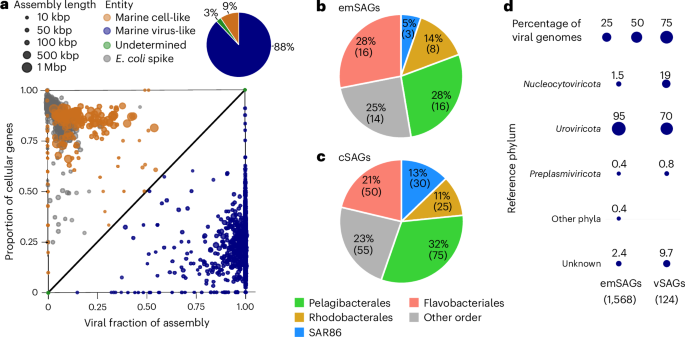

a, The fraction of prokarya-like genes relative to the fraction of virus-like sequence length in individual genome assemblies, which was used to tentatively distinguish cellular (orange) and virus-like (blue) SAGs. The SPCs containing E. coli cells were included in the EMCG workflow as internal standards (grey). The pie chart summarizes the fractions of cell-like and virus-like marine emSAG assemblies. b,c, Taxonomic composition of cellular SAGs recovered from EMCG (emSAGs, b) and prokarya-targeted FACS (cSAGs, c). d, Taxonomic phyla assignments of virus-like SAGs obtained using EMCG (emSAGs) and virus-targeting FAVS (vSAGs), arranged in order of decreasing average genome length in Viral RefSeq: Nucleocytoviricota (average genome length 676 kb), Uroviricota (56 kb), Preplasmiviricota (25 kb).
The taxonomic composition of cell-like emSAGs that could be classified (57 emSAGs) was similar to the composition of prokaryoplankton cSAGs that could be classified (235 cSAGs) from the same sample (Fig. 2b,c) and in agreement with previous studies of the same coastal location35. The absence of eukaryotic emSAGs (unicellular algae and heterotrophic protists) in this dataset can be explained by their abundance typically being ~100-fold lower than that of prokarya36 and by some unicellular eukarya exceeding the diameter of our SPCs. Together, these findings provide further evidence that emSAGs quantitatively represent the composition of DNA-containing particles, ranging from prokaryotic to small virus sizes, in the analysed sample. In agreement with previous studies, they revealed viruses as the most abundant type of DNA-based extracellular genetic element in the analysed sample15.
Of the virus-like SAGs that shared at least two genes with a classified reference virus37,38, tailed double-stranded (ds)DNA phages of the phylum Uroviricota (all of the class Caudoviricetes) dominated both virus-like emSAGs (95.2%) and virus-like FACS-based vSAGs (70.2%), while the relative abundance of other viral groups differed substantially between the two methods (Fig. 2d and Supplementary Tables 1 and 3). Eukaryotic giant viruses of the phylum Nucleocytoviricota were over 10× more abundant in the vSAGs; in contrast, prokaryotic viruses of phyla with smaller genomes, including Phixiviricota and Cressdnaviricota (both single-stranded (ss)DNA viruses), were represented only by emSAGs. The absence of small viruses and the enrichment of giant viruses in vSAGs relative to emSAGs probably reflected optical detection limits of FAVS. EMCG appears to circumvent biases against small particles because it does not rely on particle optical detection.
An important feature of microbial single-cell genomics is the recovery of viral DNA from cells interacting with viruses or containing prophages39,40,41,42. Our analyses revealed the presence of DNA sequences of viral origin in 33 (17%) of cell-like emSAGs (Supplementary Table 1). None of these sequences were flanked by cellular DNA, suggesting lytic rather than lysogenic interactions, although suboptimal host infections may also cause some viral DNA occurrences43. Surprisingly, we found no matches between the sequences of viral origin in cell-like emSAGs and virus-like emSAGs in the analysed sample. This may be caused either by viral diversity exceeding the scale of our experiment or by an offset in time when a particular virus is present inside hosts versus the water column. Some evidence for the latter possibility is provided by the presence of sequences matching emSAGs of this study in cSAGs reported previously from the Gulf of Maine (see section on Naomiviridae below).
Quality of virus-like genome assemblies
The quality of recovered virus-like genomic sequences differed across the three methodologies (EMCG (emSAGs), FAVS (vSAGs) and viral metagenomics (vMAGs)). The average length of virus-like emSAGs (27 kbp) was over 10× greater than that of vMAGs (2 kbp), although lower than that of vSAGs (56 kbp) (Fig. 3a), probably due to FAVS favouring larger viral particles (Fig. 2). The CheckV-estimated quality of the genomes44 indicated that emSAGs had a higher proportion of high- and medium-quality genome assemblies (964 emSAGs, 54%) than both metagenomic contigs (156 vMAGs, 1%) and vSAGs (22%). These results collectively indicate that EMCG more successfully recovered high-quality genomes than metagenomics and FAVS-based single-viral sequencing (Fig. 3b).

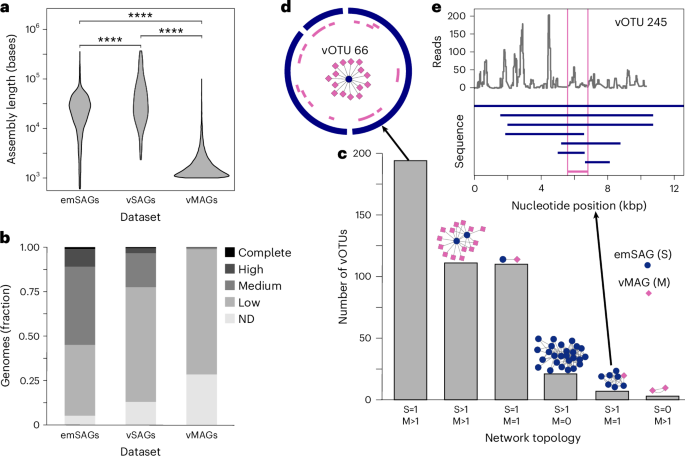

a, Genome assembly length. Stars indicate significant differences (two-sided Wilcoxon test, ****p < 0.001). b, Quality assignments by CheckV (ND, not determined). c, Counts of vOTUs with various network topologies. Topology examples are provided in the insets, where nodes are emSAGs (pink) and vMAGs (blue) connected by shared vOTU edges. d, Illustration of alignments of multiple vMAGs against a single emSAG that form vOTU 66 (see SAG and MAGs listed in Supplementary Table 8). e, Illustration of a vOTU containing a single MAG and multiple SAGs from vOTU 245. Top: sequence depth of viral metagenome reads mapped on the longest emSAG in this vOTU. Bottom: alignments of the emSAGs and vMAG that form this vOTU (see SAGs and MAGs listed in Supplementary Table 7). The pink bar marks the region covered by the only vMAG of this vOTU.
To assess the diversity recovered, we used network analysis to cluster emSAGs and vMAGs into nominal species-like operational taxonomic units (vOTUs) using single-linkages clustering with a cut-off of ≥95% average nucleotide identity (ANI) across ≥85% of coding nucleotides of the smaller genome45 (Supplementary Table 6). Most emSAGs and vMAGs did not cluster with other genome assemblies (44% and 89%, respectively), with 11% of vMAGs clustering with an emSAG and 44% of emSAGs clustering with a vMAG. Among the multimember clusters, the most abundant cluster configuration comprised multiple vMAGs clustering with a single emSAG by aligning to various regions of the emSAG (Fig. 3c,d), with 4.7% of vMAGs belonging to such clusters. This reflected the substantially greater completeness of emSAG assemblies compared with vMAGs (Fig. 2b) and demonstrated the important capacity of emSAGs to link together vMAGs that otherwise might have been identified as different viruses due to the lack of overlapping genomic regions.
When using metagenomics (bulk sequencing), populations of near-identical particles are expected to assemble into a single MAG representing a consensus genome. In contrast, each emSAG represents an individual viral particle, and therefore, EMCG can recover multiple closely related genomes. We thus expected to observe viral genomic clusters that contained multiple emSAGs and a single MAG. Yet, such clusters comprised only 1.6% of multimember vOTUs (7 total) (Fig. 3c). An alignment of genomes from one such vOTU revealed that the vMAG corresponded to a relatively short genome region that was shared by the greatest number of emSAGs and was one of several regions with an elevated metagenome read coverage (Fig. 3e and Supplementary Table 7). Overall, the emSAGs exhibited highly uneven coverage by viral metagenomic reads, indicating high variability in nucleotide conservation among viral particles that probably hindered metagenomic assembly, leading to fragmented, low-quality vMAGs.
Unexpected abundance of particles with putatively non-canonical DNA
Most large clusters of virus-like genomes (vOTUs) containing emSAGs shared similarities with phages isolated from known marine bacterial groups such as Flavobacteria, Synechococcus and Pelagibacter (Fig. 4a), highlighting the general congruence of EMCG with previous studies of marine viruses. Given the random, quantitative sampling of particles by EMCG (Figs. 1 and 2) and ocean mixing, we expected the number of emSAGs per vOTU to correlate with the fraction of viral metagenome reads mapped to a given vOTU. Surprisingly, this correlation was weak (Pearson’s correlation p < 0.01; R value 0.27; Supplementary Table 1), and the vOTU with the highest number of emSAGs (26) did not recruit any viral metagenomic reads and lacked vMAG members (Fig. 4a). This indicated that differences in the composition of viral emSAGs and vMAGs (Fig. 3c) were not caused solely by metagenome assembly fragmentation but also by access to different DNA sources.

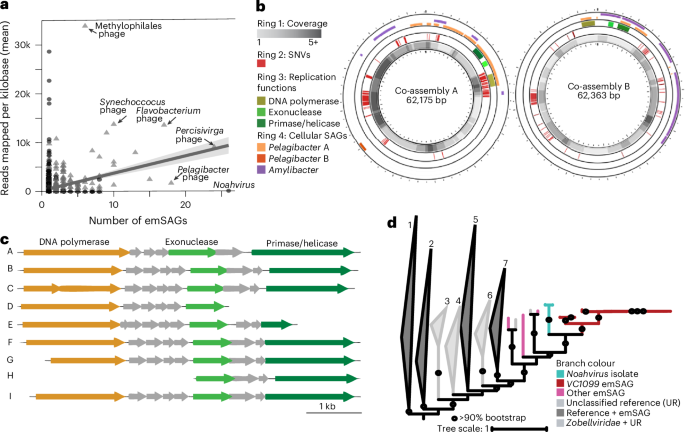

a, Relationship between the number of emSAGs in a vOTU and the average number of viral metagenomic reads recruited per kilobase of that vOTU. Triangle-shaped vOTUs contained a vMAG, circle vOTUs had no vMAGs. Line and shaded area indicate linear regression and its standard error, respectively. b, Genomic maps of co-assemblies of VC1099 emSAGs. Rings indicate co-assembly coverage depth by contigs of emSAGs (innermost ring 1), single nucleotide variants (SNVs; ring 2), known replication genes (ring 3) and alignments to cellular SAGs indicating putative hosts (ring 4). c, Alignments of genome regions containing replication genes characteristic to Naomiviridae retrieved from emSAGs of VC1099 (genomes A–I listed in Supplementary Table 13). d, Phylogeny of virus-like DNA polymerase found in emSAGs and reference viral genomes. Branches are coloured by dataset or genome type. Dark grey collapsed branches contain a mix of emSAGs and references. Numbers above clade correspond to these members (UR, unclassified references): (1) UR, emSAGs; (2) Zobellviridae, Autographiviridae, UR, emSAGs; (3) Autographiviridae, UR; (4) Grimontviridae, UR; (5) Zobellviridae, Straboviridae, Chaseviridae, emSAGs; (6) Zobellviridae, UR; (7) UR, emSAGs.
To further examine the taxonomic diversity of the virus-like emSAGs, we applied a gene-sharing network approach with reference viruses of INPHARED37 and remaining non-prokaryotic viruses on Viral Refseq38, which clusters genomes into genera or subfamilies. This revealed that the emSAGs of the abundant vOTU, which lacked representation in the metagenome, belonged to the cluster VC1099, which contained cultured viruses of the Noahvirus genus in the Naomiviridae family (Supplementary Table 9). Of the 1,791 virus-like emSAGs, 1.8% clustered into VC1099, which translates to their abundance of ~3 × 108 l−1 in the analysed sample. Collectively, these results indicate that EMCG uncovered an abundant lineage of viruses related to Noahvirus that were undetectable using viral metagenomics.
At present, there are only two isolates of the Noahvirus genus, which were collected from the Grand Canal in Venice, Italy, and the coast of Puerto Morelos, Mexico, and found to infect the marine bacterium Ruegeria pomeroyi, a member of the abundant prokaryoplankton family Rhodobacteraceae (Alphaproteobacteria)34. This isolation study reported that Noahvirus distinctively uses a non-canonical nucleotide dU instead of dT, and their genomes could be sequenced only after producing canonical DNA copies with the help of the phi29 polymerase. The EMCG workflow involves the amplification of gDNA of individual particles with phi29 polymerase, which helps explain the recovery of Naomiviridae in emSAGs. In contrast, our viral metagenome was sequenced without pre-amplification, as pre-amplification can introduce severe biases in mixed community shotgun sequencing46.
The genes Noahvirus use for dU synthesis have been hypothesized to include genes for a cytosine deaminase, a DNA polymerase and a dTTPase, although this has not been experimentally verified34. Of these genes, we only detected an orthologous DNA polymerase in several of the VC1099 emSAGs (Fig. 4c and Supplementary Table 10). The failure to find orthologues of Noahvirus cytosine deaminase and dTTPase suggests that these genes are either too divergent to detect at the sequence level or that different mechanisms are used for DNA modification in Naomiviridae than was previously hypothesized. The incompleteness of individual emSAGs may also lead to failed gene detection, although the likelihood of missing these genes altogether in all 33 VC1099 emSAGs due to assembly incompleteness is low, <10−12. Furthermore, the successful co-assembly of contigs from these emSAGs into two circularized genomes suggests successful coverage of Naomiviridae core genome regions by the emSAGs (Fig. 4b). Orthologues of other Noahvirus replication genes were present in several VC1099 emSAGs, including an exonuclease and a DNA primase/helicase. Genomic synteny of these genes was consistent with cultured Noahvirus (Fig. 4c). A phylogenomic reconstruction of the DNA polymerase gene family in Noahvirus34 with other reference viral genomes in INPHARED and RefSeq that encode this DNA polymerase family provided further evidence that VC1099 emSAGs and Noahvirus isolates are evolutionarily related (Fig. 4d).
To better understand the genome architecture of VC1099 viruses, we assembled all contigs from all marine emSAGs into constructs we refer to as co-assemblies. This produced two circularized co-assemblies, both of which contained exclusively Naomiviridae emSAG contigs (Fig. 4b). The two co-assemblies were ~62 kbp in length, similar to the length of the two previously published genomes of Noahvirus isolates (70 and 75 kbp)34. Mapping of individual emSAG contigs on these co-assemblies revealed a high frequency of nucleotide-level variability among individual Naomiviridae particles (Fig. 4b). Furthermore, these co-assemblies included only 39% of the contigs of the contributing emSAGs, although portions of all contigs could be mapped on the co-assemblies (Supplementary Tables 11). This indicated substantial genome content variation among individual Naomiviridae particles in the analysed sample that could not be fully represented in the two co-assemblies, and demonstrates the unique value of genome recovery from discrete, individual viral particles to circumvent the inherent loss of information that occurs during the assembly of consensus genomes from multiple entities, such as done in the construction of MAGs.
We next searched for contigs resembling the two VC1099 co-assemblies in cellular SAGs from this study and a previous, multiseason report of prokaryoplankton of FACS-based SAGs in the Gulf of Maine35 to capture interactions with potential hosts. Small fragments of the phage co-assemblies aligned to contigs present within three cellular SAGs, one Amylibacter and two Pelagibacter SAGs (Supplementary Table 12 and Fig. 4b). These alignments varied in length from 1 to 17.5 kb and in their nucleotide identity from 73% to 98%. The cellular SAG contigs that aligned to Naomiviridae co-assemblies differed in tetramer composition from the rest of the cellular assembly, suggesting heterogeneous origins and lack of integration into hosts’ chromosomes (Supplementary Figs. 1–3). The association of VC1099 with Amylibacter, of the Rhodobacteraceae family, is consistent with the taxonomy of the previously reported host R. pomeroyi34. Meanwhile, the detected association of Naomiviridae with Pelagibacter (Pelagibacteraceae family) suggests an important additional role of Naomiviridae, as Pelagibacter is the most abundant genus of marine planktonic bacteria and constitutes ~25% of all cells in the ocean47. Interestingly, all three putative host SAGs originate from a set of 276 cSAGs obtained from a seawater sample collected in April 2019, rather than from the other sampling months, October and July, which coincided with the sample collection for the EMCG study in April 2022. This indicates the potential seasonal recurrence of Naomiviridae infections in the Gulf of Maine. We also performed BLASTn searches for sequences similar to Naomiviridae co-assemblies in 12,715 GORG-Tropics cSAGs from the epipelagic depths of tropical and subtropical latitudes5. This produced no alignments greater than 100 bp, suggesting high specificity of Naomiviridae matches to cSAGs from the Gulf of Maine. Collectively, our findings expand the putative host range of Naomiviridae by including the most abundant lineage of marine bacterioplankton and suggest the dynamic nature of their ecology and evolution, highlighting the need for targeted studies on their roles in the ocean. EMCG opens a new window into the biology of viruses with non-canonical DNA, which may be instrumental not only in microbial ecology but also in the expanding use of xenobiotic nucleotides in synthetic biology48.
Discussion
We report the development and pilot application of Environmental Micro-Compartment Genomics (EMCG), a novel method for high-throughput, quantitative genome sequencing of individual cells and extracellular genetic elements in environmental samples. Particles in a sample are randomly compartmentalized into semi-permeable capsules (SPCs), followed by multistep biochemical processing for lysis, DNA amplification and combinatorial barcoding via manual pipetting. This high-throughput separation of individuals and ability to pool barcoded DNA into a singular sequencing run enables thousands of particles to be sequenced from a sample, substantially increases the analytical throughput and reduces equipment costs compared with FACS-based single-cell and single-virus genomics.
The application of EMCG on a 300-nl coastal seawater sample recovered genome sequences of over 2,000 individual microbial cells and extracellular genetic elements, with the predominance of virus-like genome assemblies (Fig. 2). The comparison of EMCG outputs to FACS-based particle counting and FACS-based genomics of single cells and single viral particles demonstrated consistent genome recovery without obvious compositional biases, aside from demonstrating a bias of FAVS-based genomics for larger viral particles. The average completeness of virus-like genomes, which dominated the EMCG dataset, was substantially higher than the completeness of virus-like MAGs and FAVS-based SAGs obtained from the same sample (Fig. 3). Furthermore, EMCG recovered genomes from a broader taxonomic range of viruses compared with FAVS-based SAGs, and included viruses that might have been too small for optical detection by FAVS. Thus, the quality of virus-like genome assemblies obtained with EMCG has substantial advantages relative to other contemporary methods in environmental virology.
Unexpectedly, EMCG revealed the abundance of Naomiviridae in the analysed sample and indicated that they infect several of the most abundant marine bacterioplankton lineages (Fig. 4). The only previous report of this family of viruses found that they use dU instead of dT, which prevents their direct sequencing34. This and other non-canonical DNA modifications are hypothesized to help viruses avoid detection by hosts’ immune systems49. Although several DNA modifications have been discovered in cultured prokaryotic viruses, and the initial Naomiviridae report indicated that relatives of these phages may be widespread in the ocean, the abundance of such viruses in the environment remains largely unknown49,50. Our results suggest that viruses with non-canonical DNA may be abundant in certain ocean regions and play crucial roles in marine microbial ecology, yet remain undetected by standard metagenomics methods.
One key limitation of EMCG, compared to the FACS-based genomics of single cells and viral particles, is the lack of information about analysed particles’ optical properties. When available, such information can link single cells’ genomes and phenomes and discriminate intact cells from subcellular particles24,35. Furthermore, the lack of direct control of sequence read distribution among SPCs can lead to both under- and over-sequencing of some SPCs, in particular when analysing particles with disparate genome sizes. The latter challenge could be mitigated by targeted particle or entity selection, for example, by filtration or FACS, upstream of EMCG. Compared with shotgun metagenomics, EMCG requires moderately higher upfront instrumentation costs, yet it offers an improved representation of diverse DNA sequences in the sample. Furthermore, due to the uneven DNA amplification from single molecule templates51, EMCG may require deeper DNA sequencing compared with metagenomics to obtain the same cumulative assembly length.
Taken together, EMCG offers a novel opportunity for quantitative genome content analyses of viruses and other extracellular genetic elements in the ocean and other environments. The discovery of the prevalence of Naomiviridae in seawater reflects the importance of improving our understanding of the abundance, ecological roles and biotechnological potential of extracellular genetic elements with non-canonical DNA. The capacity of EMCG to decipher viral and microbial genome content at the resolution of individual particles from submicrolitre sample volumes may also find applications outside environmental microbiology, such as in infection diagnostics and forensics.
Methods
Field sample collection and storage
Gulf of Maine seawater sample was collected with a Niskin bottle from 1-m depth in Boothbay Harbor, Maine (43.84° N, 69.64° W) on 18 April 2022. Immediately after the collection, multiple 1-ml subsamples were transferred to cryovials, amended with 5% glycerol and 1× pH 8 TRIS-EDTA buffer (final concentrations) and stored at −80 °C. We refer to these subsamples as ‘cryopreserved’.
Sample encapsulation and processing SPCs
SPCs containing cryopreserved seawater were generated using the FLUX SPC generator (CHP-SPC1, Atrandi Biosciences) and the corresponding SPC reagent kit (CKP-G34, Atrandi Biosciences). The Working Core (WCS) and Working Shell (WSS) Solutions were prepared following manufacturer instructions, except for dithiothreitol, which was excluded. Specifically, for each lane, 37.5 µl of diluted seawater was combined with 50 µl of Core Reagent and 12.5 µl of Photoinitiator. Before encapsulation, all samples were passed through a 40-µm-mesh-size cell strainer (Becton Dickinson) and diluted with sterile-filtered and UV-irradiated Sargasso Sea water to achieve 2–3% SPC occupancy, as determined through an iterative process by the microscopy of post-amplification SPCs (see below). This corresponds to 1–1.5% of the occupied SPCs harbouring >1 DNA-containing particle. Post encapsulation, the emulsion was transferred into a 2.0-ml microcentrifuge tube, the oil phase was aspirated from the bottom using a 1-ml pipette, and the SPCs were isolated by disrupting the emulsion with the Emulsion Breaker solution included in the kit. The recovered SPCs were then resuspended in molecular grade water containing 1× Wash Additive.
Alkaline lysis and DNA amplification in SPCs were performed following the WGA-X protocol24 instead of using lysis and amplification reagents provided in the kit. Briefly, SPCs were treated with 0.4 M KOH, 10 mM EDTA and 100 mM dithiothreitol for a 10-min incubation at 20 °C, followed by neutralization and buffer replacement using Wash Buffer (10 mM Tris pH 7.5, 0.1% Triton X-100). The WGA-X reactions contained 0.2 U μl−1 Equiphi29 polymerase (Thermo Fisher), 1× Equiphi29 reaction buffer (Thermo Fisher), 0.4 mM each dNTP (New England BioLabs), 10 mM dithiothreitol (Thermo Fisher) and 40 μM random heptamers with two 3′-terminal phosphorothioated nucleotide bonds (Integrated DNA Technologies) (all final concentrations). These reactions were performed at 45 °C for 1 h and then inactivated by a 15-min incubation at 75 °C. Following the WGA-X, SPCs were washed with 1 ml wash buffer three times. To confirm DNA amplification, the SPCs were stained with 5 µM SYTO-9 (Thermo Fisher) in wash buffer. SPCs containing green fluorescence were quantified using epifluorescence microscopy. We refer to amplified DNA in individual SPCs as environmental micro-compartment single amplified genomes (emSAGs).
An axenic culture of Escherichia coli K12 DH1 (ATCC 33849) was obtained from the American Type Culture Collection and cultivated in an autoclaved LB medium overnight. The 1 ml subsamples of the culture were transferred to cryovials, amended with 5% glycerol and 1× pH 8 TRIS-EDTA buffer (final concentrations) and stored at −80 °C. Subsequently, the same dilution, SPC generation and DNA amplification procedures as described above were applied to these cryopreserved E. coli samples. Before DNA barcoding, the SPCs containing amplified E. coli DNA were spiked into SPCs containing amplified seawater DNA at the ratio of ~1:10 to assist in workflow performance evaluation.
The same techniques and reagents described above were used to encapsulate, lyse, amplify and microscopically examine a sample of UV-irradiated deionized water. This negative control produced no SPCs with detectable DNA amplification products, indicating no DNA amplification introduced by the analytical workflow.
Combinatorial barcoding of WGA products within SPCs was conducted using the Single-Microbe DNA Barcoding kit (CKP-BARK1, Atrandi Biosciences). Approximately 150 μl of post-WGA-X SPCs, containing ~6,000 SPCs with WGA products, were passed through DNA debranching and end preparation protocols to yield A-tailed dsDNA fragments. A 4-step, ligation-based combinatorial split-and-pool barcoding process was then employed, generating a barcode diversity of 244 (331,776) unique variants.
The barcoded emSAGs were released from SPCs using the Release Reagent (Atrandi Biosciences) and purified using 0.8× Ampure XP (Beckman Coulter) paramagnetic beads. Subsequently, the next-generation sequencing libraries were prepared following the protocol of the NEB Next Ultra II FS DNA Library Prep Kit for Illumina (E7805S, NEB) using a protocol-specific ligation adapter (Atrandi Biosciences) and Unique Dual Indexing (UDI) PCR primers as directed by the Single-Microbe DNA Barcoding kit. Libraries were quantified using the Agilent High Sensitivity DNA kit (5067-4626, Agilent) and the Qubit Fluorometer with a dsDNA HS Assay kit (Q32851, Thermo Fisher). The prepared SAG libraries were loaded on the Illumina NextSeq 2000 platform using a High Output P3 kit (300 cycles) with sequencing read lengths of R1 = 151 bp, R2 = 151 bp, i7 = 8 bp and i5 = 8 bp.
Read demultiplexing proceeded in two stages. In the first stage, we used bcl2fastq2 v.2.2.0 software (Illumina) with the parameter ‘–barcode-mismatches=3’ to convert basecall files to pairs of fastq files and separate reads on the basis of the Illumina library indexes. The second stage used the paired fastq files as input and the Pheniqs (v.2.1.0)52 software to separate reads on the basis of the combinatorial Atrandi barcodes. To ensure demultiplexing stringency, we used a frequency threshold of ≥4 out of 1 million reads to exclude spurious barcode combinations and ran Pheniqs using the minimal distance decoding algorithm and distance tolerance set to allow ≤1 mismatch in each Atrandi barcode combination. It should be noted that an earlier version of the manual mistakenly indicated compatibility with the NEB Next Multiplex Oligos for Illumina (Dual Index Primers Set 2), NEB (P/N: E7780S) indexing primer kit, which compromised barcode-bearing fragment enrichment, resulting in only ~30% of reads displaying a recognizable cell barcode. This issue has been rectified in subsequent manual editions, ensuring reference to compatible indexing primers and achieving greater than 90% readability of cell barcodes in reads.
Following demultiplexing, we performed two-stage read trimming. First, Trim Galore! (v.0.6.7)53 command ‘trim_galore–clip_R2 45–paired -o output ${input_forward_readfile} ${input_reverse_readfile}’ was used to remove Atrandi barcodes. Subsequently, Trimmomatic (v.0.32)54 command ‘trimmomatic PE -phred33 ${ input_forward_readfile } ${input_reverse_readfile } LEADING:0 TRAILING:5 SLIDINGWINDOW:4:15 MINLEN:36’ was used to remove Illumina adapters and perform general quality-based trimming. Only reads containing their pairs and longer than 36 bp were retained as previously benchmarked24.
Quantification of DNA-containing particles
Flow-cytometric quantification of prokarya within the seawater sample (1.84 × 106 ml−1) and E. coli culture (3.50 × 108 ml−1) was performed with a BD Influx Mariner by counting events gated as prokarya (Supplementary Fig. 4) in a known sample volume55. The same quantification procedure was used on a FACS gate for virus-like particles, indicating 1.75 × 107 virus-like particles per ml. The volume analysed was determined by weight displacement before and after analysis. Details are found in the section ‘Fluorescence-activated sorting and downstream processing of individual cells and virus-like particles’.
The EMCG-based quantification of DNA-containing particles was based on measuring sample volumes encapsulated in SPCs, the rate of SPC occupancy by particles producing WGA-X products, and the taxonomic annotation of sequenced emSAGs. First, we used the following formula to estimate the volume of raw seawater captured in an average SPC (Vsea-1SPC):
where ‘160’ is the microscopically determined average droplet volume in pl (assuming a spherical shape), ‘0.2’ is the volumetric fraction of the diluted sample in a droplet, and ‘0.033’ is the sample dilution factor before encapsulation.
Next, we estimated the abundance of DNA-containing particles in the analysed seawater (ADNA) as follows:
where ‘0.022’ is the microscopically determined fraction of SPCs containing WGA-X amplicons and ‘109’ is the conversion factor from pl to ml.
Subsequently, we estimated the abundance of prokarya cells (Aprok) and virus-like particles (Avir) as follows:
where ‘193’, ‘1,791’ and ‘2,037’ are the respective counts of prokarya-like, virus-like and all emSAG genome assemblies of marine origin.
The total volume of seawater compartmentalized in SPCs that were used in the EMCG experiment (Vsea-sequenced-SPCs) was estimated as follows:
where ‘6,000’ is the number of SPCs used in barcoding and sequencing, ‘0.022’ is the microscopically determined fraction of SPCs containing WGA-X amplicons, and ‘1,000’ is the conversion factor from pl to nl.
Fluorescence-activated sorting and downstream processing of individual cells and virus-like particles
The generation of FACS-based single amplified genomes of prokaryote cells (cSAGs) and individual viral particles (vSAGs) from the cryopreserved seawater sample was performed as previously described24. For prokaryote cell sorting, samples were incubated with the SYTO 9 nucleic acid stain (5 µM final concentration; Thermo Fisher) on ice for 10–60 min. For virus-like particle sorting, samples were incubated with the SYBRGreen nucleic acid stain (1:500 dilution, final concentration; Thermo Fisher) on ice for 60–120 min. Flow-cytometric analysis and sorting were performed using a BD InFlux Mariner flow cytometer equipped with a 488-nm laser for excitation and a 70-μm nozzle orifice (Becton Dickinson, formerly Cytopeia). The cytometer was triggered on green fluorescence (531/40 BP emission filter). The ‘single-1 drop’ mode was used for maximal sort purity. Sort gates for prokarya and viral-like particles were defined on the basis of particle green fluorescence and forward scatter (Supplementary Fig. 4). Individual cells and extracellular particles were deposited into 384-well microplates containing 600 nl of 1× TE buffer per well and stored at −80 °C until further processing. Of the 384 wells, 317 wells were dedicated for single cells, 64 wells were used as negative controls (no droplet deposition), and 3 wells received 10 cells each to serve as positive controls. The accuracy of droplet deposition into microplate wells was confirmed several times during each sort day by sorting 3.46-µm-diameter SPHERO Rainbow Fluorescent Particles (Spherotech) and microscopically examining their presence at the bottom of each well. In these examinations, <2% of wells did not contain beads and <0.4% of wells contained more than one bead. Index sort data were collected using the BD Sortware software.
Before genomic DNA amplification, sorted cells and viral particles were lysed and their DNA was denatured by two freeze–thaw cycles and the addition of 700 nl of a lysis buffer consisting of 0.4 M KOH, 10 mM EDTA and 100 mM dithiothreitol, and a subsequent 10-min incubation at 20 °C. The lysis was terminated by the addition of 700 nl of 1 M Tris-HCl, pH 4. Whole genome amplification was performed using WGA-X24.
Cell and particle sorting, lysis and WGA-X setup were performed in a HEPA-filtered environment conforming to Class 1000 cleanroom specifications. Before cell sorting, the instrument, the reagents and the workspace were decontaminated for DNA using UV irradiation and sodium hypochlorite solution. To further reduce the risk of DNA contamination, and to improve accuracy and throughput, Bravo (Agilent Technologies) and Freedom Evo (Tecan) robotic liquid handlers were used for all liquid handling in 384-well plates at Bigelow Laboratory’s Single Cell Genomics Center (SCGC).
Libraries for sequencing of the amplified DNA were created with Nextera XT (Illumina) reagents following manufacturer instructions except for purification steps, which were done with column cleanup kits (QIAGEN QIAQuick PCR Purification and MinElute PCR Purification kits), and library size selection, which was done using BluePippin (Sage Science) with a target size of 500 ± 50 bp. DNA concentration measurements were performed with Agilent HS D1000 TapeStation reagents following manufacturer instructions. Libraries were sequenced with NextSeq 2000 (Illumina) and P3 reagents in 2 × 100 bp mode.
SAG de novo assembly and quality control
The demultiplexed sequencing reads of emSAGs, cSAGs and vSAGs were quality trimmed with Trimmomatic (v.0.32)54 using the following settings: -phred33 LEADING:0 TRAILING:5 SLIDINGWINDOW:4:15 MINLEN:36. Reads matching the H. sapiens reference assembly GRCh38 and a local database of WGA-X reagent contaminants24 (≥95% identity of ≥100 bp alignments) as well as low-complexity reads (containing <5% of any nucleotide) were removed. The remaining reads were digitally normalized with kmernorm 1.05 (http://sourceforge.net/projects/kmernorm) using the settings ‘-k 21 -t 30 -c 3’ and then assembled with SPAdes (v.3.0.0)56 using the following settings: –careful–sc–phred-offset 33. Each end of the obtained contigs was trimmed by 100 bp and only contigs longer than 2,000 bp were retained. Contigs matching the H. sapiens reference assembly GRCh38 and a local database of WGA-X reagent contaminants (≥95% identity of ≥100 bp alignments) were removed. All SAGs were run through CheckM (v.1.0.7)57 to determine cellular genome completeness and a tetramer frequency analysis24. The application of this workflow on cSAGs was evaluated for assembly errors using three bacterial benchmark cultures with diverse genome complexity and %GC, indicating no non-target and undefined bases in the assemblies and the following average frequencies of misassemblies, indels and mismatches per 100 kbp: 1.5, 3.0 and 5.0 (ref. 24). All SAGs were examined for bacterial and archaeal taxonomy via GTDB-Tk (v.1.4.1)58. The 16S rRNA gene regions longer than 500 bp were identified using local alignments provided by BLAST against CREST’s59 curated SILVA reference database SILVAMod (v.128)60 and classified using a re-implementation of CREST’s last common ancestor algorithm.
Co-use of barcode assessment with E. coli spike
The theoretically expected fraction of emSAG assemblies originating from more than one SPC due to random barcode co-use is 0.36% (2,379 × 0.5/244 = 0.0036, where 2,379 is the number of obtained genome assemblies and 244 is the total number of barcode combinations). To experimentally verify the low frequency of barcode co-use in emSAGs, and due to the technical challenges in robustly assessing the purity of genome assemblies of novel extracellular genetic elements, we introduced a spike of SPCs containing E. coli in the barcoding procedure. Subsequently, contigs of the E. coli spike were detected in emSAG genome assemblies using QUAST61. Other contigs were considered of marine origin. Of the total of 2,379 emSAG assemblies with at least one >1-kbp contig, 2,037 assemblies had marine contigs only, 339 assemblies had E. coli contigs only, and 3 assemblies had a mix of both (Supplementary Table 4). The presence of marine contigs in 0.9% of emSAG assemblies containing E. coli sequences translates to the observed fraction of emSAG assemblies originating from more than one SPC as 1.0% (3 × 2,379/2,037/(339 + 3)), thus confirming the high fidelity of EMCG barcoding and computational demultiplexing procedures.
SAG annotation and entity assignment
Genes for all SAGs were called using Prodigal62 (flags -d, -a, -g) and predicted with all genetic codes considered initially (1, 2, 3, 4, 5, 6, 9, 10, 11, 12, 13, 14, 15, 16, 21, 22, 23, 24, 25). If code 11 yielded a coding density <80%, then the code yielding the highest coding density was deemed optimal63 (Supplementary Tables 1, 3 and 5). The amino acid sequences of genes identified with the optimal genetic code were then aligned to Hidden Markov Model profiles of gene families of all eukaryotic, bacterial, archaeal and viral groups in the EggNOG database (v.5.0)64 using HMMsearches (hmmsearch -E 0.001; HMMER 3.3.2)65. We used the highest bitscore as the criterion to determine a gene’s best hit. The proportion of cellular genes in a SAG was calculated by dividing the number of best hits to a cellular EggNOG family by the total gene count. To identify viral contigs within the SAGs, untrimmed contigs were analysed with Virsorter2 (v.2.1)66 (default settings) and DeepVirFinder (v.1.0)67. Contigs with a Virsorter2 maxscore ≥0.5 or a DeepVirFinder score ≥0.5 and p < 0.05 were deemed ‘viral’. All contigs of a SAG containing at least one virus-like contig were then analysed using CheckV44 to trim off host regions. Next, the proportion of viral-like sequence (in basepairs) in a SAG was calculated on the basis of the total untrimmed length of that SAG. SAGs that had a higher fraction of cellular genes than the fraction of viral sequence were deemed ‘cellular’. Meanwhile, SAGs that had a higher fraction of viral sequence than the fraction of cellular genes were deemed ‘virus-like’. If these proportions were equal, the SAG assignment was considered ‘undetermined’ (Supplementary Tables 1, 3 and 5). Cell-like emSAG genome assemblies were deemed to contain a viral infection if they had at least one contig over 10 kbp in length that met the criteria used to detect viral sequences of SAGs initially described above using VirSorter2 and DeepVirFinder (Supplementary Table 2). The 10-kbp length cut-off used here is higher than the 1-kbp length used to categorize a SAG as cell-like or virus-like out of caution since viral detection altogether is more accurate at higher contig lengths, specifically 10 kbp for both tools used here (VirSorter2 and DeepVirFinder)66. However, this limits the detection of infections by viruses with shorter genomes such as some members of the Inoviridae and Microviridae families. Viral sequences of prophages were detected by CheckV as ‘proviruses’ and only reported if their contigs were flanked on both sides by host DNA. This did not apply to any of the sequences.
CheckV44 was used to assess the quality of virus-like SAG assemblies (Supplementary Tables 1 and 3). Because CheckV only runs on individual contigs, we joined all viral contigs originating from the same SAG with 30 Ns before processing with CheckV63. Because no universally accepted method currently exists for the taxonomic classification of virus-like genome assemblies, we examined which reference viruses the viruses shared the most similarity with by analysing their protein content. Amino acid sequences of each virus-like assembly were aligned against all proteins in the INPHARED database (downloaded 2 August 2024)37 and remaining non-prokaryotic viruses in Viral RefSeq (VRS) (downloaded 9 March 2024)38 using BLASTp (e-value 0.00001; (v.2.14.1)68). Tentative classifications were reported for SAGs that had at least two genes with the highest bitscore values from BLAST hits to the same reference genome (Supplementary Tables 1 and 3). We note that this approach reveals the most similar reference phage to a virus-like SAG but not necessarily the specific taxonomic group this virus belongs to. To determine the genus or subfamily level of classification for the virus-like emSAGs, we combined the virus-like emSAG sequences with INPHARED and VRS and ran them in vContact2 (ref. 69) (default settings; Supplementary Table 9).
Viral metagenome preparation, assembly and annotation
A total of 40 l of seawater collected from the same sample that was for SAG analyses was filtered through a 0.2-µm-mesh-size filter, concentrated to 250 ml using a REXEED 30k MWCO tangential flow filter system (Asahi Kasei Medical)70,71, and then stored at 4 °C overnight. The following morning, this primary concentrate was further concentrated to ~1.5 ml final volume (~30,000× concentration) using Amicon 100k MWCO ultracentrifugation filters (Millipore Sigma) in a refrigerated centrifuge. The collected material was resuspended off the filter in DNA-free, deionized water and stored at −80 °C. The DNA was extracted from a 30-μl aliquot of this secondary concentrate using previously described protocols72. Extracted DNA was subjected to an additional clean and concentration step using a Genomic DNA Clean and Concentrator kit (Zymo Research), eluting the purified DNA with elution buffer heated to 65 °C.
Libraries for DNA sequencing were created with Nextera XT (Illumina) reagents following manufacturer instructions, except for purification steps, which were done with column cleanup kits (QIAGEN QIAQuick PCR Purification and MinElute PCR Purification kits), and library size selection, which was done using BluePippin (Sage Science) with a target size of 370 ± 43 bp. DNA concentration measurements were performed with Agilent HS D1000 reagents for TapeStation following manufacturer instructions. Libraries were sequenced with NextSeq 2000 (Illumina) and P1 reagents in 2 × 150 bp mode. The obtained 127,098,956 read pairs were quality trimmed with Trimmomatic (v.0.3260)54 using the following settings: -phred33 LEADING:0 TRAILING:5 SLIDINGWINDOW:4:15 MINLEN:36. Reads matching the H. sapiens reference assembly GRCh38 and a local database of reagent contaminants (≥95% identity of ≥100 bp alignments) as well as low-complexity reads (containing <5% of any nucleotide) were removed24. The remaining 123,812,680 read pairs were assembled into contigs using metaSPades73 with default settings and filtered for scaffolds at least 1,000 bp in length. Virus-like contigs were detected and their quality was assessed using VirSorter2 (ref. 66), DeepVirFinder67 and CheckV44 using the same criteria as in SAG analyses, with a minimum contig length of 1,000 bp (see above; Supplementary Table 2).
vOTU clustering, genome alignments and read mapping
To assess the diversity of virus-like emSAGs and virus-like vMAGs, we clustered these together into either nominal virus species or vOTUs, which are most commonly defined by ≥95% ANI across ≥85% of the length of constituent genomes45. Given that virus-like emSAGs can contain multiple contigs with unknown orientations, we calculated their pairwise ANI values between all virus-like emSAGs and virus-like vMAGs as averages across their coding sequence lengths. Coding sequences of each genome were aligned using BLASTn68 (e-value 0.0001). The alignment between two genes with the best bitscore was used. vOTUs were determined on the basis of single-linkage clustering using the threshold of ≥95% ANI across ≥85% of the length of the smallest constituent genome (Supplementary Table 6).
For the genome alignments within population_66 (Fig. 3d), we used the MUMmer4 (v.4.0.0rc1)74 commands nucmer with default settings and show-cords -T with the largest genome assembly as the reference (Fig. 3d and Supplementary Table 8). For population_245, we visualized the region of the largest emSAG assembly to which the vMAG BBHvirome2_NODE_14273 aligned (Fig. 3e). For the mapping of reads from the virus-enriched metagenome, the reads were initially mapped to all genome assemblies of each dataset using bwa mem (2.2.1)75 and samtools (1.15.1)76. An index was created using bwa index. Then the following commands and flags were used: bwa mem -t 4 | samtools view -ShuF4q2–threads 4 | samtools sort -m 8 G–threads 4. The samtools index was applied to a bam file output from above. Next, reads that mapped at 95% ID, as performed in ref. 77, were filtered. The metagenome reads were also mapped on individual genome assemblies using bwa mem and the 95% ID threshold (Supplementary Table 1). To determine the relative abundance of each vOTU in the metagenome, the average number of reads mapped to each emSAG within the vOTU was divided by the average assembly length of emSAGs within the vOTU (Fig. 4a). The command ‘samtools depth’ was used for positional information of mapping to an individual sequence (Fig. 4e).
Naomiviridae analyses
Gene annotations of Noahvirus arc and Noahvirus PM1 were downloaded from GenBank and clustered with genes from emSAGs of VC1099 using OrthoFinder78 (-S blast; v.2.5.5) (Supplementary Table 10). Clusters were then examined for those containing cytosine deaminase, DNA polymerase, dTTPase, exonuclease and DNA primase/helicase based on the annotation of the cultured genomes’ genes. For emSAGs that contained more than one of these genes, corresponding genome neighbourhoods were plotted with genoPlotR79 in R (v.4.2.2)80 using RStudio81 (v.2023.06.2 + 561) (Supplementary Table 13). To estimate the approximate likelihood of missing a gene in the collective VC1099 emSAGs, we used genome assembly completeness (CA) estimates as a proxy. We calculated each emSAG’s completeness by dividing its assembly length by the average genome length of the two reference Naomiviridae (72,565.5 bp). We used 1–CA as a heuristic estimate of the likelihood that a particular gene would be absent in a genome assembly due to assembly incompleteness. The probability of a specific gene being missed in all VC1099 emSAGs due to assembly incompleteness was estimated as (1–CA1) × (1–CA2)… × (1–CA33), where CA1 through CA33 are completeness estimates for the 33 emSAGs of VC1099.
To examine DNA polymerase diversity, amino acid sequences encoded by virus-like emSAGs, VRS and the INPHARED database were searched against HMM profiles provided in ref. 34 using hmmsearch in HMMERv3 (e-value < 10−5). The best hit for a genome was selected on the basis of the highest bitscore. Due to visualization constraints, DNA polymerases found in VRS and INPHARED, excluding the Noahvirus copies, were clustered at 90% ID with CD-Hit82 (v.4.7; -c 0.99; Supplementary Table 14). The resulting amino acids were then aligned with Muscle5 (v.5.2)83 (-super5). The alignment was trimmed to remove regions that contained >10% gaps (trimAl84; -gt 0.1). A maximum likelihood phylogeny was reconstructed with this alignment using IQ-TREE 2 (ref. 85) with 1,000 ultrafast bootstraps and 8 independent runs, using the ModelFinder algorithm86 to identify the optimal amino acid substitution model (-nt 8 -m TEST -wbt -bb 1000 –runs 5 -safe). The tree was visualized in iTOL (v.6)87.
All contigs of marine emSAGs were used as input sequences in a single de novo assembly with Geneious Assembler (Dotmatics) using medium sensitivity and allowing circularization of contigs with ≥2 sequences. Of the obtained co-assemblies, only two were circularized and examined further. The two circularized co-assemblies, which we designated ‘Co-assembly A’ and ‘Co-assembly B’, consisted entirely of contigs derived from emSAGs of VC1099, suggesting that they represent genetic material of Naomiviridae. Contigs of these emSAGs were also aligned to the co-assembly using BLASTn (e-value < 10−5) to identifiy the fraction of assemblies that matched the co-assembly (Supplementary Table 11). Functional annotation of these co-assemblies was performed in the same way as for emSAGs. Their amino acid sequences were then searched for against the Noahviruses’ genes via BLASTp searches (e-value < 10−5) to identify genes involved in replication. Putative hosts of these co-assemblies were predicted by BLASTn alignments (bitscores ≥ 1,000) of the contigs of cellular SAGs from the Gulf of Maine of this study and two previous studies in the Gulf of Maine and global tropics5,35 to the two co-assemblies (Supplementary Table 12). The coverage, single nucleotide polymorphisms, replication genes and host alignments were mapped onto the co-assembly genomes in the web-based software Proksee on the web-based interface88.
Data visualization and statistics
Data frames were managed with the pandas package89 in Python 3.8.16 or the R packages dplyr90, tidyverse91 and reshape2 (ref. 92). Unless specified otherwise, plots were created in R using RStudio with the following packages: ggplot2 (ref. 93), ggpubr94, cowplot95. Correlation tests were completed with the cor.test in base R (method = ‘kendall’). Pairwise t-tests (Fig. 3a) were completed with stat_compare_means (label = ‘p.signif’; ggpubr function).
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
Genomic data are available on figshare at https://doi.org/10.6084/m9.figshare.29087720.v1 (ref. 96) and on GenBank under BioProject accession PRJNA1227513.
Code availability
All bioinformatic tools, visualizations and statistics were completed with open-source software and programmes as described in the Methods. More detailed code is provided on GitHub as ‘EMCG_code’ at https://github.com/scubalaina/EMCG_code/tree/main (ref. 97).
