Extended Data Fig. 8: Dynamic changes and C-ring symmetry of Campylobacter jejuni motor.
From: Structural insights into the assembly and evolution of a complex bacterial flagellar motor

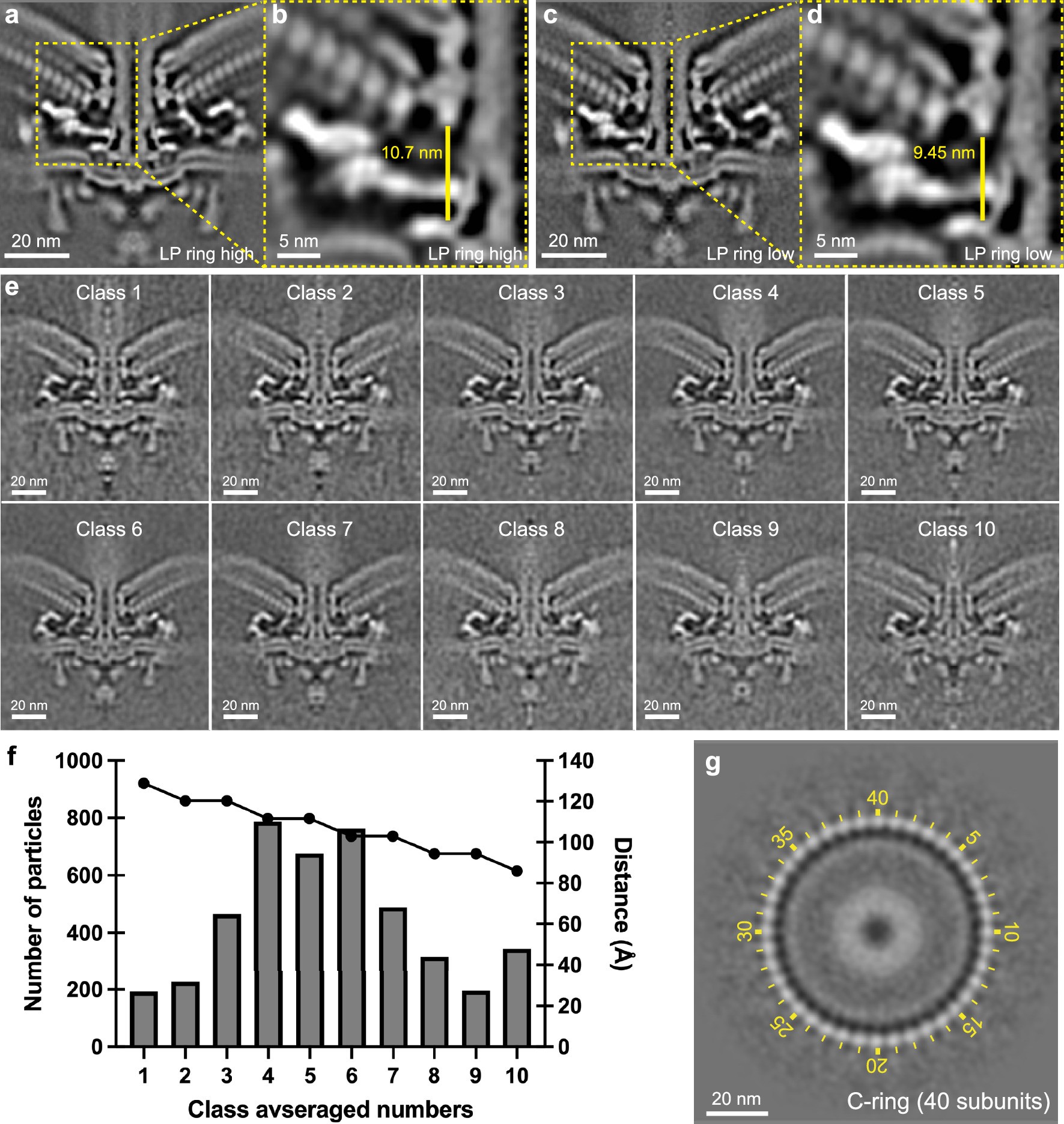

a, c, Central section of motor structures from wild type Campylobacter jejuni with two distinctive heights from LP-ring to MS-ring. b, d, Inset of a and c with measured height from LP-ring to MS-ring, respectively. e-f, 10 classified structures of wild type motor. The relationships between the numbers of the particles of each class averaged structure and the distance between the LP- and MS-rings are shown by column and line, respectively (f). g, Focused classification on the C-ring reveals its 40 subunits.
