Structural insights into the assembly and evolution of a complex bacterial flagellar motor

Nature Microbiology volume 11, pages 770–785 (2026)Cite this article

Subjects

Abstract

Knowledge of bacterial flagella has largely come from studies of the simpler motors of Escherichia coli and Salmonella enterica. However, many bacteria harbour more complex motors. The function, mechanisms and evolution associated with such auxiliary motor structures are unclear. Here we deploy structural, genetic, biochemical and functional approaches to characterize complex adaptations of the flagellar motor in Campylobacter jejuni. We observed an E ring formed by 17 FlgY homodimers around the MS ring, a cage-like structure made of FcpMNO and PflD, and PflA–PflB interactions in a spoke–rim formation between the E ring and cage. These scaffolds stabilized the 17 torque-generating stator complexes. Phylogenetic analyses suggest an ancient origin and widespread prevalence of the E ring and spokes across diverse flagellated bacteria, and co-option of type IV pilus components in the ancestral motor of phylum Campylobacterota. Collectively, these data provide insight into the assembly, function and evolution of complex flagellar motors.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

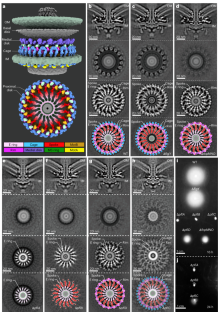

Fig. 1: Mapping components in the Campylobacter jejuni motor.

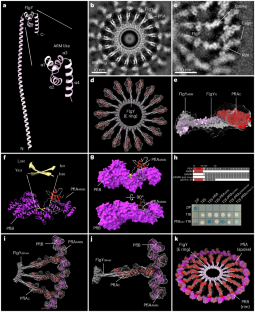

Fig. 2: Dissecting the E ring, spokes and rim.

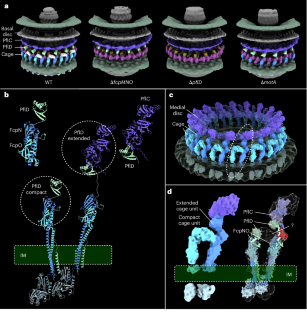

Fig. 3: PflD in two conformations form different tetrameric cage units with FcpMNO.

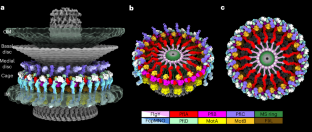

Fig. 4: Model of Campylobacter jejuni flagellar motor.

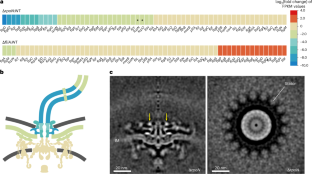

Fig. 5: The assembly order of the Campylobacter jejuni motor.

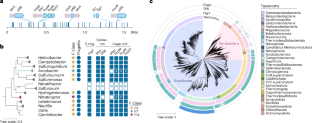

Fig. 6: Evolution of inner-membrane-proximal scaffolding proteins.
