Extended Data Fig. 3: Precursor structure and its evolution during solid-state synthesis.

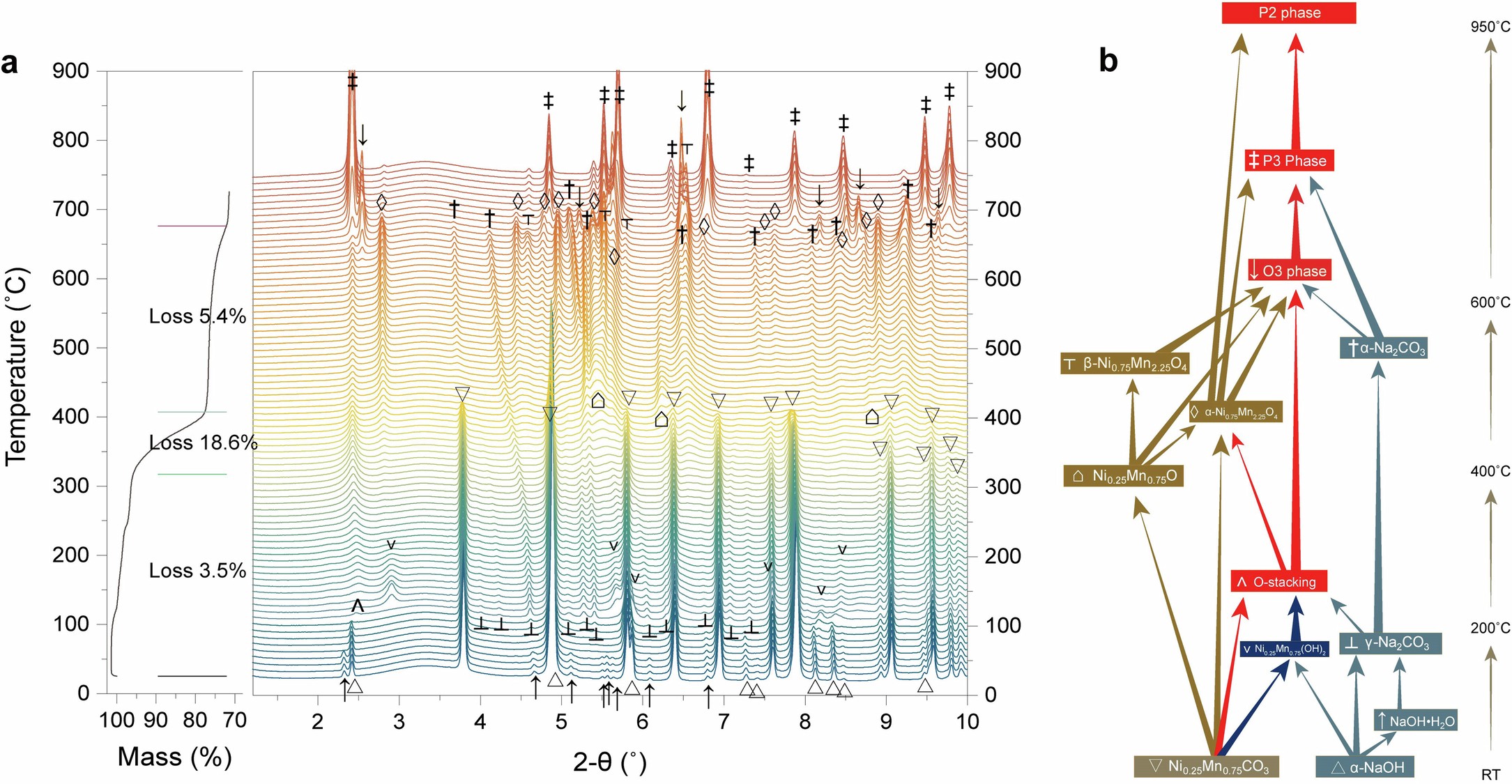

(a) In situ SXRD patterns and (b) corresponding structural evolutions of Ni0.25Mn0.75CO3-NaOH mixture during solid-state calcination. The wavelength for the in situ heating SXRD measurement is 0.24108 Å. SXRD patterns acquired under continuous heating with no holding at fixed temperatures.
