Extended Data Fig. 7: Search operation for 1-bit to 7-bit mismatch.
From: Sb-contacted MoS2 flash memory for analogue in-memory searches

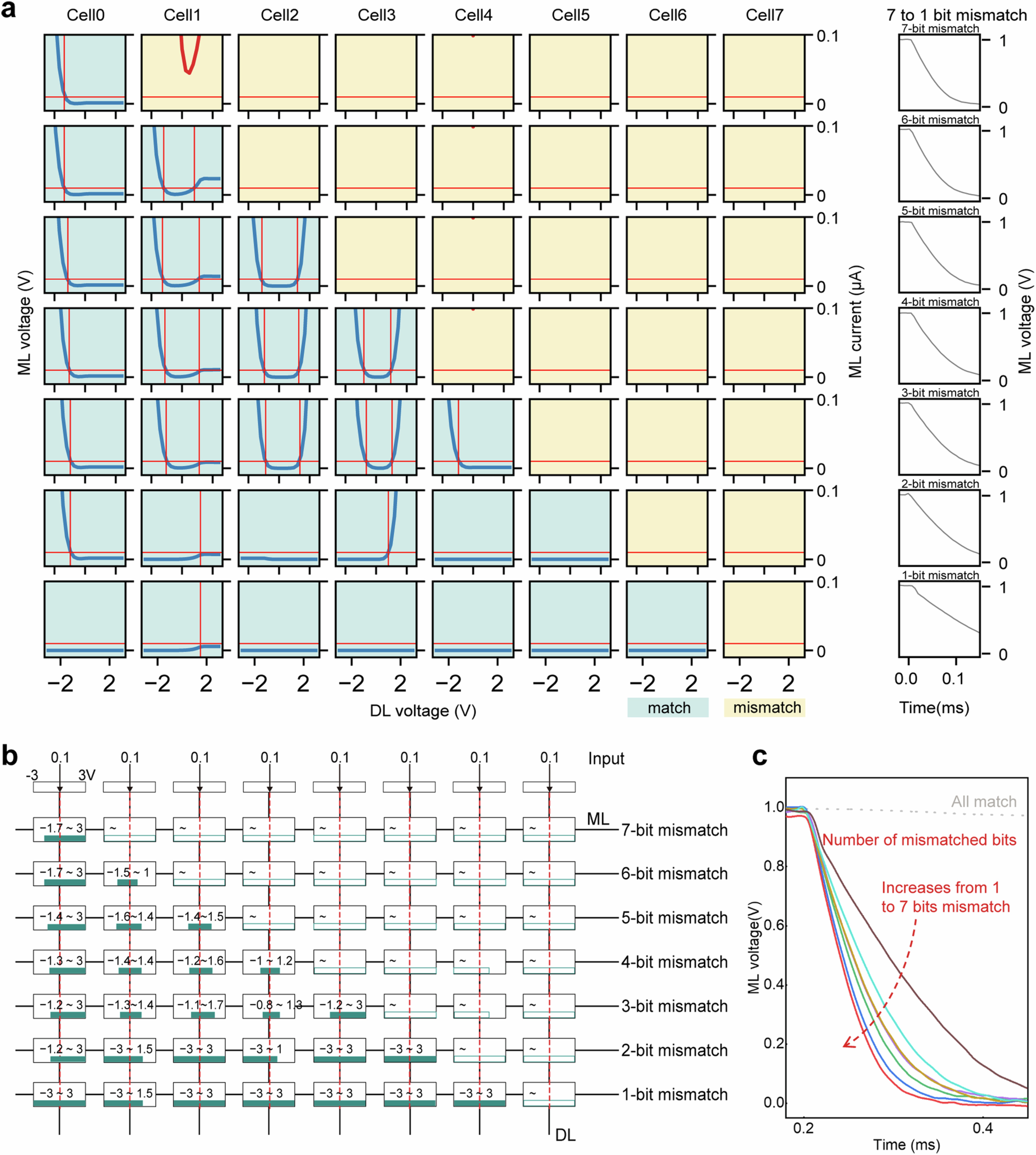

(a) Programmed search boundaries of 8 analog CAM cells in the same row during search operations for 1-bit to 7-bit mismatch (bottom to top). Some cell curves appear outside the visible range as they are programmed to mismatch everything. A 0.1 V signal was applied to all DLs as input data. The cells were programmed with different search ranges to create controlled mismatch scenarios: The experimental searching boundaries for each cellb, where red traces indicate mismatch bits (high discharge current at 0.1 V input), while blue traces indicate match bits (low discharge current at 0.1 V input). (b) Input and stored data during search operations for 1-bit to 7-bit mismatch. (c) Experimental discharge behaviors observed during search operations for 1-bit to 7-bit mismatch.
