Extended Data Fig. 10: Experimental demonstration of the search operations performance of one analog CAM cell with 3D-stacked complementary 2D flash memories.

From: Sb-contacted MoS2 flash memory for analogue in-memory searches

Extended Data Fig. 10: Experimental demonstration of the search operations performance of one analog CAM cell with 3D-stacked complementary 2D flash memories.The alternative text for this image may have been generated using AI.

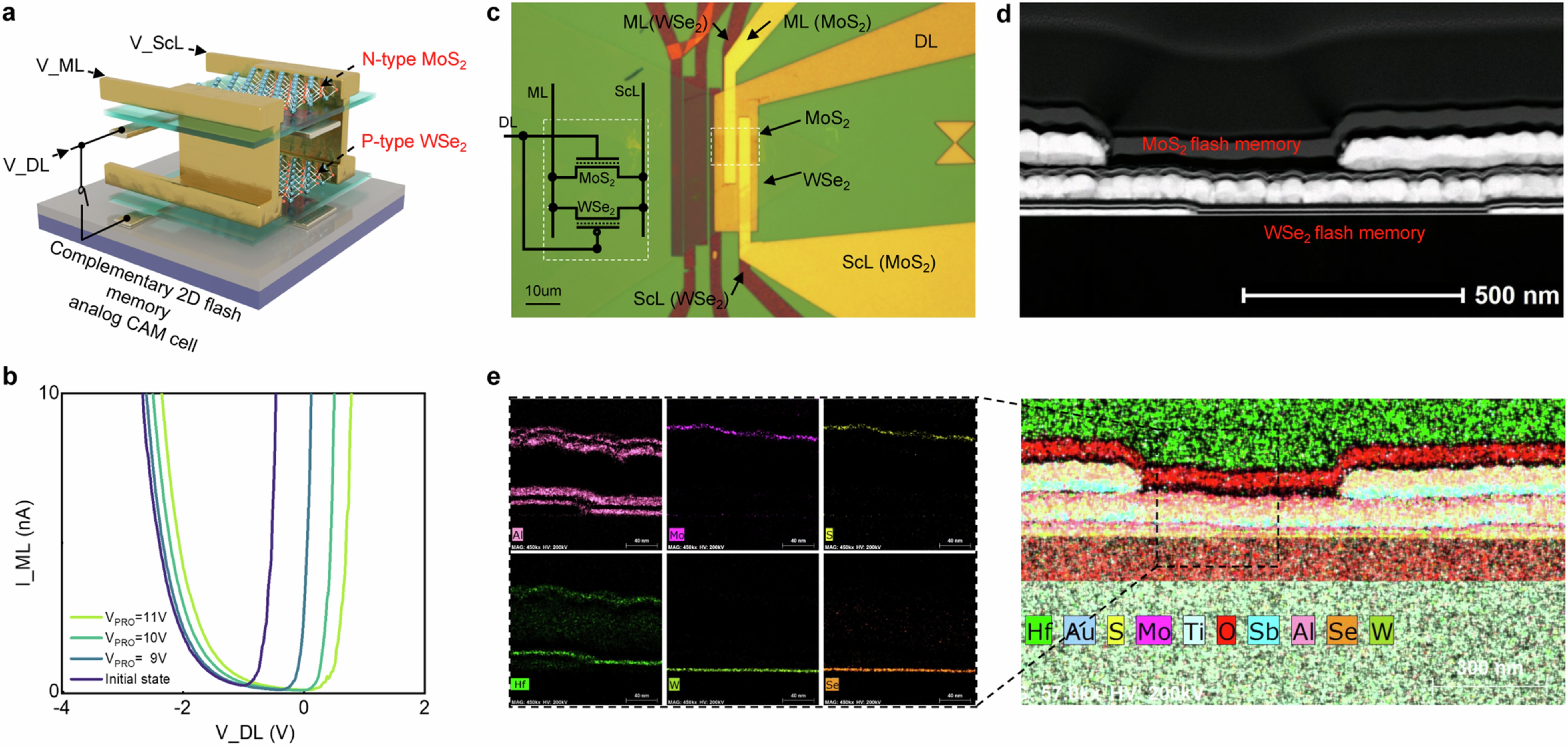

(a) The schematic diagram of one analog CAM cell with 3D monolithic integration of complementary flash memories (N-type MoS2 and P-type WSe2). (b) The I_ML - V_DL curves of the analog CAM cell, showing a tunable match range. (c) The optical image of the 3D monolithic integration of complementary flash memories. Inset shows the circuit diagram. (d) Cross-sectional HAADF-STEM image, and (e) EDS mapping of the device.
