Sub-Doppler spectroscopy of quantum systems through nanophotonic spectral translation of electro-optic light

Nature Photonics volume 18, pages 1285–1292 (2024)Cite this article

Subjects

Abstract

An outstanding challenge for deployable quantum technologies is high-resolution laser spectroscopy at the specific wavelengths of ultranarrow transitions in atomic and solid-state quantum systems. Here we demonstrate a highly flexible approach to high-resolution spectroscopy for quantum technologies across a broad range of wavelengths, through the synergistic combination of fine-tooth electro-optic frequency combs and efficient Kerr nonlinear nanophotonics. We show that such fine-tooth combs, which provide simultaneous high spectral and temporal resolution in atomic spectroscopy, undergo coherent spectral translation with essentially no efficiency loss through third-order optical parametric oscillation (OPO) in a silicon-nitride microring. This enables nearly a million comb pump teeth, separated by a 1 kHz spacing, to be translated onto signal and idler beams that can be located across a broad range of wavelengths in the visible and short near-infrared. The generated wavelengths are subject to OPO phase and frequency-matching conditions that are highly controllable through nanophotonic dispersion engineering, and in the current implementation span between 589 and 1,150 nm, with both the electro-optic comb generation process and its spectral translation not introducing appreciable broadening to the pump laser linewidth. We further demonstrate the application of this approach to quantum systems by performing sub-Doppler spectroscopy of the hyperfine transitions of Cs atomic vapour with our electro-optically driven Kerr nonlinear light source. The generality, robustness and agility of our approach, as well as its compatibility with photonic integration, are expected to lead to its widespread applications in areas such as quantum sensing, telecommunications and atomic clocks.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

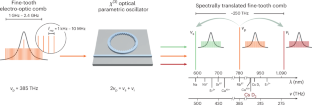

Fig. 1: Spectral translation of ultrahigh-resolution optical frequency combs via Kerr OPO.

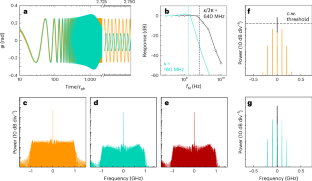

Fig. 2: Numerical simulations of CMEs.

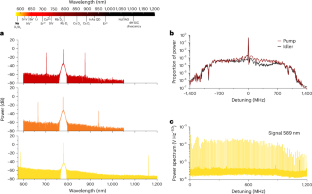

Fig. 3: Spectral translation of the pump optical frequency comb with the nanophotonic OPO.

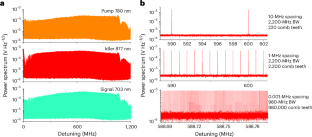

Fig. 4: Frequency-agile pump, signal and idler optical frequency combs.

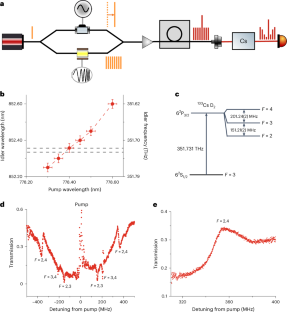

Fig. 5: Optical parametric oscillator comb spectroscopy of Cs.

Similar content being viewed by others

Data availability

All data and supporting materials will be made available at https://data.nist.gov/od/id/mds2-3459 through the National Institute of Standards and Technology.

References

  1. Kitching, J. Chip-scale atomic devices. Appl. Phys. Rev. 5, 031302 (2018).

    Article  ADS  Google Scholar

  2. Wehner, S., Elkouss, D. & Hanson, R. Quantum internet: a vision for the road ahead. Science 362, eaam9288 (2018).

    Article  ADS  MathSciNet  Google Scholar

  3. Ludlow, A. D., Boyd, M. M., Ye, J., Peik, E. & Schmidt, P. O. Optical atomic clocks. Rev. Mod. Phys. 87, 637–701 (2015).

    Article  ADS  Google Scholar

  4. Berman, P. R. & Malinovsky, V. S. Principles of Laser Spectroscopy and Quantum Optics (Princeton Univ. Press, 2011).

  5. Blumenthal, D. J. Photonic integration for UV to IR applications. APL Photonics 5, 020903 (2020).

    Article  ADS  Google Scholar

  6. Zhang, Z. et al. Photonic integration platform for rubidium sensors and beyond. Optica 10, 752–753 (2023).

    Article  Google Scholar

  7. Tran, M. A. et al. Extending the spectrum of fully integrated photonics to submicrometre wavelengths. Nature 610, 54–60 (2022).

    Article  ADS  Google Scholar

  8. Franken, C. A. A. et al. Hybrid-integrated diode laser in the visible spectral range. Opt. Lett. 46, 4904–4907 (2021).

    Article  ADS  Google Scholar

  9. Corato-Zanarella, M. et al. Widely tunable and narrow-linewidth chip-scale lasers from near-ultraviolet to near-infrared wavelengths. Nat. Photon. 17, 157–164 (2023).

    Article  ADS  Google Scholar

  10. Isichenko, A., Chauhan, N., Liu, K., Harrington, M. W. & Blumenthal, D. J. Chip-scale, sub-Hz fundamental sub-kHz integral linewidth 780 nm laser through self-injection-locking a Fabry-Pérot laser to an ultra-high Q integrated resonator. Preprint at https://arxiv.org/abs/2307.04947 (2023).

  11. Franken, C. A. A. et al. Hybrid integrated near UV lasers using the deep-UV Al2O3 platform. Preprint at https://arxiv.org/abs/2302.11492 (2023).

  12. Siddharth, A. et al. Near ultraviolet photonic integrated lasers based on silicon nitride. APL Photonics 7, 046108 (2022).

    Article  ADS  Google Scholar

  13. Isichenko, A. et al. Tunable integrated 118 million Q reference cavity for 780 nm laser stabilization and rubidium spectroscopy. In Proc. Conference on Lasers and Electro-Optics (CLEO) SF3K.4 (Optica, 2023); https://doi.org/10.1364/CLEO_SI.2023.SF3K.4

  14. Chauhan, N. et al. Trapped ion qubit and clock operations with a visible wavelength photonic coil resonator stabilized integrated Brillouin laser. Preprint at https://arxiv.org/abs/2402.16742 (2024).

  15. Dutt, A., Mohanty, A., Gaeta, A. L. & Lipson, M. Nonlinear and quantum photonics using integrated optical materials. Nat. Rev. Mater. 9, 321–346 (2024).

    Article  ADS  Google Scholar

  16. Xie, J. et al. Infrared laser locking to a rubidium saturated absorption spectrum via a photonic chip frequency doubler. Opt. Lett. 44, 1150–1153 (2019).

    Article  ADS  Google Scholar

  17. Stern, L. et al. Direct Kerr frequency comb atomic spectroscopy and stabilization. Sci. Adv. 6, eaax6230 (2020).

    Article  ADS  Google Scholar

  18. Black, J. A., Newman, Z. L., Yu, S.-P., Carlson, D. R. & Papp, S. B. Nonlinear networks for arbitrary optical synthesis. Phys. Rev. X 13, 021027 (2023).

    Google Scholar

  19. Lu, X. Y., Moille, G., Rao, A., Westly, D. A. & Srinivasan, K. On-chip optical parametric oscillation into the visible: generating red, orange, yellow and green from a near-infrared pump. Optica 7, 1417–1425 (2020).

    Article  ADS  Google Scholar

  20. Black, J. A. et al. Optical-parametric oscillation in photonic-crystal ring resonators. Optica 9, 1183–1189 (2022).

    Article  ADS  Google Scholar

  21. Guidry, M. A. et al. Optical parametric oscillation in silicon carbide nanophotonics. Optica 7, 1139–1142 (2020).

    Article  ADS  Google Scholar

  22. Marty, G., Combrié, S., Raineri, F. & De Rossi, A. Photonic crystal optical parametric oscillator. Nat. Photon. 15, 53–58 (2021).

    Article  ADS  Google Scholar

  23. Stone, J. R., Lu, X. Y., Moille, G. & Srinivasan, K. Efficient chip-based optical parametric oscillators from 590 to 1,150 nm. APL Photonics 7, 121301 (2022).

    Article  ADS  Google Scholar

  24. Stone, J. R. et al. Wavelength-accurate nonlinear conversion through wavenumber selectivity in photonic crystal resonators. Nat. Photon. 18, 192–199 (2024).

    Article  ADS  Google Scholar

  25. Lehman, J. H. & Weichman, M. L. in Emerging Trends in Chemical Applications of Lasers, ACS Symposium Series Vol. 1,398, Ch. 4, 61–88 (American Chemical Society, 2021).

  26. Simon, C. et al. Quantum memories. Eur. Phys. J. D 58, 1–22 (2010).

    Article  ADS  Google Scholar

  27. Long, D. A., Fleisher, A. J., Plusquellic, D. F. & Hodges, J. T. Multiplexed sub-Doppler spectroscopy with an optical frequency comb. Phys. Rev. A 94, 061801 (2016).

    Article  ADS  Google Scholar

  28. Long, D. A. et al. High accuracy, high dynamic range optomechanical accelerometry enabled by dual comb spectroscopy. APL Photonics 8, 091302 (2023).

    Article  ADS  Google Scholar

  29. Han, K. et al. Low-power, agile electro-optic frequency comb spectrometer for integrated sensors. Optica 11, 392–398 (2024).

    Article  ADS  Google Scholar

  30. Long, D. A. & Reschovsky, B. J. Electro-optic frequency combs generated via direct digital synthesis applied to sub-Doppler spectroscopy. OSA Continuum 2, 3576–3583 (2019).

    Article  Google Scholar

  31. Desiatov, B., Shams-Ansari, A., Zhang, M., Wang, C. & Lončar, M. Ultra-low-loss integrated visible photonics using thin-film lithium niobate. Optica 6, 380–384 (2019).

    Article  ADS  Google Scholar

  32. Celik, O. T. et al. High-bandwidth CMOS-voltage-level electro-optic modulation of 780 nm light in thin-film lithium niobate. Opt. Express 30, 23177–23186 (2022).

    Article  ADS  Google Scholar

  33. Valdez, F., Mere, V. & Mookherjea, S. 100 GHz bandwidth, 1 volt integrated electro-optic Mach-Zehnder modulator at near-IR wavelengths. Optica 10, 578–584 (2023).

    Article  ADS  Google Scholar

  34. Xue, S. et al. Full-spectrum visible electro-optic modulator. Optica 10, 125–126 (2023).

    Article  ADS  Google Scholar

  35. Renaud, D. et al. Sub-1 volt and high-bandwidth visible to near-infrared electro-optic modulators. Nat. Commun. 14, 1496 (2023).

    Article  ADS  Google Scholar

  36. Li, C. et al. High modulation efficiency and large bandwidth thin-film lithium niobate modulator for visible light. Opt. Express 30, 36394–36402 (2022).

    Article  ADS  Google Scholar

  37. Kong, Y. et al. Recent progress in lithium liobate: optical damage, defect simulation and on-chip devices. Adv. Mater. 32, 1806452 (2020).

    Article  Google Scholar

  38. Hebert, N. B. et al. Real-time dynamic atomic spectroscopy using electro-optic frequency combs. Phys. Rev. Appl. 6, 044012 (2016).

    Article  ADS  Google Scholar

  39. Parriaux, A., Hammani, K. & Millot, G. Electro-optic frequency combs. Adv. Opt. Photon. 12, 223–287 (2020).

    Article  Google Scholar

  40. Moss, D. J., Morandotti, R., Gaeta, A. L. & Lipson, M. New CMOS-compatible platforms based on silicon nitride and Hydex for nonlinear optics. Nat. Photon. 7, 597–607 (2013).

    Article  ADS  Google Scholar

  41. Lu, J. et al. Periodically poled thin-film lithium niobate microring resonators with a second-harmonic generation efficiency of 250,000%/W. Optica 6, 1455–1460 (2019).

    Article  ADS  Google Scholar

  42. Obrzud, E. et al. Visible blue-to-red 10 GHz frequency comb via on-chip triple-sum-frequency generation. Opt. Lett. 44, 5290–5293 (2019).

    Article  ADS  Google Scholar

  43. Lu, X. et al. Efficient telecom-to-visible spectral translation through ultralow power nonlinear nanophotonics. Nat. Photon. 13, 593–601 (2019).

    Article  ADS  Google Scholar

  44. Torres-Company, V., Lancis, J. & Andrés, P. Lossless equalization of frequency combs. Opt. Lett. 33, 1822–1824 (2008).

    Article  ADS  Google Scholar

  45. Zhang, M., Wang, C., Kharel, P., Zhu, D. & Lončar, M. Integrated lithium niobate electro-optic modulators: when performance meets scalability. Optica 8, 652–667 (2021).

    Article  ADS  Google Scholar

  46. Zhang, M. et al. Broadband electro-optic frequency comb generation in a lithium niobate microring resonator. Nature 568, 373–377 (2019).

    Article  ADS  Google Scholar

  47. Cheng, R. et al. Frequency comb generation via synchronous pumped χ(3) resonator on thin-film lithium niobate. Nat. Commun. 15, 3921 (2024).

    Article  ADS  Google Scholar

  48. Stokowski, H. S. et al. Integrated frequency-modulated optical parametric oscillator. Nature 627, 95–100 (2024).

    Article  ADS  Google Scholar

  49. Pleasants, S. Overcoming the ‘green gap’. Nat. Photon. 7, 585–585 (2013).

    Article  ADS  Google Scholar

  50. Lutwak, R. et al. The chip-scale atomic clock—recent development progress. In Proc. 35th Annual Precise Time and Time Interval Systems and Applications Meeting 467–478 (Institute of Navigation, 2003).

  51. Schmidt, O., Wynands, R., Hussein, Z. & Meschede, D. Steep dispersion and group velocity below \({\frac{c}{3000}}\) in coherent population trapping. Phys. Rev. A 53, R27–R30 (1996).

    Article  ADS  Google Scholar

  52. Reim, K. F. et al. Towards high-speed optical quantum memories. Nat. Photon. 4, 218–221 (2010).

    Article  ADS  Google Scholar

  53. Tanner, C. E. & Wieman, C. Precision measurement of the hyperfine structure of the 133Cs 6P3/2 state. Phys. Rev. A 38, 1616–1617 (1988).

    Article  ADS  Google Scholar

  54. Schmidt, O., Knaak, K. M., Wynands, R. & Meschede, D. Cesium saturation spectroscopy revisited: how to reverse peaks and observe narrow resonances. Appl. Phys. B 59, 167–178 (1994).

    Article  ADS  Google Scholar

  55. Balram, K. C. et al. The nanolithography toolbox. J. Res. Natl Inst. Stand. Technol. 121, 464–475 (2016).

    Article  Google Scholar

  56. Stone, J. R. et al. Noise limits in Kerr microresonator optical parametric oscillators. In Proc. Conference on Lasers and Electro-Optics (CLEO) STh3I.5 (Optica, 2024).

  57. Smith, D. A. & Hughes, I. G. The role of hyperfine pumping in multilevel systems exhibiting saturated absorption. Am. J. Phys. 72, 631–637 (2004).

    Article  ADS  Google Scholar

Download references

Acknowledgements

This work was supported by the NIST-on-a-Chip (D.A.L., J.R.S. and K.S.) and DARPA LUMOS (J.R.S. and K.S.) programmes. Portions of this research were performed in the NIST CNST NanoFab.

Author information

Authors and Affiliations

  1. National Institute of Standards and Technology, Gaithersburg, MD, USA

    David A. Long, Jordan R. Stone, Yi Sun, Daron Westly & Kartik Srinivasan

  2. Joint Quantum Institute, NIST/University of Maryland, College Park, MD, USA

    Jordan R. Stone, Yi Sun & Kartik Srinivasan

Authors
  1. David A. Long
    View author publications

    Search author on:PubMed Google Scholar

  2. Jordan R. Stone
    View author publications

    Search author on:PubMed Google Scholar

  3. Yi Sun
    View author publications

    Search author on:PubMed Google Scholar

  4. Daron Westly
    View author publications

    Search author on:PubMed Google Scholar

  5. Kartik Srinivasan
    View author publications

    Search author on:PubMed Google Scholar

Contributions

Conceptualization was provided by D.A.L., J.R.S. and K.S. Investigations were carried out by D.A.L., J.R.S., Y.S. and D.W. Funding acquisition was performed by D.A.L., J.R.S. and K.S. The original draft was written by D.A.L. and J.R.S. Review and editing was performed by D.A.L., J.R.S. and K.S.

Corresponding authors

Correspondence to David A. Long or Kartik Srinivasan.

Ethics declarations

Competing interests

A provisional patent has been filed on some of these concepts on which several of the authors (D.A.L., J.R.S. and K.S.) are listed as inventors. The other authors declare no competing interests.

Peer review

Peer review information

Nature Photonics thanks Alfredo de Rossi and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Table 1 Optical parametric oscillator filtered output power in µW when the electro-optic frequency comb was both on and off
Full size table
Extended Data Table 2 Distribution of optical power between comb teeth
Full size table

Extended Data Fig. 1 Experimental schematic for generation and spectral translation of electro-optic frequency combs.

An external-cavity diode laser (ECDL) was passed through an electro-optic phase modulator (EOM) which was driven by a frequency chirp produced by a direct digital synthesizer (DDS). This results in an electro-optic comb which was then sent through a tapered amplifier (Amp) and then into the nanophotonic OPO. This leads to spectrally translated signal and idler combs (as well as the depleted pump comb).

Extended Data Fig. 2 Measured beat notes between the electro-optic frequency comb teeth and the titanium-sapphire laser.

(Left panel) Example measured beat notes between the electro-optic frequency comb teeth and the titanium-sapphire laser for both the pump comb before the tapered amplifier (780 nm) and the generated idler comb (877 nm). The shown measurements were the average of ten acquisitions with a total acquisition time of 1 ms. Due to the titanium-sapphire laser’s narrow linewidth (<10 kHz), this beat note provides a measure of linewidth of a given comb tooth. The shown Gaussian fits had standard fit uncertainties on their width of 14 kHz. The detuning is relative to the comb’s carrier. (Right panel) Fitted beat note linewidths (full-width at half-maximum) and corresponding standard fit uncertainties from the shown example fits. For each of the detunings the idler and pump linewidths agree to within their combined standard uncertainties. These linewidths are commensurate with the linewidth of the external-cavity diode laser which was utilized (500 kHz) and represent the limit on the spectral resolution for the system with this laser source. Although we note for measurements such as the hyperfine pumping found in Fig. 5 and Extended Data Fig. 3 (or electromagnetically induced transparency) the resolution is not limited by the laser linewidth given the common mode nature of the pump and probe30.

Extended Data Fig. 3 Simulation and measurement of the power in the photodetected OPO idler wave (at the pump phase modulation frequency) for different pump phase modulation frequencies.

Simulation (black line) and measurement (orange points) of the power in the photodetected OPO idler wave (at the pump phase modulation frequency) for different pump phase modulation frequencies. At low modulation frequencies, the response is low due to the lack of residual amplitude modulation (that is, the idler is purely phase modulated). At higher frequencies, the decrease in response results from the finite microcavity linewidth. In our simulations, we set κ/2π = 375 MHz.

Extended Data Fig. 4 Energy level diagram and optical frequency comb spectrum of the Cs D2 transition.

Energy level diagram and optical frequency comb spectrum for transitions from the F = 4 ground state. (Left panel) Relevant energy levels for the hyperfine pumping of a Cs D2 transition53 from the F = 4 ground state. (Right panel) Optical frequency comb spectrum of the Cs D2 transition which is the average of 10 spectra, each of which was acquired in 1 ms. The six hyperfine pumping transitions are observed at the difference frequencies of the upper-state hyperfine levels. The excess noise near 181 MHz (that is, the AOM frequency for this data set) occurs as those comb teeth are near to DC in the comb FFT.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Long, D.A., Stone, J.R., Sun, Y. et al. Sub-Doppler spectroscopy of quantum systems through nanophotonic spectral translation of electro-optic light. Nat. Photon. 18, 1285–1292 (2024). https://doi.org/10.1038/s41566-024-01532-w
