Van der Waals waveguide quantum electrodynamics probed by infrared nano-photoluminescence

A Publisher Correction to this article was published on 21 July 2025

This article has been updated

Abstract

Atomically layered van der Waals (vdW) materials exhibit remarkable properties, including highly confined infrared waveguide modes and the capacity for infrared emission in the monolayer limit. Here we engineered structures that leverage both of these nano-optical functionalities. Specifically, we encased a photoluminescing atomic sheet of MoTe2 within two bulk crystals of WSe2, forming a vdW waveguide for the embedded light-emitting monolayer. The modified electromagnetic environment offered by the WSe2 waveguide alters MoTe2 spontaneous emission—a phenomenon we directly image with our interferometric nano-photoluminescence technique. We captured spatially oscillating nanoscale patterns prompted by spontaneous emission from MoTe2 into waveguide modes of WSe2 slabs. We quantify the resulting Purcell-enhanced emission rate within the framework of a waveguide quantum electrodynamics model, relating the MoTe2 spontaneous emission rate to the measured waveguide dispersion. Our work marks a substantial advance in the implementation of all-vdW quantum electrodynamics waveguides.

This is a preview of subscription content, access via your institution

Access options

Buy this article

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Fig. 1: Hyperspectral nano-photoluminescence imaging in a WSe2/MoTe2/WSe2 waveguide heterostructure.

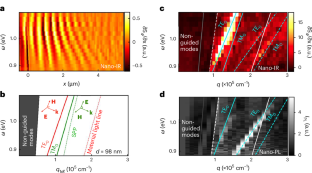

Fig. 2: Nano-PL and nano-IR dispersions for a WSe2/MoTe2/WSe2 waveguide.

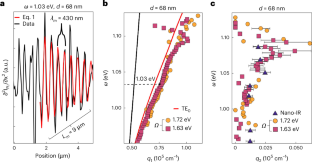

Fig. 3: Understanding nano-PL profiles.

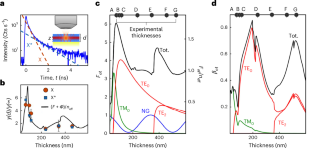

Fig. 4: Purcell analysis of WSe2/MoTe2/WSe2 waveguides.
