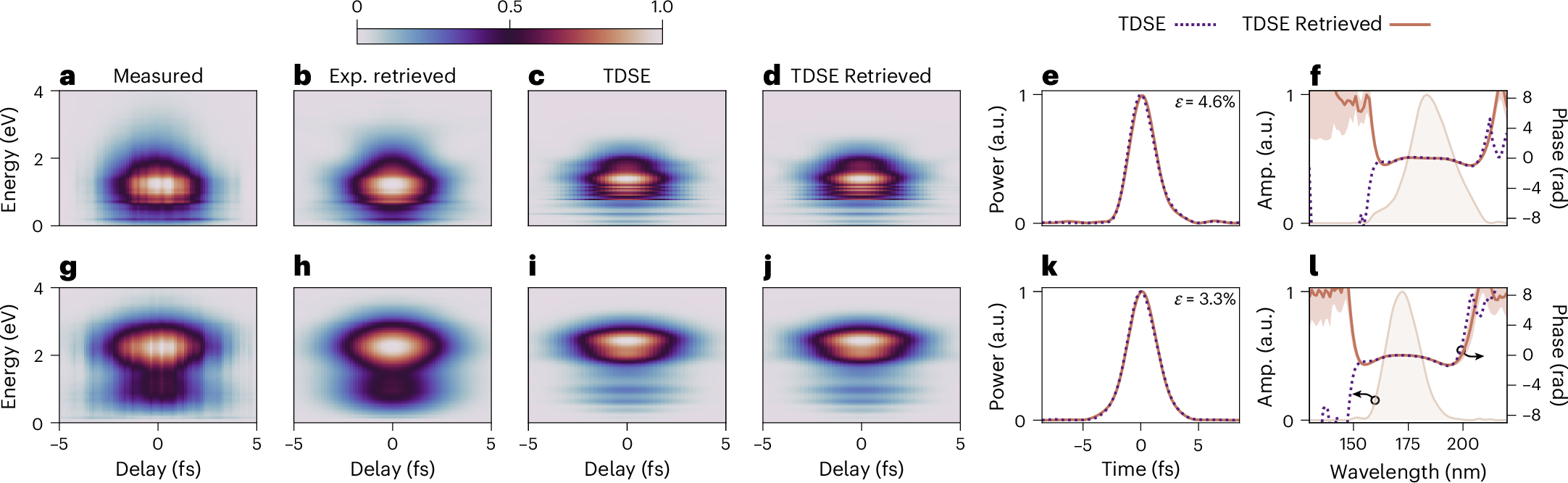

Fig. 3: eFROG test for traces exhibiting AIS fingerprints and contributions of two ionization channels.
From: Temporal characterization of tunable few-cycle vacuum ultraviolet pulses
a–l, The first (a,g), second (b,h) and third (c,i) columns show the measured, retrieved and ab initio-calculated traces, respectively; the fourth column (d,j) corresponds to retrievals using the simulated traces as an input; and the fifth (e,k) and sixth (f,l) columns display the pulse shapes and spectra with spectral phases, respectively. In the last two columns, the input shapes of the simulations are denoted by dotted lines, whereas the retrieved shapes by solid lines. Traces exhibiting AIS fingerprints, RDW pulses centred at 180 nm (top row); traces exhibiting contributions of the two ionization channels, RDW pulses centred at 170 nm (bottom row).
