Modified uni-travelling-carrier photodiodes with 206 GHz bandwidth and 0.81 A W−1 external responsivity

Nature Photonics volume 19, pages 1301–1308 (2025)Cite this article

Subjects

Abstract

The accelerating demand for wireless communication necessitates wideband, energy-efficient photonic sub-terahertz sources to enable ultrafast data transfer. However, as critical components for terahertz photomixing, photodiodes face a fundamental trade-off between bandwidth and quantum efficiency, presenting a major obstacle to achieve high-speed performance with high optoelectronic conversion efficiency. Here we overcome this challenge by demonstrating an InP-based, waveguide-integrated modified uni-travelling-carrier photodiode with bandwidth exceeding 200 GHz and a bandwidth–efficiency product surpassing 130 GHz. Incorporating a spot-size converter together with optimized electric field distribution, balanced carrier transport and minimized parasitic capacitance, the device achieves a 3-dB bandwidth of 206 GHz and an external responsivity of 0.81 A W−1, setting a new bandwidth–efficiency product benchmark. Packaged with WR-5.1 waveguide output, it delivers radio-frequency power exceeding –5 dBm across the 127–185-GHz frequency range. As a proof of concept, we achieved wireless transmission over 54 m with a single-line rate of up to 120 Gbps, leveraging photonics-aided technology without requiring a low-noise amplifier. This work establishes a pathway to significantly enhance optical power budgets and reduce energy consumption, presenting a transformative step towards high-bandwidth, high-efficiency sub-terahertz communication systems and next-generation wireless networks.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

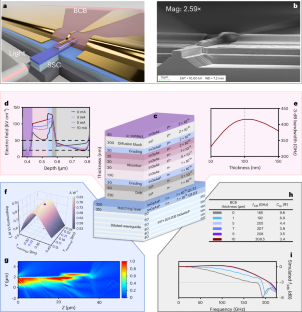

Fig. 1: THz waveguide-integrated MUTC-PD.

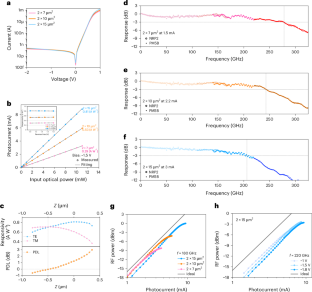

Fig. 2: Measured static and dynamic performances of PDs.

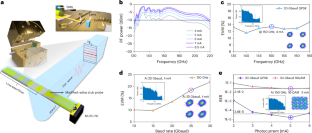

Fig. 3: WR-5.1-waveguide-packaged MUTC-PD module and the results of photonics-aided sub-THz communication without a THz amplifier.

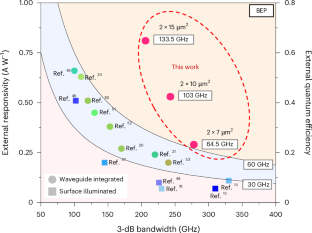

Fig. 4: Performance comparison of waveguide-coupled and surface-illuminated PDs.
