Extended Data Fig. 1: Simulation results of WF and the other 7 SR-SIM reconstruction algorithms.

From: Three-dimensional super-resolution imaging with suppressed background via digital array modulation microscopy

Extended Data Fig. 1: Simulation results of WF and the other 7 SR-SIM reconstruction algorithms.

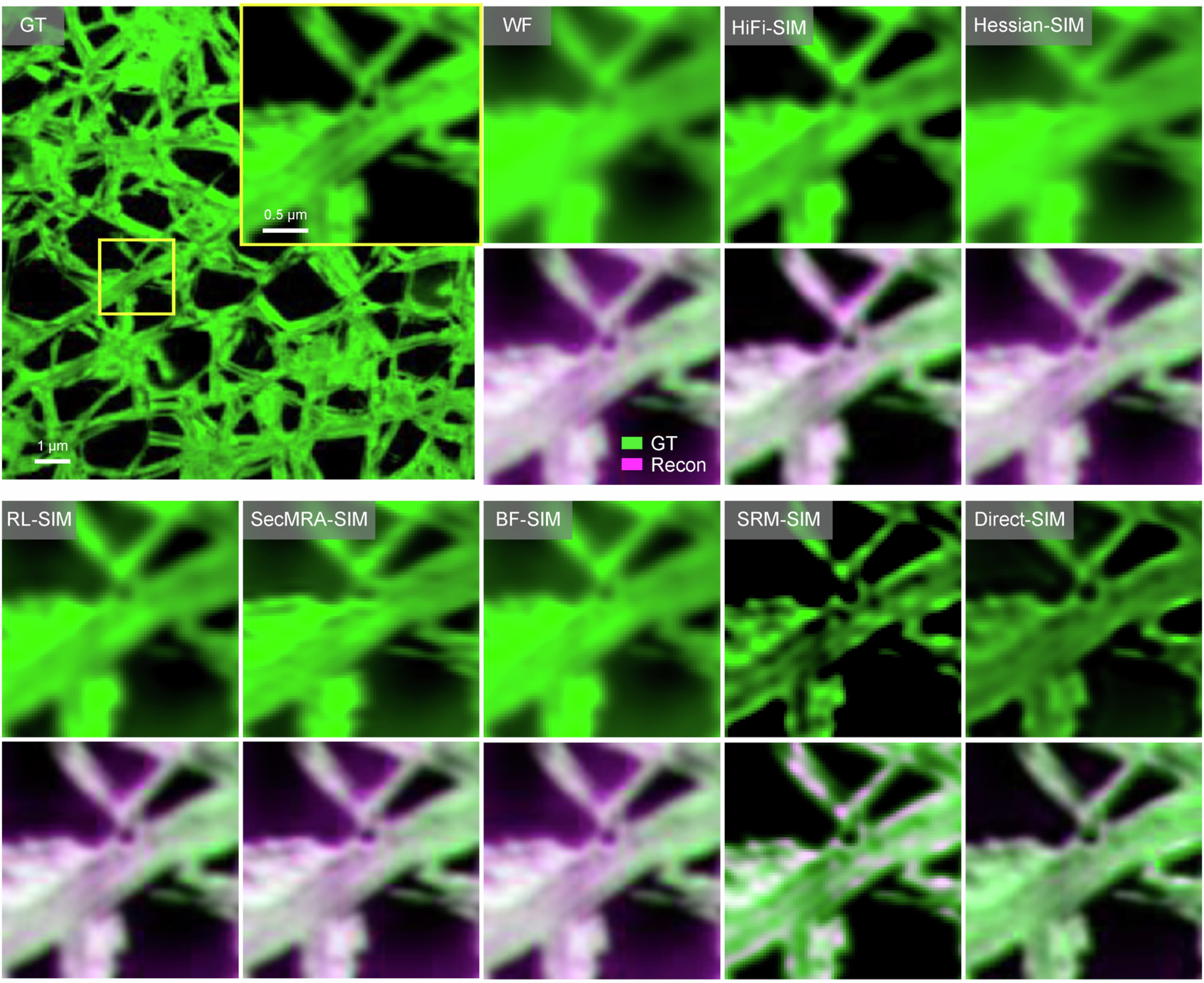

Extended images from Fig. 1b. The full‑field (256×256‑pixel) ground truth (GT) image is shown on the left, with a yellow rectangle marking the region of interest (ROI) that is enlarged in the adjacent panel and used consistently in Fig. 1b. To the right, the top row displays the wide‑field (WF) image and reconstructions of HiFi‑SIM and Hessian‑SIM for the same ROI, with their corresponding magenta‑green merged images with the GT shown directly below in the second row. The bottom two rows present reconstructions of RL‑SIM, SecMRA‑SIM, BF‑SIM, SRM‑SIM and Direct‑SIM (third row) and their respective merged images with the GT (fourth row). In all merged images, the reconstruction result is shown in magenta and the GT in green. The experiment was repeated three times with similar results.
