High-resolution tunnelling spectroscopy of fractional quantum Hall states

Nature Physics volume 21, pages 716–723 (2025)Cite this article

Subjects

Abstract

Strong interactions between electrons in two-dimensional systems in the presence of a high magnetic field give rise to fractional quantum Hall states that host quasiparticles with a fractional charge and fractional exchange statistics. Here we demonstrate high-resolution scanning tunnelling microscopy and spectroscopy of fractional quantum Hall states in ultra-clean Bernal-stacked bilayer graphene devices. Spectroscopy measurements show sharp excitations that have been predicted to emerge when electrons fractionalize into bound states of quasiparticles. We found energy gaps for candidate non-abelian fractional states that are larger by a factor of five than those in other related systems, for example, semiconductor heterostructures, and this suggests that bilayer graphene is an ideal platform for manipulating these quasiparticles and for creating topological quantum bits. We also found previously unobserved fractional states in our very clean graphene samples.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

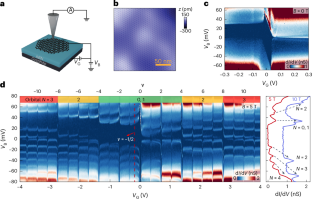

Fig. 1: Experimental set-up and tunnelling spectra at zero and low magnetic fields.

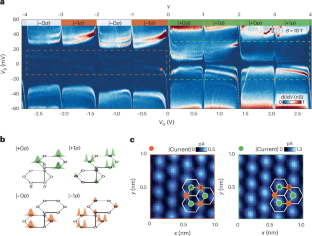

Fig. 2: Atomic wavefunction imaging of N = 0 and 1 LLs under B = 10 T.
Fig. 3: FQH states within 0 < ν < 1 in the N = 0 LL.
Fig. 4: FQH states within −1 < ν < 0 in the N = 1 LL.

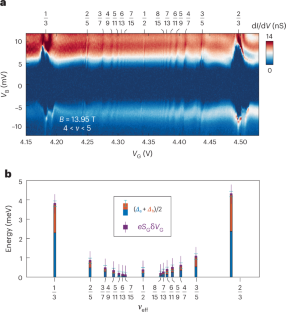

Fig. 5: FQH states within 4 < ν < 5 in the N = 2 LL.
