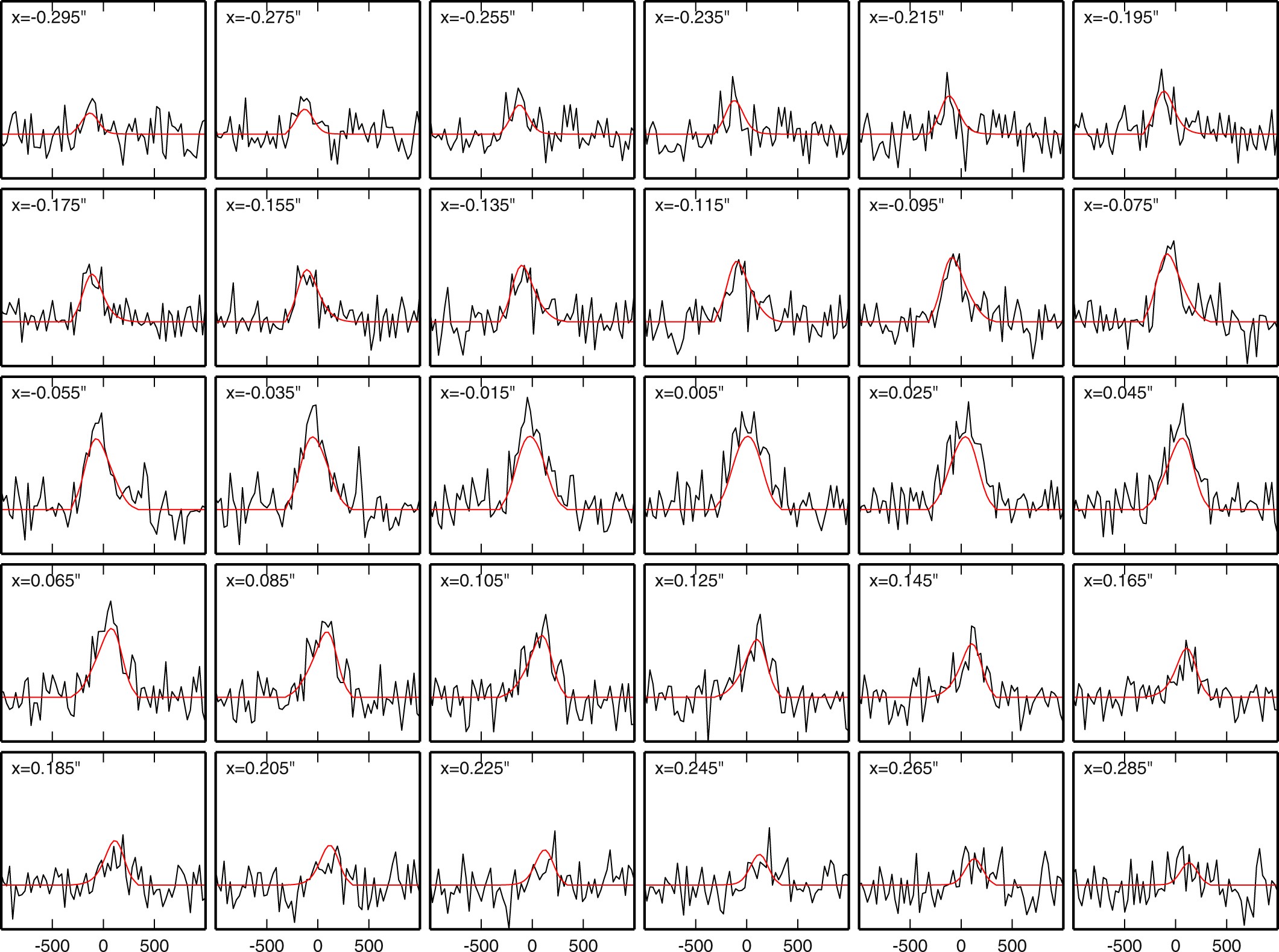

Extended Data Fig. 3: CO spectra along the kinematic major axis.

Spectra are extracted at a position angle of PA = −64°. The spatial offset x from the galactic centre is shown at the upper left of each panel. Red lines indicate the spectra of the best-fitting dynamical model produced by GalPaK^3D.
