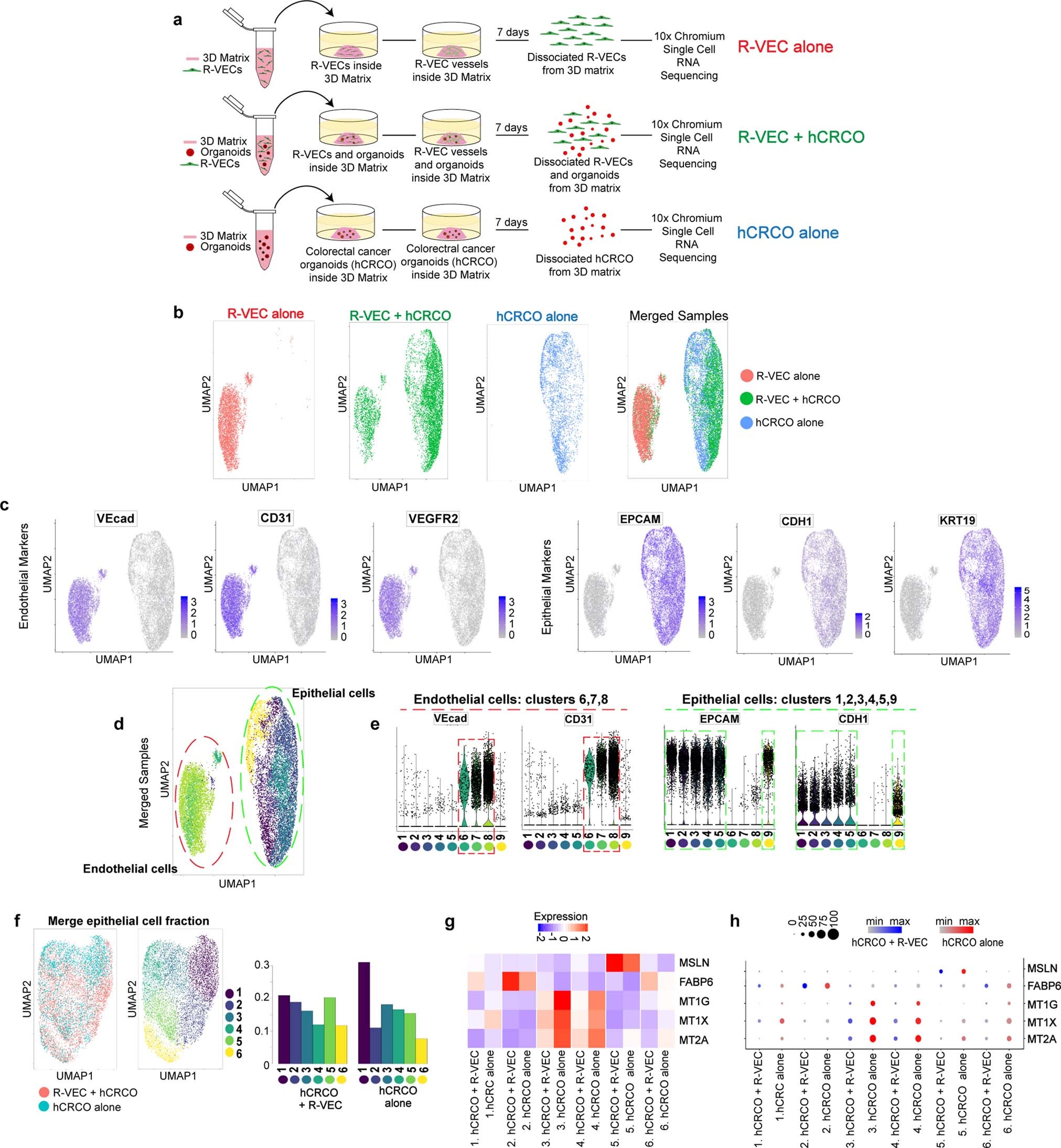

Extended Data Fig. 10: Endothelial and epithelial cell identification by scRNA-seq from co-cultures of CRCOs with R-VECs.
