Main

The most prominent feature in the spectra of AT2017gfo is the very broad emission and absorption lines, observed at roughly 1 μm and 0.8 μm, respectively. This is a P Cygni feature expected from a rapidly expanding plasma and is due principally to the Sr+ 4p64d—4p65p transitions8,14. The recognition that the 0.8−1.0 μm feature was a P Cygni profile allows the expansion velocity of the photosphere along the line of sight, v∥, to be determined accurately at each epoch. The constraint on v∥ is not very dependent on the specific line identification as the emission component of the P Cygni is centred at rest.

The transverse velocity, v⊥, can also be inferred as we know the explosion time precisely from the gravitational wave signal15 and can measure the cross-sectional area at any epoch by comparing the observed, dereddened flux with the theoretical flux of the blackbody, predicted using the cosmological distance to the host galaxy. Thus, the combination of blackbody normalization and P Cygni lines allows a unique measurement of the transverse to radial asymmetry of the kilonova photosphere (Fig. 1).

Fig. 1: Illustration of the expanding atmospheres method for the kilonova AT2017gfo.
figure 1

a, Epoch 1 X-shooter spectrum with overlaid blackbody fits. The normalization for each blackbody is set by the cross-sectional radius, which requires an a priori distance (here assuming the cosmological parameters from the Planck mission19) and cross-sectional velocity, v⊥. Smaller (red), equal (green) or greater (blue) values of v⊥ are shown, in comparison to the best-fit velocity, v∥. b, Illustration of v∥ and v⊥ that are set by the P Cygni absorption feature and the blackbody normalization, respectively. c, Enlargement of the Sr II absorption component residual obtained by subtracting the X-shooter epoch 1 spectrum from the blackbody continuum fit. The P Cygni profiles for values of v∥ that are smaller than (red), equal to (green) or greater than (blue) vfit are overlaid. The continuum measurement and absorption line fit yield velocities in tight agreement.

Full size image

This technique when used to determine distances for core-collapse supernovae is referred to as the expanding photospheres method (EPM16, see Methods). In contrast to core-collapse supernovae, the correction to the photospheric radius due primarily to electron scattering, that is, the dilution factor17, is expected to be negligible for kilonovae because of the much lower free electron number per unit mass and the much higher (bound–bound) opacity of the heavy elements that dominate their atmospheres18 (Methods).

In this analysis, we use the spectra taken between 1.4 and 5.4 days after the event10,11 with the X-shooter spectrograph mounted on the Very Large Telescope at the European Southern Observatory. This is the best available spectral series of AT2017gfo. We follow the data reduction procedures outlined in ref. 8. The spectra show clear temporal evolution starting from a blackbody shape at the earliest epochs with more prominent discrete spectral features appearing over time (Extended Data Fig. 1). We focus our analysis on spectral epochs 1 and 2 (1.4 and 2.4 days post-merger), as these spectra are in good agreement with coincident photometry, are well described by a blackbody and are not sensitive to the broad emission features at 1.5 and 2.0 μm (Methods).

We fit the spectrum at each epoch with a Planck function and a P Cygni line profile associated with the Sr+ triplet at 1.0037, 1.0327 and 1.0915 μm, to measure both the blackbody flux and velocity of expansion. The expansion velocity from the fit is v∥, and v⊥ was determined from the area of the photosphere inferred from the fitted blackbody flux, correcting for special relativistic and time-delay effects (Methods) and using a cosmological distance of 44.2 ± 2.3 Mpc derived from the cosmic microwave background (CMB)19 with a Hubble constant H0 = 67.36 ± 0.54 km s−1 Mpc−1 and a host-galaxy peculiar velocity of 373 ± 140 km s−1 (ref. 20).

Defining the zero-centred asymmetry index \(\varUpsilon =\frac{{v}_{\perp }-{v}_{\parallel }}{{v}_{\perp }+{v}_{\parallel }}\), we find ϒ = 0.00 ± 0.02 and ϒ = −0.02 ± 0.02 for the kilonova for epochs 1 and 2, respectively. The dominant uncertainty in ϒ is the cosmologically inferred distance to the source, the uncertainty of which depends mostly on the peculiar velocity of the host galaxy, NGC4993 (Methods). Using the local distance ladder H0 = 73.03 ± 1.04 km s−1 Mpc−1 (ref. 21) instead of the CMB value does not change the high degree of spherical symmetry inferred (Fig. 2), with an asymmetry ϒ = −0.04 ± 0.03 for epoch 1. We use the CMB-inferred H0 as our fiducial cosmology for the rest of this paper.

Fig. 2: Kilonova asymmetry index as a function of H0.
figure 2

The measurement of the asymmetry, ϒ, from the EPM method and the Hubble constant are strongly degenerate, with higher H0 implying more prolate ejecta. Shading indicates 1σ uncertainties with both early-universe (that is, CMB19) and late-universe estimates21 of H0 suggesting that the kilonova is close to spherically symmetric, with less than 10% variation between the velocities.

Full size image

We can also infer the sphericity of the ejecta by analysing the shape of the absorption line; for prolate or oblate geometries the absorption line will be skewed to higher or lower maximum velocities, respectively. Typically, symmetry constraints from the shape of spectral lines are strongly degenerate with the viewing angle22. However, the comparison of the radio and optical astrometries of the counterparts to GW170817 provides good constraints on the inclination angle of the merger13. We therefore developed a P Cygni profile model from expanding atmospheres with variable eccentricities (Methods) with which we fit the P Cygni profile. These independent line-shape sphericity constraints are shown in Fig. 3. For every epoch we find a line shape that is consistent with a completely spherical expansion to within a few per cent. These line-shape constraints are independent of the EPM measurements and verify the spherical nature of the kilonova at early epochs.

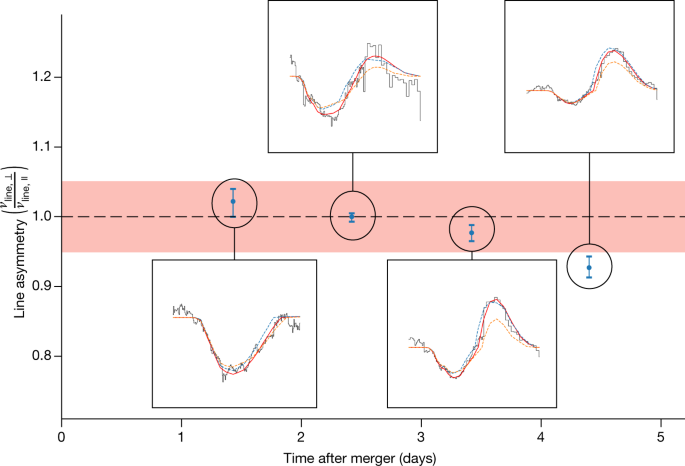

Fig. 3: Constraints on the spherical symmetry of the kilonova from the line shape.
figure 3

In every epoch the expansion is spherical to within a few per cent. The error bars shown are 68% confidence limits. The red shading indicates the 1σ sphericity constraints from the EPM method for epoch 1. Cutouts above and below the line show the residual to the blackbody fit around the 1 μm Sr II feature for each epoch. The P Cygni profile given fixed v∥ is shown with varying ellipsoidal atmosphere shapes as follows: 5% prolate (blue dashed line), spherical (red line) and 5% oblate (orange dashed line).

Full size image

The line shape offers further information, however, because it is sensitive to the angular distribution of the line-forming species. The sphericity implied by the line shape suggests a near spherically symmetric distribution of Sr+. This contrasts with the constraint on sphericity from the blackbody luminosity/line velocity method, which constrains the total opacity, not the opacity in any given element.

The measurement of such high degrees of sphericity are challenging to current magneto-hydrodynamic models of neutron-star mergers. Although a reasonable degree of sphericity in density and composition is in principle compatible with current models, it is not a generic outcome. Most models of the early dynamical ejecta feature an oblate density distribution due to the strong rotation of the system5,6 and a moderate pole-to-equator variation of the electron fraction Ye (ΔYe ≈ 0.1) because of more pronounced neutrino emission towards the poles23,24, leading to a photosphere that is expected not to be spherical25.

Reaching spherical symmetry in the ejecta geometry through coincidences between the different mass ejection channels would not occur robustly and naturally over a large range of velocities. However, the spherical symmetry is observed to persist across several epochs with widely varying velocities, suggesting that such a coincidence between, for example, the dynamical and secular ejecta is unlikely.

The absorption line-shape measurement also indicates that it is not just the total opacity but also the Sr opacity that is spherically symmetric. This makes a coincidence between a prolate density distribution exactly matched by an oblate specific opacity improbable.

These results imply a uniformity in the matter opacity between the poles and equator, that is, a small pole-to-equator variation of Ye. Current predictions of large differences between the ejected equatorial and polar matter compositions may be the result of uncertainties or incompleteness in the current models26. It is possible that the ejecta may be made more uniform in composition by neutrino flavour conversion processes27, the physics of which are still not well understood.

Regardless of the Ye uniformity, the ejecta density itself needs to be made highly spherical. Adding a large injection of energy immediately after the merger could make the density distribution more spherical by puffing it up7. We demonstrate using hydrodynamical models, however, that at least a few tens of MeV per nucleon are required to force a nearly spherical density distribution (Extended Data Fig. 4), ruling out radioactive heating as the source of this energy injection. We also find that very powerful heating alone (for example, by magnetic reconnection) does not seem to significantly mix the equatorial and polar ejecta and generate a spherical composition and photosphere.

Energy may also be injected in an anisotropic fashion as a relativistic wind from the remnant neutron star or black hole by tapping the rotational energy of the system. Within the first few seconds of the explosion, a polar outflow could be launched and produce a rapidly expanding balloon of high-Ye material with low opacity, dominated by elements such as Sr. This polar outflow, outpacing the equatorial ejecta, would expand sideways, covering the low-Ye material and providing a near-spherical kilonova. Our hydrodynamical simulations (Extended Data Fig. 4) reveal that such a mechanism could result in a near-spherical distribution but seems to require tuning of the initial setup and the details of energy injection.

No model is entirely satisfactory in explaining the notable spherical symmetry. Fundamentally, this finding is a surprise—including to the authors—as the sphericity of the ejecta differs from most current expectations. Type Ia supernovae offer an interesting comparison. Observations there also indicate a high degree of spherical symmetry in most cases28, which is generally challenging to reproduce in models29,30.

The complementary nature of the sphericity constraints allows us to measure the distance to the kilonova directly, independently of the cosmological distance ladder. As the sphericity of the ejecta can be measured from the line shape alone, the emitting area of the photosphere can be inferred directly by modelling the velocity and shape of the absorption line, with the inclination angle known from the radio jet, precision astrometry or the gravitational standard siren, or a combination of these. We have used this method with the best-constrained inclination angle of ref. 13 to determine the luminosity distance to the kilonova and find DL = 45.5 ± 0.6  Mpc for the combined constraints from epochs 1 and 2 (Fig. 4). This uncertainty is around 1.3%, which includes the propagated uncertainties associated with dust extinction and flux calibration. Systematic uncertainties related to the modelling could exceed this value (Methods). Our distance measurement to AT2017gfo/GW170817 is consistent with the standard siren distance from the gravitational waves9 and the distance inferred from the cosmological redshift20 for either the CMB19 or local distance-ladder21 inferred H0 value.

Fig. 4: Posterior probability distributions for the luminosity distance to the kilonova AT2017gfo.
figure 4

Distance estimates based on the kilonova EPM for the spectra obtained at 1.43 (blue) and 2.42 (orange) days including sphericity corrections propagated from the line-shape fits. The combined constraint is shown as a red histogram. The gravitational wave standard siren distance estimate9 is shown as a dashed green line. The standard siren estimate combined with very-long-baseline interferometry (VLBI) radio inclination angle data31,32 is shown as a solid green line. Cosmological redshift distances are also plotted for H0 = 67.36 ± 0.54 km s−1 Mpc−1 (ref. 19) (dotted purple) and H0 = 73.03 ± 1.04 km s−1 Mpc−1 (ref. 21) (dotted blue).

Full size image

Methods

The EPM

The EPM is used to measure luminosity distances, DL, typically to supernovae16,33. However, EPM can also be applied to kilonovae. Early follow-up spectroscopy of kilonovae yields constraints on continuum and lines, whereas the gravitational wave and gamma-ray signals provide independent constraints on the time and orientation of the merger, and the environments around kilonovae are less obscured than their dustier supernova counterparts34. Ultimately, these factors allow EPM to provide precise and internally consistent estimates on the distance to AT2017gfo.

EPM assumes a simplified model of the ejecta as a photosphere in homologous and spherically symmetric expansion. Under these assumptions the photosphere size follows directly from the expansion velocity and the time since explosion. For supernovae, estimating the time of explosion requires fitting over multiple epochs, but for kilonovae the precise timing is already known from the gravitational wave signal. This removes a free parameter and ensures that each epoch can yield an estimate of distance that is independent of every other epoch. In combination with the luminosity of the blackbody relative to the observed, dereddened flux, this yields an estimate of the luminosity distance.

The wavelength-specific luminosity of a spherical blackbody is \({L}_{\lambda }^{{\rm{BB}}}=4{\rm{\pi }}{R}_{{\rm{ph}}}^{2}{\rm{\pi }}B(\lambda ,T)\), where B(λ, T) is the Planck function with temperature, T, at wavelength λ, and Rph is the photospheric radius, which follows from the expansion velocity and the time since explosion, that is, Rph = vph(t − te). When the blackbody is expanding relativistically with velocity β = vph/c, the form of the observed spectrum can be approximated with an effective observed temperature, πB(λ, Teff)f(β). That is, the observed luminosity is modified by time-delay effects and the relativistic Doppler corrections for an optically thick expanding source:

$$\frac{{L}_{\lambda }^{{\rm{BB}}}}{4{\rm{\pi }}{R}_{{\rm{ph}}}^{2}}=2{\rm{\pi }}{\int }_{\beta }^{1}\delta {(\mu )}^{5}B({\lambda }^{{\prime} },{T}^{{\prime} }){\left(\frac{1-\beta }{1-\beta \mu }\right)}^{2}\mu {\rm{d}}\mu $$
(1)
$$=\,2{\rm{\pi }}{\int }_{\beta }^{1}B(\lambda ,{T}_{{\rm{eff}}}(\mu )){\left(\frac{1-\beta }{1-\beta \mu }\right)}^{2}\mu {\rm{d}}\mu \,=f(\beta ,\lambda )\ {\rm{\pi }}B(\lambda ,{T}_{{\rm{eff}}})$$
(2)

Here the primed form indicates the quantity in the emitted and co-moving frame, \(\mu =\cos (\theta )\) and the relativistic Doppler correction, \(\delta (\mu )={\left(\varGamma (1-\beta \mu )\right)}^{-1}\) (ref. 35) sets the shift from the emitted blackbody temperature, Temi, to the observed effective temperature, Teff = δ(μ)Temi. The term ((1 − β)/(1 − βμ))2 represents the geometrical effect that, to arrive at the same time, light arriving from the limb must have been emitted earlier, when the sphere had a smaller surface area36. The correction term f(β, λ) generally depends on the spectral shape, but for this analysis the variations with wavelength are below 2% over the entire spectral range. Thus, the observed spectrum can be modelled to good accuracy with a single-temperature blackbody, that is, a constant f(β). The complexity of the modelling can be further increased by including the temporal evolution in temperature and/or expansion velocity (for example, as determined in ref. 37) but, for the mild time delays of the kilonova, these higher-order effects are small compared to our uncertainties. The specific total luminosity inferred from observations is \({L}_{\lambda }^{{\rm{obs}}}=4{\rm{\pi }}{D}_{{\rm{L}}}^{2}{F}_{\lambda }\), where Fλ is the wavelength-specific flux. Equating the blackbody-inferred and observed luminosities yields a relation for the angular size, θ, of the ejecta:

$$\theta =\frac{2{R}_{{\rm{ph}}}}{{D}_{\theta }}={(1+z)}^{2}\frac{2{R}_{{\rm{ph}}}}{{D}_{{\rm{L}}}}=2{(1+z)}^{2}\sqrt{\frac{{F}_{\lambda }}{{\rm{\pi }}B(\lambda ,{T}_{{\rm{eff}}})f(\beta )}}$$
(3)

Here, Dθ is the angular diameter distance that is converted to luminosity distance using Dθ(1+z)2 = DL. Given the angular size and physical extent of the photosphere, the luminosity distance can be inferred38:

$${D}_{{\rm{L}}}={(1+z)}^{2}\frac{2{R}_{{\rm{ph}}}}{\theta }={R}_{{\rm{ph}}}\sqrt{\frac{{\rm{\pi }}B(\lambda ,{T}_{{\rm{eff}}})f(\beta )}{{F}_{\lambda }}}$$
(4)

Crucially, this estimate requires no calibration with known distances and is entirely independent of the cosmic distance ladder. We note that historically the application of EPM to supernovae has required the introduction of a large ‘dilution factor’ to correct for the increase of the photospheric radius relative to thermalization depth17,39,40. This increase is driven by the large contribution of electron-scattering opacity to the total opacity within the photospheres of supernovae envelopes. However, in kilonova ejecta the electron-scattering opacity is small compared to the opacity of bound–bound transitions. The ratio is lower for two reasons. First, the opacity is higher by several orders of magnitude due to the large number of lines the complex valence structure of r-process elements give rise to18. Second, the kilonova ejecta are composed of typically neutral, singly or doubly ionized heavy elements, so the number of free electrons per unit mass is O(102) smaller than the typical value for ionized hydrogen. Thus, electron opacity makes a very small contribution, as r-process lines dominate the opacity in kilonova atmospheres.

Conversely, comparing this distance estimate with any previous inferred distances yields an estimate of the cross-sectional area, which can be compared to the line-of-sight velocity. Translating the cross-sectional area to a single cross-sectional velocity requires an assumption of axial symmetry. Given the close to polar inclination inferred from the radio measurements of the jet31, this corresponds to an assumption of cylindrical symmetry in the plane of the disk. The slight difference between exactly polar and the very-long-baseline interferometry (VLBI) inclination constraints yields less than 1% variation in inferred cross-sectional area and, although we account for this effect in the cross-section, it is inconsequential to the constraints presented in this analysis.

An equivalent method to measure the asymmetry is simply by comparing the inferred Hubble constant. The overall luminosity is set by the cross-sectional radius (that is, the perpendicular velocity, v⊥), whereas the main constraint on vph is derived from the absorption feature (that is, the velocity of the photosphere along the line-of-sight, v∥). Thus, by assuming H0 we can compare the line-of-sight and orthogonal velocities. This method and the EPM are essentially interchangeable. Note that spectropolarimetry taken at 1.43 days yields additional constraints on the kilonova’s asymmetry;  this remains consistent with a spherical geometry, but is not very constraining in comparison with the EPM framework41,42.

We define the zero-centred asymmetry index \(\varUpsilon =\frac{{v}_{\perp }-{v}_{\parallel }}{{v}_{\perp }+{v}_{\parallel }}\). Here ϒ < 0 would be a prolate expansion, corresponding to lower velocities in the plane of the binary than along the jet. This comparison does not probe the asymmetry of the mass distributions deeper substructures—it only constrains the asymmetry of the ejecta photosphere. However, it is worth noting that hydrodynamical merger models of kilonovae, in contrast to core-collapse supernovae, are typically equally or more anisotropic in their outer layers compared with their deeper substructures5.

P Cygni modelling

For the P Cygni modelling, we assume, as proposed in ref. 8 that the identification of the approximately 1 μm feature is due to the Sr II4d–5p transitions at 1,032.7 nm, 1,091.5 nm and 1,003.7 nm (ref. 14). We show that these lines modelled with the P Cygni profile prescription, as described below, describe the data well. We set the relative strengths of the lines as in ref. 8. We tested the effect of modelling the feature with a single emission line, allowing the rest emission wavelength to be a free parameter. Despite having an additional free parameter, this single-line fit is worse than the three-line Sr+ fit. However, even such a single line still supports spherical expansion with a distance of DL = 45.3 ± 0.5 Mpc and a asphericity value ϒ = 0.01 ± 0.02 assuming our fiducial distance19.

The P Cygni profile is characteristic of expanding envelopes in which the same spectral line yields both an emission peak near the rest wavelength and a blueshifted absorption feature43. The peak is formed by true emission or by scattering into the line of sight, whereas absorption is due to scattering of photospheric photons out of the line of sight. As the latter is in the front of the ejecta, this component is blueshifted. The P Cygni profile is characterized by several properties of the kilonova atmosphere. The optical depth determines the strength of absorption and emission, whereas the velocity of the ejecta sets the wavelength of the absorption minimum. For this analysis we use the implementation of the P Cygni profile based on the Elementary Supernova model43, in which the profile is expressed in terms of the rest wavelength, λ0, the line optical depth, τ, scaling velocities for the velocity dependence of τ, ve, the photospheric velocity, vph, and the maximum ejecta velocity, \({v}_{\max }\). This implementation does not include the relative population of the states in the transition (that is, the source function). We therefore include a parameter describing the enhancement of the P Cygni emission. Even though the enhancement parameter improves the fit to the line shape, it is the absorption component that provides the sphericity constraints for epochs 1 and 2 (Extended Data Fig. 2), so the inclusion of this additional parameter does not substantially impact our conclusions. For comparison we have also implemented the P Cygni profile prescription for relativistically expanding atmosphere in ref. 44. For the mildly relativistic velocities analysed in this paper, the difference in these frameworks is inconsequential with maximally a shift in ϒ of −0.01, and thus both frameworks stay coherently consistent with spherical expansion.

Elliptical P Cygni modelling

In addition to the parameterization above, which is intrinsically spherical, we have developed a P Cygni profile model from expanding atmospheres with an additional and variable eccentricity, e. This allows an independent probe of the sphericity by fitting the line shape. Although, in general, constraints from the shape of spectral lines on the asymmetry of ejecta are degenerate with the viewing angle22, in this case the radio jet emission in combinationwith Hubble Space Telescope precision astrometry provides good constraints on the inclination angle of the merger, with θinc = 22° ± 3° (refs. 13,31). Therefore, we can constrain the eccentricity of the ellipse by fitting the spectral line shape.

Physically, this parameterization is identical to the P Cygni profile in the Elementary Supernova, but assumes that the photosphere has an elliptical shape. Thus, the contribution of the initial specific intensity and the source function is derived at each resonance plane integrated over the varying shapes of the expanding atmosphere. Note, this uses an identical functional dependence of the line optical depth with velocity, τ(v), for all angles, but varies effectively with angle because varying geometries and inclination angles yield different source functions, initial specific intensity and contributing resonance planes.

Robustness of the spectral modelling and epoch selection

Previous studies have established that the earliest epochs of AT2017gfo are well approximated by a blackbody spectrum37,45,46. With time, the spectrum increasingly deviates from a blackbody with progressively stronger and more numerous spectral components. We do not interpret the origin of these lines here. The resultant fit and spectrum for each of the first five epochs can be seen in Extended Data Fig. 1.

Ultimately, for inferring distances or computing the asphericity index, the statistical uncertainty on the inferred photospheric velocity and the blackbody normalization is less than 1% and thus subdominant to systematic uncertainties. These statistical uncertainties are tight owing to the high velocities and the heavy-element-dominated composition of kilonova ejecta, providing both a broad and well-constrained line and a notably Planck-like blackbody. For the distance determination, the majority of the uncertainty resides in the flux calibration and dust extinction, whereas the peculiar velocity error dominates the uncertainty in estimating the asphericity.

For later epochs, additional complex components emerge, including the increasing prominence of the emission component of the approximately 1 μm Sr+ features, an emission feature at approximately 1.4 μm, clearly observed in the Hubble Space Telescope spectra from the fifth and tenth days post-merger47, a P Cygni feature from at least the fourth day onwards at approximately 0.75 μm and an emission component at approximately 1.2 μm from at least the fifth day onwards. Although the models for the earliest epochs are largely independent of these additional spectral components, the modelling for later epochs is affected by whether and how these features are accounted for. We show in Extended Data Fig. 2 the effect of including components in the modelling, or excluding spectral regions containing these components, to illustrate the sensitivity of the models to these effects. We still get agreement on the distances to an order of 10% in all of the first five epochs, regardless of whether we include these components or not. More sophisticated modelling would almost certainly yield much better constraints. However, we use this analysis to show the robustness of our conclusions for the first two epochs. We emphasize that all epochs still support near-spherical expansion, as these are in agreement with the distance inferred from the cosmological redshift20 for either the CMB19 or local distance-ladder21 inferred H0 value, whereas the typically larger distances in the latest epochs may hint of an increasingly prolate expansion as corroborated by the line-shape constraints in Fig. 3. The spread in asymmetry values derived from the full model fit to epochs 1–3 is σϒ = 0.02. As the constraint from each epoch is entirely independent, this provides corroborating evidence that the statistical uncertainty derived from sampling the posterior distribution is representative. Therefore, we also provide constraints from all epochs 1–5 to illustrate the generic robustness of the EPM framework applied to kilonovae.

Sr+ line as an indicator of photospheric velocity

A critical assumption for any determined distance or asphericity is that the Sr+ lines are an accurate indicator of the photospheric velocity. This assumption is validated observationally in two separate respects. First, although a high optical depth of a line may detach it from the photosphere, the optical depth of Sr+ lines over all epochs analysed is moderate, yielding maximally a 20% reduction in flux, with τ < 1 indicated from the line fits. At these moderate optical depths the P Cygni model is expected to trace the photospheric position48. Second, the observed line-forming region continuously recedes deeper into the ejecta over time, which is why the distance remains consistent across multiple epochs despite the decreasing observed velocity. If Sr+ was detached from the photosphere, then, as the photosphere recedes deeper into the ejecta, the velocity of the line-forming region and the photosphere would not naturally trace each other over time.

Systematic error due to line blending

Another potential concern is the effect of line blending biasing the inferred photospheric velocity. The spectra do not require additional lines and, although one can increase the complexity with a multitude of lines, this is unlikely to be a major concern for several reasons. First, it would require that the blending lines matched the Sr+ lines in strength over time, despite the major changes in density and temperature at each epoch. Second, as we get a similar distance and symmetry for each epoch, this hypothesis requires these lines to mimic a Sr+ P Cygni profile, coherently shifting in wavelength and receding deeper within the ejecta at exactly the rate predicted by the blackbody continuum. However, to explore robustness and quantify the magnitude of the possible systematic error in such a line-blended case, we mapped the change in the inferred asymmetry that an additional P Cygni line of freely varying τ would induce as a function of the central wavelength of the blending line. This reaches a maximum bias at about 9,900 Å, at which value it shifts the asymmetry index by 0.02 and 0.03 for epochs 1 and 2, respectively. This is within our uncertainty margin, but we do not include it in our estimate of the error budget, because such a strong blending line is unlikely to be based on the arguments made above. Adding additional blending lines, even though it naturally increases the uncertainty due to additional free parameters, does not increase the asymmetry shift more than adding a single additional line feature.

Distance estimates and potential constraints on H 0

Assuming spherical symmetry, the EPM framework yields independent estimates for the luminosity distance from each epoch. The strict assumption of perfect spherical symmetry can be relaxed by modelling and propagating the symmetry measurements based on the shape of the absorption line, shown in Fig. 3. That is to say, determining the cross-sectional radius \({R}_{{\rm{\perp }}}={v}_{{\rm{\perp }}}(t-{t}_{{\rm{e}}})={v}_{{\rm{ph}}}(t-{t}_{{\rm{e}}})\left[\frac{{v}_{{\rm{\perp }}}}{{v}_{{\rm{ph}}}}\right]\), where the ratio in the square bracket follows directly from the line-shape fit, yields the posterior distance distributions shown in Fig. 4 and Extended Data Fig. 2.

The luminosity distances derived for the early epochs are consistent with previous estimates from the gravitational wave standard siren method9,32 and from the cosmological redshift20, using either the H0 value inferred from the CMB19 or local distance-ladder21 methods. This distance is also useful because we can combine our distance measurement with the gravitational wave standard siren data9 to infer the angle of inclination of the merger plane (Extended Data Fig. 3) to be \(1{5}_{-{5}^{^\circ }}^{^\circ +{6}^{^\circ }}\) from the axis perpendicular to the plane. This is consistent with the inclination inferred from the radio measurements of the jet associated with the event and Hubble Space Telescope precision astrometry, which yields 22° ± 3°(ref. 13).

Combining the EPM-estimated distance to the kilonova with the cosmological redshift of the host galaxy can yield independent constraints on the Hubble constant, H0, either assuming the ejecta is spherical or measuring the sphericity. To a good approximation for z ≪ 1, Hubble’s law gives the luminosity distance (with q0 = −0.53 for standard cosmological parameters):

$${D}_{{\rm{L}}}\approx \frac{c{z}_{{\rm{cosmic}}}}{{H}_{0}}\left(1+\frac{1-{q}_{0}}{2}{z}_{{\rm{cosmic}}}\right)$$
(5)

Here zcosmic is the recession velocity due to the Hubble flow, that is, correcting the observed redshift with respect to the CMB restframe, zCMB for the peculiar velocity zpec. The recession velocity of the host-galaxy group is well-constrained, zCMB = 0.01110 ± 0.00024, but the peculiar velocity is harder to constrain49,50,51. The most recent analysis, using a statistical reconstruction method that estimates large-scale velocity flow using the Bayesian Origins Reconstruction from Galaxies, determines zpec = 0.00124 ± 0.00043 (ref. 20). This yields a cosmic recession velocity of zcosmic = 0.00986 ± 0.00049. The Hubble constant determined from our kilonova EPM is H0 = 65.6 ± 3.4 km s−1 Mpc−1 from the combined constraint of the first two epochs. The tight constraints on luminosity distances that we find here mean that the peculiar velocity is our dominant uncertainty when estimating H0. However, with future detections, especially of somewhat more distant sources, this approach could yield precision constraints on H0 relatively quickly.

Numerical models of late-time energy injection

To test the ability of different types of late-time energy injection to explain the high degree of sphericity observed, we performed numerical simulations of toy-model ejecta configurations using the finite-volume hydrodynamics code AENUS-ALCAR52. We assume a similar physics input (initial ejecta distribution, special relativity, microphysical equation of state, axisymmetry) as in ref. 53, except that here we ignore neutrino interactions, which do not play a significant role during the late-time expansion. We do, however, adopt an initial composition (that is, Ye profile) that approximates the outcome of simulations with detailed neutrino transport.

The scenario of local heating (representing, for example, energy release from radioactive decay or magnetic reconnection) is investigated by starting with a cold ejecta cloud of mass 0.04M⊙ and a slightly oblate geometry that is motivated by results for the dynamical ejecta obtained in neutron-star merger simulations6,24,54. The initial velocity of the cloud is given by r/tinit as a function of the distance from the centre, r, where tinit = 50 ms is the assumed post-merger time at which we start the simulation. The minimum (maximum) velocity of the bulk ejecta is 0.05c (0.4c). The density is distributed as r−n with n = 3.5 and a normalization factor depending on the polar angle θ as \(0.25+{\sin }^{3}\theta \). The bulk ejecta are surrounded by a fast tail of very small mass, which decays with a power-law index much larger than n. As suggested by current state-of-the-art simulations of neutron-star mergers including neutrino interactions55,56, the electron fraction Ye in the ejecta is assumed to increase when going from equatorial to polar directions. Here we use \({Y}_{{\rm{e}}}(\theta )={Y}_{{\rm{e}},{\rm{\min }}}+({Y}_{{\rm{e}},{\rm{\max }}}-{Y}_{{\rm{e}},{\rm{\min }}})\cos \theta \) with Ye,min/max = 0.2/0.4. During the simulation, thermal energy is injected per unit of mass with a rate of

$${Q}_{{\rm{inj}}}={Q}_{0}{\left(\frac{1}{2}-\frac{1}{{\rm{\pi }}}\arctan \frac{t-1.3{\rm{s}}}{0.11{\rm{s}}}\right)}^{1.3},$$
(6)

inspired by radioactive heating in r-processed media57. In this way, most of the energy is released within the first second of post-merger evolution. The factor Q0 is chosen such that the total injected energy per baryon amounts to a fixed number of MeV. The models reveal that more than about 30 MeV per baryon would be necessary to induce a nearly spherical density distribution at velocities greater than 0.2c (left panel of Extended Data Fig. 4). Such high values exclude radioactive heating as a viable agent to sphericize the ejecta, because the maximum binding energy (obtained in 56Fe) is 8.8 MeV and a large fraction of radioactive energy is lost to the emission of neutrinos, which do not thermalize. Energy dissipation through magnetic reconnection in highly magnetized media could possibly be powerful enough to achieve such high heating rates, but it is unclear whether magnetic fields are distributed homogeneously enough in the ejecta to end up with a spherical density distribution. An additional problem of the local-heating scenario remains its inability to remove (or reduce) large-scale composition gradients, most importantly the pole-to-equator variation of Ye.

Another possibility is that the central (black-hole or neutron-star) remnant injects energy into the expanding outflow through a relativistic wind due to, for example, the Blandford–Znajek process58 or magnetar spindown emission59,60. In contrast to the local-heating scenario, the injection of energy into a finite region of the ejecta opens up the possibility of lateral mixing. Material near the polar axis (which is typically less neutron rich and therefore more likely to contain substantial amounts of strontium) can outpace slower, equatorial material, allowing it to expand into equatorial directions that would otherwise be occupied by neutron-rich, strontium-poor material. We test this scenario using a prolate ejecta cloud with a mass of approximately 0.065M⊙. The initial configuration is the same as before, except that the power-law index, n, now smoothly increases with polar angle from 3.5 at the equator to 2 at the pole, the maximum velocity increases in a similar fashion from 0.1c to 0.22c and now Ye,min/max = 0.15/0.45. The bulk ejecta are again surrounded by a fast tail. About 100 ms after the initialization time of tinit = 0.4 s, a relativistic wind is injected at the inner radial boundary for a duration of 100 ms, which has a Lorentz factor of 5, specific enthalpy of 20, luminosity (per hemisphere) of 1052 erg s−1 and a half-opening angle of 60°. Compared with the local-heating scenario, our wind-injection model (right panel of Extended Data Fig. 4) shows a distribution of (originally polar) high-Ye material that is more extended laterally, supporting the ability of late-time wind-injection scenarios to reduce composition anisotropies in the ejecta. The mass distribution, however, does not become perfectly spherically symmetric, particularly in the high-entropy, low-density bubble that is created by the wind.

In addition to the specific configurations described above, we tried various other choices for the initial ejecta distribution and the (heating and wind) injection parameters, keeping the total mass and injected energy in the range compatible with AT2017gfo (0.01–0.08M⊙ and ≲1051 erg, respectively). These calculations clearly show that those different mechanisms can help to generate a more spherical outflow, although none of our models produced the high degree of sphericity suggested by the P Cygni profile in both the density and composition. Our set of investigated models is not exhaustive and thus late-time energy injection may well operate even more efficiently than in our simplified models to sphericize the ejecta at late times. However, the fine-tuning needed to obtain a fully spherical configuration through these mechanisms may point to a high degree of sphericity of the initial ejecta distribution.
