Extended Data Fig. 6: Genomic organization, expression, and occurrence of archaella and chemoreceptors within tomograms.
From: Cultivation and visualization of a methanogen of the phylum Thermoproteota

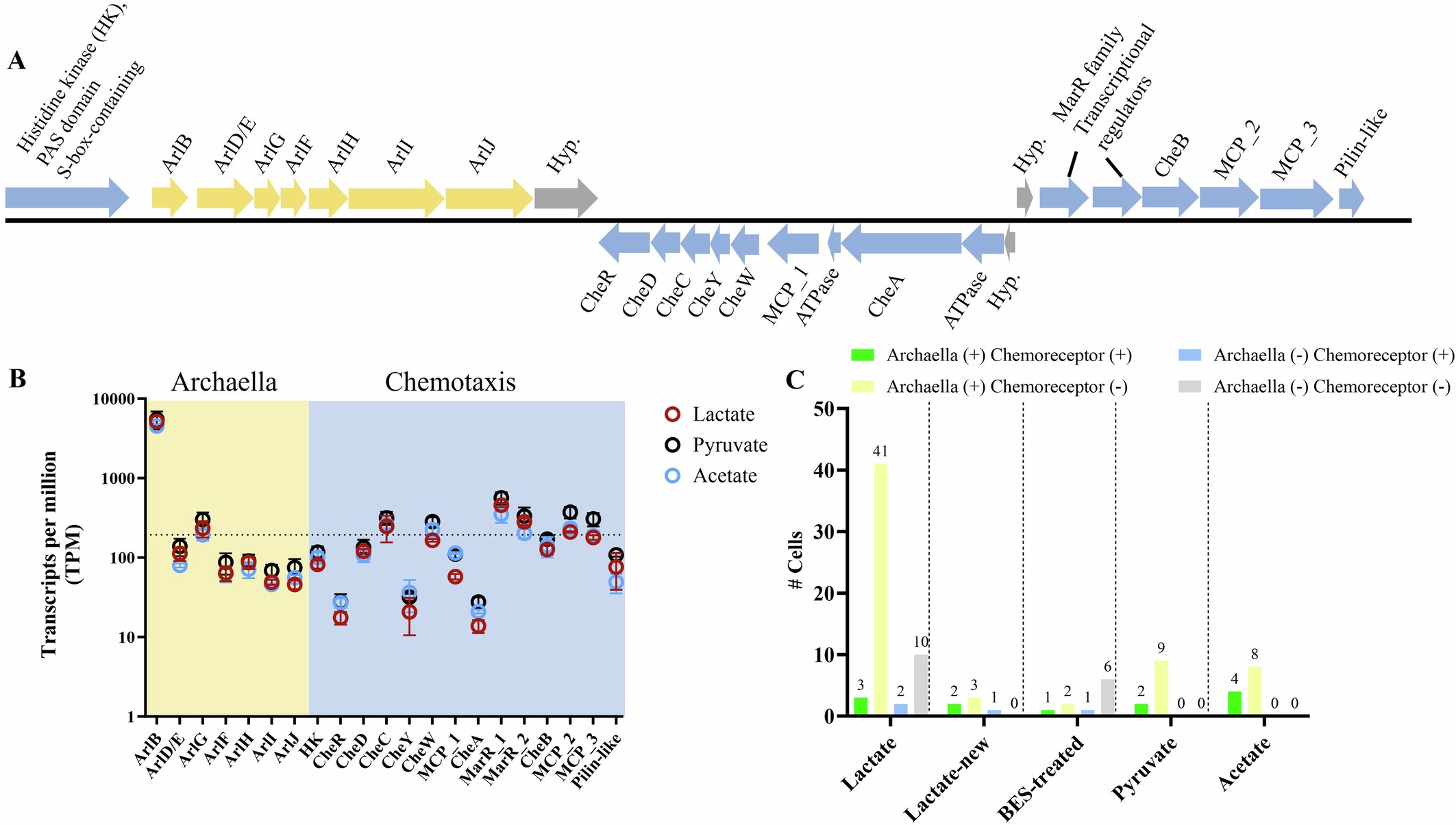

A. Organization of archaella (yellow) and chemotaxis gene clusters (blue). Hypothetical proteins (Hyp.) are shown in gray. MCP, Methyl-accepting chemotaxis proteins. PAS domain, Per-Arnt-Sim domain. B. Expression profile of archaella and chemotaxis genes for cultures grown on methanol and hydrogen and either lactate, pyruvate, or acetate as the carbon source (n = 3 biological replicates). Plotted are the mean values +/− SD. Where not visible, the error bar is smaller than the symbol. Dashed line represents the average TPM of all genes. C. Occurrence of archaella and chemoreceptor arrays in tomograms of strain LCB70. Note that due to differences in contrast between the tomograms, estimates of chemoreceptor arrays may be slightly underestimated.
