Extended Data Fig. 2: Cryo-EM data processing scheme of the E1/E2 in a homodimeric complex for S52mod.

From: The hepatitis C virus envelope protein complex is a dimer of heterodimers

Extended Data Fig. 2

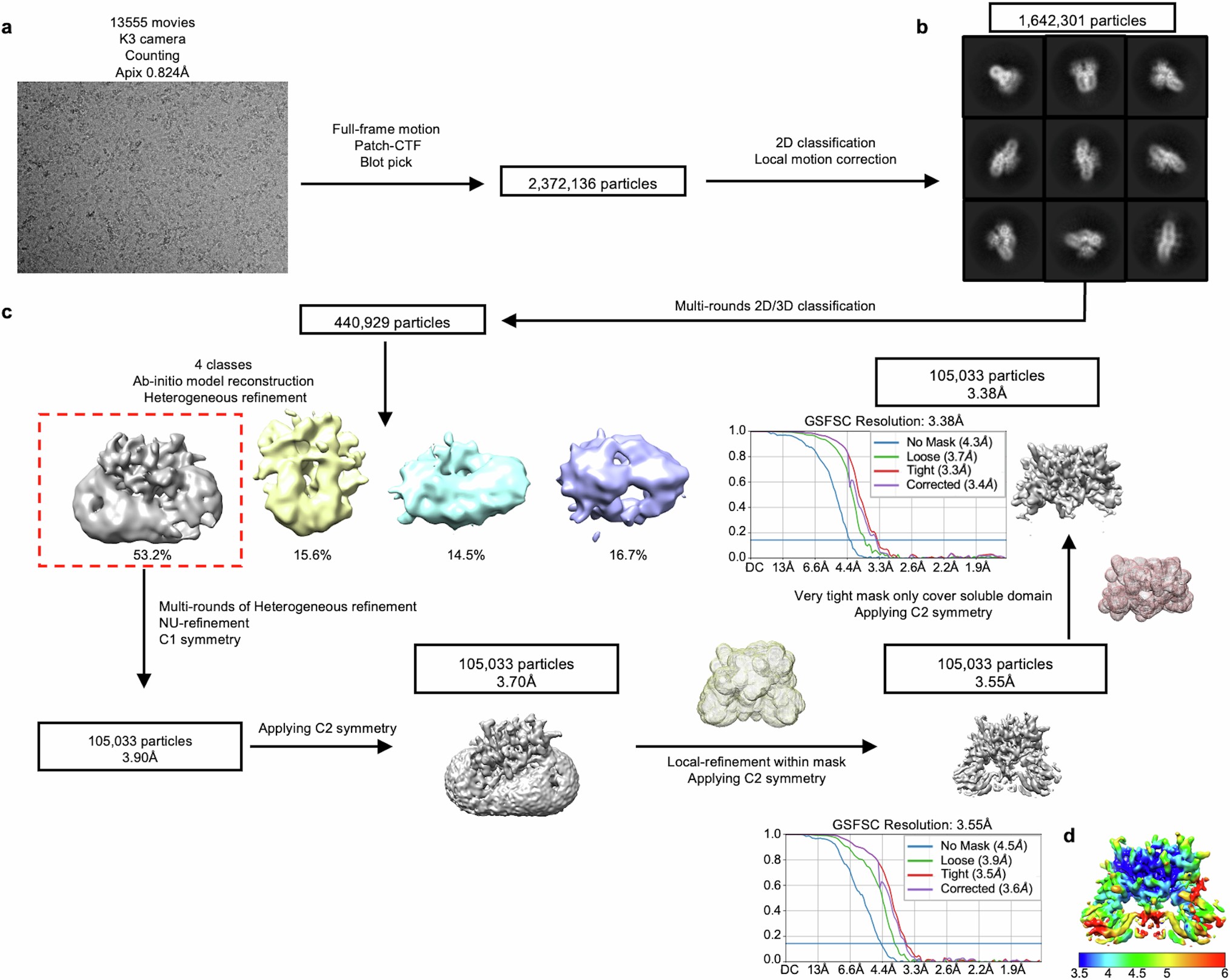

a, Representative cryo-EM image of S52mod. b, Selected 2D averages of the particles. c, Cryosparc video processing pipeline. d, Density of the final map used for model building colored by resolution. Extended Data Table 1 contains specific information and parameters regarding data collection.
