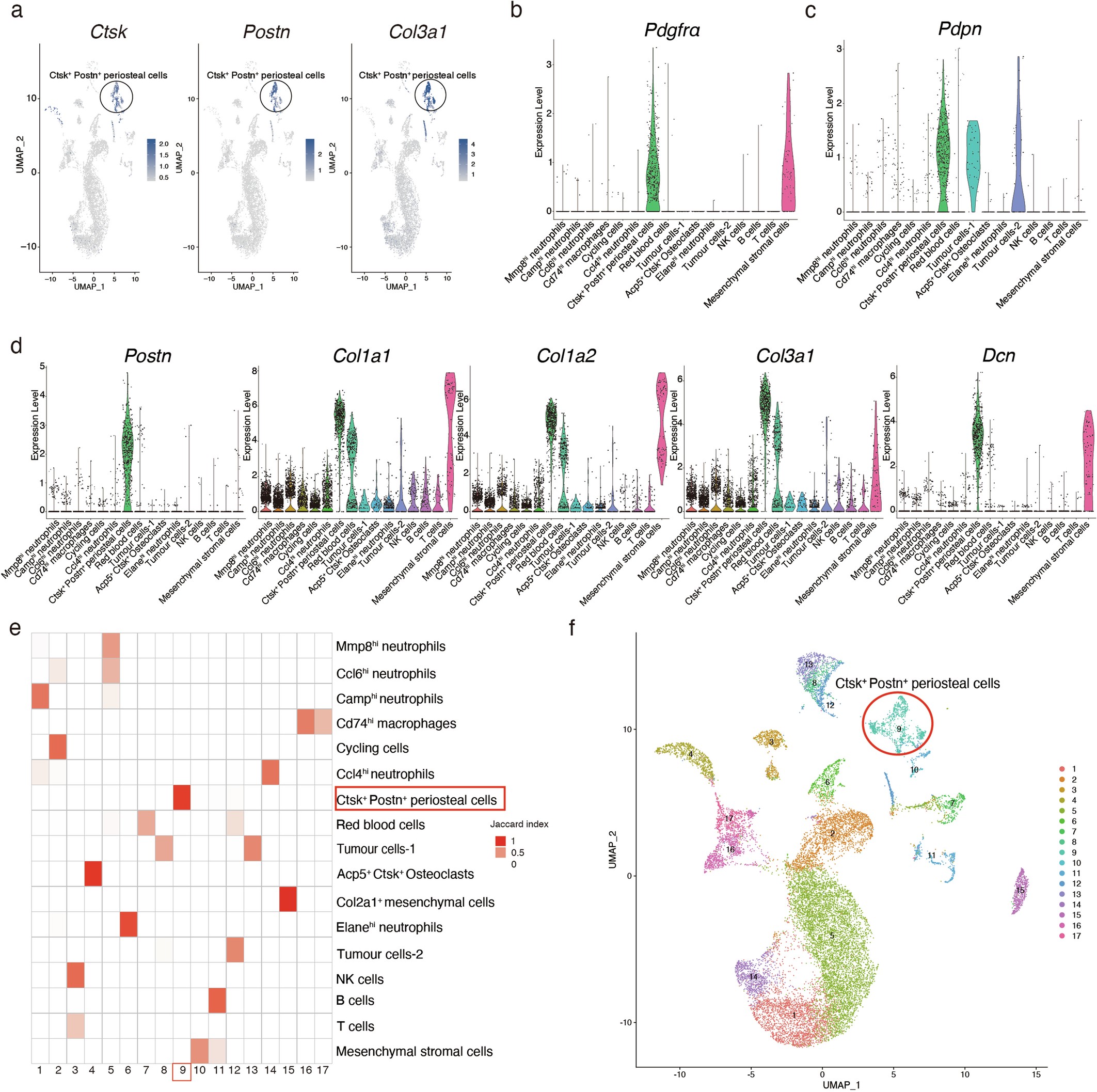

Extended Data Fig. 6: The expression patterns of periosteal stromal cell markers in the UMAP clustering.
From: The periosteum provides a stromal defence against cancer invasion into the bone
a, Expression pattern of Ctsk, Postn and Col3a1 in the UMAP visualization. b, Violin plots showing the expression of Pdgfra for each cluster. c, Violin plots showing the expression of Pdpn for each cluster. d, Violin plots showing the expression of Postn, Col1a1, Col1a2, Col3a1 and Dcn for each cluster. e, A pairwise Jaccard index heatmap showing the correspondence between clusters produced by UMAP and NMF/ k-means approaches. f, UMAP visualization of the clusters produced by the NMF/k-means approach.
