Long-lived isospin excitations in magic-angle twisted bilayer graphene

Nature volume 633, pages 77–82 (2024)Cite this article

Subjects

Abstract

Numerous correlated many-body phases, both conventional and exotic, have been reported in magic-angle twisted bilayer graphene (MATBG)1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24. However, the dynamics associated with these correlated states, crucial for understanding the underlying physics, remain unexplored. Here we combine exciton sensing and optical pump–probe spectroscopy to investigate the dynamics of isospin orders in MATBG with WSe2 substrate across the entire flat band, achieving sub-picosecond resolution. We observe remarkably slow isospin dynamics in a broad filling range around ν = 2 and between ν = −3 and −2, with lifetimes of up to 300 ps that decouple from the much faster cooling of electronic temperature (about 10 ps). This non-thermal behaviour demonstrates the presence of abnormally long-lived modes in the isospin degrees of freedom. This observation, not anticipated by theory, implies the existence of long-range propagating collective modes, strong isospin fluctuations and memory effects and is probably associated with an intervalley coherent or incommensurate Kekulé spiral ground state. We further demonstrate non-equilibrium control of the isospin orders previously found around integer fillings. Specifically, through ultrafast manipulation, it can be transiently shifted away from integer fillings. Our study demonstrates a unique probe of collective excitations in MATBG and paves the way for actively controlling non-equilibrium phenomena in moiré systems.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

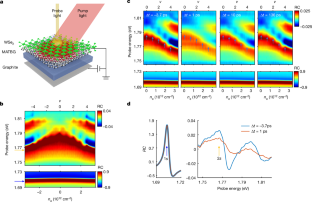

Fig. 1: Exciton sensing of isospin orders and dynamics in MATBG.

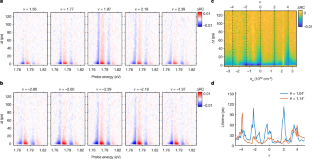

Fig. 2: Filling-dependent dynamics in MATBG.

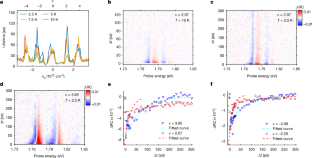

Fig. 3: Decoupling between the charge and isospin dynamics.

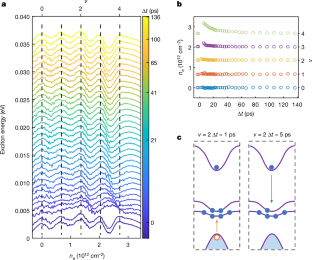

Fig. 4: Ultrafast manipulation of the cascade features.
