Main

With iron carbide as the active phase in iron-based FT catalysts, earlier work has explored the stability of different carbide phases16,17,18 and shown that phase-pure ε-iron carbide does not produce CO2 as a primary product unlike typical iron-based FT catalysts16. Informed by this and aiming for an active phase that can be operated in a stable manner in a broad temperature range required for optimization of the FT-to-LAO (FTLAO) process, we focused on obtaining phase-pure χ-iron carbide16,17,18. Different from the procedure to obtain pure ε-iron carbide, passivation of fully reduced Raney iron before carburization in syngas yielded phase-pure χ-iron carbide without competing iron oxide phases.

Table 1 compares the FTLAO performance of our χ-iron carbide (χ-Fe5C2) against that of other catalysts, which illustrates the high activity of our system. Already at 250 °C, the CO conversion time yield (CTY) is 3–7 times higher than that of all the state-of-the-art catalysts from the literature13,14,15,19,20, which were typically evaluated at substantially higher reaction temperatures above 320 °C. At 250 °C, we also observe a low CO2 selectivity of 11% and associated high overall carbon efficiency (selectivity to hydrocarbons and oxygenates) of 89%. Table 1 shows that with few exceptions, the reference catalysts exhibit a much higher CO2 selectivity ranging from 37% to 47% and a lower carbon efficiency ranging from 63% to 53% (refs. 13,14,19). Despite the low CO2 selectivity of 13% obtained with a hydrophobic FeMn@Si catalyst, this system shows a lower activity, even at a much higher reaction temperature of 320 °C. Although more expensive catalysts based on cobalt carbide are active in the same low-temperature range as our catalyst, typical CTY values are still substantially lower at an unfavourable CO2 selectivity close to 50% (ref. 19). In terms of CO2 selectivity, Co1Mn3–Na2S exhibits a notably low value of less than 3% at 240 °C that, however, increases rapidly as the temperature is ramped up to improve the activity20. We also note that, as discussed in the literature21,22, operation at elevated temperatures shifts the product distribution of cobalt-based catalysts towards less desired products and renders them more susceptible to poisoning.

Table 1 Catalytic performance comparison of FTLAO and reported catalysts
Full size table

We used density functional theory calculations and microkinetics simulations to explore FT chemistry as catalysed by χ-Fe5C2 (see Methods, Extended Data Figs. 1 and 2 and Extended Data Table 1 for full details), finding the expected exponential increase in CO conversion and hydrocarbon formation rates with temperature and a C2+ hydrocarbon distribution according to Anderson–Schulz–Flory (ASF) theory (Extended Data Figs. 1a and 2a). Simulated olefin-to-paraffin (O/P) ratios are in the same range as the experimentally observed ratios and exhibit a minor dependence on temperature (Extended Data Fig. 2c), indicating that both olefins and paraffins are primary products. The calculations also show that for χ-Fe5C2, the energy barrier for H2O formation is lower than that for CO2 formation and that oxygen from CO dissociation will thus be removed primarily as water, which explains the low CO2 selectivity of our system. This observation also explains the importance of using a phase-pure catalyst: incomplete conversion of the catalyst precursor to χ-Fe5C2 will result in the presence of competing phases that often include iron oxides, which are known as good catalysts for the water–gas shift reaction that generates CO2 from CO and water23.

High-resolution transmission electron microscopy (HRTEM) imaging indicates that very little amorphous carbon is deposited on the phase-pure χ-iron carbide, which contributes to its high and stable CO conversion rate and low CO2 selectivity (Extended Data Fig. 3a). This contrasts with the substantial level of carbon deposition onto the surface of a catalyst containing 86% χ-Fe5C2 and iron oxide phases (Extended Data Fig. 3b), which was reported24 to reach a high CO CTY of 303 μmol \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{s}}}^{-1}\) but also a high CO2 selectivity of 45% at a temperature of 340 °C. As this catalyst used potassium24 as a promoter known to improve CO conversion, we also promoted our phase-pure χ-Fe5C2 with potassium and achieved at a lower temperature of 325 °C a higher CO CTY of 570 μmol (\({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{s}}}^{-1}\)), lower CO2 selectivity of 37% and better stability (Extended Data Fig. 3c). Our phase-pure χ-Fe5C2 catalyst thus outperforms the phase-impure χ-Fe5C2 catalyst in terms of activity and CO2 selectivity, although the better performance will also in part be due to differences in catalyst particle size (about 17 nm for our catalyst, see Extended Data Fig. 7i, versus about 3 nm reported24 for the phase-impure catalyst)25. To achieve a high carbon efficiency and high LAO yields, we opted to not use potassium promoters that inevitably increase the CO2 selectivity.

However, despite the competitive performance, the O/P ratio and the fraction of LAOs among total olefins obtained with the phase-pure χ-Fe5C2 catalyst are still relatively low and limit the carbon-based selectivity towards desirable C2–C10 LAOs to 25%. Mechanistically, this is attributed to olefins, which are the primary products of the FT reaction, re-adsorbing and undergoing hydrogenation and isomerization reactions that convert them into less valuable paraffins and iso-olefins. As the addition of manganese is known to improve the activity and product selectivity of iron-based FT catalysts26, we promoted the phase-pure χ-Fe5C2 catalyst with manganese (Mn-χ-Fe5C2) and achieved the highest O/P ratio and lowest CO2 selectivity at an optimized manganese content of 10% by weight (Extended Data Figs. 4a–e and 5a). Although blocking of active sites by manganese slightly lowers the CO CTY for Mn-χ-Fe5C2, the promoted catalyst still outperforms all reported catalysts and maintains its high phase purity and associated low CO2 selectivity while exhibiting a much improved product distribution (entries 1–3 of Table 1): the O/P ratio of C2–C10 olefins and the selectivity to target LAOs increase from 1.2 to 4.1 and 24.3% to 50.7%, respectively. In analogy with the manganese promotion effect seen in cobalt-based FT catalysts26, these changes are probably due to the stronger CO adsorption compared with H2.

The FT product distribution is typically strongly affected by the CO conversion, with higher conversions increasing the CO2 selectivity and decreasing the olefin selectivity and O/P ratio27,28. This trend is attributed to the water–gas shift reaction involving initially formed water and hydrogenation of initially formed olefins, with both processes becoming more pronounced as the residence time of reactants and therefore also of initial products in the reactor increases to enable higher CO conversions. Extended Data Table 2 illustrates this by showing how the CO2 selectivity of the Mn-χ-Fe5C2 catalyst (manganese-promoted phase-pure χ-Fe5C2) varies with CO conversion, which depends on temperature and the flow rate of reactants through the reactor.

We next explored the performance of Mn-χ-Fe5C2 under a range of reaction conditions relevant to industrial practice by varying the temperature between 250 °C and 320 °C and the space velocity (SV; the rate at which reactants are fed into the reactor) between 5,000 and 60,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\)) while keeping the pressures at 2.5–3.0 MPa and the H2/CO ratio at 1.5 (Table 1, rows 3–6). Table 1 provides an overview of performance data of the top-performing catalyst systems for converting syngas to olefins (and thus excludes potassium-promoted systems). Various reactions conditions (with respect to temperature, pressure, H2/CO ratio and contact time) were selected for the systems listed, to ensure the best results in terms of olefin yield. The comparison shows that our Mn-χ-Fe5C2 catalyst outperforms other catalysts reported in the literature in terms of CO conversion and a low CO2 selectivity that implies a high selectivity to desired LAOs. We note, however, that the comparison does not take into account the effect of catalyst particle size differences known to affect25 performance, owing to lack of data.

Using a relatively low temperature of 250 °C, a pressure of 3.0 MPa and an SV of 5,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) (Fig. 1a and Table 1), we achieved a constant CO conversion of about 46% over 100 h with an exceptionally low CO2 selectivity of 9.4%, a high carbon-based selectivity towards C2–C10 LAOs of 48.5% and a CO CTY of 10.9 μmol (\({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{s}}}^{-1}\)). Using a slightly higher but still moderate temperature of 290 °C, a pressure of 2.5 MPa and an SV of 30,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) (Fig. 1c and Table 1) that resulted in less favourable CO2 selectivity (21.9%) and target LAO selectivity (42.0%), we achieved an almost tenfold higher CO CTY of 100.0 μmol \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{s}}}^{-1}\) at a stable and high CO conversion of 70.7%. The average carbon-based selectivities of LAOs, iso-olefins and paraffins under these two operating conditions are shown in Fig. 1b,d. The amount of higher hydrocarbons follows the ASF distribution. The decrease in the ratio of LAOs to iso-olefins with increasing carbon number (Extended Data Fig. 5b) is attributed to consecutive reactions that preferentially convert the heavier products that reside for a longer time in the reactor29,30.

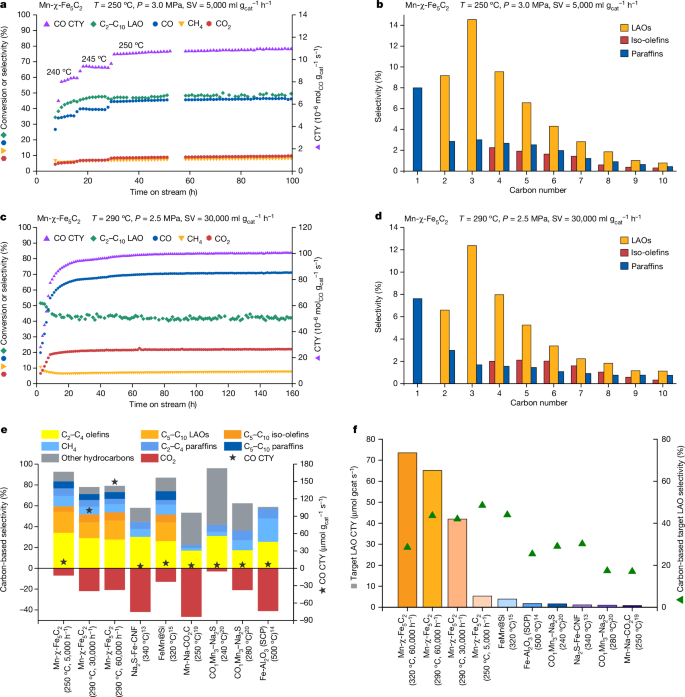

Fig. 1: Catalytic performance of optimized Mn-χ-Fe5C2.
Fig. 1: Catalytic performance of optimized Mn-χ-Fe5C2.
Full size image

a,b, CO conversion and product selectivity with time on stream (a) and averaged product distribution (b) at 3.0 MPa, 250 °C and SV H2/CO/Ar = 3,000/1,900/100 ml gcat h−1. c,d, CO conversion and product selectivity with time on stream (c) and averaged product distribution (d) at 2.5 MPa, 290 °C and SV H2/CO/Ar = 18,000/11,400/600 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\). e,f, Comparison of the distribution of carbon-based products (e) and target LAO time yield and carbon-based LAO selectivity (f) between Mn-χ-Fe5C2, χ-Fe5C2 and reported catalysts from Table 1.

An advantage of operating at a moderate temperature is the high CO conversion achieved at a high SV of 60,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) at 2.5 MPa with a high CTY towards LAOs. The highest CO CTY is achieved at our highest temperature of 320 °C with a pressure of 2.5 MPa and an SV of 60,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\), with CO2 selectivity also increasing to 32% but still remaining substantially below values reported in the literature for FT catalysts operated under harsh conditions in Table 1. The increase in CO2 selectivity is a natural consequence of high CO conversion levels while using a H2/CO feed ratio of 1.5, which will deplete H2 and thereby suppress removal of oxygen from CO dissociation in the form of H2O and allow CO2 formation instead. Although H2/CO ratios ranging from 0.5 to 2.0 are common for FT performance evaluations (Table 1), we kept the ratio constant at 1.5 for all of our experiments because a H2/CO ratio of between 1 and 2 represents the composition of commercial syngas feeds. A higher H2/CO ratio affects the FT performance mainly through higher CO conversion and lower CO2 selectivity (due to the competition of oxygen removal as CO2 and H2O just mentioned31). Our phase-pure Mn-χ-Fe5C2 catalyst exhibits a higher CO conversion and a lower CO2 selectivity than those of the top-performing catalysts at a H2/CO ratio of 2.0, emphasizing the high performance of our catalyst, which is maintained over a range of operating conditions.

The ASF distribution predicts that a probability α of about 0.63 for further growth of a hydrocarbon chain versus termination will yield the highest fraction of C2–C10 hydrocarbons of 81% (Extended Data Fig. 6a). Careful product analysis (Extended Data Fig. 6b) shows that the experimentally determined values of α for our catalyst are close to this optimum: 0.61 and 0.63 at reaction temperatures of 250 and 290 °C, respectively, with corresponding experimentally obtained fractions of C2–C10 products of 83.1% and 81.5% that are close to the predicted ASF value. The performance of our optimized Mn-χ-Fe5C2 catalyst is also notable for producing much less CH4 than predicted by the ASF distribution and generating substantial amounts of more valuable reaction products. Figure 1e plots the CTY and carbon-based selectivity for Mn-χ-Fe5C2 and reported catalysts in Table 1, with valuable reaction products as positive contributions and undesirable CO2 as the negative one. Mn-χ-Fe5C2 operated at 250 °C exhibits the highest selectivity to lower olefins (slightly higher than the selectivity reported for Na2S-promoted Fe-CNF at 340 °C)13 while also generating 20% of products in the form of valuable LAOs. At 290 °C, Mn-χ-Fe5C2 shows a similar selectivity to C2-C10 LAOs and a 10–15 times higher CTY compared to that of FeMn@Si (ref. 15). The exceptionally low CO2 selectivity for our catalyst (9%) is highly advantageous for processes targeting chemicals such as LAOs as the manganese promoter suppresses hydrogenation and thereby increases the O/P ratio of the C2–C10 products to high values between 4.1 and 4.6. This, in conjunction with the near-optimum α value, ensures that Mn-χ-Fe5C2 realizes a carbon-based selectivity towards desirable LAOs that is close to 50%. Moreover, the optimized Mn-χ-Fe5C2 catalyst operated at a pressure of 2.5 MPa, an SV of 60,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) and temperatures of 290 or 320 °C achieves a 10- to nearly 100-fold higher LAO CTY than those of the top-performing catalysts described in the literature and operated at similar or higher reaction temperatures (Fig. 1f).

Given the critical importance of phase purity for the performance of the χ-Fe5C2 catalyst, we monitored in situ the formation of the phase-pure material from the catalyst precursor pre-treated and activated in the reactor. We used a method differing from that for the preparation of phase-pure ε-FeCx (ref. 16), in which we passivated Raney iron, after reduction and before carburization, in 1% O2 in He at room temperature for 20 h and then carried out carburization into χ-Fe5C2 by simple exposure to a H2/CO/He mixture (100/3.2/21.8) and heating in the reactor (0.5 °C min−1, 350 °C, 6 h dwell). The in situ X-ray diffraction (XRD) patterns in Fig. 2a show that χ-Fe5C2 (Hägg carbide) formation started at 300 °C and was completed after 6 h at 350 °C. Active-phase formation proceeds in the same way in the presence of a manganese promoter (Fig. 2b). This method to prepare phase-pure χ-Fe5C2 has considerable advantages over methods in the literature12,13,17,24,32: it can be carried out in situ by using just a syngas feed with an adjusted H2/CO ratio in a single pretreatment step.

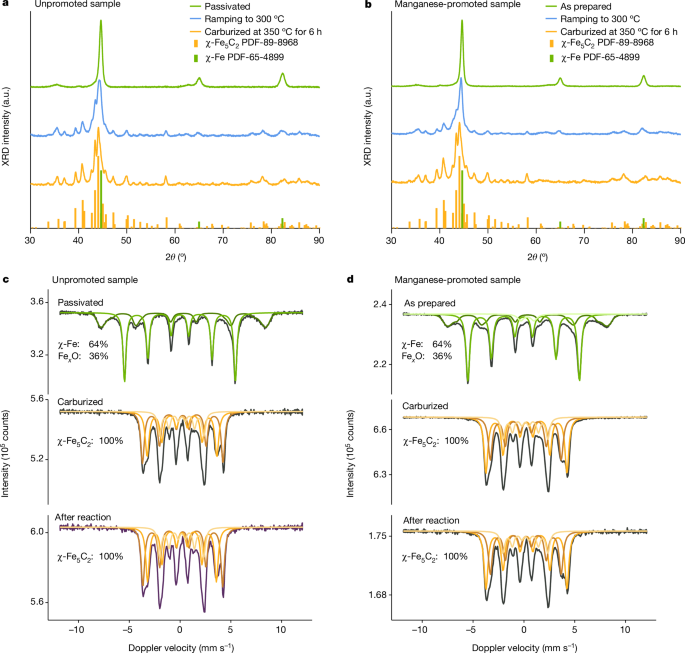

Fig. 2: In situ characterization of active-phase formation and evolution.
Fig. 2: In situ characterization of active-phase formation and evolution.
Full size image

a,b, In situ XRD patterns of the transformation of unpromoted (a) and Mn-promoted (b) Raney iron, showing carburization at 300 °C and 350 °C for 6 h (carburization: H2/CO = 30, 0.1 MPa, heating from 30 °C to 350 °C at 0.5 °C min−1, dwell 6 h). a.u., arbitrary units. c,d, In situ Mössbauer spectra of the transformation of unpromoted (c) and Mn-promoted (d) Raney iron, showing as-prepared, after carburization and after FTLAO reaction (carburization: H2/CO/He = 100/3.2/21.8, 0.1 MPa, 350 °C for 6 h; FTLAO reaction: H2/CO = 1.5 with saturated vapour water (about 0.8 bar) at a total pressure of 2.3 MPa, 265 °C for 12 h). The Mössbauer spectra were acquired at −153 °C.

We followed the formation of χ-Fe5C2 during the carburization process in an environmental transmission electron microscope33. HRTEM images and corresponding filtered inverse fast Fourier transform images in Fig. 3 show that the passivated Raney iron is initially present as crystallized iron particles surrounded by an amorphous oxide passivation layer (Fig. 3a). Exposure to syngas at a H2/CO ratio of 30 at 1,200 Pa and 350 °C in the environmental transmission electron microscope initiates the χ-Fe5C2 formation captured by the images shown in Fig. 3b–l. The transformation is seen to start at the inner layers of Raney iron and then extends over the whole region until the final state is reached 30 min later (t + 30 min) and a phase-pure χ-Fe5C2 grain is imaged along the \((\bar{3}\bar{1}1)\) direction with a characteristic lattice spacing of about 2.7 Å (Fig. 3l). Carburization takes place quickly and completes the transformation into χ-Fe5C2 in less than 0.5 h at a low CO partial pressure of 40 Pa (Supplementary Video 1). This is in line with the in situ XRD data and underpins the efficiency of our approach to preparing χ-Fe5C2, compared to alternatives that use pure CO or syngas with a much lower H2/CO ratio of 2 (Extended Data Fig. 7).

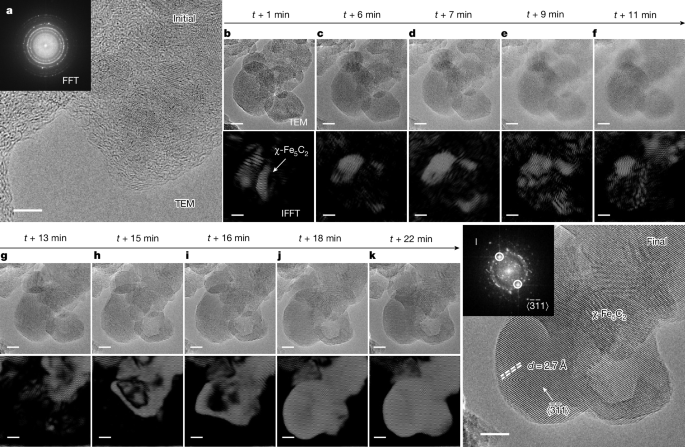

Fig. 3: Environmental TEM study of phase-pure χ-Fe5C2 formation.
Fig. 3: Environmental TEM study of phase-pure χ-Fe5C2 formation.
Full size image

a–l, HRTEM images of the transformation from the initial state of Raney iron (a), through carburization (b–k) to the final state (l). The dashed lines in l mark the lattice spacing of χ-Fe5C2. The corresponding inverse fast Fourier transform (IFFT) images show the location of χ-Fe5C2 in real space (environmental TEM conditions: H2/CO = 30, 1,200 Pa, 350 °C). FFT, fast Fourier transform. Scale bars, 5 nm.

We duplicated the carburization procedure inside a high-pressure Mӧssbauer spectroscopy set-up to monitor in situ the stability of phase-pure χ-Fe5C2 catalysts under reaction conditions. Figure 2c,d confirms the purity of the χ-Fe5C2 phase in unpromoted and manganese-promoted catalysts after carburization and subsequent operation under FT reaction conditions. In all samples, Hägg carbide (χ-Fe5C2) is the only iron phase present (Extended Data Table 3); that is, it is stable during prolonged operation under FTLAO conditions (Fig. 1a,c) at 265 °C. Characterization of a used Mn-χ-Fe5C2 sample by transmission electron microscopy (TEM) shows a well-maintained χ-Fe5C2 phase, without signs of carbon deposition or migration of manganese from the iron phase (Extended Data Fig. 4f–j). This is in line with a recent study34 showing that manganese suppresses carbon deposition and improves the removal of oxygen, effectively cleaning the surface, which can also explain the high stability we observe. Direct long-term catalytic testing at 320–325 °C, 2.3 MPa and an SV of 100,000 mlsyngas \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) shows stable Mn-χ-Fe5C2 performance over 225 h, with a high CO conversion of 53% and a CTY of 265 μmol \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{s}}}^{-1}\) (Extended Data Fig. 5c). From the catalytic data, it follows that the water pressure under these reaction conditions will be at most 0.12 MPa, which is well below the minimum water pressure at which the disadvantageous oxidation of Hägg carbide takes places35.

Taken together, our in situ characterization and catalytic data show that phase-pure χ-Fe5C2 catalysts (both unpromoted and manganese-promoted) are stable and very active for FTLAO. The phase purity of χ-Fe5C2 enables high CO conversion already at mild conditions and minimizes unwanted CO2 production, and manganese promotion inhibits unwanted secondary reactions and thereby contributes to the high selectivity towards desired LAOs. Although industrialization of catalysts inevitably requires addressing process engineering challenges (such as, in this case, catalyst exposure to recycled feed that would include CO2 and thereby increase water production), we believe phase-pure χ-Fe5C2 catalysts will be beneficial in the development of an FTLAO process for converting syngas to valuable LAOs in a competitive manner9. Given the demonstrated ability of this type of catalyst to convert CO with high carbon efficiency (that is, low CO2 selectivity), we anticipate that it could also benefit other applications that target, for instance, the production of alcohols, aromatics or jet fuels from syngas derived from conventional or renewable carbon feedstock.

Methods

Materials

Raney iron precursor

Iron-aluminium alloy powder (50:50 by weight, Sigma-Aldrich) was added into an 8 mol l−1 KOH (AR, Sinopharm Chemical Reagent) solution in a flask under stirring and heated to 70 °C to dissolve the aluminium in the alloy36,37. Afterwards, K+ and \({{\rm{AlO}}}_{2}^{-}\) ions were removed by washing with deionized water (ten times) and ethanol (seven times). The iron powder sample was transferred by means of a sealable quartz tube into a glove box and subsequently dried in an argon flow at room temperature for 6 h. The resulting porous iron powder was kept in a container with a seal in a glove box. Before loading the sample in appropriate in situ cells (XRD and Mössbauer spectroscopy characterization) or a stainless-steel reactor for FT activity measurements, the sample was passivated in a flow of 1% O2 in helium at room temperature for 20 h.

Manganese-Raney iron precursor

Manganese (0.5–12.5 wt%) was added to the Raney iron precursor (directly after removal of aluminium) by wet impregnation using a Mn(NO3)2 solution. The sample was then dried in a vacuum oven at room temperature for 12 h.

Potassium-Raney iron precursor (Extended Data Fig. 3c)

Potassium (1 wt%) was added to the Raney iron precursor (directly after removal of aluminium) by wet impregnation using a KNO3 solution. The sample was then dried in a vacuum oven at room temperature for 12 h.

Characterization

In situ X-ray diffraction (in situ XRD) was carried out on a Rigaku D/max-2600/PC instrument equipped with a D/teX ultrahigh-speed detector and scintillation counter. The X-ray generator consisted of a copper rotating anode with a maximum power of 9 kW. All measurements were carried out at 40 mA and 40 kV. In situ XRD patterns were recorded in an Anton Par XRK-900 cell equipped with a CO/H2/Ar gas inlet system.

Environmental TEM (ETEM) images were recorded in an aberration-corrected FEI Titan ETEM G2 instrument at an acceleration voltage of 300 kV (ref. 38). Syngas was introduced for 1 h under 1,200 Pa at 320 °C as a pretreatment. The carburization temperature was then raised to 350 °C in about 0.5 h, followed by monitoring the sample continuously.

In situ Mössbauer spectroscopy was carried out in an in situ high-pressure cell suitable for Mössbauer spectroscopy39. Transmission 57Fe Mössbauer spectra were collected at −153 °C with a sinusoidal velocity spectrometer using a 57Co(Rh) source. The source and the sample were kept at the same temperature during the measurements. Mosswinn 4.0 software was used for spectra fitting40.

Catalytic activity measurements

In situ carburization of χ-Fe5C2 and Mn-χ-Fe5C2 and FTLAO catalytic activity measurements

A 75 mg amount of Raney iron precursor or manganese/Raney iron precursor, the latter also containing 75 mg of Raney iron, was diluted with 1,500 mg silicon carbide and loaded into a stainless-steel tubular fixed-bed reactor with an external diameter of 14.5 mm, internal diameter of 9 mm, length of 305 mm and total internal volume of 20 ml. An exception was the test in Table 1, row 1, for which 225 mg Raney iron of a manganese-Raney iron precursor was diluted with 4,500 mg silicon carbide to achieve a low SV of 5,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\). The catalyst precursor was in situ carburized in a syngas flow (H2/CO/He = 100/3.2/21.8) while increasing the temperature to 350 °C at a rate of 1 °C min−1, followed by a dwell of 6 h at ambient pressure and an SV of 75,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\). After cooling the reactor to 250 °C (240 °C for the test in Table 1, row 3), the reactor feed was switched to the feed mixture and the reactor pressure was increased to the desired value. The start of the reaction was defined as the time at which these conditions were reached. The reactor was then ramped to the indicated temperature.

For the comparison between χ-Fe5C2 and Mn-χ-Fe5C2 (Table 1, rows 1 and 2), the reaction conditions were as follows: a feed mixture SV of H2/CO/He = 12,000/8,000/8,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\)), a reaction pressure of 2.3 MPa and a reaction temperature of 250 °C. For the evaluation of the Mn-χ-Fe5C2 catalyst under different temperatures and pressures (Fig. 1a–f and rows 3–6 of Table 1), the reaction conditions were as follows: a feed mixture of H2/CO/Ar (internal standard) = 1.5/0.95/0.05 at a total SV of 5,000, 30,000 or 60,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\), a reaction pressure of either 2.5 or 3.0 MPa and a reaction temperature of 250, 290 or 320 °C (heating rate 0.1 °C min−1). For the evaluation of the Mn-χ-Fe5C2 catalyst in Extended Data Table 2, the reaction conditions were as follows: a feed mixture SV of H2/CO = 1.5 at a total SV of 30,000, 60,000, 75,000 or 90,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) with no inert gas added, a reaction pressure of 2.5 MPa and a reaction temperature of 250, 270, 290 or 310 °C (heating rate 0.1 °C min−1). For the evaluation of Mn-χ-Fe5C2 (Extended Data Fig. 5a) and K-χ-Fe5C2 (Extended Data Fig. 3c), the reaction conditions were as follows: a feed mixture SV of H2/CO/He = 36,000/24,000/24,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) or 72,000/48,000/48,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) and a reaction pressure at 2.3 MPa. The reaction temperature was 315 or 325 °C for these measurements (heating rate 0.5 °C min−1). For the long-term test for Mn-χ-Fe5C2 (Extended Data Fig. 5c), the reaction conditions were as follows: a feed mixture SV of H2/CO/He = 60,000/40,000/40,000 ml \({{\rm{g}}}_{{\rm{cat}}}^{-1}\,{{\rm{h}}}^{-1}\) and a reaction pressure at 2.3 MPa. We used a low ramp rate of 2 °C h−1 to avoid overheating issues due to the exothermicity of the reaction. Therefore, it took 35 h to raise the temperature from 250 °C to 320 °C.

The effluent gas flow was analysed by an online Agilent 7890 gas chromatograph equipped with two thermal conductivity detectors and one flame ionization detector. Each result was acquired from a single experiment. All of the SVs are calculated on the basis of the weight of the Raney iron catalyst precursor without a promoter or silicon carbide diluent.

The CO conversion and product selectivity were calculated as below.

The CO conversion (\({X}_{{\rm{CO}}}\)) was calculated by

$${X}_{{\rm{CO}}}=\frac{{{\rm{CO}}}_{{\rm{inlet}}}-{{\rm{CO}}}_{{\rm{outlet}}}}{{{\rm{CO}}}_{{\rm{inlet}}}}\times 100 \% $$
(1)

The CO2 selectivity (\({S}_{{{\rm{CO}}}_{2}}\)) was calculated by

$${S}_{{{\rm{CO}}}_{2}}=\frac{{{\rm{CO}}}_{{2}_{{\rm{outlet}}}}}{{{\rm{CO}}}_{{\rm{inlet}}}-{{\rm{CO}}}_{{\rm{outlet}}}}\times 100 \% $$
(2)

The carbon-based hydrocarbon selectivity (\({S}_{{{\rm{C}}}_{x}{{\rm{H}}}_{y}}\)) was calculated by

$${S}_{{{\rm{C}}}_{x}{{\rm{H}}}_{y}}=\frac{{x{{\rm{C}}}_{x}{{\rm{H}}}_{y}}_{{\rm{outlet}}}}{{{\rm{CO}}}_{{\rm{inlet}}}-{{\rm{CO}}}_{{\rm{outlet}}}}\times 100 \% $$
(3)

The indicated parameters represent the inlet and outlet molar flows determined.

The CO catalyst time yield (\({{\rm{CTY}}}_{{\rm{CO}}}\)) was calculated by

$${{\rm{CTY}}}_{{\rm{CO}}}=\frac{{{X}_{{\rm{CO}}}\times {\rm{CO}}}_{{\rm{inlet}}}}{\mathrm{22,400}\,({\rm{ml}}\,{{\rm{mol}}}^{-1})\times \mathrm{3,600}\,({\rm{s}}\,{{\rm{h}}}^{-1})}$$
(4)

The carbon-based hydrocarbon catalyst time yield (\({{\rm{CTY}}}_{{{\rm{C}}}_{x}{{\rm{H}}}_{y}}\)) was calculated by

$${{\rm{CTY}}}_{{{\rm{C}}}_{x}{{\rm{H}}}_{y}}={{\rm{CTY}}}_{{\rm{CO}}}\times {S}_{{{\rm{C}}}_{x}{{\rm{H}}}_{y}}$$
(5)

The experimental chain-growth probability was calculated by the ASF distribution as follows

$${\rm{ln}}\left(\frac{{W}_{n}}{n}\right)=n{\rm{ln}}\alpha +{\rm{ln}}[{\left(1-\alpha \right)}^{2}/{\alpha }]$$
(6)

in which n is the number of carbon atoms in a particular hydrocarbon product, Wn is the weight fraction of a product with n number of carbon atoms and α is the chain-growth probability.

Theoretical modelling

Density functional theory calculations

Density functional theory (DFT) calculations were carried out to obtain the energetics for elementary reaction steps relevant to the FT reaction on χ-Fe5C2. All spin-polarized DFT calculations were conducted using the projector augmented-wave method and the Perdew–Burke–Ernzerhof functional, as implemented in the Vienna ab initio simulation package code. Solutions of the Kohn–Sham equations were obtained using a basis set of plane waves with a cutoff energy of 400 eV. Sampling of the Brillouin zone was carried out using a 5 × 5 × 1 k-point mesh. Higher cutoff energies or a finer Brillouin zone sampling did not lead to substantial energy differences. All atoms were allowed to relax during the optimization of the empty surfaces. We used a 2 × 2 × 1 unit cell for the (100) surface, containing 80 iron and 32 carbon atoms, with a layer thickness of 10.31 Å. A vacuum layer of 15 Å was added perpendicular to the surface to avoid spurious interactions between neighbouring images. Adsorption of atoms and molecules was carried out on the top side of the slab, whereas the lower half was frozen. A dipole correction was carried out for all adsorbed states. Further technical details such as Vienna ab initio simulation package settings for these iron carbide calculations are described elsewhere23. The adsorption energies of the gas-phase molecules were determined by subtracting the energies of the empty surface and the free adsorbate from the adsorbed state. The energy of the adsorbate in the gas phase was obtained by placing a molecule at the centre of a 10 × 10 × 10 Å3 unit cell, using the Γ-point for k-point sampling. Transition states were acquired using the nudged elastic band method41. A frequency analysis was carried out to confirm that all transition geometries correspond to a first-order saddle point on the potential energy surface with an imaginary frequency in the direction of the reaction coordinate. The corresponding normal-mode vibrations were also used to calculate the zero-point energy correction. We also corrected the barriers for the migration of fragments after dissociation by considering the energy difference of the geometry directly after dissociation and their most stable adsorption positions at infinite distance.

We carried out DFT calculations to determine the energetics of elementary reaction steps of the conversion of synthesis gas into hydrocarbons (methane, olefins and paraffins) and CO2 and H2O. The energy barriers and their corresponding pre-exponential factors are listed in Extended Data Table 1. The (100) surface of χ-Fe5C2 was selected, because this surface is a stable surface termination of Hägg carbide and also allows for facile C–O bond dissociation, which is an essential step in the FT reaction42. Extended Data Table 1 shows forward and backward activation energies and the corresponding pre-exponential factors for the consecutive hydrogenation steps of adsorbed carbon to methane and the removal of oxygen as H2O and CO2. Extended Data Table 1 shows forward and backward activation energies and the corresponding pre-exponential factors for the C–C coupling reactions and the hydrogenation to ethylene and ethane.

Microkinetics modelling

For the construction of the microkinetic model of the FT reaction, differential equations for all reaction intermediates on the catalytic surface were constructed using the rate constants of all considered elementary reaction steps. Herein, we assumed that all adsorbates occupy one active site. For adsorption, we assumed that the adsorbate loses one translational degree of freedom in the transition state with respect to the initial state. For desorption, we assumed that the species gains two translational degrees of freedom and three rotational degrees of freedom in the transition state with respect to the initial state. From these two assumptions, the rate of adsorption and desorption are as follows:

$${k}_{{\rm{ads}}}=\frac{P\times A}{\sqrt{2{\rm{\pi }}\times m\times {k}_{{\rm{B}}}\times T}}$$
(7)
$${k}_{{\rm{des}}}=\frac{{k}_{{\rm{B}}}\times {T}^{3}}{{h}^{3}}\times \frac{A\times \left(2{\rm{\pi }}\times m\times {k}_{{\rm{B}}}\right)}{\sigma {\theta }_{{\rm{rot}}}}\times {{\rm{e}}}^{\frac{{E}_{{\rm{des}}}}{RT}}$$
(8)

Herein, \({k}_{{\rm{ads}}}\) is the rate constant for the adsorption of the adsorbate, P is the pressure in pascals, A is surface area in square metres, m is the mass of the reactant in kilograms, kB is the Boltzmann constant in joules per kelvin, T is the temperature in kelvin, \({k}_{{\rm{des}}}\) is the rate constant for the desorption of the adsorbate, h is the Planck constant in joules multiplied by seconds, \(\sigma \) is the symmetry number, \({\theta }_{{\rm{rot}}}\) the rotational temperature in kelvin, Edes is the desorption energy in joules per mole, and R is the gas constant in joules per kelvin per mole.

The rate constant (k) of an elementary reaction step was determined using the Eyring equation, which is defined as follows:

$$k=v{\text{exp}}^{\left(\frac{-{E}_{{\rm{act}}}}{{k}_{{\rm{B}}}T}\right)}$$
(9)

in which \({E}_{{\rm{act}}}\) is activation energy in joules per mole, kB the Boltzmann constant, T the temperature in kelvin, and \(v\) the pre-exponential factor in the unit of per second. Pre-exponential factors for the forward and backward reactions can be obtained using:

$${v}_{{\rm{forward}}}=\frac{{k}_{{\rm{B}}}T}{h}\left(\frac{{q}_{{\rm{vib}}}^{{\rm{TS}}}}{{q}_{{\rm{vib}}}^{{\rm{IS}}}}\right)$$
(10)

and

$${v}_{{\rm{backward}}}=\frac{{k}_{{\rm{B}}}T}{h}\left(\frac{{q}_{{\rm{vib}}}^{{\rm{TS}}}}{{q}_{{\rm{vib}}}^{{\rm{FS}}}}\right)$$
(11)

in which \({v}_{{\rm{forward}}}\) and \({v}_{{\rm{backward}}}\) refer to the pre-exponential factors for the forward and the backward reaction, respectively, qvib is the vibrational partition function of the initial state (IS) and the transition state (TS), and h is Planck’s constant.

All microkinetic simulations were carried out using the MKMCXX software suite43. The set of differential equations were time-integrated using the backward differentiation formula method until a steady-state solution was obtained. From the steady-state coverages, the rates of the individual elementary reactions steps were obtained using a flux analysis, as implemented in the MKMCXX software. To mimic experimental conditions, the pressure was set to 0.1 MPa over a temperature range between 510 K and 545 K. We adopted a continuously stirred tank reactor with ideal mixing using an SV chosen to obtain differential conditions over the whole temperature range. The H2/CO ratio was kept constant at 2:1. Chain growth was considered by involving coupling of two CHx adsorbates. Chain growth for hydrocarbon chains up to 20 carbon atoms was considered by treating the growing chain as CR, in which R = alkyl chain and considering that barriers for chain growth are independent of chain length. Adsorption energies of C2 and C3 intermediates were taken into account explicitly, whereas those of hydrocarbon fragments with more than three carbon atoms were taken to be equal to those of C3 intermediates. Proper entropy corrections were made depending on the chain length of the hydrocarbons.

The chain-growth probability was determined from the ASF distribution by considering hydrocarbon products containing 1–20 carbon atoms:

$${\alpha }=\frac{{r}_{{\rm{p}}}}{{r}_{{\rm{p}}}+{r}_{{\rm{t}}}}\cong \exp \left(\frac{{\rm{d}}{\rm{ln}}{F}_{{{\rm{C}}}_{n}}^{{\rm{out}}}}{{\rm{d}}n}\right)$$
(12)

Herein, the chain-growth probability is defined as the rate of propagation (\({r}_{{\rm{p}}}\)) over the sum of the rates of propagation and termination (\({r}_{{\rm{t}}}\)). \({F}_{{{\rm{C}}}_{n}}^{{\rm{out}}}\) corresponds to the flow rate of \({C}_{n}\) in the experiment. This involved simulating the corresponding chain-growth probability (α) and C2 selectivity within the ASF distribution shown in Extended Data Fig. 2.

Results of microkinetic simulations

Extended Data Fig. 1a shows the CO conversion rate and formation rates of CH4 (C1) and longer hydrocarbons (C2+) for the (100) surface of χ-Fe5C2 as a function of temperature. As expected, the rates exponentially increase with temperature owing to the Arrhenius dependence of the reaction rate constants. The CO conversion rate is in the same range as experimentally observed for iron carbide catalysts42,44. The selectivity towards CH4 is lower than the total selectivity towards other hydrocarbons, which is important because CH4 has a much lower value than higher hydrocarbons. Extended Data Fig. 2a shows the hydrocarbon product distribution, which indicates that, except for C1 and C2, the longer hydrocarbons are statistically distributed according to the ASF theory. The parameter describing this distribution is the chain-growth probability and its temperature dependence is shown in Extended Data Fig. 2b. This parameter reflects the statistical nature of the growth process in which hydrocarbons can either grow by addition of a C1 monomer or desorb as a product. The decrease with temperature shows that termination as products has a higher overall activation energy than chain growth. The value of about 0.5 is slightly lower than experimentally observed in our study. Extended Data Fig. 2c shows the simulated O/P ratio to be around 3.0 with a minor dependence on temperature. These data show that both olefins and paraffins are formed as primary products. The O/P values are in the same range as experimentally observed, namely about 1.5 for the unpromoted catalyst and about 3.6 for the manganese-promoted catalyst. Extended Data Fig. 1b demonstrates that oxygen atoms originating from CO dissociation are predominantly removed as H2O, instead of CO2. These findings provide an explanation for the low CO2 selectivity observed in our experimental study in which a pure χ-Fe5C2 catalyst was used. In other studies in which the catalyst precursor is not completely converted to χ-Fe5C2, competing phases often include iron oxides, which are known as good catalysts for the (reverse) water–gas shift reaction.

The computational predictions in Extended Data Table 1 show that, on χ-Fe5C2, the overall barrier for H2O formation (155 kJ mol−1) is lower than the barrier for CO2 formation (181 kJ mol−1). This implies that H2O formation is preferred on χ-Fe5C2 over CO2 formation as the oxygen removal step. To verify this prediction based on the overall energy barrier under reaction conditions, we used microkinetic simulations based on DFT-based reaction energetics and found that oxygen removal reactions proceed primarily through the formation of H2O (99.4% at 525 K) instead of CO2 (0.6% at 525 K; Extended Data Fig. 1c). These simulations showing a very low CO2 selectivity pertain to the zero-conversion limit and, thus, represent so-called primary CO2 production. The microkinetic simulations also provide a deeper insight into the reaction mechanism including the interplay between the surface intermediates. In Extended Data Fig. 1d we show that, in addition to CO dissociation, oxygen removal and carbon hydrogenation (as part of the chain-growth mechanism) control the overall reaction rate. These findings are in keeping with the periodic trends predicted in previous work43.

Rietveld refinement XRD patterns

The results of Rietveld refinement of the XRD patterns using the Fullprof software are shown in Extended Data Fig. 7g. Rietveld refinement confirmed the phase purity of χ-Fe5C2 (no substantial contribution of other phases) with a goodness of fit of χ2 = 7.58%, Rp = 18.7%, Rwp = 15.3% and Rexp = 5.6%. The space group and lattice parameters listed in Extended Data Fig. 7g are in good agreement with published data for χ-Fe5C2 (ref. 45). The atomic positions of the specific sites for the χ-Fe5C2 structure are listed in Extended Data Fig. 7h. Note that the data were acquired in an in situ XRD reaction chamber under a nitrogen flow after obtaining the χ-Fe5C2 particles through the described synthesis method.
