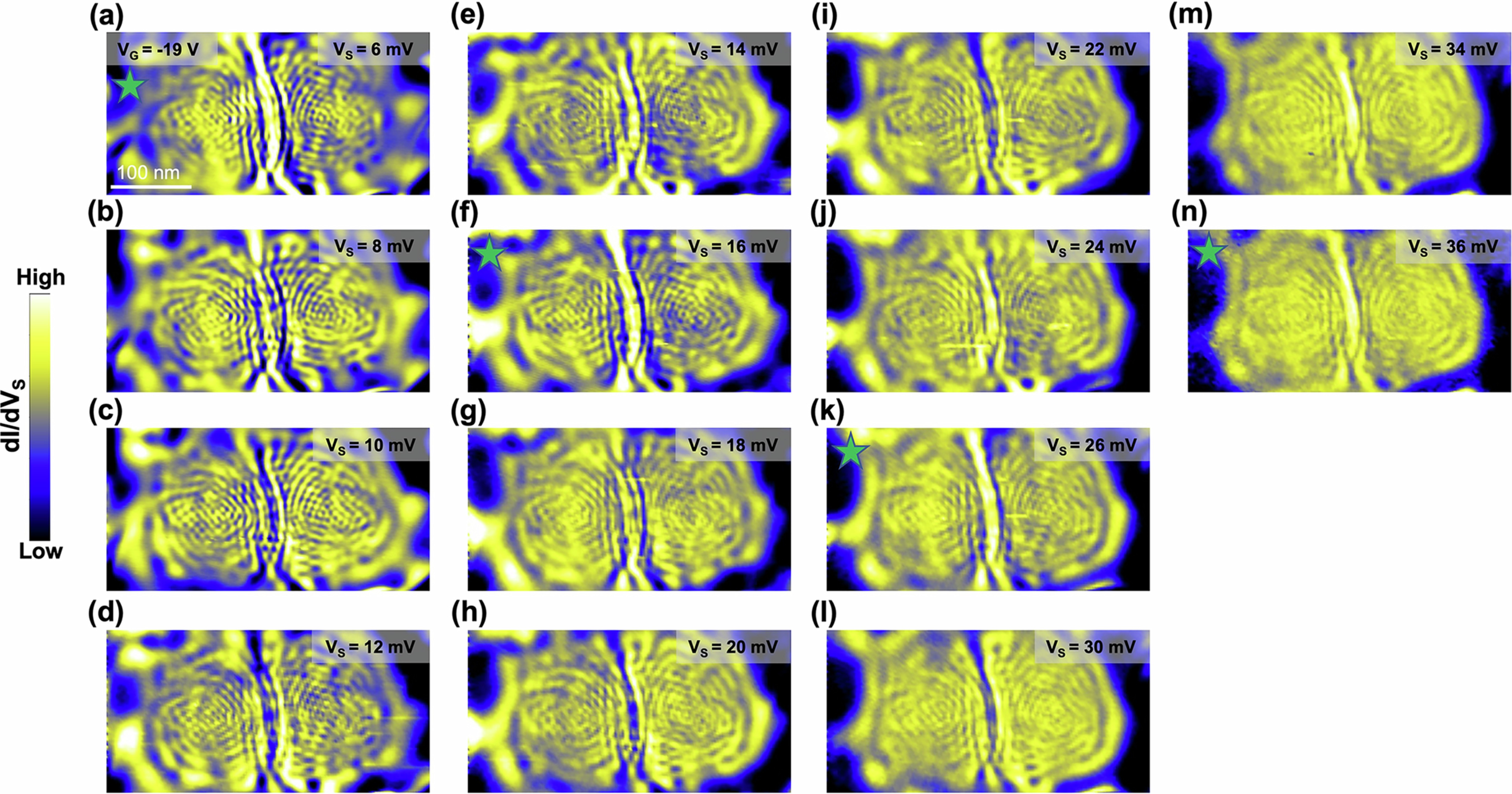

Extended Data Fig. 3: Extended dI/dVS map data at VG = −19 V from VS = 6 mV to 36 mV.
From: Direct visualization of relativistic quantum scars in graphene quantum dots
a-n, dI/dVS maps measured at VG = −19 V with different applied VS for the same in-situ created GQD shown in Fig. 3. The applied VS is shown at the top right corner of each dI/dVS map. A 2 mV ac modulation was used to acquire the dI/dVS maps. The green star marks the dI/dVS maps that show a streak-like pattern with enhanced dI/dVS intensity. Panels a–f, k and n adapted from ref. 50 under a Creative Commons licence CC BY 4.0.
