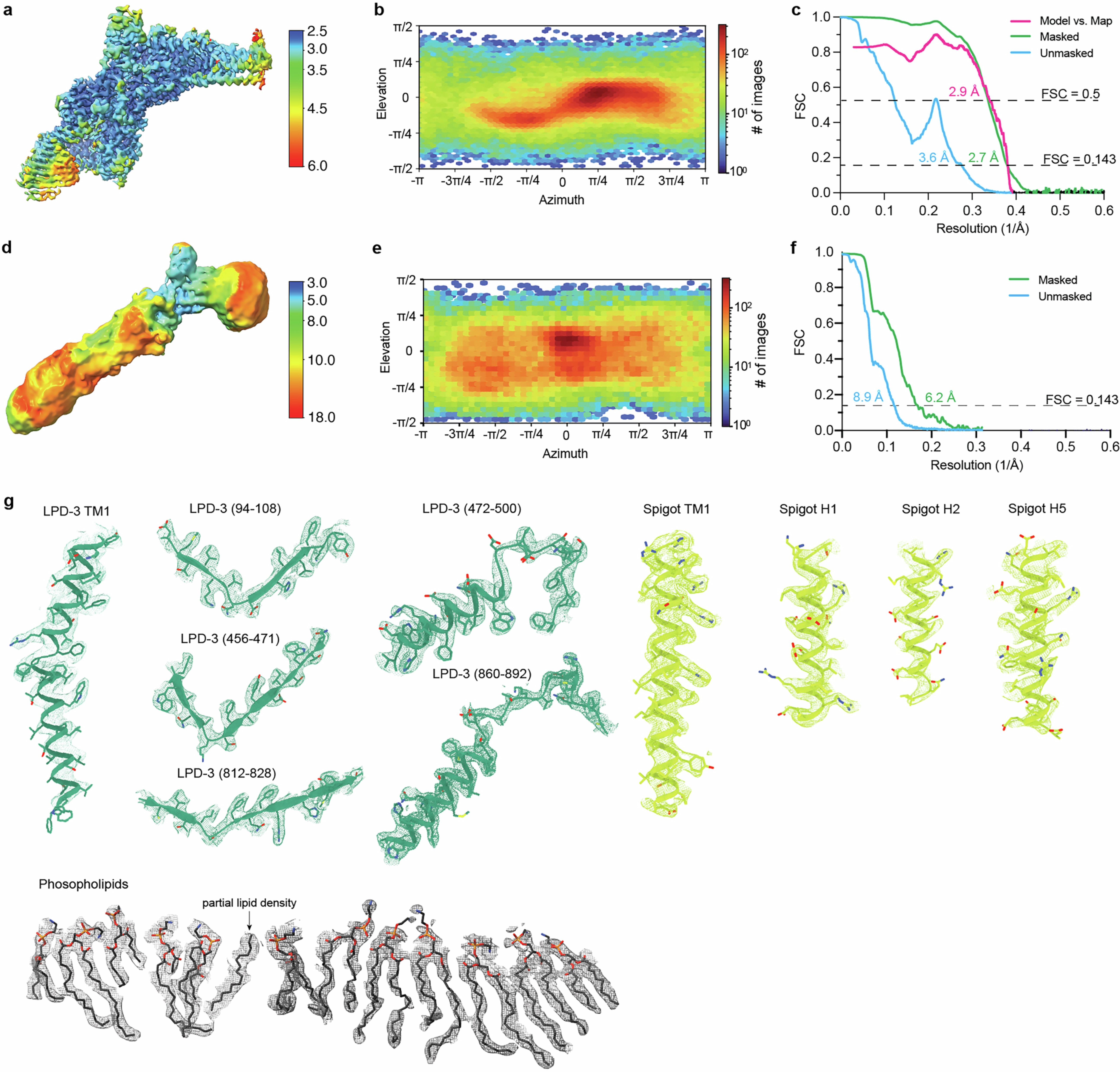

Extended Data Fig. 5: Cryo-EM statistics, angular distributions, and selected sections of density maps.
From: Structural basis of lipid transfer by a bridge-like lipid-transfer protein
a, N-terminal cryo-EM density map coloured by local resolution values. b, Angular distributions of the final N-terminal reconstruction. c, Fourier shell correlations (FSEC) curves for the N-terminal map and model. d, Full-length cryo-EM density map coloured by local resolution values. e, Angular distributions of the final full-length reconstruction. f, Fourier shell correlations (FSEC) curves for the full-length map and model. g, Fragments of cryo-EM density map and atomic model of LPD-3, Spigot, and phospholipid molecules in the tunnel. The cryo-EM maps are shown as mesh.
