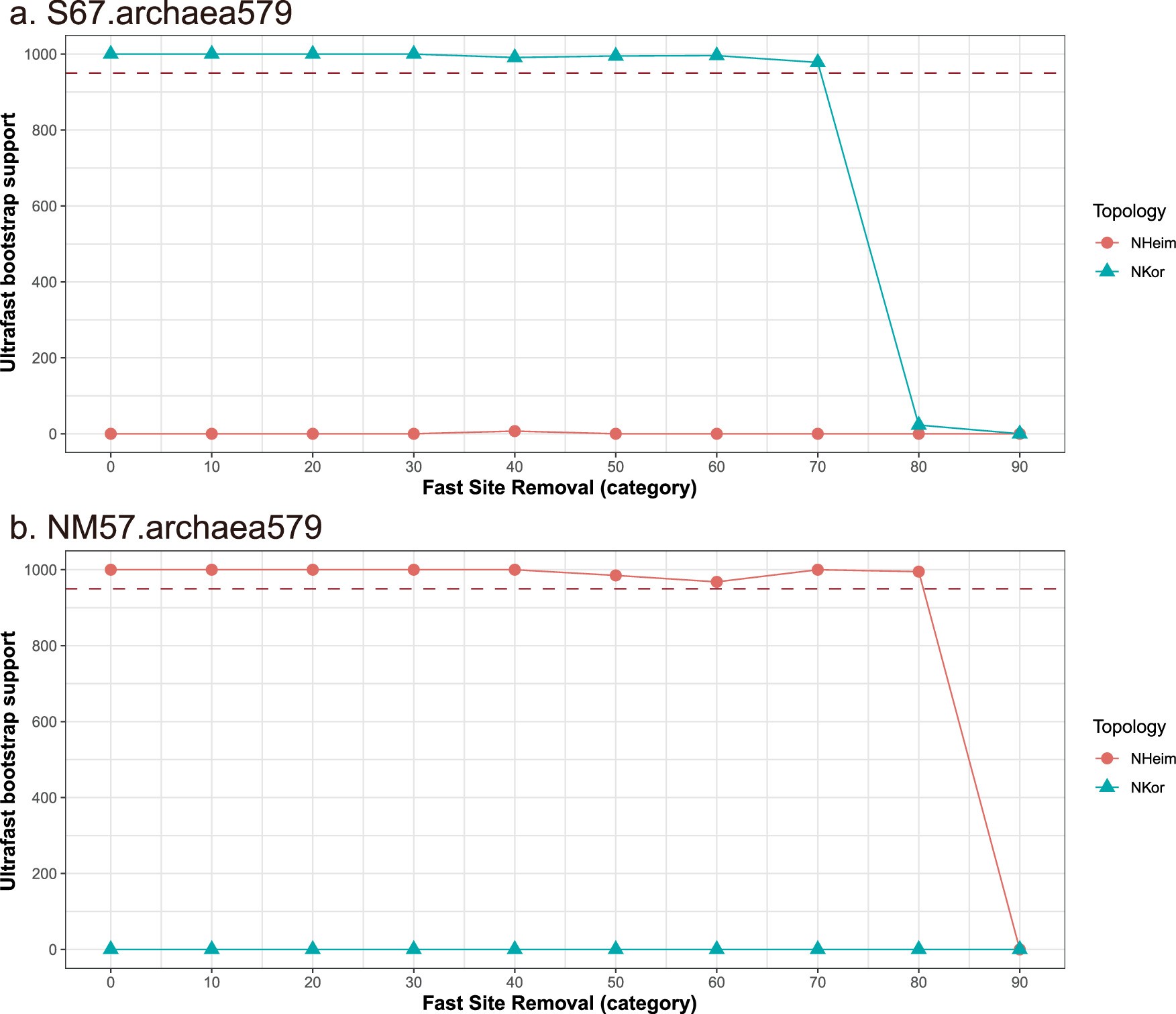

Extended Data Fig. 2: Evolution of ultrafast bootstrap support for either the monophyly of Njordarchaeales and Heimdallarchaeia (NHeim, red line) or the monophyly of Njordarchaeales and Korarchaeia (NKor, blue line). | Nature

Extended Data Fig. 2: Evolution of ultrafast bootstrap support for either the monophyly of Njordarchaeales and Heimdallarchaeia (NHeim, red line) or the monophyly of Njordarchaeales and Korarchaeia (NKor, blue line).

From: Deep origin of eukaryotes outside Heimdallarchaeia within Asgardarchaeota

Extended Data Fig. 2

The bootstrap values were obtained from phylogenomic trees inferred from the S67 (a) and NM57 (b) datasets, based on 579 archaeal taxa, with the fastest-evolving sites progressively removed. The trees were inferred using IQ-TREE under the LG + C60 + F + G + PMSF model.
