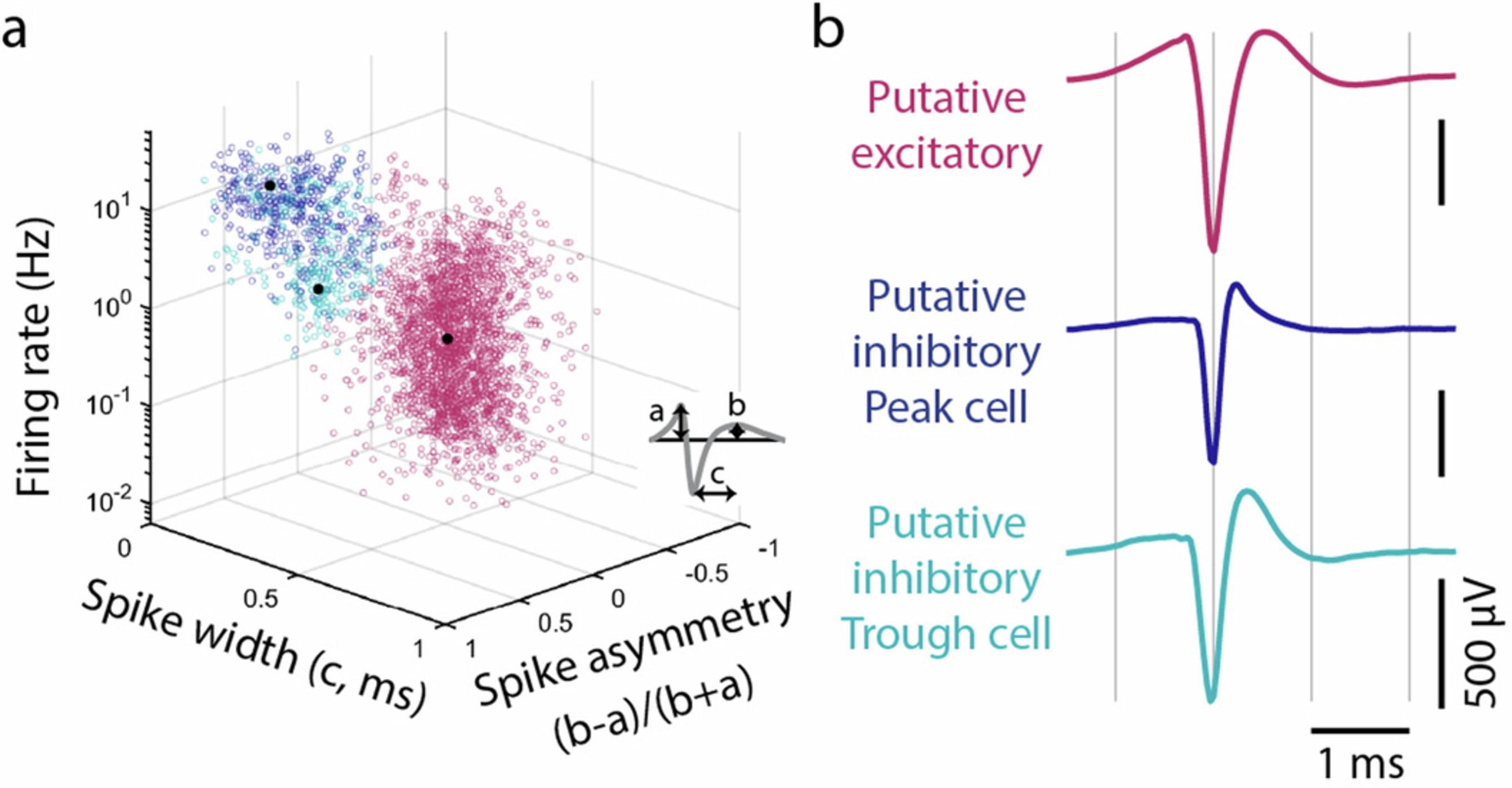

Extended Data Fig. 9: Classification of cell types in the chickadee hippocampus.
From: Remote activation of place codes by gaze in a highly visual animal
(a) All recorded units plotted according to their mean firing rate across the session and two features of spike waveforms shown in the diagram. These measurements separate putative excitatory (pink) from putative inhibitory (blue and teal) cells. Inhibitory cells are further classified by their responses during saccades (Fig. 4) into Peak (blue) and Trough (teal) types; these types show some systematic differences in firing rate and spike waveforms. (b) Average spike waveforms of three example cells, one from each of the categories shown in (a).
