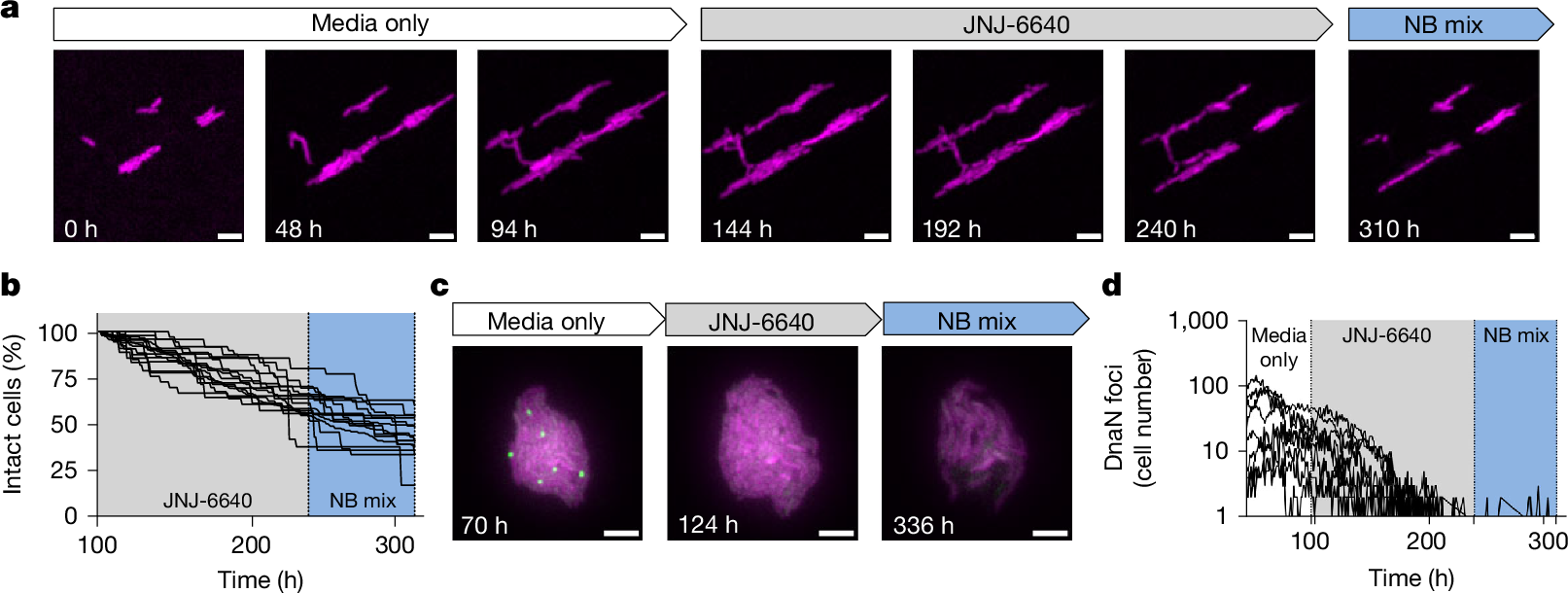

Fig. 3: M. tuberculosis single-cell analysis of PurF inhibition.
From: Targeting de novo purine biosynthesis for tuberculosis treatment
