Extended Data Fig. 4: Small-angle band structures for M-point moiré SnSe2 and ZrS2.

From: Moiré materials based on M-point twisting

Extended Data Fig. 4

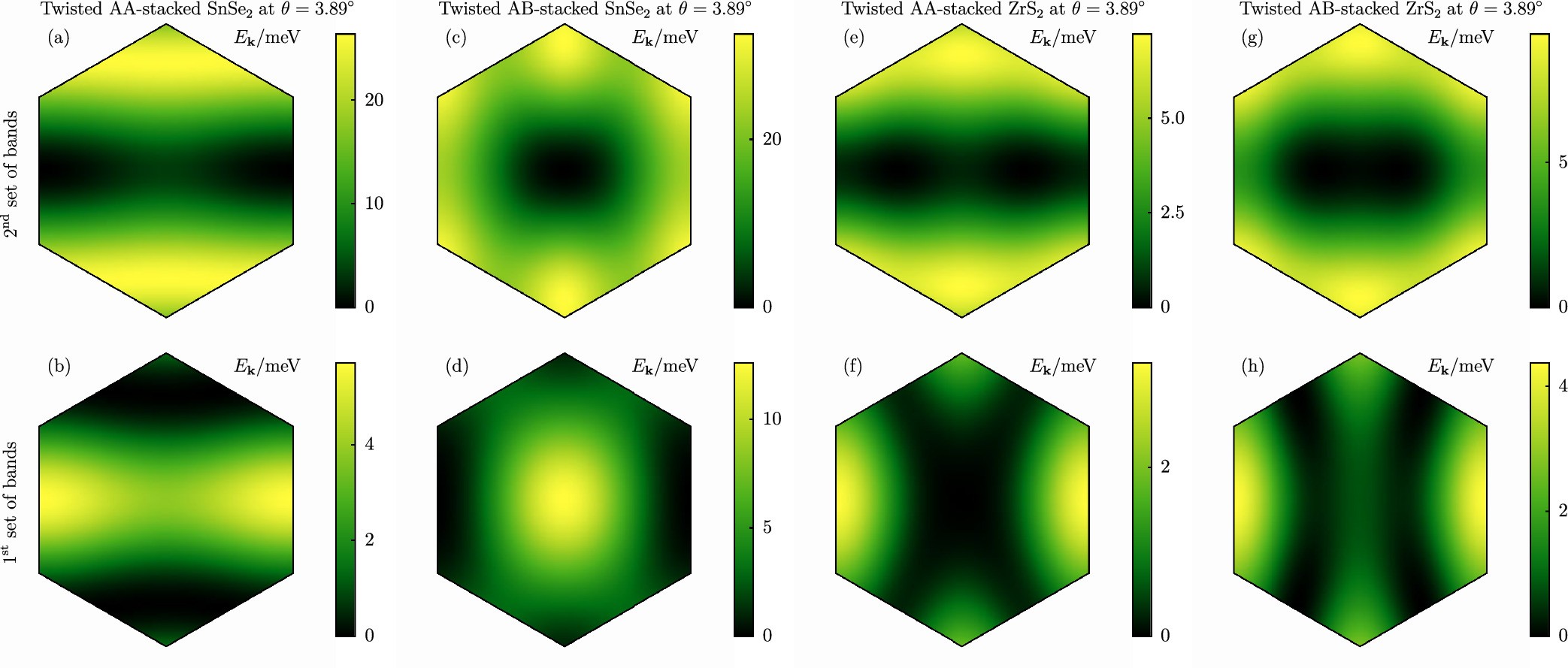

a–d, Results for SnSe2. e–h, Results for ZrS2. Each panel shows the dispersion of a gapped set of conduction bands in valley η = 0 across the first moiré BZ from Fig. 4b, with the band minimum set to zero for clarity. Columns represent different stacking configurations (AA-stacked and AB-stacked) and different monolayers and rows show either the first or the second set of conduction bands. For each band, the results are averaged over the two approximately SU(2)-degenerate bands.
