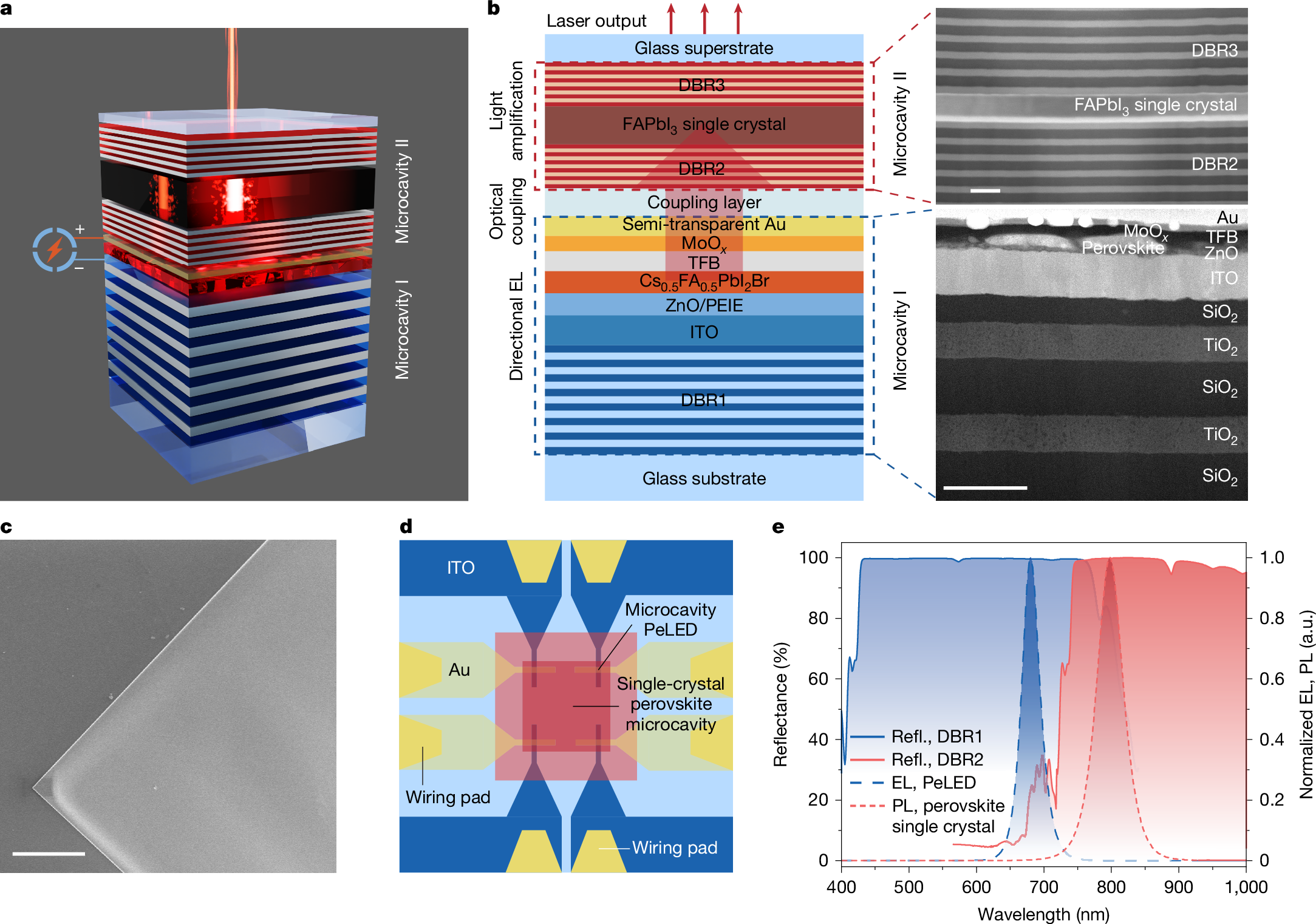

Fig. 1: Structure and basic optical properties of the integrated dual-cavity perovskite laser.
From: Electrically driven lasing from a dual-cavity perovskite device
