Metal halide perovskites are an emerging class of semiconductors11,12 combining remarkable optoelectronic properties with cost-effective solution processability. Apart from the rapid advances in solar cells13,14,15 and LEDs16,17,18,19,20,21,22, the unique attributes of high gain coefficients, long carrier lifetimes and tunable emission wavelengths have made perovskites excellent optical gain media for lasing applications1,2,3,4,5,6,7,8. Room-temperature, continuous wave lasing from perovskite semiconductors was demonstrated under optical pumping4,23,24,25,26, highlighting the promising progress in the field.

The success of conventional semiconductor lasers builds on the ability of electrically driving the lasing action27,28,29, allowing them to be easily integrated with a range of optoelectronic device platforms. However, for halide perovskites, the realization of electrically driven lasing remains a great challenge because of the inability to achieve intense electrical injection into high-quality perovskite resonant cavities. High currents can lead to severe material degradation and efficiency roll-off, whereas standard optical cavity designs are poorly compatible with the perovskite device architectures30,31,32,33.

In this work, we demonstrate electrically driven lasing from a dual-cavity perovskite device, which integrates a low-threshold perovskite single-crystal microcavity sub-unit with a high-power microcavity PeLED sub-unit to form a vertically stacked multi-layer structure. Under pulsed electrical excitation, the dual-cavity perovskite device shows a low lasing threshold of about 92 A cm−2 (at around 22 °C, in air), which is about 30 times lower than that recently reported for electrically driven integrated organic lasers (with a threshold of about 2.8 kA cm−2) (ref. 10). The dual-cavity device architecture is essential for this demonstration. It allows the microcavity PeLED sub-unit to deliver concentrated optical power into the single-crystal perovskite microcavity sub-unit (at an inter-cavity optical coupling efficiency of 82.7%) to support the lasing action. The laser device shows an operational half-life (T50) of 1.8 h (6.4 × 104 voltage pulses at 10 Hz), exhibiting improved durability compared with electrically driven organic lasers9,10. The dual-cavity perovskite laser can be rapidly modulated at a bandwidth of 36.2 MHz, indicating its possible applications in data transmission and computation.

Structure of the integrated dual-cavity perovskite laser

The structure of the integrated dual-cavity device is shown in Fig. 1a. The two sub-units, each containing a microcavity, were heterogeneously integrated to form a multi-layer device stack. During device operation, the directional electroluminescence (EL) from the PeLED in the first microcavity (microcavity I) is absorbed by a perovskite single crystal in the second microcavity (microcavity II), which supports light amplification (Fig. 1a,b). The microcavity PeLED sub-unit has a structure of glass/distributed Bragg reflector (DBR)/indium tin oxide (ITO)/ZnO/polyethyleneimine ethoxylated (PEIE)/Cs0.5FA0.5PbI2Br perovskite/poly(9,9-dioctyl-fluorene-co-n-(4-butylphenyl) diphenylamine) (TFB)/MoOx/Au (Fig. 1b). The DBR (DBR1) consists of alternating layers of SiO2/TiO2, featuring a high reflectance (>99%) at about 680 nm. The Au electrode is about 20-nm thick, showing semi-transparency with an optical reflectance of 45% at 680 nm (Supplementary Fig. 1). The cavity mode at around 680 nm can be supported by microcavity I (Supplementary Note 1). The perovskite single-crystal microcavity (microcavity II) was constructed by high-quality FAPbI3 perovskite single crystals embedded in two high-reflectance (>98% at around 800 nm) DBRs (DBR2 and DBR3) (Fig. 1b). The typical size of the crystals is about 0.08 mm2 (0.29 mm × 0.27 mm) (Supplementary Fig. 2). The perovskite single crystals were grown in situ between the DBRs through space-confined inverse-temperature crystallization34,35,36,37 (Extended Data Fig. 1a) (Methods). The thickness of the single crystals can be controlled by the height of the gold spacer between the two DBRs34,35, and was optimized to be approximately 180 nm. Scanning electron microscopy (SEM) images of the single crystals show a uniform surface morphology (Fig. 1c and Extended Data Fig. 1b). The root-mean-square roughness of the samples is about 0.7 nm (Extended Data Fig. 1c). Two-dimensional (2D) X-ray diffraction (XRD) results of the FAPbI3 single crystals exhibit high crystallinity (Extended Data Fig. 2a). The XRD patterns of the FAPbI3 crystals show two sharp diffraction peaks corresponding to the (200) and (400) planes (Extended Data Fig. 2b), indicating that the perovskite is of cubic phase36. The single-crystal samples show sharper and fewer XRD peaks compared with the polycrystalline films with a similar composition, consistent with the higher crystallinity of the samples37.

Fig. 1: Structure and basic optical properties of the integrated dual-cavity perovskite laser.
figure 1

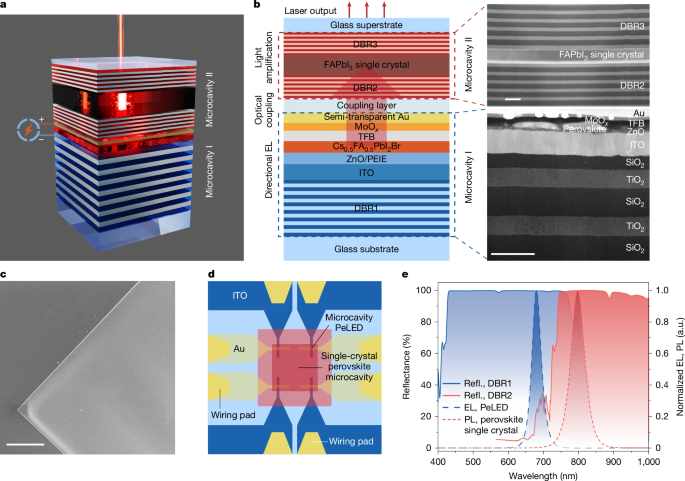

a, Schematic of the device. b, A cross-sectional schematic of the device structure (left), and high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) images of a device (layer thicknesses unoptimized) (right). See Methods for detailed fabrication processes. c, A top-view SEM image of an FAPbI3 single crystal used in microcavity II. d, A schematic top view of the device. The Au and ITO electrodes are the anode and cathode, respectively. e, Reflection spectra of DBR1 in microcavity I and DBR2 in microcavity II, together with the EL spectrum of the Cs0.5FA0.5PbI2Br microcavity PeLED and the PL spectrum of the FAPbI3 single crystal. Refl., refelction; a.u., arbitrary units. Scale bars, 400 nm (b, top right); 200 nm (b, bottom right); 10 μm (c).

Full size image

To improve the optical power density of the microcavity PeLED sub-unit, small active areas of down to 0.02 mm2 (determined by the overlapping area of the ITO and Au electrodes) are used (Fig. 1d). Tapered electrodes are employed to allow good electrical conduction. The EL of the microcavity Cs0.5FA0.5PbI2Br PeLED sub-unit and the photoluminescence (PL) of the FAPbI3 single crystals (without optical cavities) show spectral peaks at around 680 nm and 790 nm, respectively (Fig. 1e). The DBR paired with the semi-transparent gold electrode to form microcavity I (DBR1) exhibits high reflectance (>99%) from 450 nm to 750 nm. The bottom DBR in microcavity II (DBR2) shows high reflectance (>98%) at 750–1,000 nm and high transmittance (>90%) for wavelengths shorter than 680 nm. The top DBR in microcavity II (DBR3) features high reflectance (>98%) at 620–870 nm in optimized devices (Supplementary Fig. 3). It prevents the residual emission of microcavity I (the part that is not fully absorbed by the perovskite single crystals) from escaping from the top surface of the dual-cavity device. This dual-cavity configuration allows the emission from microcavity I to be coupled with microcavity II, providing the optical power and feedback mechanism, which enable lasing from the FAPbI3 single crystal.

High-power microcavity PeLED sub-unit

Reducing the active area of the microcavity PeLED sub-unit (microcavity I) from 5.25 mm2 to 0.02 mm2 is beneficial for suppressing the EL efficiency roll-off at high current densities (Fig. 2a), leading to a high radiant exitance of up to about 868 mW cm−2 under d.c. operation (Fig. 2b,c), corresponding to a high equivalent radiance of 7,032 W sr−1 m−2. The reasonably uniform EL intensity profile of the active area indicates the limited influence of current funnelling effects arising from narrow current pathways (Supplementary Fig. 4). Under pulsed operation (with a pulse duration of 1 μs and a repetition rate of 100 Hz; Extended Data Fig. 3), the microcavity PeLED sub-unit could stand current densities of up to 2.5 kA cm−2 before device breakdown (Fig. 2d), resulting in a maximum radiant exitance of around 2.51 × 104 mW cm−2 (about 25.1 W cm−2) from the PeLED sub-unit (Fig. 2e). This corresponds to a maximum equivalent radiance of 2.03 × 105 W sr−1 m−2, placing it among PeLEDs with the highest output power density6,38.

Fig. 2: Characteristics of the microcavity PeLED sub-unit.
figure 2

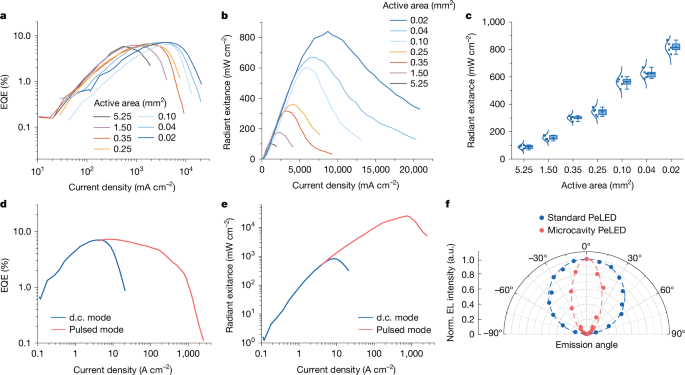

a, EQE as a function of current density under d.c. operation. b, Radiant exitance as a function of current density under d.c. operation. c, Radiant exitance as a function of device area. The blue curves are the Gaussian fits to the data (five samples for each type). The horizontal lines in the box plots represent the 25th percentile, the median and the 75th percentile (from bottom to top). The bottom and top whiskers mark the 5th and 95th percentiles, respectively. The active area of each device is defined by the overlapping region of the ITO and Au electrodes (the width of ITO times the width of Au). The device areas tested were 5.25 mm2 (3.5 mm × 1.5 mm), 1.5 mm2 (1.5 mm × 1.0 mm), 0.35 mm2 (1 mm × 0.35 mm), 0.25 mm2 (0.5 mm × 0.5 mm), 0.1 mm2 (0.5 mm × 0.2 mm), 0.04 mm2 (0.2 mm × 0.2 mm) and 0.02 mm2 (0.14 mm × 0.14 mm). d, EQE–current density data of a microcavity PeLED (0.02 mm2) under d.c. and pulsed operation. e, Radiant exitance–current density data of a microcavity PeLED (0.02 mm2) under d.c. and pulsed operation. f, Angular emission intensity profiles of standard and microcavity PeLEDs.

Full size image

The microcavity top-emission PeLEDs show similar EQE and radiant exitance compared with standard bottom-emission PeLEDs prepared using identical emissive and charge-transport materials (Extended Data Fig. 4). However, in contrast to standard PeLEDs with an output optical power distribution following the Lambertian profile, microcavity PeLEDs show a clear angular dependence of the cavity mode and are capable of delivering more convergent emission from microcavity I to microcavity II (Fig. 2f and Extended Data Fig. 5). The use of the microcavity PeLED sub-unit for the effective coupling of optical power into the second cavity is a key design consideration that has enabled lasing, as we discuss below.

Electrically driven dual-cavity perovskite laser

The dual-cavity perovskite device was driven by electrical pulses under room temperature in air (about 22 °C, about 50% relative humidity), with the emission spectra at different current densities recorded (Fig. 3a). At lower current densities of 56–85 A cm−2, the device produced relatively weak emission with broad spectra corresponding to the cavity mode of the single-crystal perovskite microcavity. As the current density increased to about 119 A cm−2, a narrow emission peak at around 803 nm emerged. The output light intensity of the dual-cavity device as a function of the pulsed current density is shown in Fig. 3b. The emission intensity increased sharply as the current density rose over a threshold of approximately 92 A cm−2. At the same time, linewidth narrowing from about 1.03 nm to 0.44 nm across the threshold was observed (Fig. 3b).

Fig. 3: Characterization of electrically driven dual-cavity perovskite lasers.
figure 3

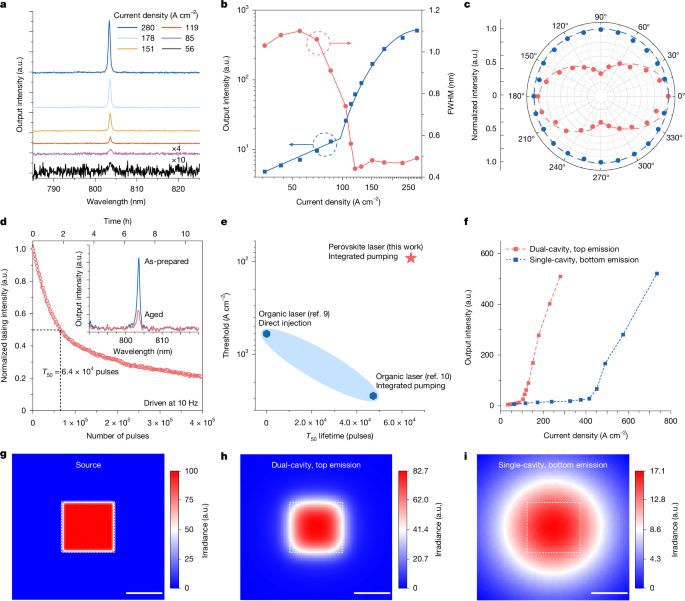

Measured in air (temperature about 22 °C and relative humidity about 50%). a, Emission spectra of the perovskite laser driven at different current densities. The intensities of the emission spectra at 56 A cm−2 and 85 A cm−2 (below threshold) are magnified by 10 and 4 times, respectively. b, Output intensity and the spectral FWHM compared with current density. c, Polarization plot of a dual-cavity perovskite laser driven at a current density of 280 A cm−2 (above threshold, red) and 56 A cm−2 (below threshold, blue). d, Operational stability test of an electrically driven dual-cavity perovskite laser (peak current density 163 A cm−2, pulse width 1 μs and repetition rate 10 Hz). The inset shows the emission spectra of as-prepared (fresh) and aged devices. e, Thresholds and operational lifetimes of our electrically driven perovskite laser compared with the state-of-the-art electrically driven organic lasers. f, Output light intensity compared with current density for two types of perovskite lasers based on dual-cavity and single-cavity architectures, respectively. g, Simulated optical power distribution in the PeLED active area (source) in microcavity I/PeLED, with the peak power set to 100. h,i, Simulated optical power (irradiance) distributions in microcavity II, when a dual-cavity device structure featuring a microcavity top-emission PeLED sub-unit (h) and a single-cavity device structure featuring a standard bottom-emission PeLED sub-unit (i) are used. The boxed region represents the active area of the source in microcavity I. a.u., arbitrary units. Scale bar, 100 μm (g–i).

Full size image

The polarization properties of the emission from our dual-cavity perovskite laser device were measured (Fig. 3c). Below the threshold, the output intensity shows no correlation with polarization angle, suggesting the output light is unpolarized. Above the threshold, the emission from the device exhibits a clear linear polarization, consistent with the behaviour of lasing. The oriented linear polarization above the threshold possibly originates from structural asymmetry and material anisotropy39,40. Under optical pumping with a focused pump spot (about 18 µm diameter), different linear polarization configurations (for example, orientation and degree of polarization) of microcavity II were observed at different lasing spots (Supplementary Fig. 5). The orientations of linear polarization of the electrically driven lasing from our dual-cavity perovskite devices exhibit device-to-device variation (Supplementary Fig. 6), consistent with the observations in other classes of vertical-cavity lasers41,42. The moderate polarization observed probably arises from an average effect. The far-field images (Extended Data Fig. 6) of the emission beam below and above the threshold were recorded using a CCD camera. The emission beam profile shows a transition from weak diffuse luminescence to intense directional emission (with a divergence angle of about 3.7°), consistent with the transition from spontaneous emission to lasing. Together, the clear threshold (Fig. 3a), the linewidth narrowing (Fig. 3b), the polarization properties (Fig. 3c) and the beam profile (Extended Data Fig. 6) demonstrate lasing from the dual-cavity perovskite device, according to established measurement protocols43.

We measured the operational stability of our dual-cavity lasers under electrical excitation (current density 163 A cm−2, pulse width 1 μs and repetition rate 10 Hz). The T50 lifetime (the time required for the emission intensity to drop to half of the initial intensity) of the perovskite laser is 1.8 h, corresponding to 6.4 × 104 pulses (Fig. 3d). The lasing process lasted for more than 4 × 105 consecutive pulses, without any observable changes in emission peak wavelength and linewidth (Fig. 3d, inset). The results indicate that our dual-cavity perovskite lasers can offer lower thresholds and improved durability over the state-of-the-art electrically driven organic lasers9,10 (Fig. 3e).

The output power density of the microcavity PeLED sub-unit at 92 A cm−2 is 8.9 W cm−2, only slightly higher than the lasing threshold (6.6 W cm−2) of microcavity II under quasi-continuous wave optical pumping (Extended Data Fig. 7). This is consistent with the efficient coupling between the two microcavities we discussed earlier. The low lasing thresholds of microcavity II under quasi-continuous wave optical pumping are reproducible (Extended Data Fig. 7d) and are consistent with the low lasing thresholds (about 0.47 μJ cm−2) under femtosecond optical pumping and the long carrier lifetime (around 134.7 ns) at the excitation density (3.9 × 1016 cm−3) corresponding to the lasing threshold (Extended Data Fig. 8 and Supplementary Note 2). The dual-cavity perovskite device shows a much lower (around 4.7 times) minimum lasing threshold (92 A cm−2) than those based on an integrated single-cavity device featuring a standard PeLED (433 A cm−2) (Fig. 3f and Extended Data Fig. 9). The average lasing threshold of the dual-cavity perovskite devices is 129 A cm−2, with a standard deviation of 27 A cm−2. We consider that the slightly divergent emission from microcavity I may expand to form a broader beam when travelling a longer distance, potentially reducing the inter-cavity coupling efficiency and the power density for excitation44,45. This indicates the importance of the directional (less divergent) emission as well as the vertically compact (short-distance) integration, both enabled by the dual-cavity architecture. Simulation results indicate that the inter-cavity coupling efficiency improves from 17.1% (with a standard bottom-emission PeLED) to 30.2% (with a microcavity top-emission PeLED) at a relatively long coupling distance of 350 μm (Supplementary Fig. 7). This coupling efficiency is further enhanced to 82.7% by reducing the coupling distance from 350 μm to 50 μm. As a result, our microcavity PeLED sub-unit delivers substantially higher (4.84 times) optical power density to the second microcavity compared with a standard PeLED of the same power (Fig. 3g–i), consistent with the strong reduction of the lasing threshold.

Modulation properties of the perovskite laser

The modulation properties of our perovskite laser were tested using a signal transmission setup (Fig. 4a). The perovskite laser was electrically modulated by voltage pulses, generating binary (0 and 1) digital signals. The laser beam emitted from the perovskite device, electrically modulated at a given frequency, was coupled with an optical fibre (length 2 m) transmitting the optical signal. The output beam from the other end of the fibre was directed towards a high-speed silicon photodetector, whose output signals were collected by an oscilloscope. The perovskite laser shows a fast temporal response under electrical pulses (peak voltage 50 V and pulse duration 20 ns). The rise (10%–90%) and fall (90%–10%) times of the laser device were found to be 5.4 ns and 5.1 ns, respectively (Fig. 4b). The response speed of the perovskite laser is largely determined by the resistance–capacitance (RC) constant of the microcavity PeLED sub-unit46, as its spontaneous emission lifetime is only about 2 ns under intense current injection (Supplementary Fig. 8). The transient EL intensity of the devices can be simulated by varying the RC constants (Supplementary Fig. 9 and Supplementary Note 3), consistent with the lasing intensity profiles. The perovskite laser can rapidly modulate at a bandwidth of about 36.2 MHz (Fig. 4c and Extended Data Fig. 10). The fast modulation performance was achieved by reducing the active area (from 0.02 mm2 to 0.005 mm2) and by using silicon substrates, which decreased parasitic capacitance and enabled device operation under intense current densities of approaching 103 A cm−2 (Extended Data Fig. 10). Stable pulse trains can be obtained from the laser at high frequencies (for example, 30 MHz) (Fig. 4d). At present, the spontaneous emission lifetimes (about 2 ns) of the microcavity PeLED sub-units limit the modulation rates of the lasers to the sub-GHz regime, in which applications, including data transmission and device interconnects, can be expected.

Fig. 4: Frequency response of the electrically driven dual-cavity perovskite laser.
figure 4

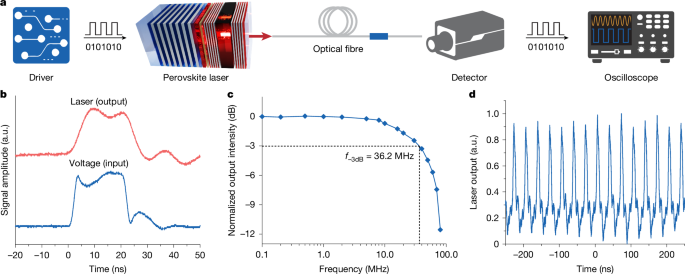

a, Schematic of the experimental setup. b, Transient profiles of the driving voltage pulses and the laser pulses (peak voltage 50 V, pulse duration 20 ns and repetition rate 100 Hz). c, Frequency response of the electrically driven dual-cavity perovskite laser. d, Output lasing pulses from a dual-cavity perovskite laser operating at 30 MHz (driving voltage 50 V and pulse width 5 ns). The measurements were performed at room temperature in air (temperature about 22 °C and relative humidity about 50%). a.u., arbitrary units.

Full size image

Conclusion

In summary, we have demonstrated electrically driven lasing from a dual-cavity perovskite device. The device is constructed by integrating a low-threshold single-crystal perovskite microcavity with a high-power microcavity PeLED, forming a vertically stacked multi-layer structure. Under pulsed electrical excitation, the dual-cavity perovskite device exhibits a minimum lasing threshold of 92 A cm−2 (average threshold: 129 A cm−2, at about 22 °C in air). This is an order of magnitude lower than the thresholds of state-of-the-art electrically driven organic lasers9,10. The defining characteristics of lasing, including thresholds (Fig. 3a), linewidth narrowing (Fig. 3b), polarization properties (Fig. 3c) and beam profiles (Extended Data Fig. 6) have been carefully examined according to the established protocols43.

A distinct feature of our perovskite laser is the integrated dual-cavity device design, which allows the microcavity PeLED sub-unit to deliver concentrated optical power into the single-crystal perovskite microcavity sub-unit (with a coupling efficiency of 82.7%) to establish the lasing action. The dual-cavity architecture reduces the lasing threshold by about 4.7 times compared with a similarly prepared single-cavity device under electrical excitation. Our perovskite laser shows a T50 lifetime of 1.8 h (6.4 × 104 voltage pulses at 10 Hz), outperforming the stability of electrically driven organic lasers9,10. The laser can be rapidly modulated at a bandwidth of 36.2 MHz. Our work addresses the challenge of achieving electrically driven lasing from perovskite semiconductors, creating a new class of light source for data transmission, photonic computation and biomedical applications.

Methods

Materials

Caesium iodide (CsI, 99.99%), molybdenum trioxide (MoO3), silicon dioxide (SiO2) and titanium dioxide (TiO2) were purchased from Sigma Aldrich. Polyethylenimine (average molecular weight 50,000, 37% solution in H2O) was purchased from J&K Scientific. Lead iodide (PbI2, 99.99%), formamidinium bromide (FABr, 99.99%) and formamidinium iodide (FAI, 99.99%) were purchased from TCI. Sulfonamide (SFA) was purchased from Macklin Biochemical. Poly(9,9-dioctylfluorene-co-N-(4-butylphenyl)-diphenylamine) (TFB) and zinc oxide (ZnO) nanocrystals (10% wt in H2O) were purchased from Xian Yuri Solar. Dimethyl sulfoxide (DMSO), gamma-butyrolactone (GBL), ethyl acetate, ethanol, isopropanol alcohol, N,N-dimethylformamide (DMF) and chlorobenzene (CB) were purchased from Aladdin. Gold pellets were purchased from Hebei Jiuyue New Material Technology. All chemicals were used as received without further purification.

Preparation of perovskite precursor solution

The Cs0.5FA0.5PbI2Br precursor solution was prepared by dissolving CsI, PbI2, FABr and SFA in DMF with a molar ratio of 0.5:1:0.5:0.06. The concentration of Pb2+ in the precursor solution was 0.11 mol l−1. For single-crystal growth, FAI and PbI2 in different molar ratios were fully dissolved in a mixed solvent of GBL/DMSO (volume ratio 4:1) to obtain a 1.2 M perovskite precursor solution. The precursor solution was stirred at room temperature in an N2-filled glovebox for about 2 h. The solution was filtered with polytetrafluoroethylene filters (0.22 μm) before use.

Fabrication of DBRs

Alternating layers of silicon dioxide (SiO2, n = 1.478) and titanium nitride (TiO2, n = 2.498) were deposited onto glass substrates to form DBRs, using an e-beam evaporator with its chamber enclosed in a nitrogen glovebox. DBR1 in microcavity I was targeted for high reflectance in the 450–750 nm wavelength range, so that the emission at about 680 nm could be reflected and directed towards the semi-transparent Au electrode. DBR1 consists of approximately 30 pairs of SiO2/TiO2, with the thicknesses controlled to be 115 nm and 68 nm for each pair of SiO2 and TiO2 layers, respectively. DBR2 in microcavity II showed high reflectance (>98%) at 750–1,000 nm and high transmittance (>90%) below 680 nm. To fabricate DBR2, about 20 pairs of SiO2/TiO2 were deposited, with thicknesses controlled to be 142 nm and 85 nm for each pair of SiO2 and TiO2 layers, respectively. DBR3 in microcavity II may share the same design as DBR2 in unoptimized devices. In optimized devices, DBR3 is redesigned to feature high reflectance (>98%) at 620–870 nm. To fabricate the optimized DBR3, about 20 pairs of SiO2/TiO2 were deposited, with thicknesses controlled to be 125 nm and 75 nm for each pair of SiO2 and TiO2 layers, respectively.

Fabrication of the single-crystal perovskite microcavity

Gold stripes (thickness about 0.2 μm) were evaporated onto the two edges of the DBR as a spacer. A pair of DBR and glass was pressed against each other and bonded together by a clip to form empty channels. A drop of FAPbI3 perovskite precursor solution (5 μl) was then injected from the edge of the DBR/glass pair, penetrating the channels because of capillary force. The growth of the FAPbI3 perovskite single crystals was completed in an N2-filled glovebox. The annealing temperature for the samples was gradually increased from 60 °C to 130 °C at a rate of 2 °C min−1, then kept at 130 °C for 12 h. Finally, the temperature of the samples was gradually cooled down to room temperature. The total duration of the crystal growth was about 2 days. The glass substrate was removed using a thin razor blade. The FAPbI3 single crystal on DBR was then transferred into an e-beam evaporator for depositing another DBR on top of the single crystal, completing the fabrication of microcavity II. The optimum thickness of the FAPbI3 single crystals was found to be about 180 nm.

Fabrication of the integrated dual-cavity perovskite lasers

The DBR/glass substrates were sequentially cleaned using deionized water, acetone and isopropanol under ultrasonication. The substrates were dried with a nitrogen blowgun and exposed to UV–ozone for 15 min before use. ZnO nanoparticles were subjected to spin-coating onto the DBR substrates at 5,000 rpm for 45 s and then annealed at 150 °C for 10 min. Subsequently, a PEIE solution (0.04 wt% in isopropanol) was subjected to spin-coating on top of the ZnO layer at 5,000 rpm for 45 s, followed by annealing at 100 °C for 10 min. After cooling down to the ambient temperature, the samples were transferred into an N2-filled glovebox. The perovskite precursor solution was subjected to spin-coating onto the PEIE-coated ZnO substrates at 5,000 rpm for 60 s, followed by annealing at 100 °C for 10 min. Next, a TFB solution (12 mg ml−1 in chlorobenzene) was subjected to spin-coating at 4,000 rpm for 45 s. Subsequently, 7 nm of MoOx and 20 nm of Au were sequentially evaporated through a shadow mask under a high vacuum to form the semi-transparent electrode. The top surface of the resultant microcavity PeLED (microcavity I) was covered by UV epoxy (NOA 81). Following this step, microcavity II containing the FAPbI3 single crystal was placed on top of microcavity I, with the single crystal positioned on top of the overlapping area of ITO and Au. The device was then exposed to UV light for 30 s to form a reliable bond between the two microcavities, completing the integration process.

Surface morphology measurements for perovskite single crystals

The surface morphology of the perovskite single crystals was inspected using a field emission scanning electron microscope (Hitachi, SU70 SEM). The surface roughness of the samples was characterized using an atomic force microscope (Bruker, Multimode-8) under the tapping mode. The thickness of perovskite single crystals was measured using a stylus profilometer (Bruker, DektakXT).

Scanning transmission electron microscopy experiments

A spherical aberration-corrected scanning transmission electron microscope (FEI, Titan ChemiSTEM) was used for collecting the cross-sectional images of the integrated dual-cavity laser devices. The samples for HAADF-STEM measurements were prepared using a dual-beam focused-ion-beam system (Quata 3D FEG).

XRD measurements

The standard XRD measurements of the samples were performed using Shimadzu XRD 7000 with Cu Kα1,2 radiation (λ = 1.541 Å). The measurements were performed at a continuous mode with a scan range of 10° < 2θ < 60° and a scan speed of 5° min−1. The 2D diffraction images were collected using a single-crystal X-ray diffractometer with a 2D detector (D8 Venture, Bruker). The powders scratched from the single crystals were placed on a quartz substrate. The monochromatic X-ray beam was focused onto the powders. The Bragg reflections were detected using a MAR-165 charge-coupled device detector with an exposure time of 60 s.

Photoluminescence and optical reflection measurements

A 405-nm continuous wave laser was used to excite the FAPbI3 single crystals and the Cs0.5FA0.5PbI2Br polycrystalline films. The photoluminescence spectra were obtained by a high-sensitivity spectrometer (QE-Pro, Ocean Optics). The reflectance of the DBRs was measured by a custom-built setup. The white light from a halogen lamp was incident normally on the DBRs through one of the ports on a Y-type fibre. The reflected light was collected through another port on the Y-type fibre and directed into a spectrometer (USB 4000, Ocean Optics). An aluminium mirror was used as the reference sample for optical reflection.

Characterization of microcavity PeLEDs under d.c. and pulsed operations

For d.c. operation, the microcavity PeLEDs were driven by a computer-controlled source meter (Keithley 2450). The voltage was swept from 1 V to 7 V at a rate of 0.2 V per step. Simultaneously, the EL emitted from the microcavity PeLED through the semi-transparent Au electrode was measured using a calibrated photodetector (819D-SL-2-CAL, Newport) in an integrating sphere, with a silicon photodiode used in conjunction with a computer-controlled optical power meter (Newport 1936-R). The EL spectra of the PeLEDs were measured using a fibre-coupled spectrometer (QE-Pro, Ocean Optics) on another port of the integration sphere. The EQE was obtained by dividing the total number of emitted photons by the total number of injected electrons per unit time. The measurements were performed in the dark under ambient conditions.

For pulsed operation, a pulse generator (AVTECH 1010-B) was used to provide voltage pulses (pulse width 1 μs, repetition rate 100 Hz) with a d.c. offset bias of 1.7 V. The emitted optical power from the devices was measured using a silicon photodiode (FDS1010, Thorlabs). The photodiode was connected to a custom-built large-bandwidth transimpedance amplifier. The amplified signal was then sent to an oscilloscope (MDO34, Tektronix) to obtain the average optical power output based on the responsivity of the photodiode. To measure the transient profiles, the PeLED was connected in series with a 2-ohm resistor. The transient voltage signal on the resistor was amplified by a voltage amplifier (FEMTO DHPVA-101) and collected by the oscilloscope. The transient current signal was obtained by dividing the voltage by the resistance.

Characterization of angular emission profiles of PeLEDs

To measure the angular emission profiles, the PeLED was positioned at the centre of a rotational stage, with a fibre-coupled spectrometer (QE-Pro, Ocean Optics) placed at a fixed distance. The EL spectra at different angles were measured while rotating the stage.

Optically pumped lasing experiments

Microcavity II was pumped by 1-µs optical pulses from a modulated 405-nm continuous wave laser at a repetition rate of 10 Hz. The continuous wave laser was synchronized with an arbitrary-wave generator, which produced square waves with an amplitude of 5 V. The excitation beam was directed through a tunable neutral density filter (Thorlabs, NDC-50C-2M-B) to adjust the excitation intensity. A small fraction of the beam was directed onto a photodiode (Thorlabs, DET110) for pump power monitoring. The rest of the beam was directed into an inverted microscope and then focused onto the sample through a 50× objective, producing a spot size of around 18 μm. The output emission from the laser was measured using a fibre-coupled spectrometer (Maya 2000, Ocean Optics) with a spectral resolution of 0.08 nm. The measurements were performed under ambient conditions (temperature about 22 °C; relative humidity about 50%). For the femtosecond laser-pumped lasing, the optical excitation (400 nm; pulse duration around 270 fs; repetition rate 50 kHz) was generated using an optical parametric amplifier (Orpheus-F, Light Conversion) pumped by a 1,030 nm Yb:KGW laser (Pharos, Light Conversion).

Characterization of electrically driven lasing

The dual-cavity perovskite device was driven by a pulse generator (AVTECH 1010-B). The output emission from the dual-cavity laser was measured using a high-resolution fibre-coupled spectrometer (Maya 2000, Ocean Optics). Different current densities were obtained by adjusting the amplitude of the voltage pulses. The far-field emission beams were captured using a high-resolution beam profiler CCD camera (Thorlabs, BC207VIS). The polarization properties of the emission were characterized based on the emission intensities measured through a rotatable linear-polarizer plate. For the stability measurements, the laser device was driven by voltage pulses (peak current density 163 A cm−2, pulse duration: 1 μs and repetition rate 10 Hz), with the output emission continuously measured using a fibre-coupled spectrometer (Maya 2000, Ocean Optics) with a spectral resolution of 0.08 nm. The measurements were performed under ambient conditions (temperature about 22 °C; relative humidity around 50%).

Simulation of optical power distribution

The optical simulation was carried out using the commercial software LightTools. The optical power (irradiance) distribution at the plane of the perovskite single crystal (in microcavity II) was simulated for both single-cavity bottom-emission and dual-cavity top-emission devices. During the simulation, 2D receivers were placed at the plane of the PeLED active area (serving as the excitation source) and the perovskite single crystal within microcavity II. The PeLED active area was regarded as an assembly of numerous point-light sources and was partitioned into 1 μm × 1 μm sections. The output irradiance was normalized to a value of 100. For each point source, either a Lambertian profile or a microcavity angular profile was assigned as the angular emission profile. The optical power reaching the 2D receiver at the plane of the single-crystal layer was computed. Subsequently, all the fractional optical power was integrated for each position to obtain the overall distribution.

Frequency-response measurements

The dual-cavity laser device was driven by a square-wave voltage signal with various frequencies, supplied by an arbitrary-wave generator. The output emission from the device was directed to a fibre-coupled avalanche photodetector (Thorlabs, APD430A2/M). The signal was fed into an oscilloscope (MDO34, Tektronix). The amplitudes of the signals were recorded at different frequencies. The 3 dB frequency or the bandwidth corresponding to the frequency at which the amplitude drops to half of its original value. The frequency-response characteristics of the integrated laser were measured similarly, but driven by a low duty-cycle (10%) pulse train.
