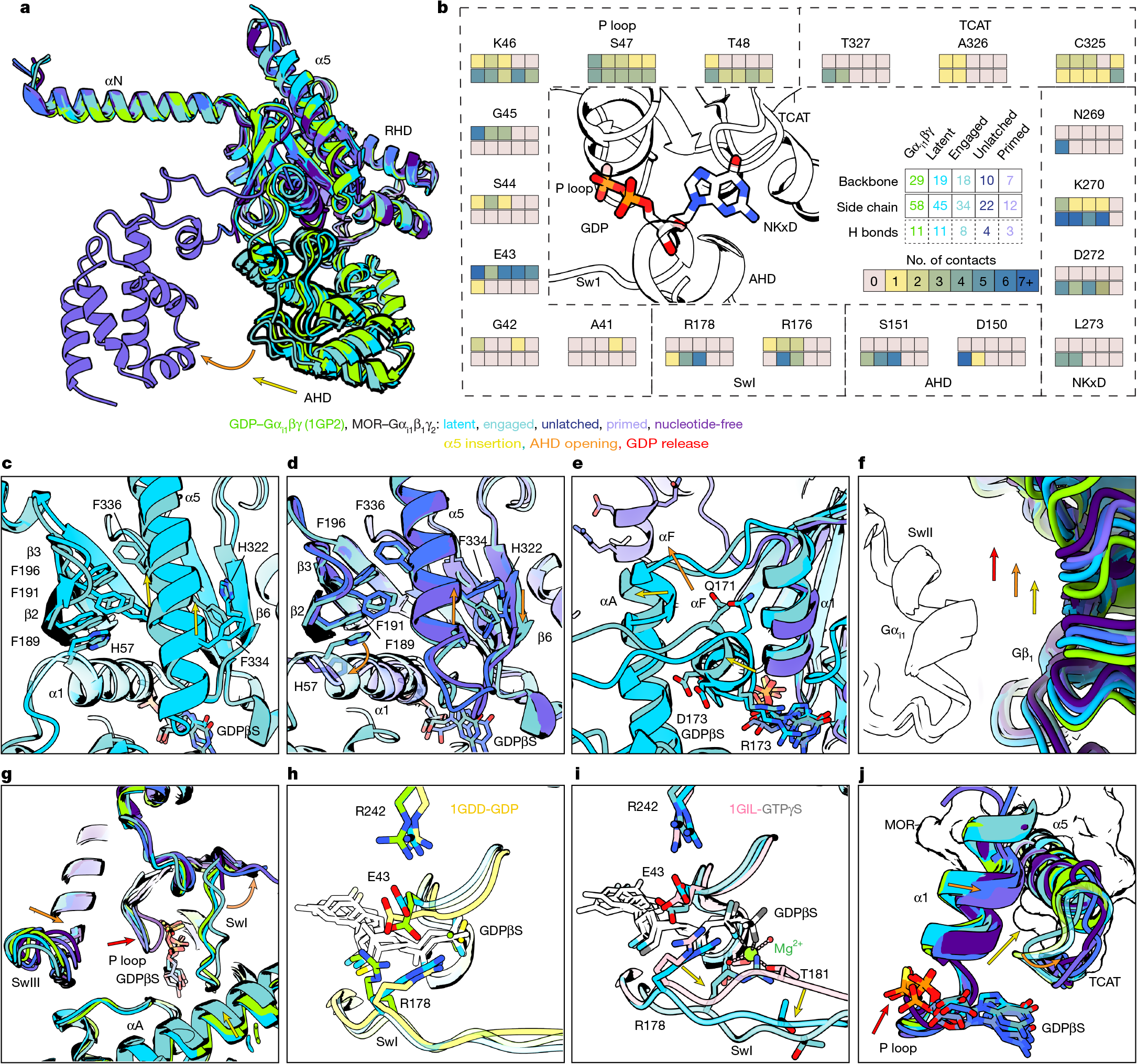

Fig. 3: Comparison of Gα_i1 and its nucleotide-binding pocket across conformational states preceding GDP release.
