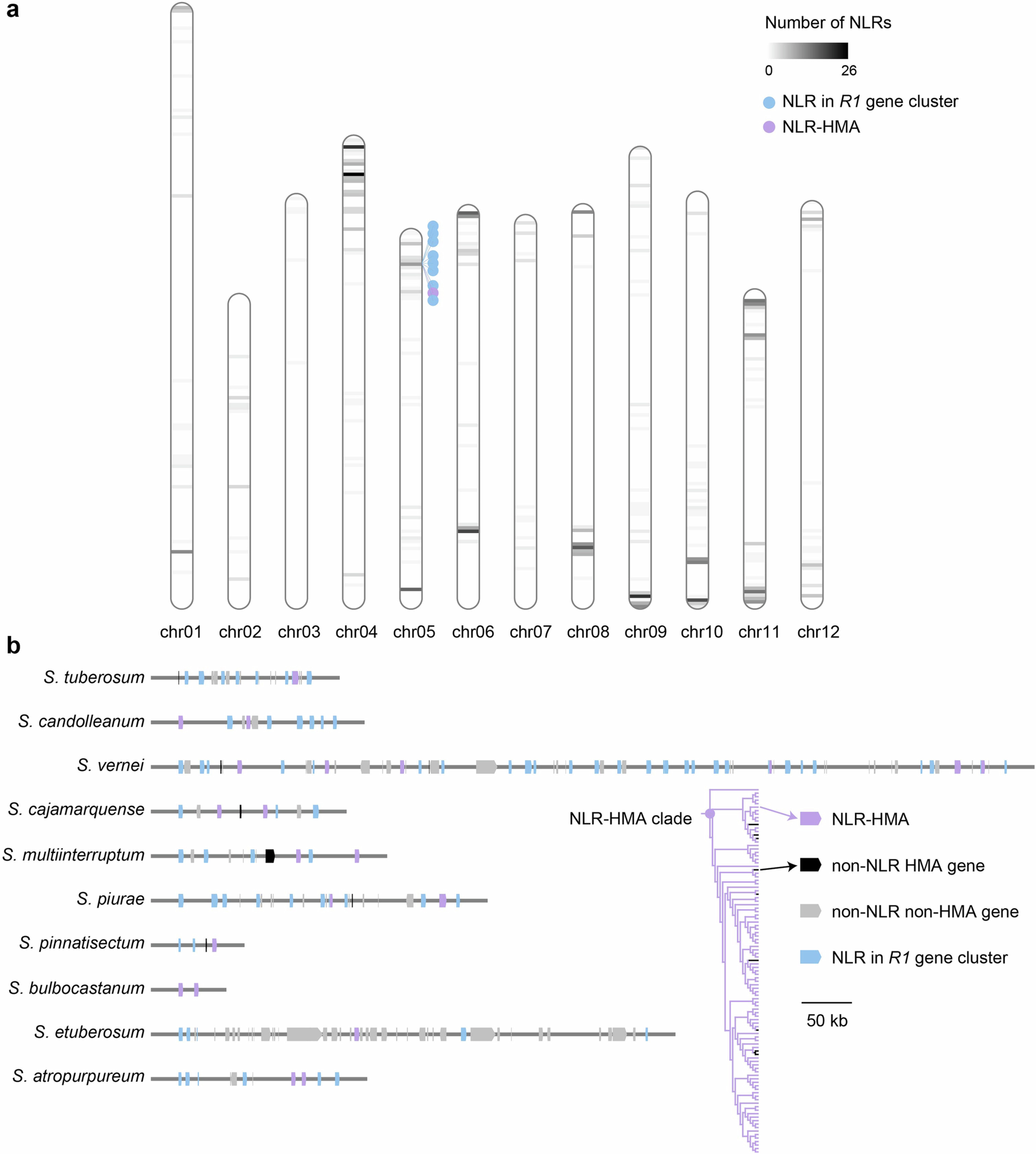

Extended Data Fig. 9: Genomic distribution of NLR-HMA and related genes.
From: Plug-in strategy for resistance engineering inspired by potato NLRome
a, Distribution of NLRs in the R1 gene cluster and NLR-HMA in the potato DM reference genome, with a window length of 500 kb. b, Genomic coordinates of genes surrounding the R1 gene cluster in 8 wild and cultivated potato species and 2 Solanum wild species.
