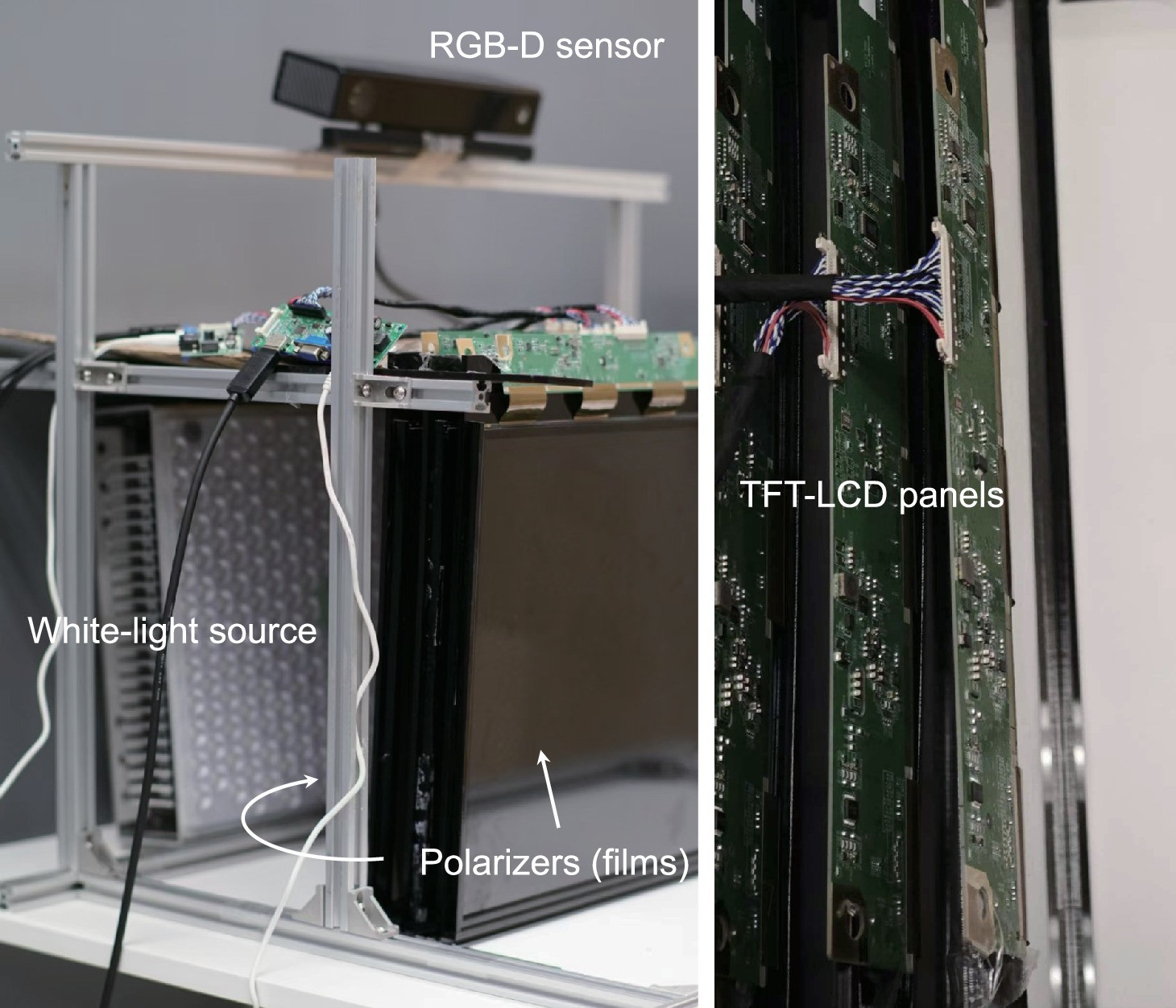

Extended Data Fig. 7: The physical device of autostereoscopic display prototype.
From: Glasses-free 3D display with ultrawide viewing range using deep learning
The white-light source is an LED array enclosed within the device, and orthogonal polarizer films are applied to on the front of the top screen and the back of the bottom screen in the LCD-panel stack.
